Siemens 6FX8002-5DA05-1BA0 | SINUMERIK Signal Cable Module for CNC Systems

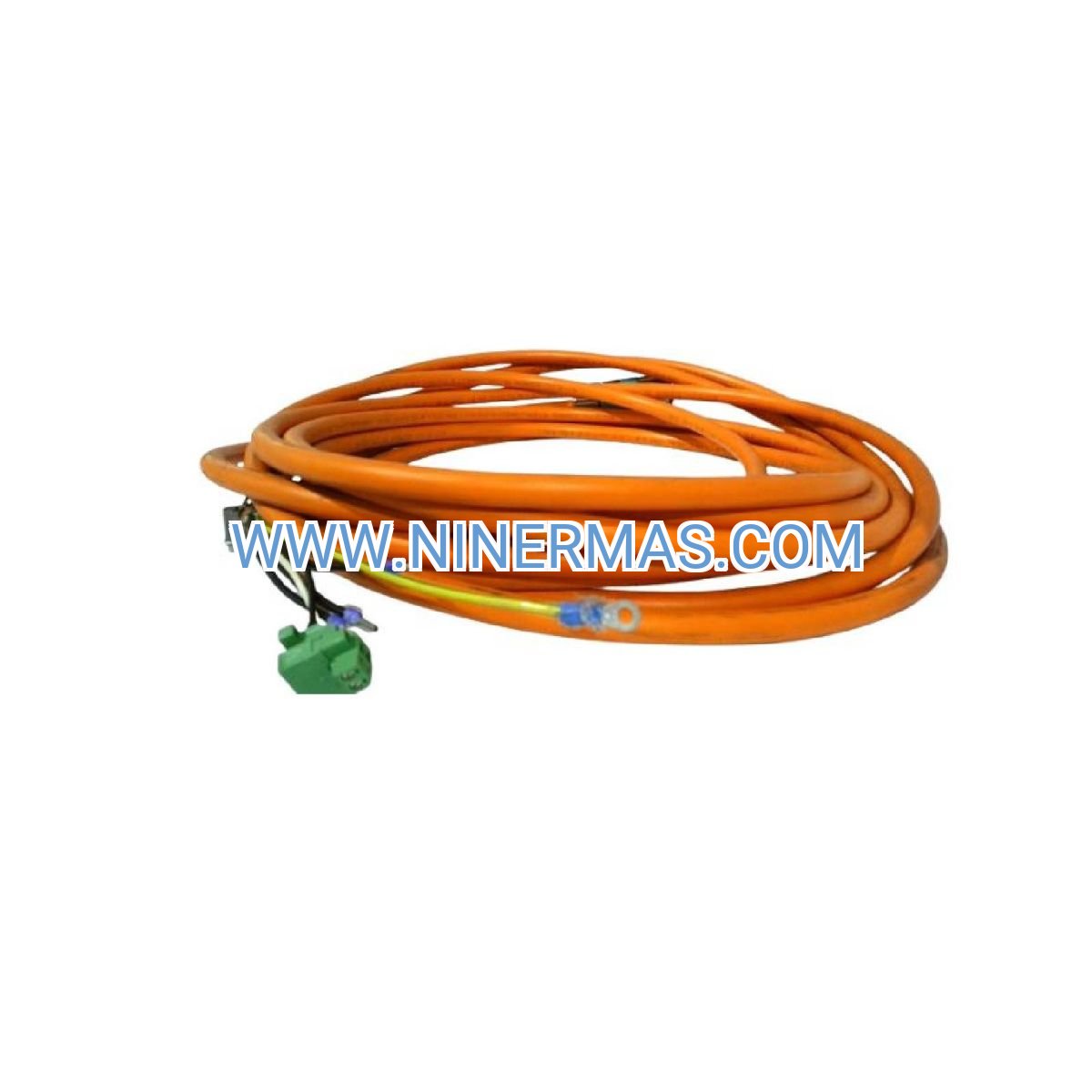

Siemens 6FX8002-5DA05-1BA0 SINUMERIK Signal Cable Connection Module (Industrial-Grade CNC Interface Solution)

The Siemens 6FX8002-5DA05-1BA0 is a precision-engineered signal cable connection module designed for SINUMERIK CNC control systems. Through standardized interface architecture and robust signal transmission technology, it ensures reliable data exchange between CNC controllers, servo drives, and peripheral devices in demanding industrial environments.

Ideal for CNC machining centers, turning centers, multi-axis milling systems, and automated production lines across metalworking, aerospace component manufacturing, mold & die shops, and precision engineering facilities. This module addresses critical challenges including signal integrity degradation, electromagnetic interference (EMI), connection failures under vibration, and time-consuming troubleshooting during system integration or retrofits.

Leveraging Siemens' proven design standards and compatibility with SINUMERIK 840D/828D/808D platforms, the 6FX8002-5DA05-1BA0 delivers plug-and-play installation, long-term operational stability, and simplified maintenance. Suitable for machine tool OEMs, system integrators, automation engineers, and end-user manufacturing facilities. Contact our technical team for compatibility verification, wiring diagrams, and quotation assistance.

Core Features & Technical Advantages

• High-Fidelity Signal Transmission
  Engineered with shielded cable architecture and precision connectors to maintain signal integrity across extended cable runs, minimizing data errors and ensuring accurate position feedback in high-speed machining operations.
• Industrial-Grade Durability
  Built to withstand mechanical vibration, temperature fluctuations (-10°C to +55°C operating range), and electrical noise typical in machine shop environments, reducing unplanned downtime and maintenance frequency.
• Seamless SINUMERIK Integration
  Factory-tested for compatibility with SINUMERIK 840D sl, 828D, and 808D Advanced controllers, enabling rapid commissioning and reducing integration risk during new installations or system upgrades.
• Standardized Interface Design
  Conforms to Siemens connection specifications with clearly labeled pin assignments, simplifying installation, reducing wiring errors, and accelerating troubleshooting during service calls.
• Comprehensive Protection Features
  Incorporates EMI shielding, strain relief, and connector locking mechanisms to prevent accidental disconnection, signal crosstalk, and cable damage during machine operation or maintenance activities.
• Flexible Configuration Options
  Supports multiple cable lengths and connector variants to accommodate diverse machine layouts, from compact turning centers to large-format gantry mills, without requiring custom cable fabrication.

Typical Application Scenarios

This signal cable connection module is engineered for applications demanding uncompromising signal reliability and system uptime, particularly in:

• CNC Machining Centers & Turning Centers
  Ensures stable communication between SINUMERIK controllers and servo amplifiers in 3-axis, 4-axis, and 5-axis machining systems, supporting precision tolerances and complex toolpath execution in aerospace and automotive part production.
• Multi-Axis Milling & Grinding Systems
  Facilitates synchronized motion control across multiple axes in high-precision grinding machines, jig borers, and EDM equipment, where signal latency or noise can compromise surface finish and dimensional accuracy.
• Automated Production Lines & Robotic Cells
  Provides reliable interface connectivity in integrated manufacturing systems combining CNC machines with robotic loading/unloading, automated inspection, and MES data collection, reducing integration complexity and system commissioning time.
• Machine Tool Retrofits & Upgrades
  Enables seamless replacement of legacy signal cables during SINUMERIK controller upgrades or machine rebuilds, minimizing downtime and ensuring compatibility with modern drive systems and I/O modules.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the following specifications are provided for design reference and procurement planning. Custom cable lengths and connector configurations are available upon request.

Selection Recommendations: When specifying this module, consider the following factors: physical distance between controller and drive units, cabinet layout and cable routing paths, ambient temperature and vibration levels, existing SINUMERIK system version and firmware release, and availability of spare parts inventory. For technical assistance, provide machine model, SINUMERIK controller type, drive amplifier part numbers, and installation environment details. Our application engineers will recommend the appropriate cable module and provide certified wiring diagrams.

Extended Capabilities & System Integration

• Multi-Vendor Compatibility: While optimized for Siemens SINUMERIK systems, this module can interface with select third-party servo drives and I/O systems when used with appropriate signal converters and configuration software.
• Diagnostic Support: Compatible with SINUMERIK diagnostic tools for real-time signal monitoring, cable continuity testing, and fault isolation, reducing mean time to repair (MTTR) during troubleshooting.
• Documentation Package: Each module ships with detailed connection diagrams, pin assignment tables, and installation guidelines in multiple languages, facilitating rapid commissioning by field service technicians.
• Spare Parts Strategy: Recommended for inclusion in critical spare parts inventory for facilities operating multiple SINUMERIK-equipped machines, minimizing production interruptions due to cable failures.

Delivery, Warranty & Technical Support

Lead Time: Standard catalog items typically ship within 3–7 business days from stock. Custom cable configurations may require 10–15 business days for manufacturing and quality testing.

Warranty Coverage: All modules include a 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty and service agreements are available for mission-critical applications.

Installation & Commissioning: Remote technical support is provided at no charge for standard installations. On-site commissioning assistance and system integration services are available on a project basis (subject to location and scope).

Technical Documentation: Complete package includes electrical schematic diagrams, connector pinout tables, cable routing guidelines, EMC installation best practices, and compatibility matrices for SINUMERIK controller families. All documentation is provided in PDF format with searchable text for easy reference.

Frequently Asked Questions (FAQ)

Q: How do I verify compatibility between the 6FX8002-5DA05-1BA0 signal cable module and my existing SINUMERIK CNC system?
A: Compatibility depends on your SINUMERIK controller model (840D sl, 828D, 808D) and firmware version. Provide your controller part number and software release, and our engineers will confirm compatibility and recommend any required firmware updates or adapter components.

Q: What is the maximum cable length supported without signal degradation or the need for repeaters?
A: Standard modules support cable runs up to the length specified in the product datasheet (typically 5–10 meters for signal cables). For longer distances, signal amplifiers or fiber-optic converters may be required. Consult our technical team with your machine layout for specific recommendations.

Q: Can this module be used in retrofit projects to replace non-Siemens signal cables?
A: Yes, the 6FX8002-5DA05-1BA0 is commonly used in retrofit and upgrade projects. However, connector compatibility and signal pinout must be verified. We recommend a pre-installation audit to identify any required adapters or wiring modifications.

Q: What environmental protection rating does this module provide, and is it suitable for harsh machining environments?
A: The module is rated IP20, designed for installation within enclosed control cabinets. For applications with exposure to coolant, metal chips, or outdoor conditions, additional protective enclosures or sealed cable glands are recommended.

Q: Does the module support remote diagnostics and condition monitoring via SINUMERIK Integrate or other IoT platforms?
A: The module itself is a passive signal interface component. However, when connected to SINUMERIK controllers with Integrate Run MyCC or Analyze MyCondition software, system-level diagnostics including signal quality monitoring and predictive maintenance alerts are available.

Q: Are bulk discounts or volume pricing available for OEMs or system integrators purchasing multiple units?
A: Yes, volume pricing and OEM partnership programs are available for qualified customers. Contact our sales team with your annual volume forecast and application details for customized quotation and technical support packages.

Request Technical Support & Quotation

To receive a detailed compatibility assessment, certified wiring diagrams, or project-specific pricing, please provide the following information:

• Machine tool manufacturer and model designation
• SINUMERIK controller type and software version
• Servo drive amplifier part numbers and quantity
• Required cable length and routing constraints
• Installation environment (temperature, vibration, EMI sources)
• Project timeline and delivery location

Our application engineering team will respond within 24 hours with tailored recommendations, technical documentation, and commercial quotation. For urgent inquiries, direct phone support is available during business hours.
