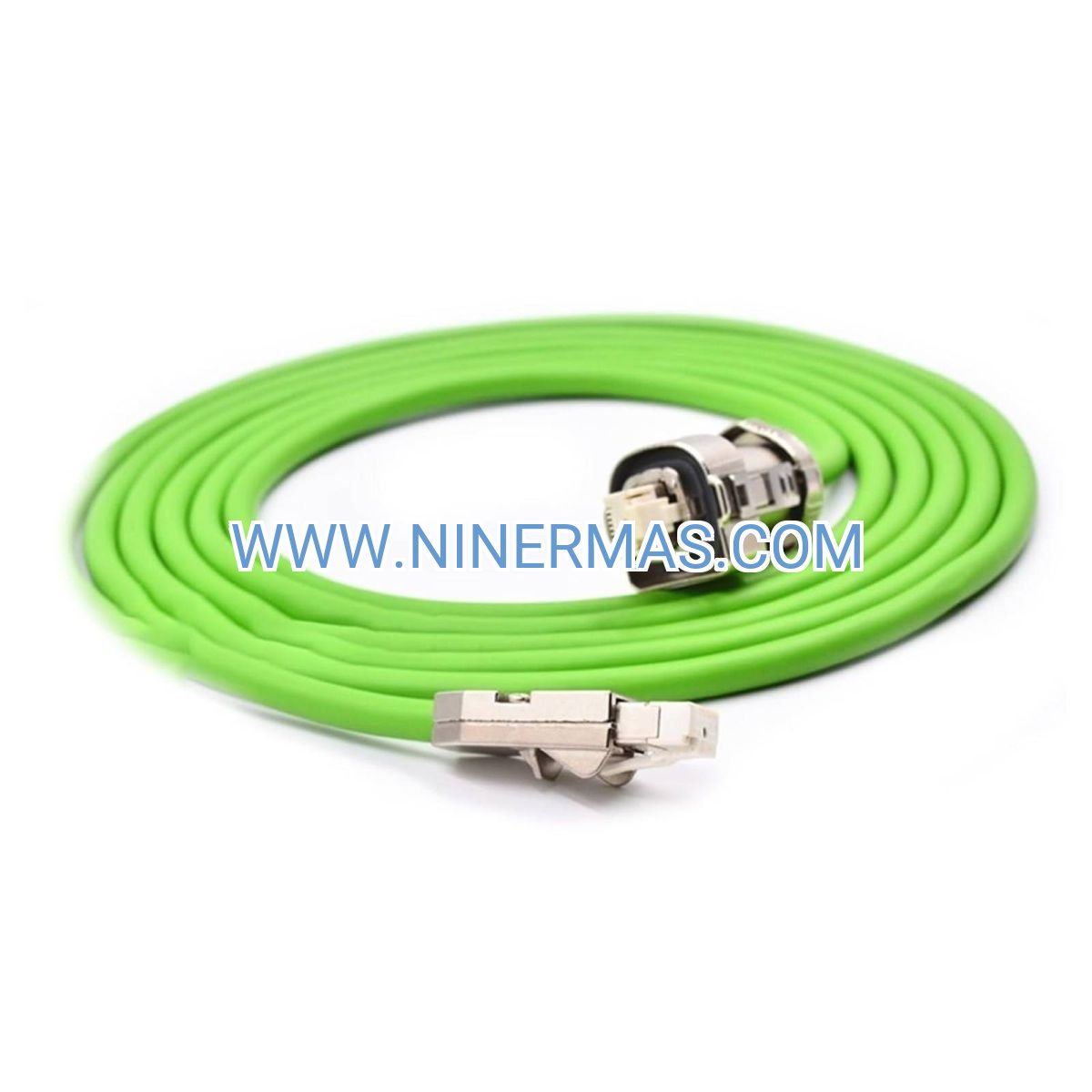

Siemens 6FX8002-2DC10-1BA0 DRIVE-CLiQ Cable | 10m Motion-Connect 800 PLUS Signal Cable for SINAMICS

Siemens 6FX8002-2DC10-1BA0 DRIVE-CLiQ Signal Cable (Industrial-Grade Motion Control Solution)

The Siemens 6FX8002-2DC10-1BA0 is a premium Motion-Connect 800 PLUS preassembled signal cable designed specifically for DRIVE-CLiQ communication in SINAMICS drive systems. Through high-speed digital signal transmission and robust RJ45 connector technology, this cable ensures reliable data exchange between drive controllers, motor modules, and sensor modules with minimal signal degradation.

Ideal for precision motion control applications including CNC machine tools, robotics systems, packaging machinery, and automated production lines. This cable solves critical challenges such as electromagnetic interference in industrial environments, connector reliability under vibration, installation complexity in tight spaces, and long-term signal integrity in continuous operation scenarios.

With standardized 10-meter length and IP20/IP67 dual protection ratings, this product offers plug-and-play installation, excellent EMC performance, flexible routing capability, and maintenance-free operation. Suitable for automation engineers, system integrators, OEM manufacturers, and plant maintenance teams requiring certified Siemens quality. Contact our technical team for application guidance and compatibility verification.

Core Features & Technical Advantages

• High-Speed DRIVE-CLiQ Protocol Support
  Engineered for Siemens proprietary DRIVE-CLiQ communication standard, enabling real-time data transmission up to 100 Mbit/s between drive components, ensuring precise synchronization for multi-axis motion control applications.

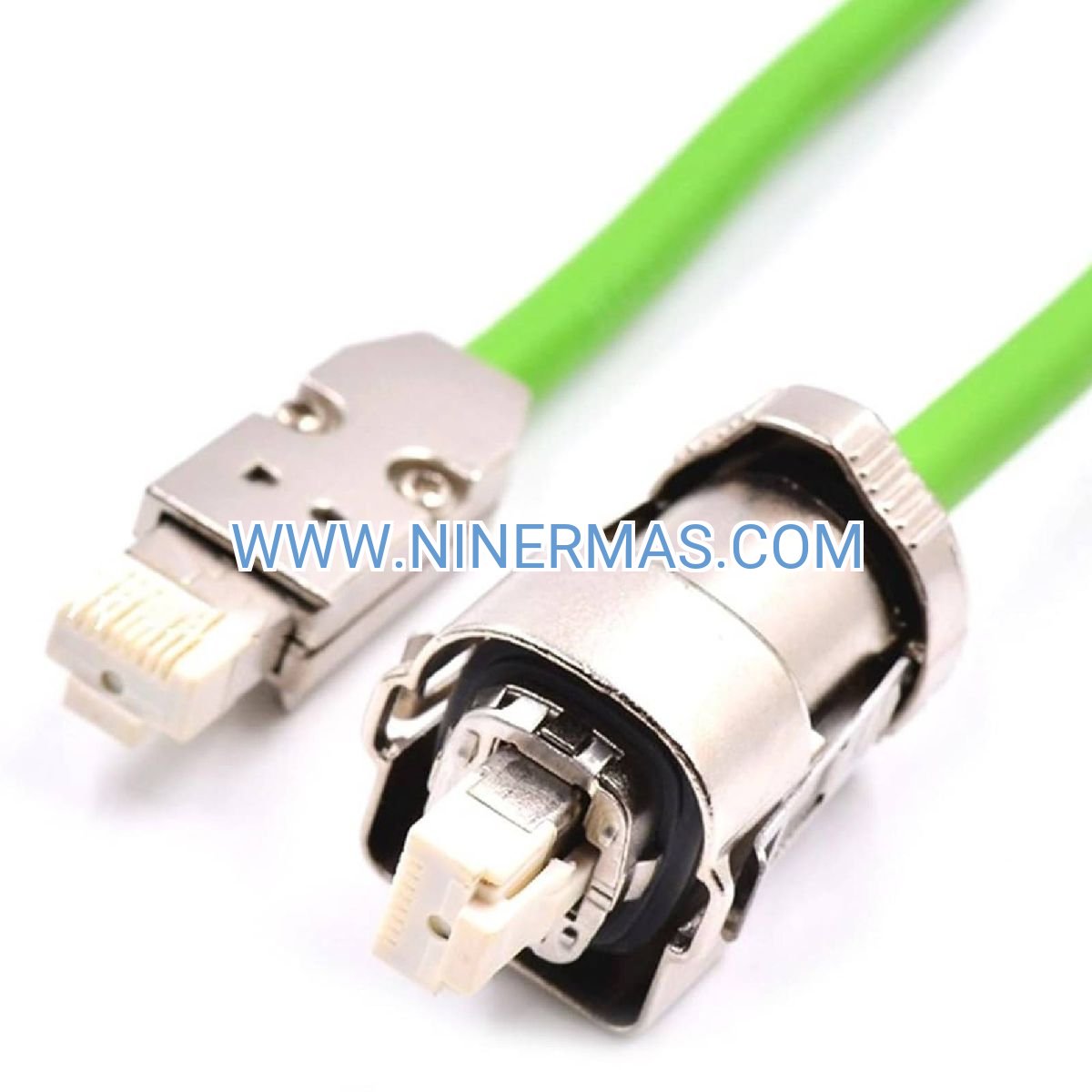

• Preassembled RJ45 Connectors with Dual IP Rating
  Factory-terminated with industrial-grade RJ45 connectors featuring IP20 rating for control cabinet environments and optional IP67 protection for field-side connections, eliminating on-site termination errors and reducing installation time by approximately 60%.
• Enhanced EMC Shielding Performance
  Incorporates 360-degree braided shielding and twisted-pair conductor design, providing superior immunity against electromagnetic interference from VFDs, motors, and welding equipment commonly found in industrial settings.
• Flexible Cable Construction for Complex Routing
  PUR (polyurethane) outer jacket with minimum bending radius of 7.5× cable diameter allows installation through cable trays, drag chains, and confined spaces without compromising signal quality or mechanical durability.
• Extended Operating Temperature Range
  Rated for -5°C to +80°C ambient temperature (stationary installation) and -25°C to +80°C (flexing applications), suitable for harsh industrial environments including metalworking, automotive manufacturing, and outdoor installations.
• Certified Siemens Original Component
  Manufactured under Siemens quality standards with full traceability, ensuring 100% compatibility with SINAMICS S120, S210, G120, and other DRIVE-CLiQ enabled devices, backed by comprehensive technical documentation and global support network.

Typical Application Scenarios

This DRIVE-CLiQ signal cable is engineered for demanding motion control systems requiring high reliability and precise signal transmission:

• CNC Machine Tools & Metalworking Centers
  Connects SINAMICS S120 servo drives to CU320-2 control units in multi-axis machining centers, lathes, and grinding machines, ensuring microsecond-level synchronization for complex tool path execution and spindle positioning accuracy within ±0.001mm.
• Robotic Systems & Automated Assembly Lines
  Provides reliable communication between robot controllers and servo amplifiers in pick-and-place systems, welding robots, and collaborative robot (cobot) installations, supporting cycle times below 0.5 seconds with repeatable positioning performance.
• Packaging & Material Handling Equipment
  Enables coordinated motion control in high-speed packaging lines, conveyor systems, and palletizing robots where multiple axes must operate in electronic gearing or cam profile modes, handling production rates exceeding 300 units per minute.
• Printing & Converting Machinery
  Facilitates precise web tension control and registration accuracy in flexographic presses, label converters, and coating machines through real-time encoder feedback and torque coordination across multiple drive zones.
• Textile & Fiber Production Systems
  Supports synchronized drive operation in spinning frames, weaving looms, and winding machines where shaft alignment accuracy and speed ratio maintenance are critical for product quality and process efficiency.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, please review the following technical parameters:

Selection Recommendations:

When selecting DRIVE-CLiQ cables, consider the following factors: physical distance between drive components (available in 0.5m to 50m lengths), installation environment (stationary vs. continuous flexing in drag chains), required IP protection level, ambient temperature range, and cable routing constraints. For applications requiring lengths beyond 10 meters or custom configurations, consult with our application engineers who can recommend appropriate cable variants or signal repeater solutions.

Standard cable lengths available: 0.5m, 1m, 2m, 5m, 10m, 15m, 20m, 25m, 30m, 40m, 50m. For drag chain applications exceeding 1 million flex cycles, specify Motion-Connect 800 PLUS C-series variants with enhanced mechanical durability.

System Integration & Compatibility

This DRIVE-CLiQ cable seamlessly integrates with the following Siemens automation ecosystem components:

• SINAMICS Drive Systems: S120 Combi/Chassis/Booksize, S210, S150, G120 (CU250S-2 PN with DRIVE-CLiQ)
• Control Units: CU320-2 PN/DP, CU310-2 PN/DP, CU305 PN
• Motor Modules: Single Motor Module (SMM), Double Motor Module (DMM), Active Line Module (ALM)
• Sensor Modules: SMC20, SMC30, SME120, SME125 encoder interfaces
• Terminal Modules: TM15, TM31, TM41, TM54F digital/analog I/O expansion
• Safety Integration: Compatible with SINAMICS Safety Integrated functions when used with certified safety modules

The cable supports daisy-chain topology allowing up to 6 DRIVE-CLiQ components per line with automatic component recognition and configuration through STARTER or TIA Portal commissioning software.

Installation Guidelines & Best Practices

• Cable Routing: Maintain minimum separation of 200mm from power cables carrying >2kW. Use separate cable trays or shielded conduit when parallel routing is unavoidable.
• Connector Handling: Ensure RJ45 latch engagement with audible click. For IP67 connections, verify sealing cap is properly threaded and O-ring is undamaged.
• Shielding Termination: Connect cable shield to drive chassis ground using 360-degree clamp or backshell connector at both ends for optimal EMC performance.
• Bend Radius Compliance: Avoid sharp bends below specified minimum radius. Use cable support brackets every 300-500mm in vertical runs.
• Drag Chain Installation: For continuous flexing applications, use unsupported cable length ≤1m between fixed points, maintain neutral axis positioning, and avoid torsional stress.

Quality Assurance & Service Support

Delivery & Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom length configurations require 10-15 business days manufacturing lead time.

Warranty Coverage: All Siemens Motion-Connect cables include 12-month manufacturer warranty covering material defects and workmanship under normal operating conditions as specified in product documentation.

Technical Documentation: Each cable shipment includes product datasheet, installation instructions, and compliance certificates (CE, UL, cULus where applicable). Complete technical manuals, CAD drawings (STEP/IGES), and EPLAN macros available for download from Siemens Industry Online Support portal.

Installation & Commissioning Support: Remote technical consultation available via phone/email. On-site commissioning assistance and system integration services can be arranged through authorized Siemens Solution Partners (subject to location and project scope).

Frequently Asked Questions (FAQ)

Q: How do I verify compatibility between this DRIVE-CLiQ cable and my existing SINAMICS drive system?
A: Check your drive control unit model number - any SINAMICS unit with RJ45 DRIVE-CLiQ ports (typically labeled X100, X101, etc.) is compatible. Refer to your drive's hardware manual Section 3 "Interfaces" or use the Siemens Product Configurator tool (SIZER) to validate component compatibility. Our technical team can also perform compatibility verification if you provide your drive system configuration.

Q: What is the maximum number of DRIVE-CLiQ cables that can be daisy-chained in a single drive system?
A: A single DRIVE-CLiQ line supports up to 6 components with maximum total cable length of 100 meters. For larger systems, use multiple DRIVE-CLiQ lines from the control unit or implement DRIVE-CLiQ Hub (DMC20) to expand topology. Each CU320-2 control unit provides 4-6 independent DRIVE-CLiQ ports depending on variant.

Q: Can this cable be used in outdoor installations or washdown environments?
A: The IP67-rated connector end is suitable for temporary outdoor exposure and splash/dust environments when properly mated and sealed. For permanent outdoor installation or high-pressure washdown (IP69K), consider Motion-Connect 800 PLUS Food & Beverage series with stainless steel connectors and FDA-compliant materials. Operating temperature range must also be verified against site conditions.

Q: What is the expected service life in continuous flexing applications like robot arms or gantry systems?
A: Standard Motion-Connect 800 PLUS cables are rated for >1 million flex cycles at specified bending radius and travel speed ≤3 m/s. For high-duty applications (>5 million cycles) or higher speeds, upgrade to Motion-Connect 800 PLUS C-series with reinforced conductor stranding and enhanced jacket formulation. Actual service life depends on installation parameters - consult our application engineering team for life cycle analysis.

Q: Does this cable support PROFINET or other industrial Ethernet protocols in addition to DRIVE-CLiQ?
A: No, this cable is specifically designed and certified for DRIVE-CLiQ communication only. While it uses RJ45 connectors similar to Ethernet, the electrical characteristics, shielding requirements, and protocol specifications differ. For PROFINET connections, use Siemens IE FC TP or IE FC RJ45 cable series. Mixing cable types can cause communication errors and system instability.

Q: Are replacement connectors or field-assembly kits available if the cable is damaged?
A: Siemens recommends using factory-preassembled cables to ensure signal integrity and maintain system certification. Field-repairable connector kits are not offered for DRIVE-CLiQ cables due to precise impedance matching and shielding termination requirements. For damaged cables, replacement is the recommended solution. Keep spare cables on hand for critical applications to minimize downtime.

Q: What diagnostic tools are available to troubleshoot DRIVE-CLiQ communication issues?
A: SINAMICS drives provide built-in diagnostics accessible through STARTER or TIA Portal software, displaying DRIVE-CLiQ topology, component status, and communication error counters (fault codes F01910-F01919). The drive's web server interface also shows real-time DRIVE-CLiQ line status. For advanced troubleshooting, Siemens Service offers DRIVE-CLiQ Analyzer tools that can measure signal quality and identify intermittent connection issues.

Request Technical Support & Quotation

To receive detailed application guidance, compatibility verification, or project quotation, please provide the following information to our engineering team:

• Project name and application type (machine tool, robot, packaging line, etc.)
• SINAMICS drive system model and firmware version
• Number of axes and DRIVE-CLiQ components in system
• Required cable lengths and quantity
• Installation environment (temperature range, IP rating, flexing/stationary)
• Delivery timeline and destination location

Our application engineers will respond within 24 hours with customized recommendations, technical documentation, and competitive pricing. For urgent inquiries, contact our technical hotline for immediate assistance.
