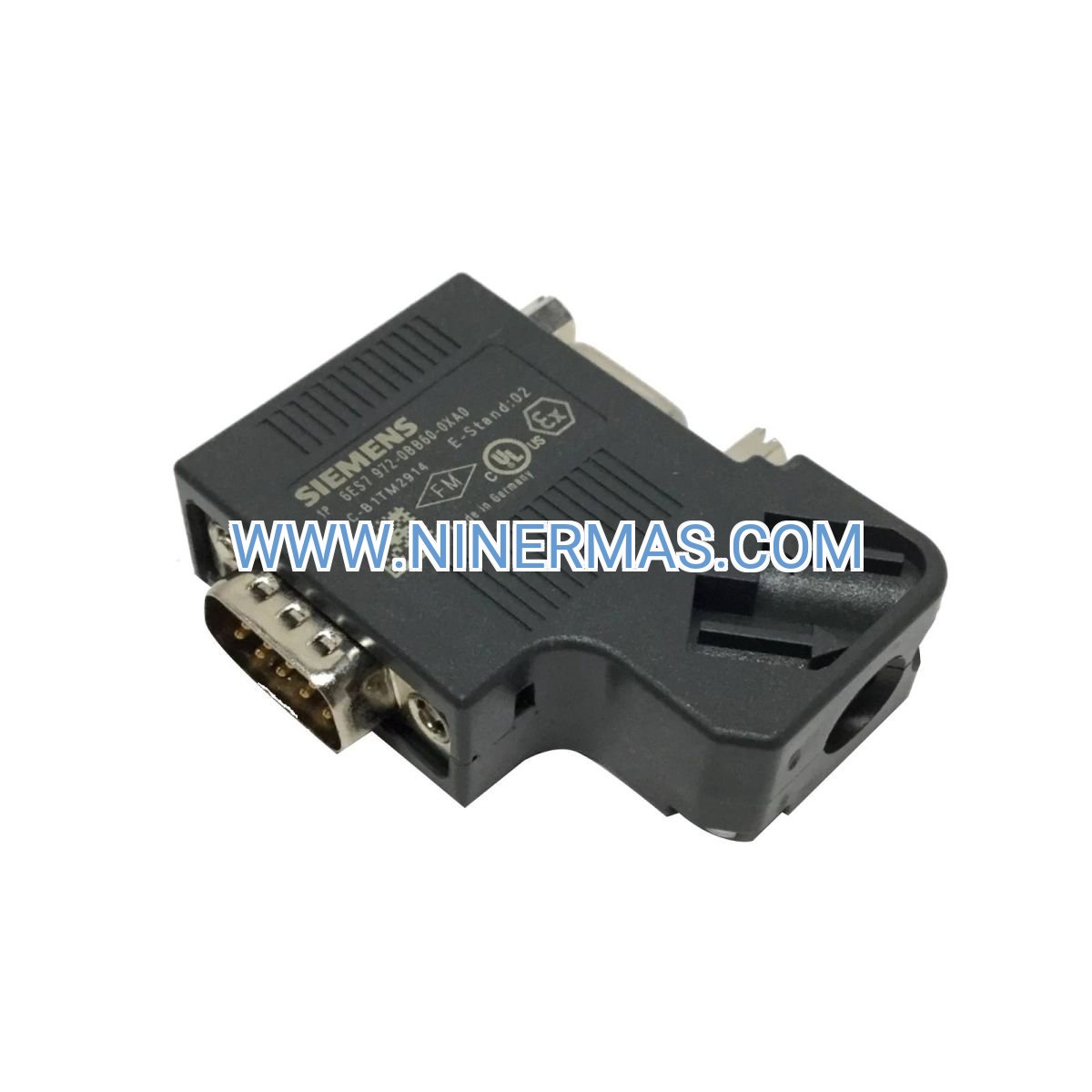

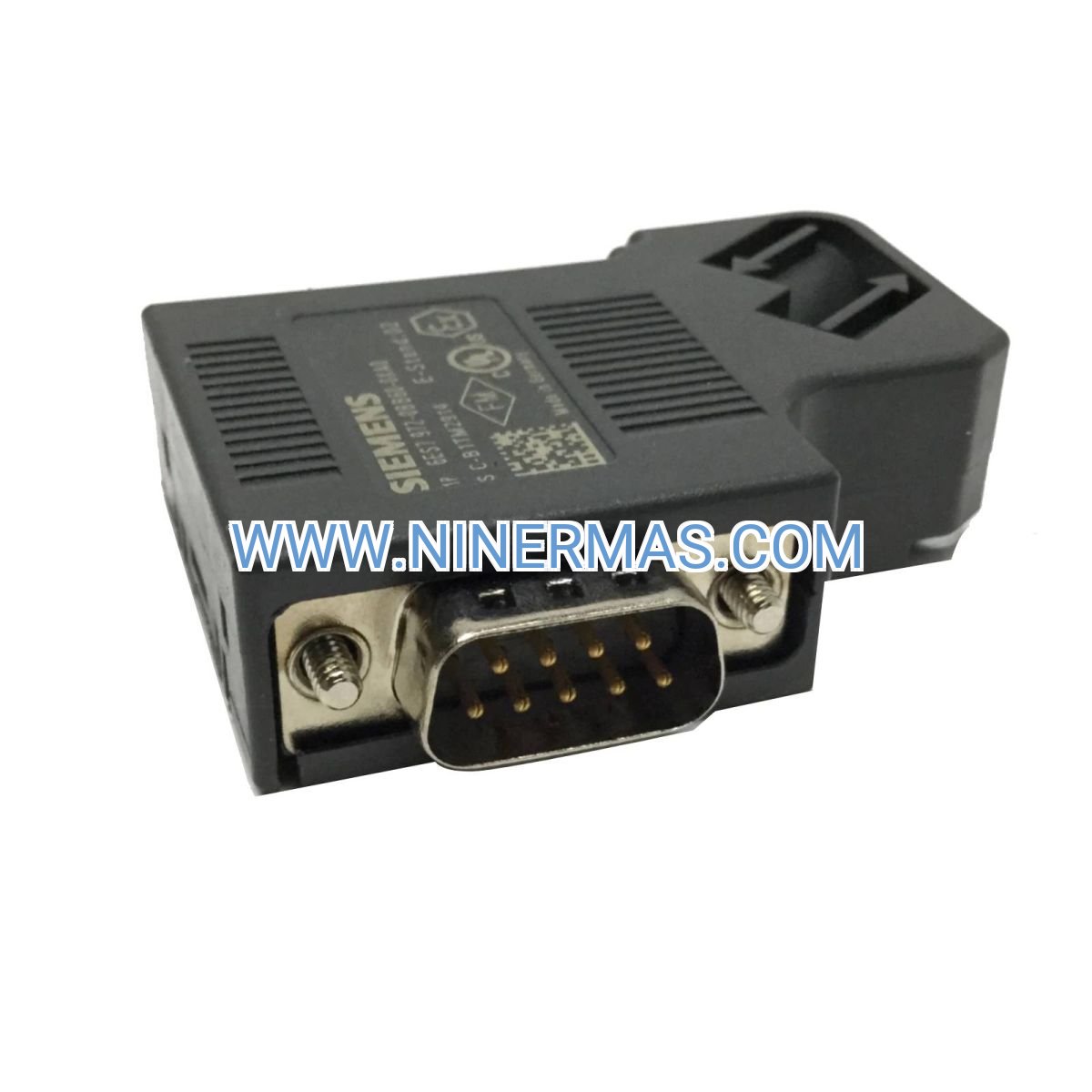

Siemens 6ES7972-0BB60-0XA0 PROFIBUS Bus Connector (Industrial-Grade RS485 Communication Solution)

The Siemens 6ES7972-0BB60-0XA0 is a high-performance PROFIBUS bus connector designed for reliable RS485 communication in industrial automation systems. Featuring FastConnect technology with a 35° cable exit angle and an integrated PG (Programming) socket, this connector enables seamless data exchange between PROFIBUS networks and Siemens S7-300/400 PLCs, ensuring stable operation in demanding manufacturing environments.

Ideal for process automation, factory control systems, and distributed I/O applications across automotive, chemical processing, energy management, and heavy manufacturing sectors. This connector addresses common challenges such as unreliable network connections, difficult cable routing in tight spaces, time-consuming installation procedures, and limited on-site programming access.

Through standardized design and field-proven reliability, this product delivers fast installation, robust signal integrity, flexible cable management, and convenient programming access. Suitable for system integrators, control panel builders, automation engineers, and plant maintenance teams. Contact our technical team for application guidance and quotation.

Core Features & Advantages

• FastConnect Technology
  Tool-free quick connection system with 35° cable exit angle enables rapid installation and reduces wiring errors, saving up to 60% installation time compared to traditional screw-terminal connectors while ensuring consistent contact quality.

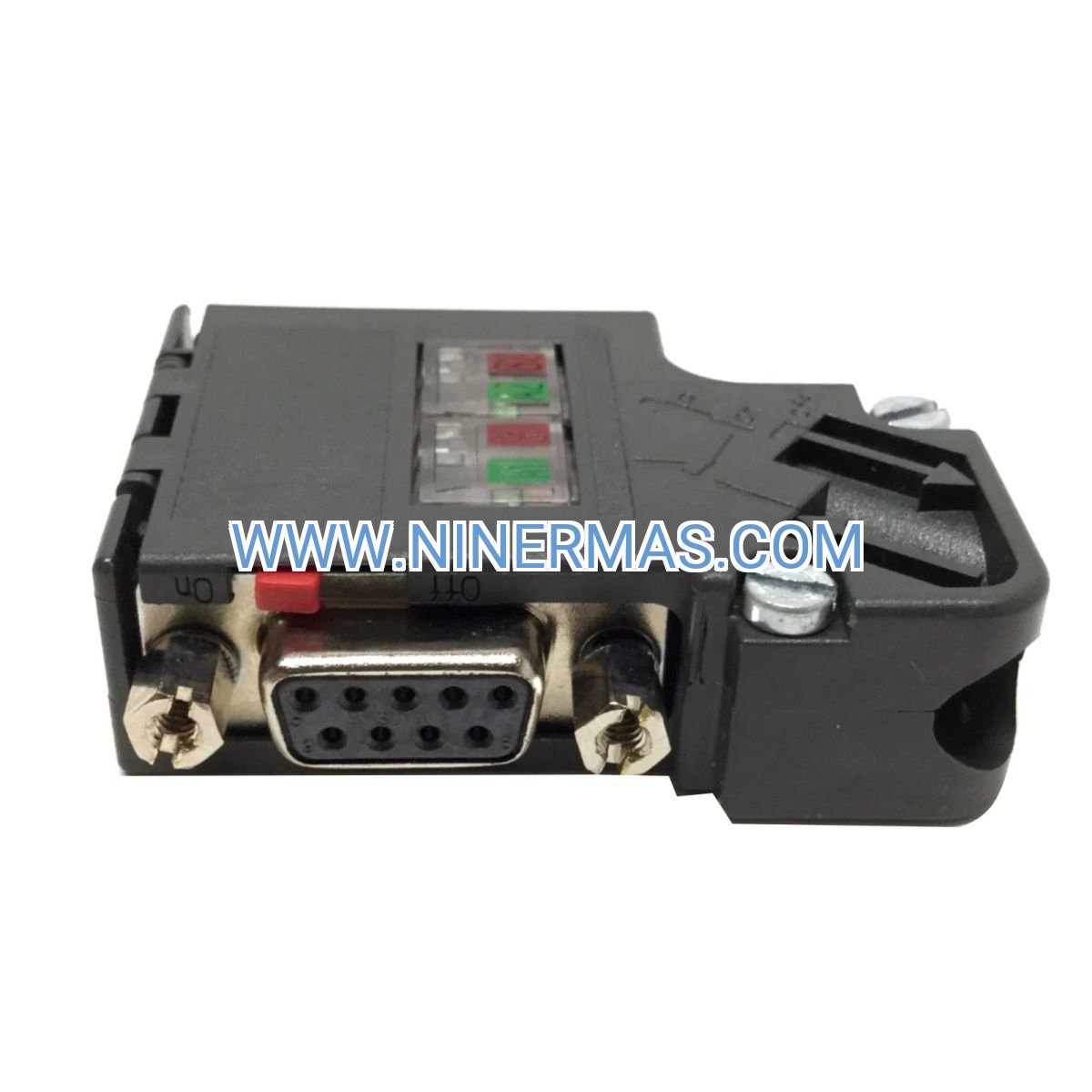

• Integrated PG Socket
  Built-in programming interface allows direct connection to programming devices without network interruption, facilitating on-site diagnostics, parameter adjustments, and firmware updates without system downtime.
• RS485 Interface Compatibility
  Fully compliant with PROFIBUS-DP protocol standards, supporting data rates up to 12 Mbps with automatic baud rate detection, ensuring seamless integration with Siemens S7-300/400 series and third-party PROFIBUS devices.
• Robust Industrial Design
  IP20-rated housing with gold-plated contacts resists vibration, electromagnetic interference, and temperature fluctuations (-25°C to +70°C), maintaining signal integrity in harsh industrial environments and extending service life beyond 100,000 mating cycles.
• Comprehensive Protection Features
  Equipped with bus termination resistor, short-circuit protection, and ESD safeguards, minimizing network failures and reducing troubleshooting time by up to 40% while protecting connected equipment from electrical transients.
• Optimized Cable Management
  35° angled cable exit reduces bending radius requirements in confined control cabinet spaces, preventing cable stress and signal degradation while improving overall installation aesthetics and maintainability.

Typical Application Scenarios

This PROFIBUS connector is engineered for applications requiring high-reliability fieldbus communication and flexible installation in space-constrained environments, particularly in:

• Automated Production Lines & Manufacturing Cells
  Connects distributed I/O modules, motor drives, and HMI panels to central PLCs in automotive assembly, electronics manufacturing, and packaging systems where real-time data exchange and minimal downtime are critical.
• Process Control & SCADA Systems
  Enables communication between field instruments (flow meters, pressure transmitters, valve positioners) and supervisory control systems in chemical plants, oil & gas facilities, and water treatment operations requiring continuous process monitoring.
• Building Automation & HVAC Control
  Facilitates integration of variable frequency drives, damper actuators, and energy meters into centralized building management systems for commercial complexes, data centers, and industrial facilities optimizing energy efficiency.
• Material Handling & Logistics Systems
  Supports communication networks in conveyor systems, automated storage/retrieval systems (AS/RS), and sortation equipment across warehouses and distribution centers where reliable data transmission ensures operational continuity.
• Power Generation & Utility Infrastructure
  Provides robust connectivity for generator control panels, switchgear monitoring, and substation automation in power plants and electrical distribution networks where system reliability directly impacts grid stability.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive technical parameters for this connector. Custom cable assemblies and pre-configured sets are available upon request.

Selection Recommendations: When specifying this connector, consider network topology (linear/tree), total bus length (up to 1000m with repeaters), number of nodes (max 32 per segment), required data rate, cabinet space constraints, and whether bus termination is needed at this point. For complex networks or multi-segment configurations, consult our automation engineers who can provide network design validation and component recommendations based on your specific application requirements.

Extended Functionality & Integration Options

• Network Diagnostics Support: Compatible with Siemens STEP 7 and TIA Portal software for real-time bus monitoring, error detection, and performance analysis
• Redundancy Configurations: Can be deployed in redundant PROFIBUS architectures for mission-critical applications requiring failover capability
• Third-Party Device Integration: Supports GSD file-based integration of non-Siemens PROFIBUS devices from major automation vendors
• Cable Assembly Services: Pre-terminated cable assemblies available in standard lengths (1m, 2m, 5m, 10m) or custom lengths to reduce installation time

Delivery, Service & Quality Assurance

Standard catalog items ship from stock within 2-3 business days; custom cable assemblies typically require 5-7 business days. All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. We provide remote technical consultation and on-site commissioning support (availability varies by region). Each connector ships with complete documentation including datasheet, wiring diagram, and quick-start guide in English and Chinese, facilitating rapid deployment and maintenance.

Our products are sourced through authorized Siemens distribution channels, ensuring genuine components with full traceability. Quality certifications include CE marking and RoHS compliance. Technical support team available via email and phone during business hours (GMT+8) to assist with product selection, troubleshooting, and application engineering.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens 6ES7972-0BB60-0XA0 PROFIBUS connector to my existing S7-300 PLC system?
A: The connector plugs directly into the PROFIBUS port on your S7-300 CPU or communication processor (CP). Use the FastConnect terminals to attach your PROFIBUS cable (ensure proper polarity: A/B or Data+/Data-). If this is a network endpoint, activate the integrated termination resistor via the switch. Detailed wiring diagrams are included with the product and available in the downloadable datasheet.

Q: What is the maximum number of devices I can connect on a single PROFIBUS segment using this connector?
A: Each PROFIBUS-DP segment supports up to 32 nodes (including the master). If you need more devices, use repeaters (such as 6ES7972-0BA52-0XA0) to extend the network. The actual number also depends on your data rate—higher speeds may require shorter cable runs and fewer nodes per segment.

Q: What energy savings or performance improvements can I expect with this connector?
A: While the connector itself doesn't directly reduce energy consumption, its reliable communication ensures optimal operation of connected variable frequency drives and process controllers, which can achieve 20-40% energy savings in motor-driven systems. The FastConnect design reduces installation time by approximately 60%, lowering labor costs and project timelines.

Q: What are the environmental requirements for installing this connector? What is its IP rating?
A: The connector is rated IP20, suitable for installation inside control cabinets or enclosures that provide protection from dust and moisture. Operating temperature range is -25°C to +70°C. For outdoor or washdown environments, ensure the connector is housed within an appropriately rated enclosure (minimum IP54 recommended).

Q: Can I remotely monitor and collect data through this connector? Which protocols are supported?
A: Yes, the connector supports standard PROFIBUS-DP protocol, enabling real-time data exchange with SCADA systems, HMIs, and cloud-based IoT platforms via Siemens PLCs. For integration with Ethernet-based systems, pair with a PROFIBUS/Ethernet gateway (such as 6GK1571-0BA00-0AA0). Supported diagnostic data includes bus statistics, error counters, and node status information accessible through STEP 7 or TIA Portal.

Q: Is this connector compatible with non-Siemens PROFIBUS devices?
A: Absolutely. The 6ES7972-0BB60-0XA0 adheres to the PROFIBUS-DP standard (IEC 61158/61784), ensuring interoperability with PROFIBUS devices from manufacturers such as ABB, Schneider Electric, Phoenix Contact, and others. Verify that third-party devices have valid GSD (General Station Description) files for seamless integration.

Request Technical Support & Quotation

To receive a detailed selection proposal, pricing, or application engineering assistance, please provide the following information: project name, application type (process control/discrete manufacturing/building automation), network topology requirements, number of nodes, maximum bus length, data rate requirements, operating environment conditions, and any specific certifications needed. Our automation engineers will respond within 24 hours with tailored recommendations and competitive pricing.
