Siemens 6ES7972-0BB41-0XA0 | PROFIBUS RS485 Bus Connector with PG Socket | Industrial Automation

Siemens 6ES7972-0BB41-0XA0 PROFIBUS RS485 Bus Connector (Industrial-Grade Fieldbus Communication Solution)

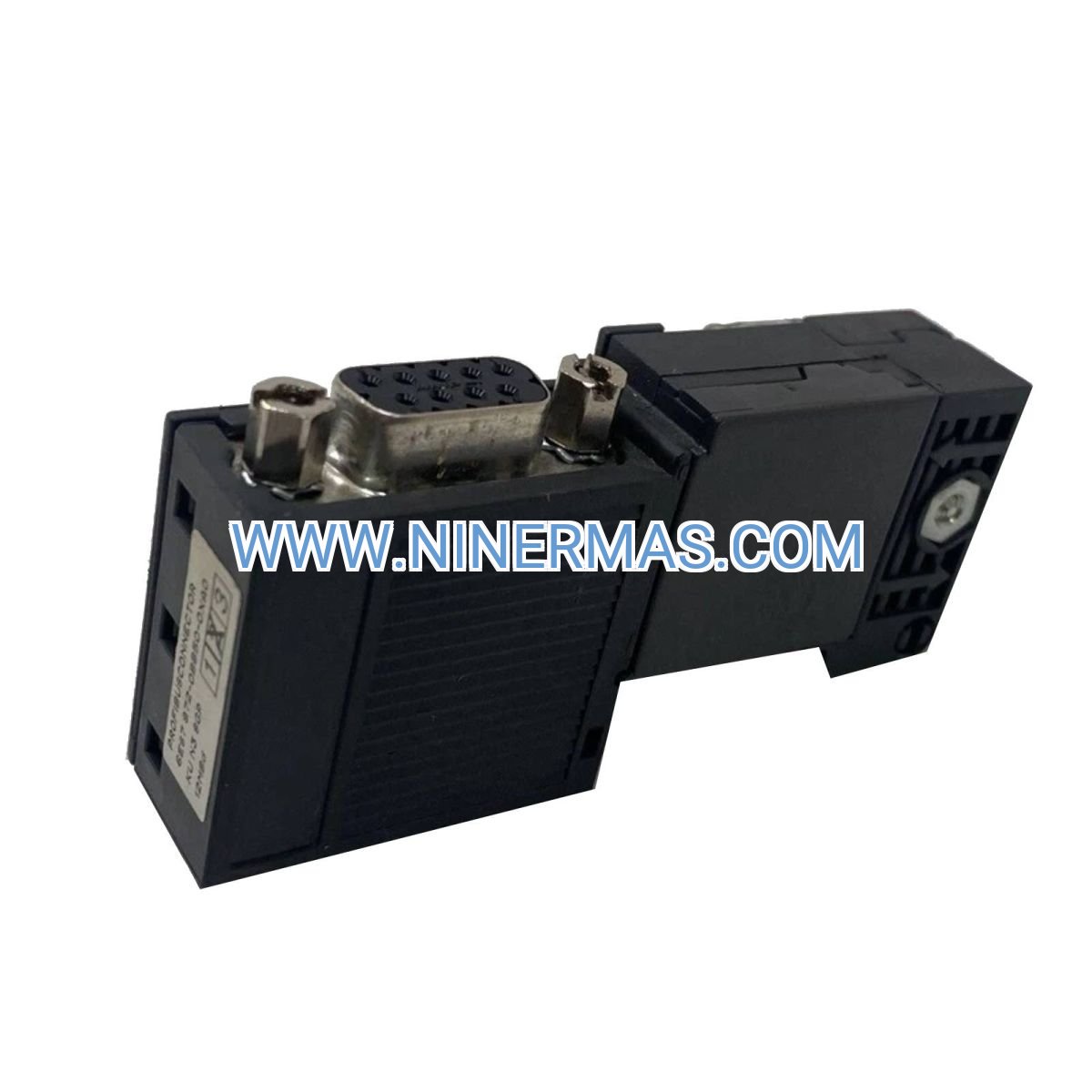

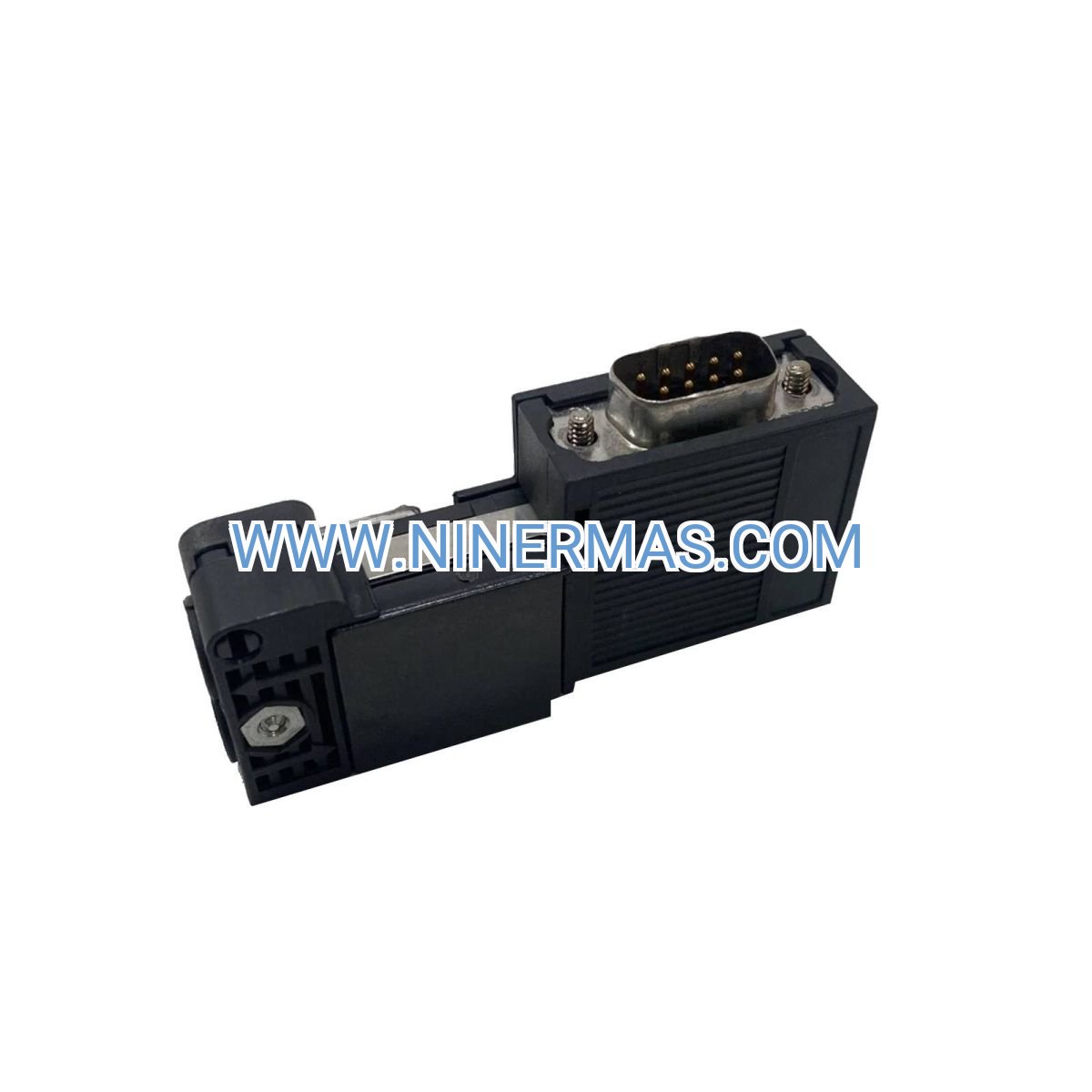

The Siemens 6ES7972-0BB41-0XA0 is a professional PROFIBUS bus connector designed for reliable RS485 fieldbus communication in industrial automation systems. Through its robust screw-type terminal design and integrated PG programming socket, it enables stable data transmission and simplified system diagnostics for SIMATIC S7-300/400 PLC networks.

Ideal for manufacturing plants, process control systems, building automation, and industrial machinery integration, this connector addresses common challenges including signal interference, connection reliability issues, unreliable fieldbus topology, and difficult on-site troubleshooting in harsh industrial environments.

With standardized design and flexible configuration options, this product offers fast installation, excellent EMC performance, long-term stability, and broad compatibility with Siemens automation ecosystems. Suitable for system integrators, control panel manufacturers, automation engineers, and plant maintenance teams. Contact our engineers for application guidance and technical specifications.

Core Features & Advantages

Reliable RS485 Communication
Utilizes RS485 differential signal transmission technology with built-in termination resistor support, ensuring stable data exchange across distances up to 1,200 meters on PROFIBUS-DP networks while minimizing signal reflection and electromagnetic interference.

Robust Screw Terminal Design
Features industrial-grade screw terminals with 35° cable outlet angle, accommodating wire gauges from 0.25 to 1.5 mm², providing secure mechanical connection that withstands vibration and temperature cycling in demanding industrial environments.

Integrated PG Programming Socket
Equipped with standard PG/PC interface socket enabling direct connection for programming, diagnostics, and commissioning without disrupting the bus network, significantly reducing troubleshooting time and system downtime.

Comprehensive Protection Features
Incorporates overvoltage protection, ESD immunity, and short-circuit safeguarding to ensure network integrity. The rugged housing provides IP20 protection rating, suitable for control cabinet installation with operating temperature range from 0°C to +60°C.

Plug-and-Play Compatibility
Fully compatible with SIMATIC S7-300, S7-400, ET 200 distributed I/O systems, and third-party PROFIBUS-DP devices. Supports standard PROFIBUS protocols including DP-V0, DP-V1, and DP-V2 for seamless integration into existing automation architectures.

Typical Application Scenarios

This connector is engineered for industrial environments requiring dependable fieldbus communication, stable network topology, and efficient system maintenance, particularly in:

Manufacturing & Assembly Lines
Connects distributed I/O modules, motor drives, and sensors to central PLCs in automotive, electronics, and packaging industries, ensuring real-time control and synchronized production processes with minimal latency.

Process Automation & Chemical Plants
Provides reliable communication backbone for process control systems in oil & gas, pharmaceuticals, and water treatment facilities, where continuous operation and hazardous area compliance are critical requirements.

Building Automation & HVAC Systems
Integrates HVAC controllers, lighting systems, and energy management devices in commercial buildings and industrial facilities, enabling centralized monitoring and energy optimization through standardized PROFIBUS networks.

Machine Tool & Robotics Integration
Facilitates high-speed data exchange between CNC controllers, servo drives, and robotic systems in precision machining and automated material handling applications, supporting deterministic communication cycles down to milliseconds.

Technical Parameters & Selection Guide

To facilitate engineering design and system configuration, we provide comprehensive technical specifications. Custom configurations available based on project requirements.

Key Technical Specifications:

• Interface Type: RS485 differential, PROFIBUS-DP compliant
• Transmission Rate: 9.6 kbit/s to 12 Mbit/s (auto-detection supported)
• Connection Method: Screw terminals, 35° cable outlet angle
• Wire Gauge Range: 0.25 mm² to 1.5 mm² (AWG 24-16)
• PG Socket: Standard 9-pin D-sub connector for programming devices
• Termination Resistor: Switchable 220Ω terminator included
• Protection Rating: IP20 (suitable for control cabinet mounting)
• Operating Temperature: 0°C to +60°C
• Dimensions: Compact profile for DIN rail or panel mounting
• Certifications: CE, UL, cULus compliant

Selection Recommendations:
When selecting PROFIBUS connectors, consider: network topology (linear, tree, or star), maximum bus length requirements, number of nodes, required transmission speed, environmental conditions (temperature, vibration, EMI), and cable specifications. For complex installations or multi-segment networks, consult our engineering team with your system architecture details for optimized component selection.

Extended Functionality

Network Diagnostics & Monitoring: The integrated PG socket enables real-time network analysis using SIMATIC tools, allowing engineers to monitor bus statistics, identify faulty nodes, and optimize network performance without physical disconnection.

Flexible Topology Support: Supports both linear and segmented bus topologies with repeater integration, enabling network expansion beyond standard distance limitations while maintaining signal integrity across multiple production zones.

Hot-Swap Capability: Designed for controlled hot-plugging in specific configurations, allowing maintenance personnel to replace faulty connectors or add new nodes without complete system shutdown in critical applications.

Delivery, Service & Quality Assurance

Lead Time: Standard items ship within 3-5 business days; custom configurations require 10-15 business days depending on specifications.

Warranty: Backed by 24-month manufacturer warranty covering material defects and workmanship. Extended warranty options available for critical infrastructure projects.

Technical Support: Comprehensive installation guidance, wiring diagrams, and configuration documentation provided. Remote technical consultation and on-site commissioning support available (region-dependent).

Documentation Package: Each unit includes detailed datasheet, electrical schematic, terminal assignment diagram, PROFIBUS GSD file, and multilingual operation manual for seamless integration and maintenance.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens 6ES7972-0BB41-0XA0 PROFIBUS connector to my existing S7-300 PLC system?
A: The connector interfaces directly with the PROFIBUS-DP port on your S7-300 CPU or CP communication module. Connect the A and B signal wires to the corresponding screw terminals, ensure proper cable shielding connection, and activate the termination resistor if this connector is at either end of the bus segment. Refer to the included wiring diagram for detailed terminal assignments.

Q: What is the maximum number of devices I can connect on a single PROFIBUS segment using this connector?
A: A single PROFIBUS-DP segment supports up to 32 nodes (including master and slaves) without repeaters. With repeaters, you can extend to 126 devices total across multiple segments. Each connector occupies one node address in the network topology.

Q: What energy savings or efficiency improvements can I expect with this PROFIBUS connector?
A: While the connector itself doesn't directly reduce energy consumption, it enables efficient communication for variable frequency drives (VFDs) and intelligent motor control systems that can achieve 20-40% energy savings compared to fixed-speed operation. The reliable data transmission ensures optimal process control and prevents energy waste from communication errors.

Q: What are the environmental requirements for installing this connector? What is its protection rating?
A: The connector is rated IP20 and designed for installation inside control cabinets or electrical enclosures. Operating temperature range is 0°C to +60°C with relative humidity up to 95% (non-condensing). For outdoor or harsh environments, install within a properly rated enclosure (minimum IP54 recommended).

Q: Can I remotely monitor and collect data through this PROFIBUS connector? What protocols are supported?
A: Yes, when connected to a PROFIBUS-DP master with Ethernet gateway or S7 PLC with communication processor, you can access process data remotely via PROFINET, Ethernet/IP, or OPC protocols. The connector supports standard PROFIBUS-DP V0, V1, and V2 protocols, enabling acyclic data exchange and diagnostic information retrieval for SCADA and MES integration.

Q: Is this connector compatible with non-Siemens PROFIBUS devices?
A: Absolutely. The 6ES7972-0BB41-0XA0 complies with PROFIBUS-DP international standard (IEC 61158/61784), ensuring interoperability with PROFIBUS-certified devices from manufacturers including ABB, Phoenix Contact, Pepperl+Fuchs, Turck, and others. Verify device GSD files for proper configuration.

Request Technical Support & Quotation

For detailed application engineering, custom configuration, or project quotation, please provide the following information: project name, application scenario, network topology requirements, number of nodes, required transmission speed, cable length, environmental conditions, and any special certifications needed. Our automation specialists will provide personalized selection recommendations and competitive pricing within 24 hours.
