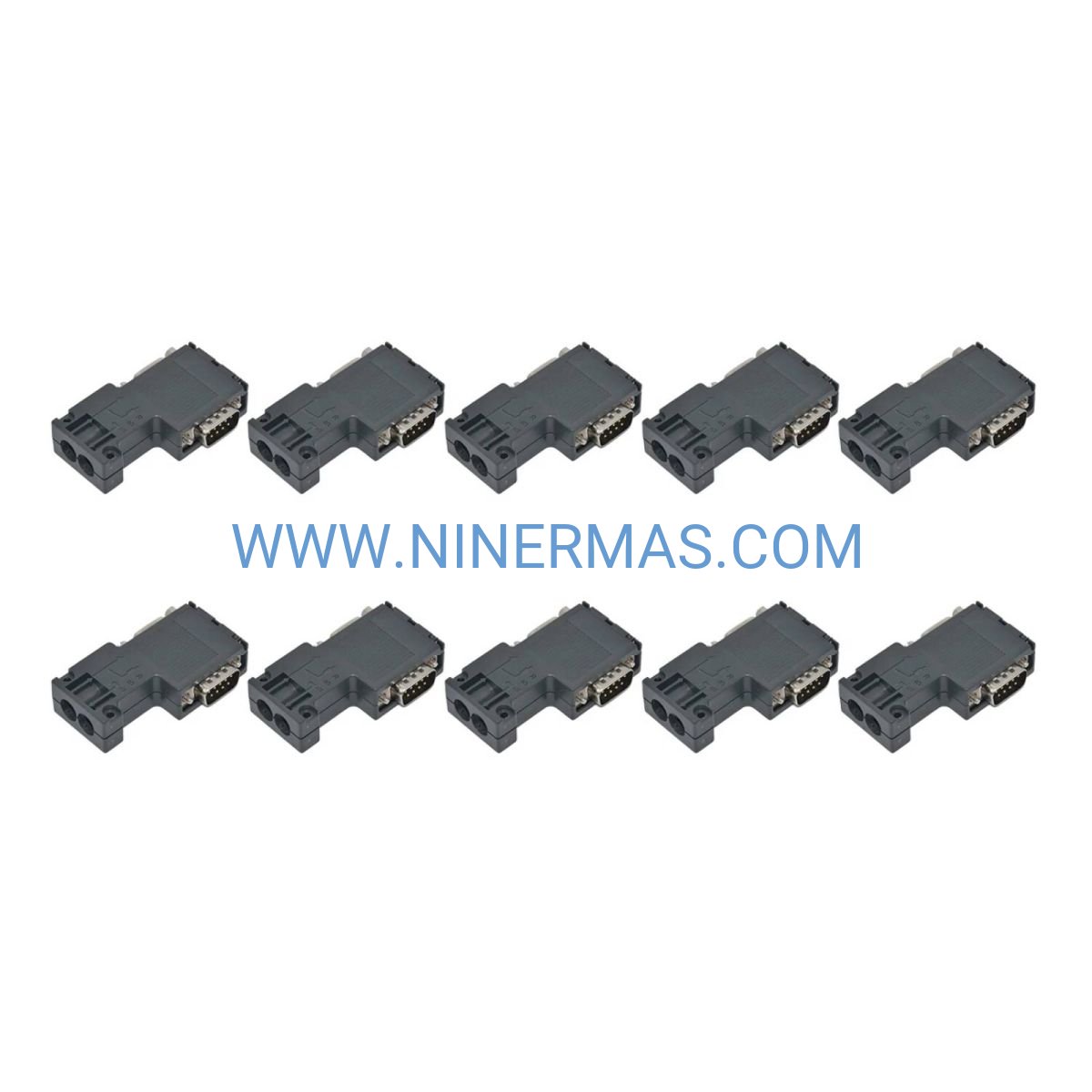

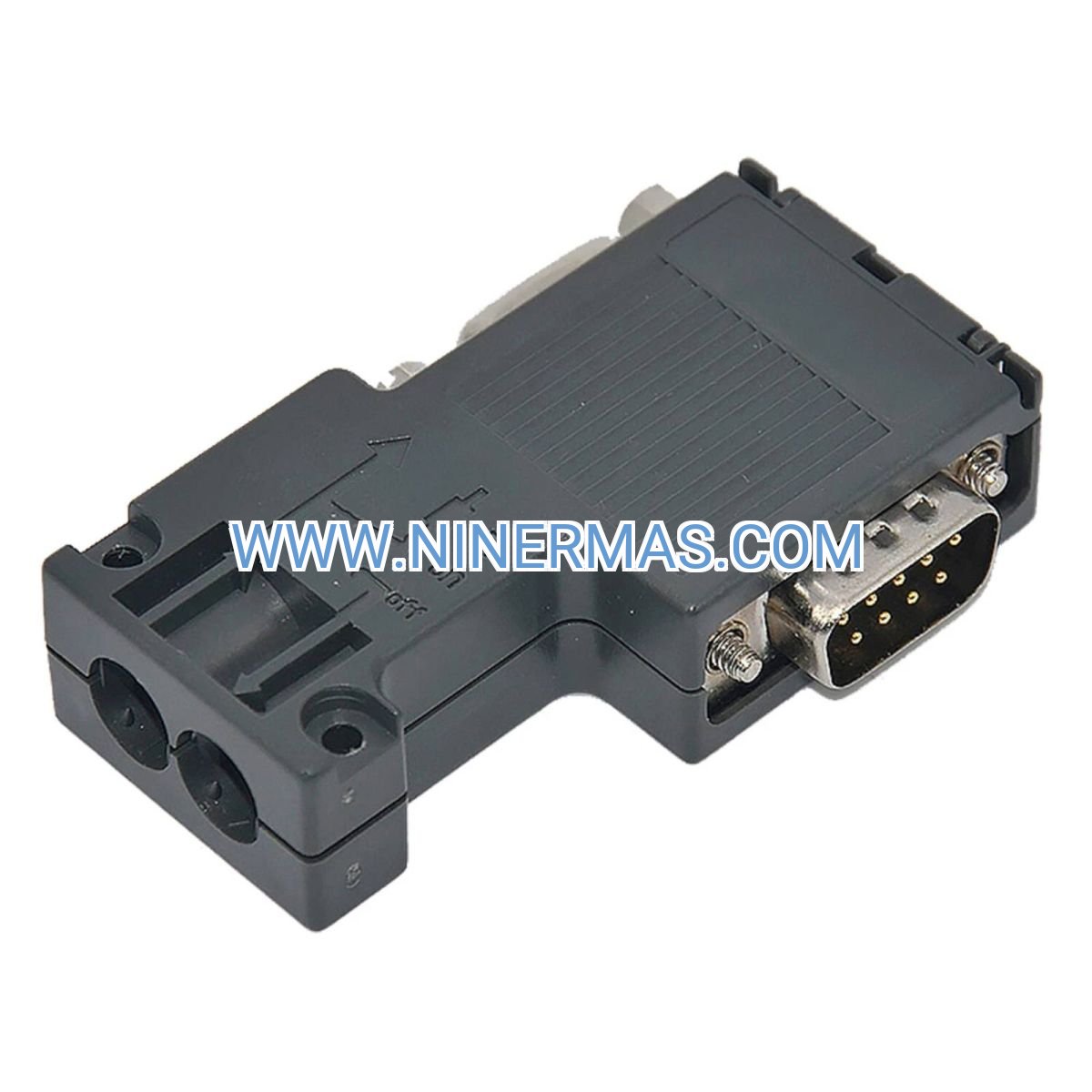

Siemens 6ES7972-0BA52-0XA0 PROFIBUS RS485 Connector (Industrial-Grade FastConnect Solution)

The Siemens 6ES7972-0BA52-0XA0 is a professional PROFIBUS bus connector designed for industrial automation networks, utilizing RS485 communication protocol with FastConnect technology to enable rapid, tool-free field installation. Through its 90° angled design and standardized interface, it ensures stable signal transmission at up to 12Mbps, making it ideal for distributed control systems, factory automation lines, and process monitoring applications.

Engineered for demanding industrial environments including manufacturing plants, chemical processing facilities, power generation stations, and building automation systems, this connector addresses critical challenges such as installation complexity, signal integrity issues, electromagnetic interference, and frequent maintenance requirements in harsh operating conditions.

Featuring standardized design with flexible customization options, this product delivers key advantages including tool-free installation efficiency, robust signal stability, simplified maintenance procedures, and excellent compatibility with Siemens S7 series PLCs. It serves design engineers, system integrators, automation contractors, and end-user facility teams. Contact our application engineers for tailored selection guidance and quotations.

Core Features & Technical Advantages

FastConnect Tool-Free Installation
Utilizes push-in spring terminal technology enabling cable connection without screwdrivers or special tools, reducing installation time by approximately 60% compared to traditional screw terminals while minimizing wiring errors in field deployment.

Optimized 90° Angled Design
The right-angle connector body reduces space requirements in dense cabinet layouts, prevents cable stress at connection points, and extends cable service life—particularly valuable in retrofit projects with limited clearance.

High-Speed Reliable Communication
Supports PROFIBUS-DP protocol with transmission rates up to 12Mbps, ensuring real-time data exchange across distributed I/O modules, drives, and field devices with minimal latency for time-critical control loops.

Comprehensive Protection Features
IP20 ingress protection rating suitable for standard control cabinet environments, integrated strain relief prevents cable pullout, gold-plated contacts resist oxidation, and shielded construction minimizes EMI/RFI interference in electrically noisy industrial settings.

Plug-and-Play Compatibility
Fully compatible with Siemens SIMATIC S7-300/400 PLCs, ET200 distributed I/O systems, and third-party PROFIBUS-compliant devices. Standardized pinout configuration ensures seamless integration without custom wiring modifications.

Maintenance-Friendly Design
Color-coded terminals and clear labeling facilitate troubleshooting, quick-release mechanism allows rapid connector replacement during maintenance windows, and modular construction supports spare parts inventory optimization.

Typical Application Scenarios

This connector is specifically engineered for industrial environments requiring high reliability, deterministic communication, and ease of maintenance, including:

Factory Automation & Production Lines
Connects PLCs to distributed I/O modules, motor drives, and HMI panels in automotive assembly, electronics manufacturing, and packaging machinery. Ensures synchronized operation of conveyor systems, robotic cells, and quality inspection stations with microsecond-level timing precision.

Process Control & Chemical Plants
Interfaces field instruments (pressure transmitters, flow meters, temperature sensors) to DCS systems in refineries, pharmaceutical production, and water treatment facilities. Maintains continuous process monitoring and regulatory compliance in hazardous area classifications (when used within approved enclosures).

Building Automation & HVAC Systems
Links central controllers to variable frequency drives (VFDs) for pumps, fans, and chillers in commercial buildings, hospitals, and data centers. Enables energy-efficient operation through real-time load monitoring and demand-based control strategies.

Power Generation & Substations
Facilitates communication between protective relays, switchgear controllers, and SCADA systems in power plants and electrical distribution networks. Supports critical infrastructure monitoring with high availability requirements.

Technical Specifications & Selection Guide

To ensure optimal system performance, we provide standardized specifications alongside customization capabilities for project-specific requirements:

Key Technical Parameters:

• Communication Protocol: PROFIBUS-DP (EN 50170)
• Physical Interface: RS485 differential signaling
• Transmission Speed: 9.6 Kbps to 12 Mbps (auto-detection)
• Connector Type: 90° angled, FastConnect push-in terminals
• Cable Compatibility: PROFIBUS standard cable (Type A), AWG 22-16 (0.34-1.5 mm²)
• Termination: Integrated 220Ω terminating resistor (switchable)
• Operating Voltage: Powered via bus (5V DC from network)
• Ingress Protection: IP20 (for use in control cabinets)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Dimensions: Compact profile suitable for DIN rail mounting accessories
• Compliance Standards: CE, UL, cULus certified

Selection Considerations:
When specifying this connector, evaluate: network topology (linear/tree), total bus length and segment requirements, number of nodes per segment, required data throughput, ambient temperature range, cabinet space constraints, and compatibility with existing installed base. For complex networks exceeding 32 nodes or requiring redundancy, consult our engineering team with network diagrams and device lists for validated system architecture recommendations.

Extended Functionality & System Integration

Network Diagnostics & Monitoring
When paired with Siemens diagnostic tools (e.g., SIMATIC NET software), enables real-time bus monitoring, error detection, and predictive maintenance alerts. LED status indicators on connected devices provide visual confirmation of communication health.

Redundancy & High Availability
Supports redundant PROFIBUS configurations when used with appropriate network components, ensuring continuous operation in mission-critical applications where downtime costs exceed $10,000 per hour.

Multi-Vendor Interoperability
GSD (General Station Description) file compatibility allows integration with non-Siemens PROFIBUS devices from manufacturers like ABB, Endress+Hauser, and Phoenix Contact, protecting long-term investment in mixed-vendor installations.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; bulk orders or custom cable assemblies require 10-15 business days.
Warranty: 12-month manufacturer warranty covering material defects and workmanship under normal operating conditions.
Technical Support: Remote commissioning assistance and on-site service available (region-dependent). Comprehensive documentation package includes wiring diagrams, GSD files, installation manuals, and compliance certificates.
Quality Certifications: Manufactured in ISO 9001-certified facilities with full traceability and batch testing records.

All shipments include connector body, terminal block, installation instructions, and compliance documentation. Optional accessories such as pre-assembled cable sets, terminating resistors, and diagnostic taps available upon request.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens 6ES7972-0BA52-0XA0 PROFIBUS connector to existing network cabling?
A: Strip cable jacket to expose twisted pairs (typically purple and green wires for Data A/B), insert wires into corresponding FastConnect terminals until they click (no tools required), and verify secure connection by gently tugging. Ensure shield connection to cabinet ground via cable gland. Refer to wiring diagram in product manual for pin assignments.

Q: What is the maximum number of connectors I can use on a single PROFIBUS segment?
A: A standard PROFIBUS-DP segment supports up to 32 nodes (including master and slaves). For larger networks, use repeaters or segment couplers to extend beyond this limit while maintaining signal integrity. Total network can accommodate 126 devices across multiple segments.

Q: What energy savings can I expect, and what conditions are required?
A: While the connector itself is a passive component with negligible power consumption, PROFIBUS networks enable system-wide energy optimization by facilitating VFD control and real-time monitoring. Typical industrial facilities report 15-30% energy reduction in motor-driven systems (pumps, fans, compressors) after implementing PROFIBUS-based automation compared to fixed-speed operation.

Q: What are the environmental requirements for installation? What is the IP rating?
A: This connector is rated IP20, suitable for installation inside control cabinets or electrical enclosures with controlled environments (0-60°C, <95% RH non-condensing). For outdoor or washdown applications, house the connector within a higher-rated enclosure (IP54 or IP65). Avoid direct exposure to corrosive chemicals, excessive vibration, or temperatures outside specified range.

Q: Can I implement remote monitoring and data acquisition? Which protocols are supported?
A: Yes, PROFIBUS networks support integration with SCADA/HMI systems via Siemens S7 communication drivers or OPC servers. Data can be bridged to Ethernet-based protocols (PROFINET, Modbus TCP, OPC UA) using industrial gateways. Cloud connectivity possible through edge computing devices supporting MQTT or REST APIs for IIoT applications.

Q: Is this connector compatible with PROFIBUS-PA (Process Automation) networks?
A: This RS485 connector is designed for PROFIBUS-DP (Decentralized Peripherals) applications. For PROFIBUS-PA (intrinsically safe, bus-powered field devices), use dedicated PA couplers and MBP (Manchester Bus Powered) physical layer components. Consult application engineers if your project requires DP/PA segment coupling.

Request Technical Support & Custom Solutions

To receive detailed selection guidance, pricing quotations, or application engineering support, please provide the following information: project name and industry sector, network topology and device count, required communication speed and cycle time, cable run distances and routing constraints, environmental conditions (temperature, humidity, vibration), power supply specifications, and any special certifications (ATEX, IECEx, marine). Our engineering team will respond within 24 hours with tailored recommendations and budget estimates.
