Siemens 6ES7972-0BA42-0XA0 PROFIBUS Bus Connector | RS485 Screw Terminal 35° for S7-300/400 PLC Systems

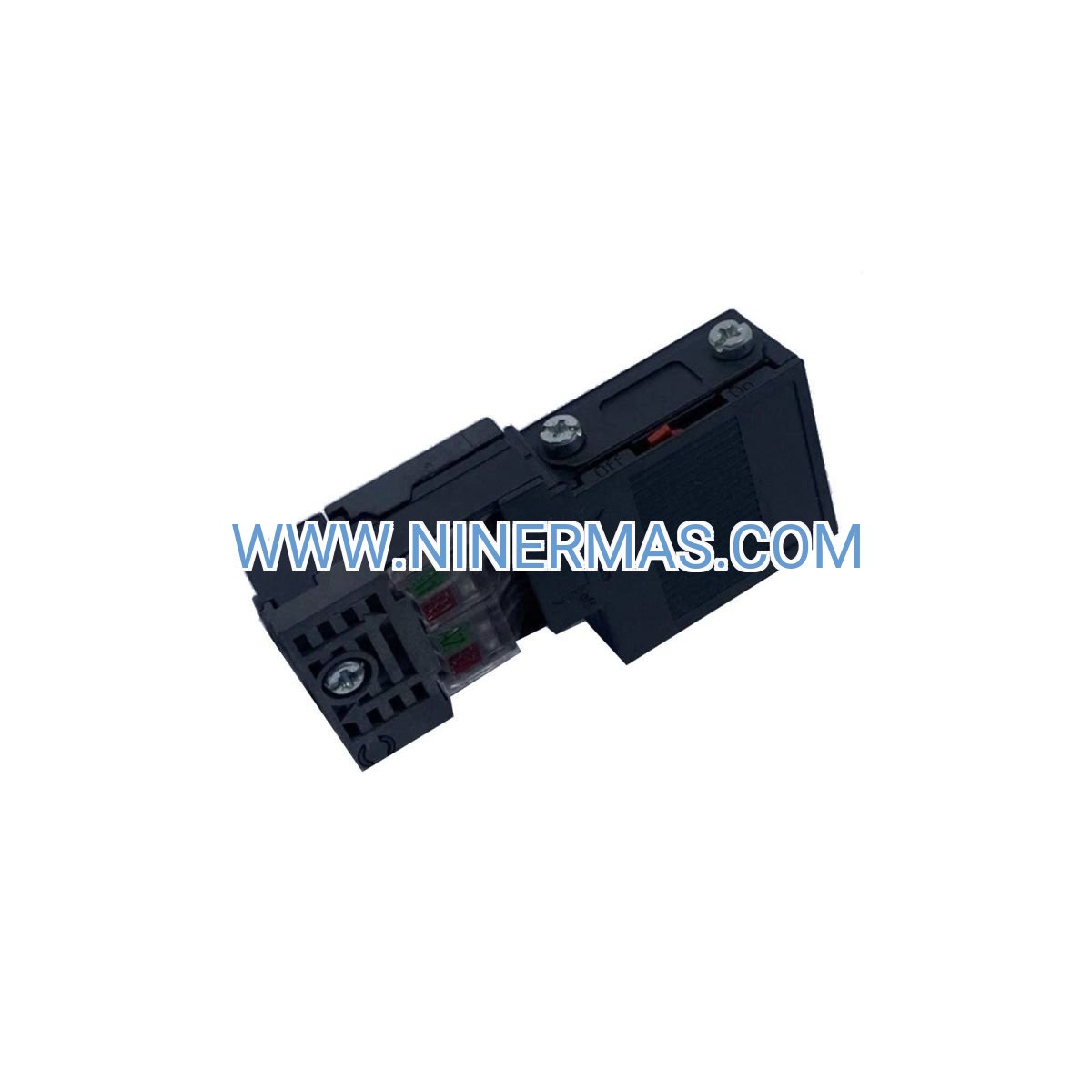

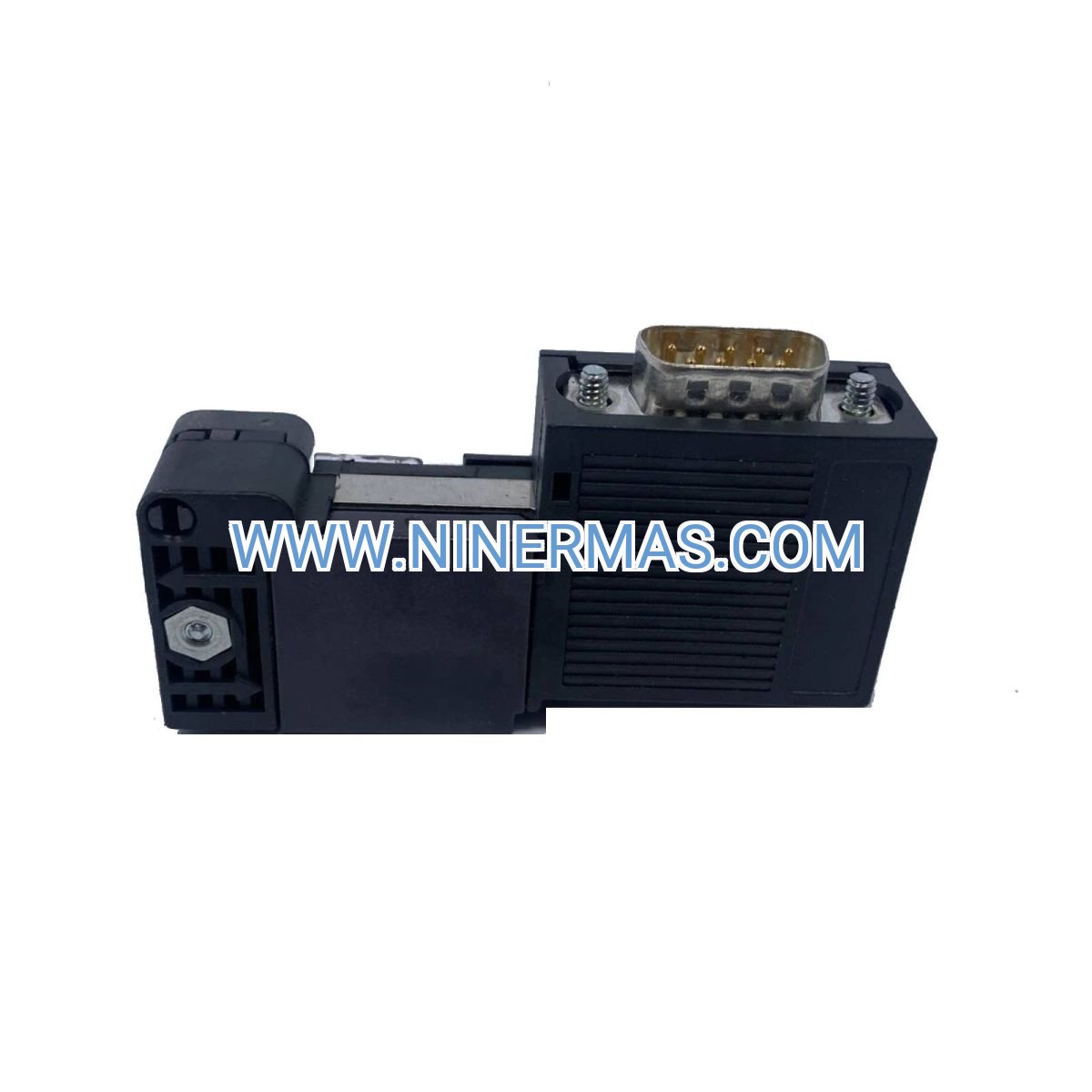

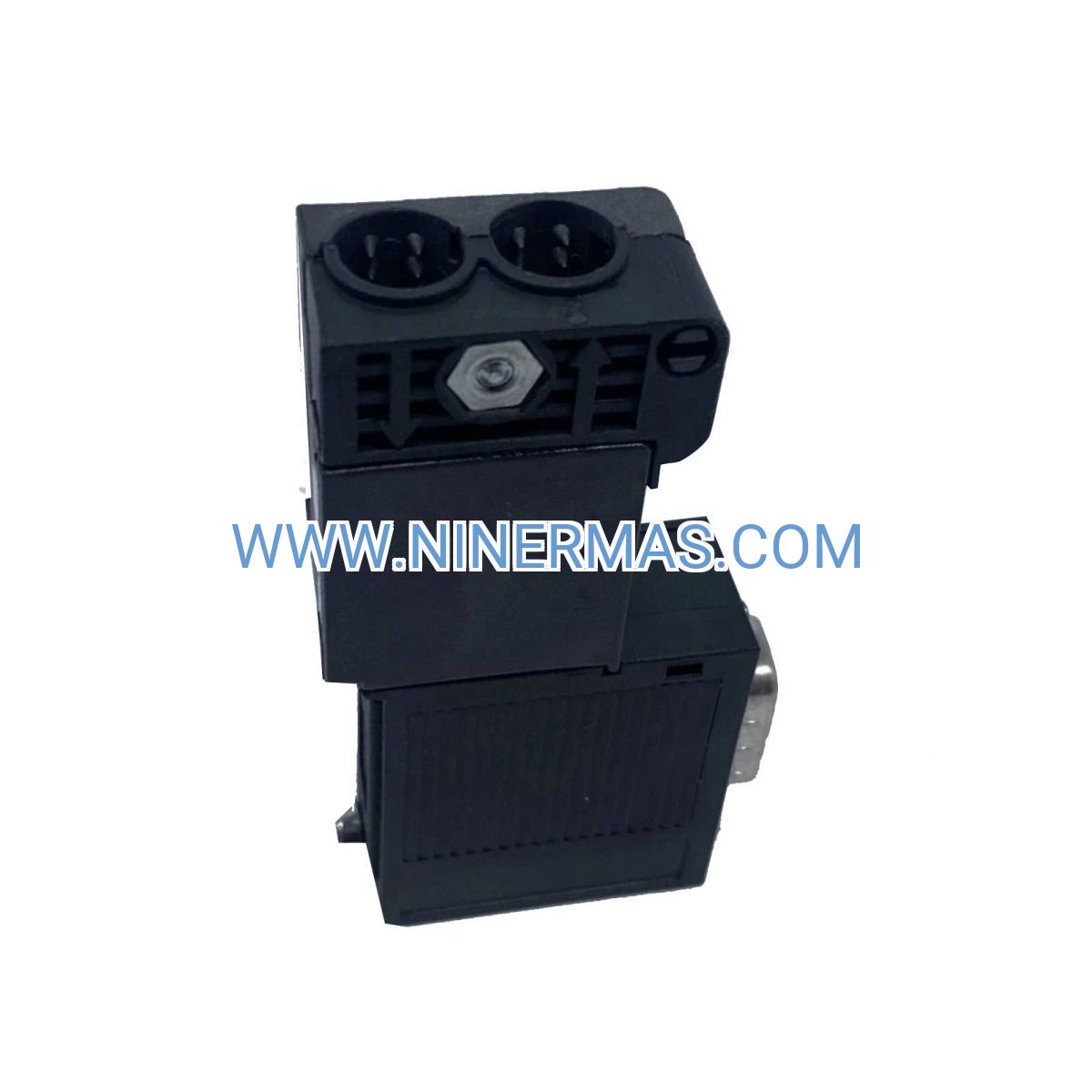

Siemens 6ES7972-0BA42-0XA0 PROFIBUS Bus Connector (Industrial-Grade RS485 Communication Solution)

The Siemens 6ES7972-0BA42-0XA0 is a professional-grade PROFIBUS bus connector engineered for reliable RS485 communication in industrial automation networks. Through precision screw-type terminal connections and a 35° cable outlet design, this connector ensures stable data transmission and simplified wiring in S7-300 and S7-400 PLC systems.

Designed for demanding industrial environments including manufacturing plants, process control facilities, building automation systems, and infrastructure projects, this connector addresses critical challenges such as signal interference, connection reliability issues, installation complexity in confined spaces, and long-term maintenance requirements in 24/7 operations.

With standardized PROFIBUS DP protocol compliance and field-proven Siemens engineering, this connector delivers robust performance, easy installation, excellent EMC characteristics, and broad compatibility with legacy and modern automation systems. Ideal for system integrators, automation engineers, maintenance teams, and OEM equipment manufacturers seeking dependable fieldbus connectivity. Contact our technical team for application-specific guidance and quotations.

Core Features & Technical Advantages

• Reliable RS485 Communication
  Built-in RS485 transceiver with optimized impedance matching ensures stable data transmission up to 12 Mbps, minimizing packet loss and communication errors in electrically noisy industrial environments.
• Screw Terminal Design for Secure Connections
  Robust screw-type terminals provide vibration-resistant, gas-tight connections that maintain signal integrity over years of operation, reducing maintenance downtime compared to spring-loaded alternatives.
• 35° Cable Outlet for Space-Efficient Installation
  The angled cable exit allows flexible routing in tight cabinet spaces and along DIN rails, simplifying installation in densely populated control panels and reducing cable stress.
• PROFIBUS DP Protocol Compliance
  Fully compliant with IEC 61158/61784 PROFIBUS standards, ensuring seamless integration with Siemens S7-300, S7-400, and third-party PROFIBUS-compatible devices across multi-vendor automation architectures.
• Industrial-Grade Durability
  Engineered with flame-retardant housing and gold-plated contacts, rated for -25°C to +70°C operation, suitable for harsh environments including chemical plants, water treatment facilities, and outdoor installations.
• Plug-and-Play Compatibility
  Direct mounting on PROFIBUS network cables with standardized pinout, no special tools required, reducing commissioning time and minimizing configuration errors during system deployment.

Typical Application Scenarios

This PROFIBUS connector is engineered for environments demanding high communication reliability and continuous uptime, particularly in:

• Manufacturing & Production Lines
  Connects distributed I/O modules, motor drives, and HMI panels in automotive assembly, packaging machinery, and CNC machining centers where real-time control and diagnostics are critical.
• Process Automation & Chemical Plants
  Enables reliable fieldbus communication in refineries, pharmaceutical production, and water treatment systems where safety-critical data exchange and hazardous area compliance are mandatory.
• Building & Infrastructure Automation
  Supports HVAC control systems, elevator networks, and energy management platforms in commercial buildings, hospitals, and transportation hubs requiring 24/7 operational stability.
• Power Generation & Utilities
  Facilitates communication between turbine controllers, substation automation equipment, and SCADA systems in power plants and electrical distribution networks.
• Retrofit & Legacy System Upgrades
  Provides cost-effective connectivity when modernizing existing PROFIBUS networks or integrating new devices into established S7-300/400 installations without complete system replacement.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, please review the following technical parameters:

Selection Recommendations: When specifying this connector, consider network topology (linear, tree, or star), maximum segment length (up to 1000m at lower baud rates), number of nodes per segment (max 32 per segment without repeaters), and environmental conditions (temperature, vibration, EMI exposure). For complex installations or multi-segment networks, consult with our automation engineers who can provide detailed network design, cable specifications, and termination resistor placement guidance.

Extended Capabilities & System Integration

• Network Diagnostics Support
  Compatible with Siemens STEP 7 and TIA Portal diagnostic tools for real-time bus monitoring, error detection, and predictive maintenance analytics.
• Redundancy & Failover Options
  Can be integrated into redundant PROFIBUS ring topologies when combined with appropriate network components for mission-critical applications.
• Multi-Vendor Interoperability
  Works seamlessly with PROFIBUS devices from ABB, Phoenix Contact, Pepperl+Fuchs, and other certified manufacturers following GSD file integration.
• Documentation & Technical Resources
  Includes detailed wiring diagrams, pinout specifications, and installation manuals in multiple languages; CAD models and EPLAN macros available upon request.

Delivery, Service & Quality Assurance

Standard stock items ship within 2-5 business days; custom cable assemblies or bulk orders typically require 7-14 days. All products carry a 12-month manufacturer warranty covering material and workmanship defects. We provide remote technical consultation and on-site commissioning support (availability varies by region). Each connector ships with complete documentation including installation guide, wiring diagram, and compliance certificates for seamless integration and regulatory approval.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens 6ES7972-0BA42-0XA0 PROFIBUS connector to my existing network cable?
A: Strip the PROFIBUS cable jacket to expose conductors, insert wires into the screw terminals following the standard PROFIBUS pinout (typically red=VP, green=Data A, shield=ground), tighten screws to specified torque (0.4-0.6 Nm), and ensure proper cable strain relief. Always verify polarity and install termination resistors at both network ends.

Q: What is the maximum number of connectors I can use on a single PROFIBUS segment?
A: A standard PROFIBUS DP segment supports up to 32 nodes (including masters and slaves) without repeaters. For larger networks, use PROFIBUS repeaters or segment couplers to extend beyond this limit while maintaining signal integrity.

Q: What communication speed should I configure for optimal performance?
A: Transmission speed depends on cable length and network topology. For segments under 100m, 1.5 Mbps or 12 Mbps is typical; for longer distances (up to 1000m), use 9.6-93.75 kbps. All devices on the segment must operate at the same baud rate configured in your PLC project.

Q: What are the environmental requirements for installing this connector?
A: The connector is rated IP20 for dry, indoor cabinet installations with operating temperatures from -25°C to +70°C. For outdoor or harsh environments, install within a suitable IP65-rated enclosure and ensure proper cable gland sealing to prevent moisture ingress.

Q: Can this connector support remote monitoring and diagnostics?
A: Yes, when integrated with Siemens S7 PLCs and STEP 7/TIA Portal software, you can monitor bus status, detect communication errors, identify faulty nodes, and access diagnostic buffers for predictive maintenance and troubleshooting.

Q: Is this connector compatible with PROFINET or other industrial Ethernet protocols?
A: No, this is a PROFIBUS DP (RS485) connector specifically designed for serial fieldbus communication. For PROFINET applications, you'll need RJ45-based Industrial Ethernet connectors. However, PROFIBUS and PROFINET can coexist in the same automation system using appropriate gateways.

Request Technical Support & Quotation

For detailed application engineering, custom cable assemblies, or project-specific quotations, please provide the following information: project name and industry sector, network topology and segment length, number of nodes and device types, PLC model and firmware version, environmental conditions and certification requirements. Our automation specialists will respond within 24 hours with tailored recommendations and competitive pricing.
