SIEMENS 6ES7972-0BA41-0XA0 PROFIBUS DP Bus Connector | PG Programming Port | Industrial Automation

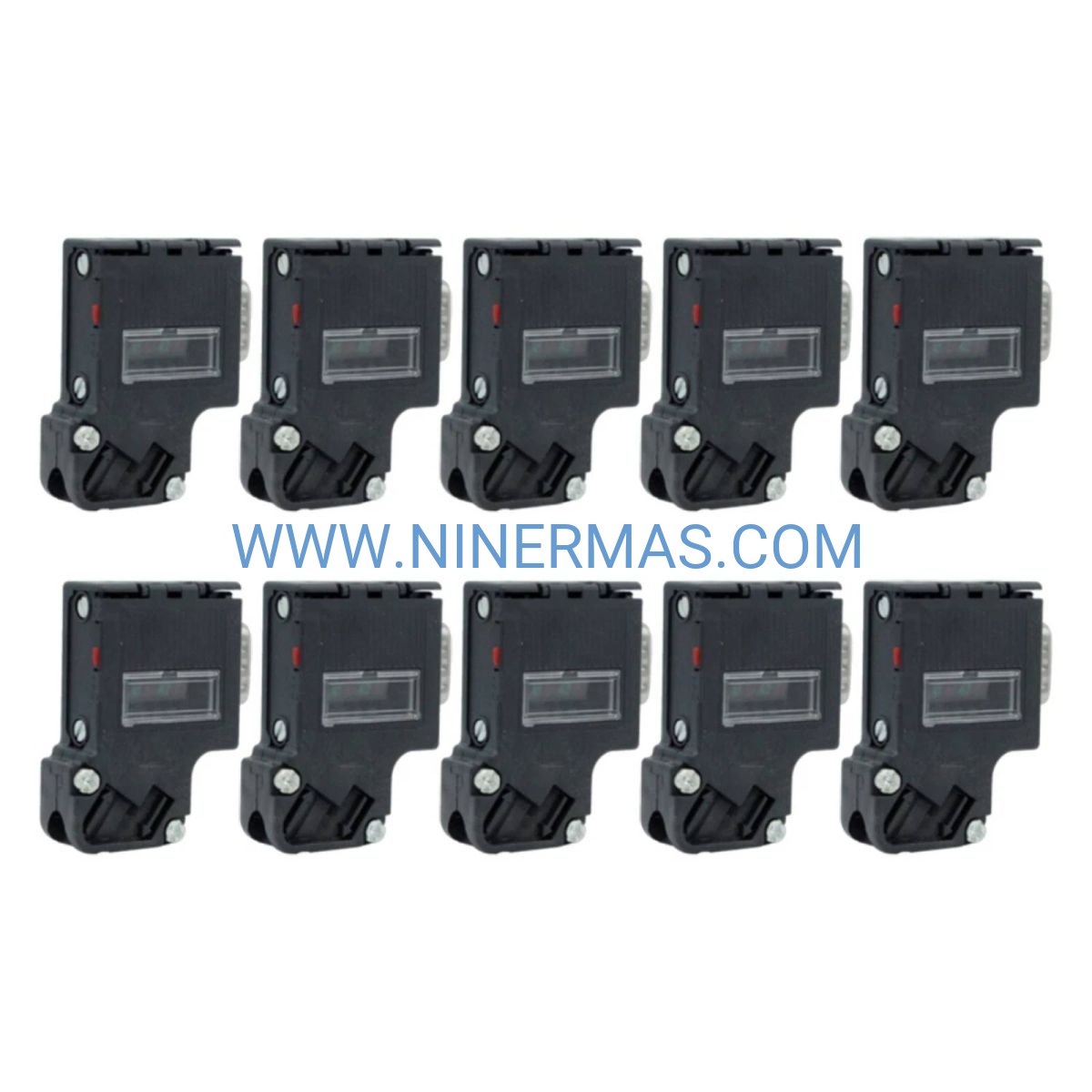

SIEMENS 6ES7972-0BA41-0XA0 PROFIBUS DP Bus Connector with Integrated PG Programming Port

The Siemens 6ES7972-0BA41-0XA0 is a professional-grade PROFIBUS DP bus connector designed for industrial automation networks. Featuring an integrated PG (Programming Device) port and FastConnect technology, this connector enables rapid RS485 network deployment while providing convenient on-site programming access for SIMATIC S7 PLC systems without network interruption.

Engineered for manufacturing plants, process automation facilities, and industrial control systems requiring reliable PROFIBUS communication, this connector addresses common challenges including complex wiring procedures, limited programming access points, network downtime during commissioning, and inconsistent signal integrity in harsh industrial environments.

Through standardized design and proven Siemens quality, this bus connector delivers tool-free installation, robust EMC performance, maintenance-free operation, and full compatibility with SIMATIC DP networks. Ideal for system integrators, automation engineers, OEM panel builders, and plant maintenance teams seeking dependable fieldbus connectivity solutions. Contact our engineering team for network topology consultation and technical specifications.

Core Features & Technical Advantages

• Integrated PG Programming Port
  Built-in programming interface allows direct PLC connection for diagnostics, parameter updates, and troubleshooting without disconnecting the PROFIBUS network, reducing commissioning time and minimizing production interruptions.
• FastConnect Technology
  Tool-free screw terminal design with spring-loaded contacts ensures quick, reliable cable termination while maintaining consistent contact pressure over the product lifecycle, eliminating loose connections caused by vibration.
• High-Speed RS485 Communication
  Supports data transmission rates up to 12 Mbit/s across PROFIBUS DP networks, ensuring real-time performance for time-critical automation applications including motion control and distributed I/O systems.
• Rugged Industrial Construction
  IP20-rated housing with gold-plated contacts provides reliable operation in industrial environments with temperature ranges from 0°C to +60°C, resistant to dust, mechanical stress, and electromagnetic interference.
• Standardized PROFIBUS Compatibility
  Fully compliant with PROFIBUS DP V0/V1/V2 specifications, ensuring seamless integration with SIMATIC S7-300/400/1200/1500 controllers, ET200 distributed I/O, and third-party PROFIBUS-enabled devices.
• Visual Status Indication
  Clear LED indicators for bus termination status and signal quality enable rapid visual diagnostics during installation and maintenance, reducing troubleshooting time by up to 40%.

Typical Application Scenarios

This PROFIBUS DP bus connector is engineered for industrial environments demanding high communication reliability, flexible programming access, and long-term operational stability, particularly in:

• Automotive Manufacturing & Assembly Lines
  Connects distributed I/O modules, servo drives, and HMI panels in body welding, paint shops, and final assembly stations where real-time coordination between multiple automation zones is critical for production throughput.
• Process Industries & Chemical Plants
  Provides reliable fieldbus connectivity for DCS integration, remote I/O racks, and intelligent field devices in refineries, pharmaceutical production, and water treatment facilities requiring continuous process monitoring and control.
• Power Generation & Energy Infrastructure
  Enables communication between turbine control systems, generator protection relays, and SCADA networks in thermal power plants, substations, and renewable energy installations where system uptime directly impacts grid stability.
• Material Handling & Logistics Automation
  Supports conveyor control systems, automated storage/retrieval systems (AS/RS), and sortation equipment in warehouses and distribution centers requiring coordinated motion control across extended network distances up to 1,200 meters.
• Machine Tool & CNC Manufacturing
  Facilitates communication between CNC controllers, servo amplifiers, and I/O modules in precision machining centers, grinding machines, and multi-axis production equipment where microsecond-level synchronization is essential.

Technical Specifications & Selection Guide

To ensure optimal network performance and compatibility, we provide comprehensive technical parameters for design and procurement decisions. Custom configurations available for specialized applications.

Selection Recommendations: When specifying this connector, consider network topology (linear/tree), total segment length, number of nodes per segment, required baud rate, and environmental conditions. For networks exceeding 32 nodes or requiring redundancy, consult our application engineers. Provide network diagram, device list, and installation environment details for customized recommendations.

Advanced Integration Capabilities

• Network Diagnostics Support: Compatible with SIMATIC NET diagnostic tools including STEP 7, TIA Portal, and PRONETA for comprehensive network analysis, topology visualization, and performance optimization.
• Redundancy Options: Can be integrated into redundant PROFIBUS configurations using Siemens Y-Link modules for mission-critical applications requiring fault-tolerant communication architectures.
• Multi-Protocol Environments: Supports coexistence with PROFINET, Industrial Ethernet, and legacy MPI networks through Siemens gateway devices, enabling gradual migration strategies for brownfield installations.
• Remote Monitoring Integration: Network status and diagnostic data accessible via SCADA systems, cloud-based monitoring platforms, and mobile maintenance applications for predictive maintenance programs.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom configurations or bulk orders (100+ units) require 10-15 business days.

Warranty Coverage: All Siemens PROFIBUS connectors include a comprehensive 12-month manufacturer warranty covering material defects and workmanship. Extended warranty programs available for critical infrastructure projects.

Technical Support: Our certified automation engineers provide remote configuration assistance, network troubleshooting, and on-site commissioning support (subject to location and project scope). Emergency technical hotline available 24/7 for production-critical issues.

Documentation Package: Each unit ships with complete technical documentation including dimensional drawings, wiring diagrams, PROFIBUS GSD files, installation instructions (English/Chinese), and compliance certificates. CAD models (STEP/IGES) available upon request for panel design integration.

Quality Certifications: Manufactured in Siemens ISO 9001:2015 certified facilities with full traceability. Products undergo 100% functional testing including high-voltage isolation tests, contact resistance verification, and EMC compliance validation before shipment.

Frequently Asked Questions (FAQ)

Q: How do I connect the 6ES7972-0BA41-0XA0 PROFIBUS DP bus connector to my existing SIMATIC S7 network?
A: The connector mounts on standard 35mm DIN rail and uses FastConnect terminals for incoming/outgoing PROFIBUS cables (purple 2-core shielded cable recommended). The integrated PG port connects directly to your programming device via standard MPI/DP cable. Ensure proper cable shielding connection to the connector's ground terminal and activate bus termination (220Ω resistor) only at the first and last network nodes.

Q: What is the maximum number of devices I can connect using this bus connector in a single PROFIBUS segment?
A: A single PROFIBUS DP segment supports up to 32 nodes (including the master controller) at 12 Mbit/s with standard RS485 repeaters. For larger networks, use PROFIBUS repeaters (e.g., 6ES7972-0AA02-0XA0) to extend segments. Total network capacity can reach 126 devices across multiple segments with proper repeater configuration.

Q: Can I use this connector for PROFINET or Industrial Ethernet applications?
A: No, the 6ES7972-0BA41-0XA0 is specifically designed for PROFIBUS DP (RS485) networks and is not compatible with Ethernet-based protocols like PROFINET. For PROFINET applications, consider Siemens IE connectors (6GK series) or use a PROFIBUS/PROFINET gateway for protocol conversion.

Q: What are the environmental requirements for reliable operation? Can it be used in outdoor or hazardous locations?
A: This connector is rated IP20 for indoor control cabinet installation with ambient temperatures between 0°C and +60°C. It is NOT suitable for direct outdoor exposure or hazardous (ATEX/IECEx) environments. For harsh conditions, install within IP54+ rated enclosures with appropriate climate control. For Zone 1/2 hazardous areas, use intrinsically safe PROFIBUS barriers and certified Ex-rated connectors.

Q: Does the integrated PG programming port support online diagnostics and firmware updates without stopping the PROFIBUS network?
A: Yes, the PG port allows simultaneous programming device connection while the PROFIBUS network remains operational. You can perform online diagnostics, parameter modifications, and program uploads/downloads to connected PLCs without interrupting communication between other network nodes. However, firmware updates to the PLC itself may require a brief controller restart depending on the SIMATIC CPU model.

Q: What communication protocols and data rates are supported? Is auto-baud detection available?
A: The connector supports all standard PROFIBUS DP baud rates from 9.6 kbit/s to 12 Mbit/s with automatic baud rate detection when used with SIMATIC controllers. It is fully compatible with PROFIBUS DP-V0 (cyclic data exchange), DP-V1 (acyclic services and diagnostics), and DP-V2 (isochronous mode for motion control). Protocol selection is configured in your STEP 7/TIA Portal project hardware configuration.

Get Expert Selection Support

To receive a customized PROFIBUS network design, technical specification sheet, or project quotation, please provide our engineering team with the following information:

• Project name and application industry
• Network topology requirements (linear/tree, total cable length)
• Number and types of PROFIBUS devices (PLCs, I/O modules, drives, HMIs)
• Required communication speed and cycle time
• Environmental conditions (temperature range, enclosure type, EMC considerations)
• Quantity required and delivery timeline

Our certified automation specialists will provide one-on-one consultation including network calculations, cable specifications, and complete bill of materials within 24 hours.
