Siemens 6ES7972-0BA40-0XA0 PROFIBUS Bus Connector | RS485 Interface for SIMATIC DP

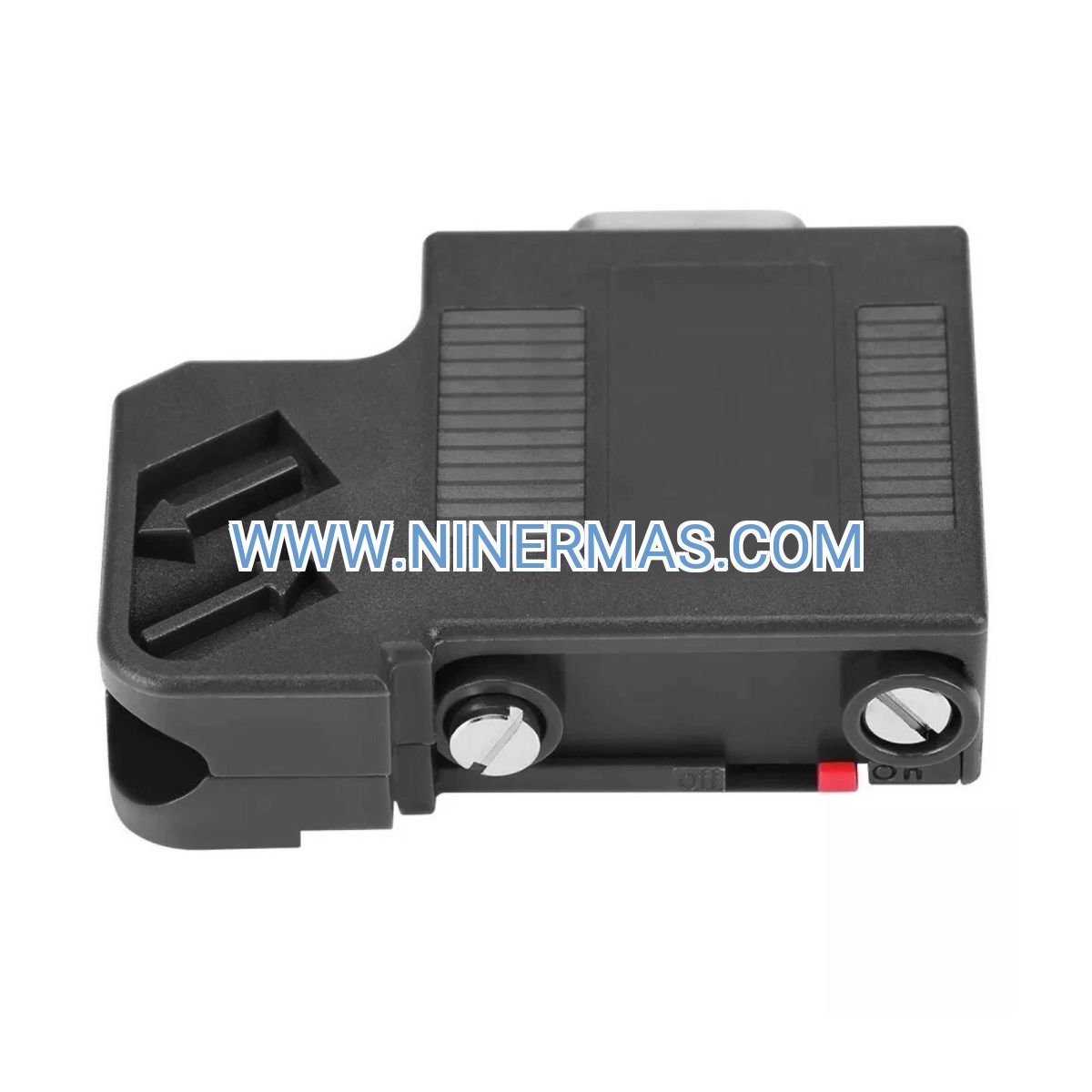

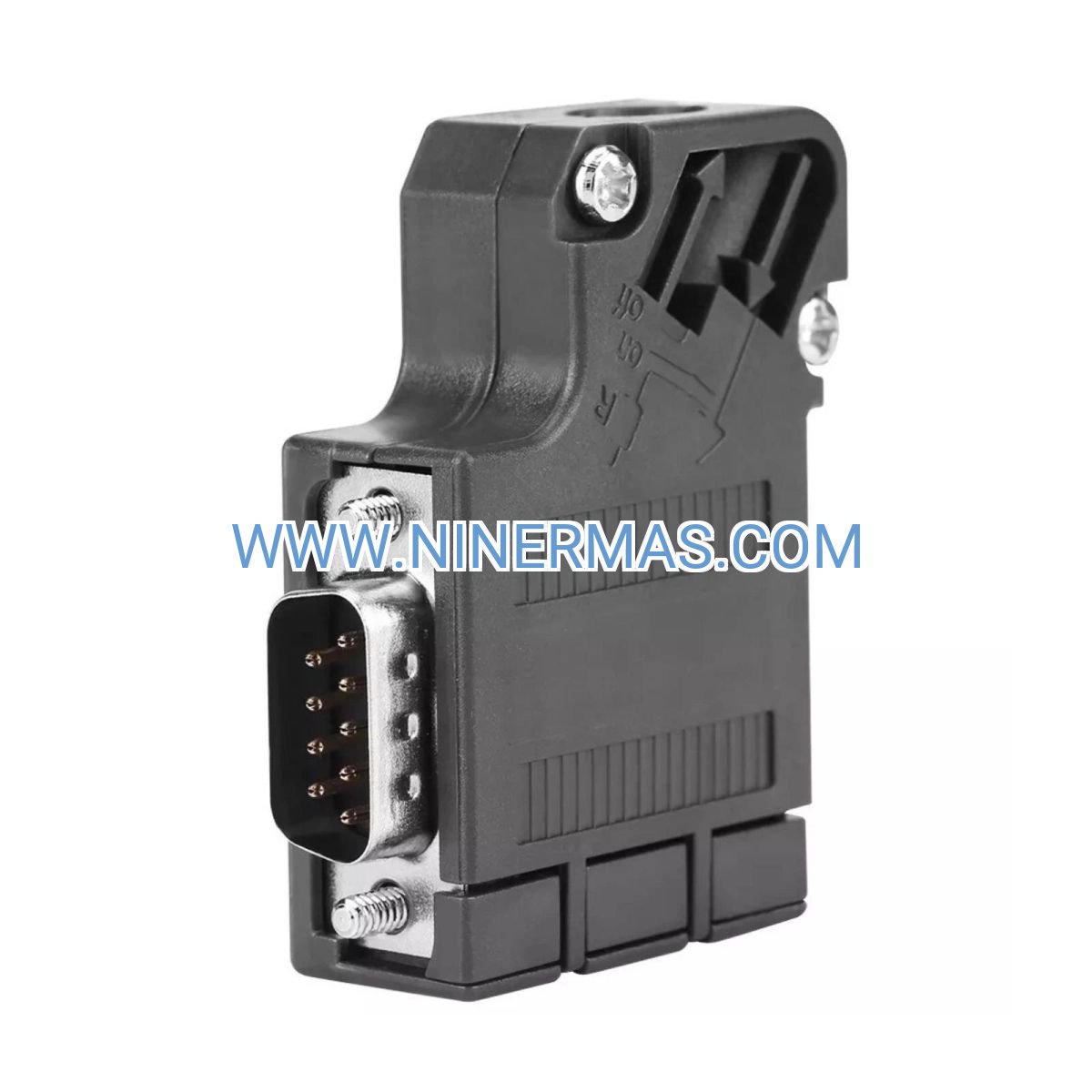

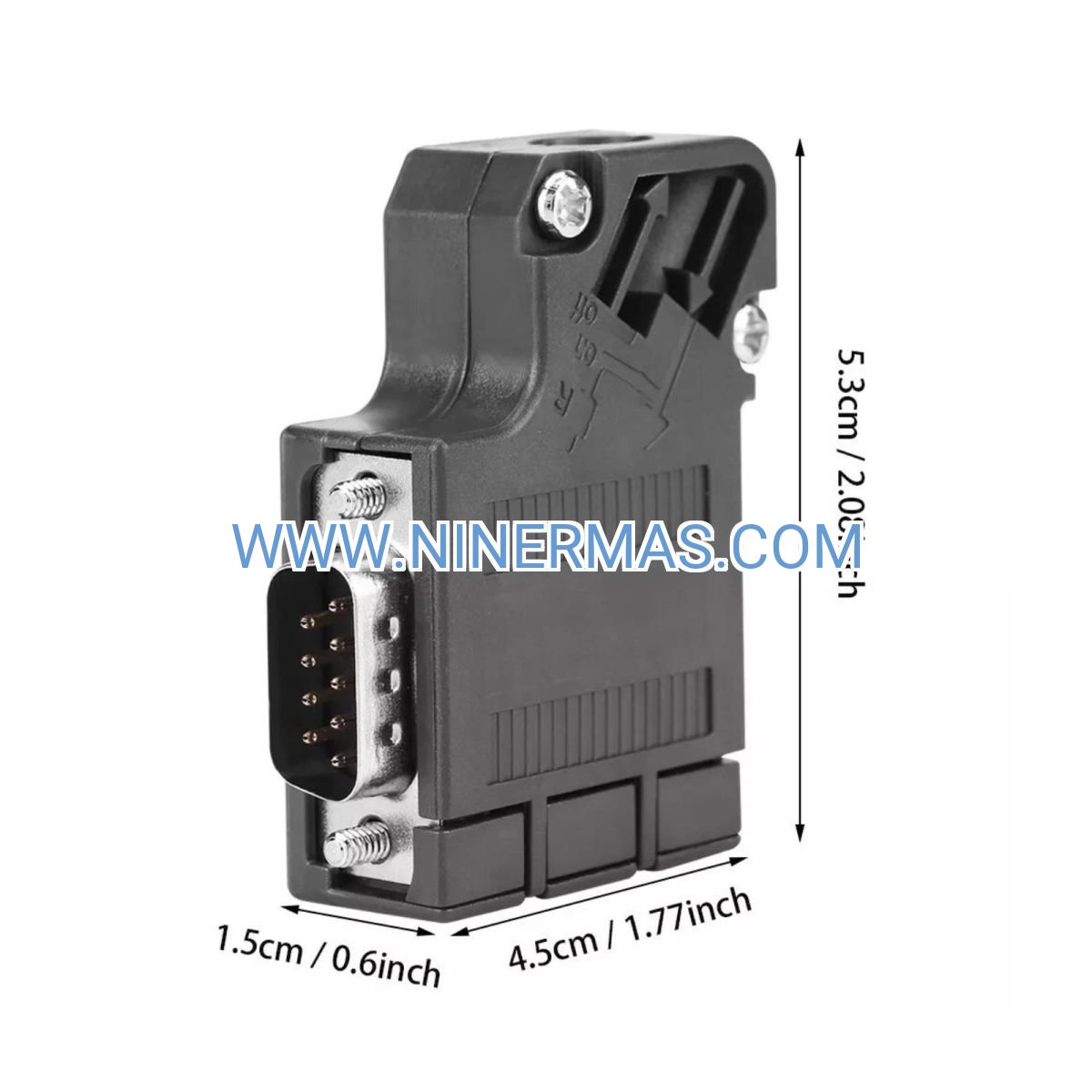

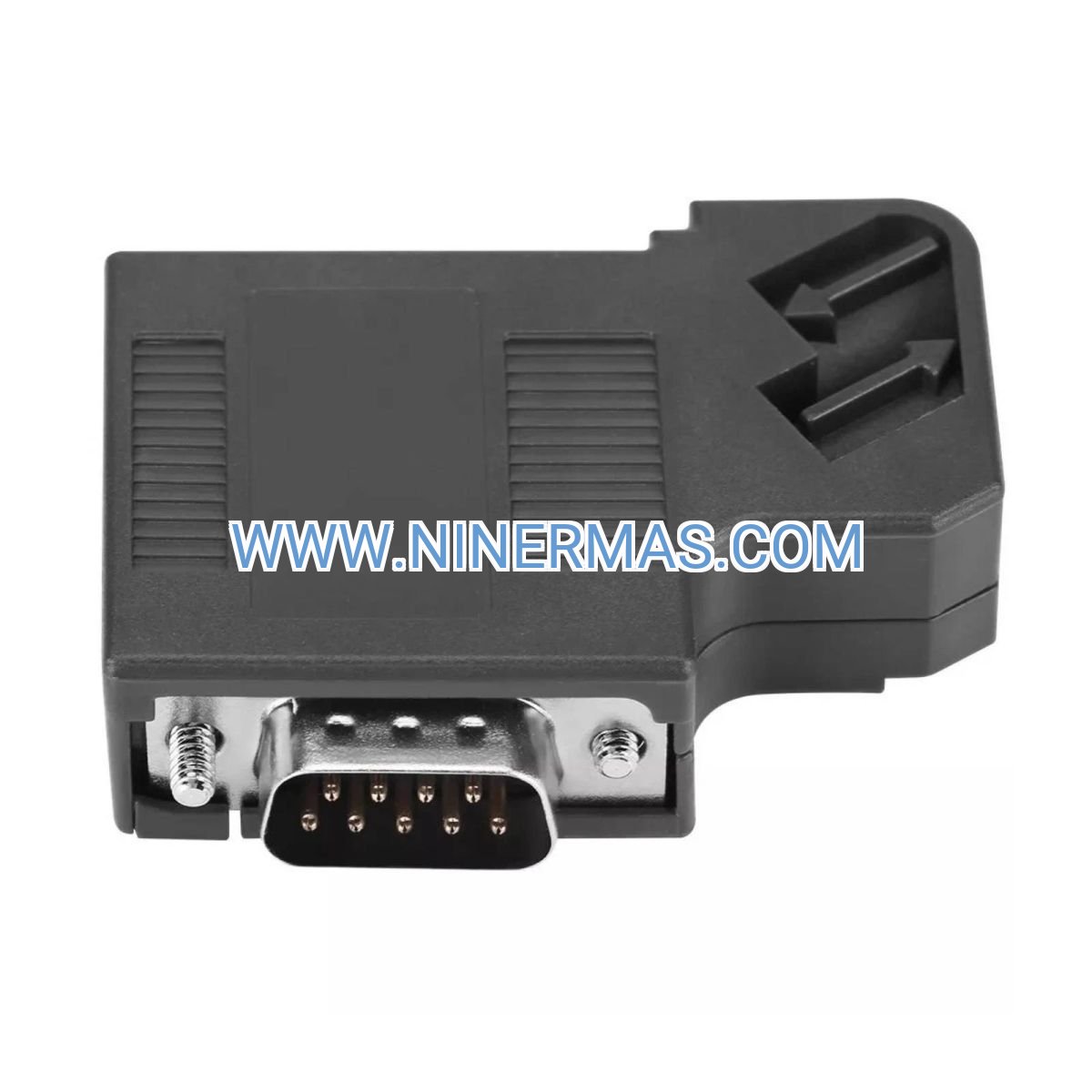

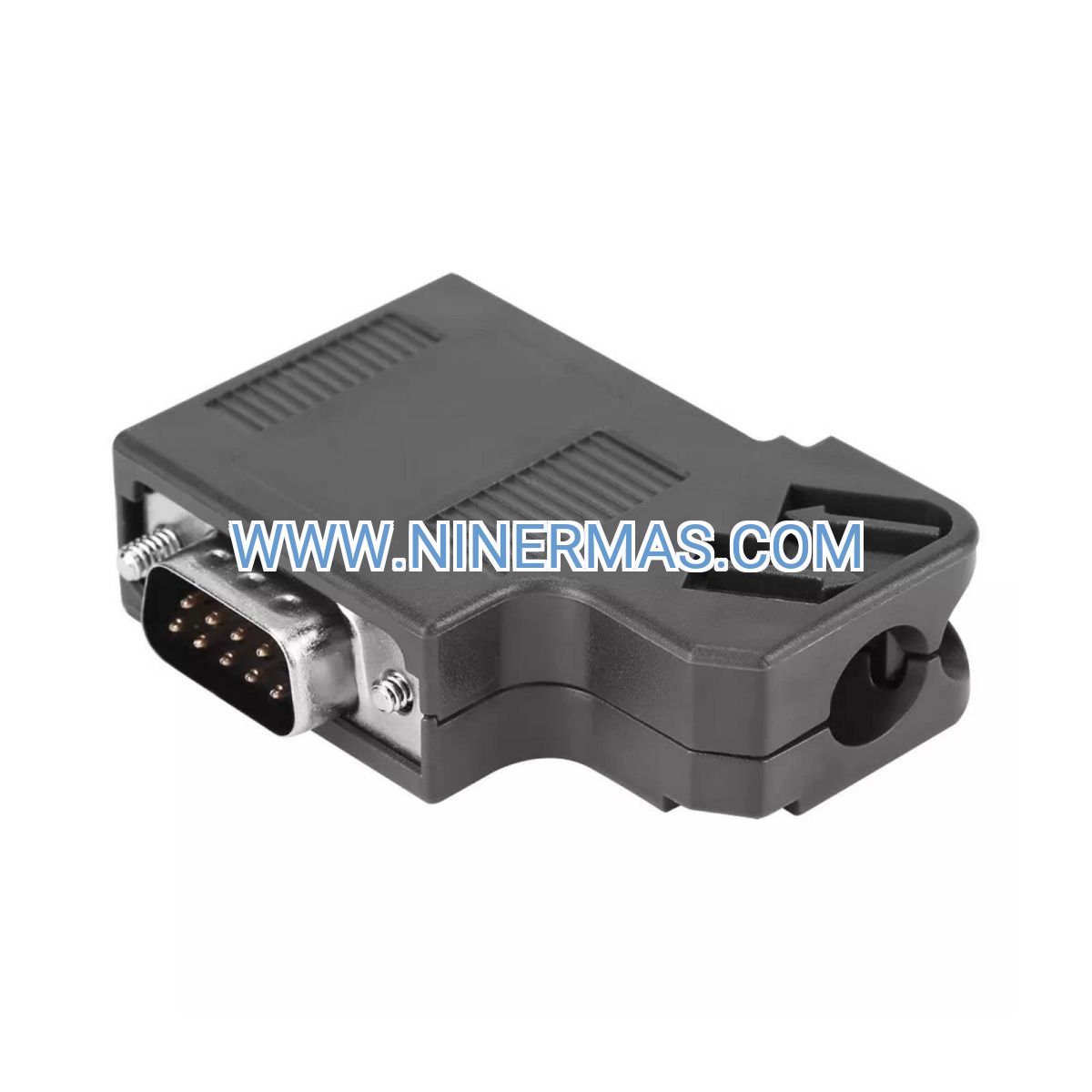

Siemens 6ES7972-0BA40-0XA0 PROFIBUS Bus Connector (Industrial-Grade Fieldbus Communication Module)

The Siemens 6ES7972-0BA40-0XA0 is a professional PROFIBUS bus connector designed for SIMATIC DP distributed automation systems. Through RS485 physical layer technology and standardized PROFIBUS-DP protocol, it enables high-speed, deterministic data exchange between PLCs, remote I/O modules, drives, and field instruments. This connector serves as the critical interface node ensuring stable communication across industrial networks.

Ideal for manufacturing automation, process control, building management systems, and energy infrastructure applications, this module addresses common challenges including signal integrity degradation, network topology complexity, electromagnetic interference susceptibility, and installation time constraints in harsh industrial environments.

Engineered with Siemens' proven design standards and field-tested reliability, the 6ES7972-0BA40-0XA0 offers plug-and-play installation, robust EMC protection, wide temperature tolerance, and full compatibility with SIMATIC S7 ecosystems. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for network topology consultation and technical specifications.

Core Features & Technical Advantages

• High-Speed Deterministic Communication
  Supports PROFIBUS-DP protocol with data rates up to 12 Mbps, ensuring predictable cycle times and minimal jitter for time-critical control loops in synchronized motion and process applications.
• RS485 Physical Layer Reliability
  Utilizes differential signaling technology with superior noise immunity, enabling stable transmission over distances up to 1,200 meters (at lower baud rates) without repeaters, reducing infrastructure costs.
• Plug-and-Play Installation Efficiency

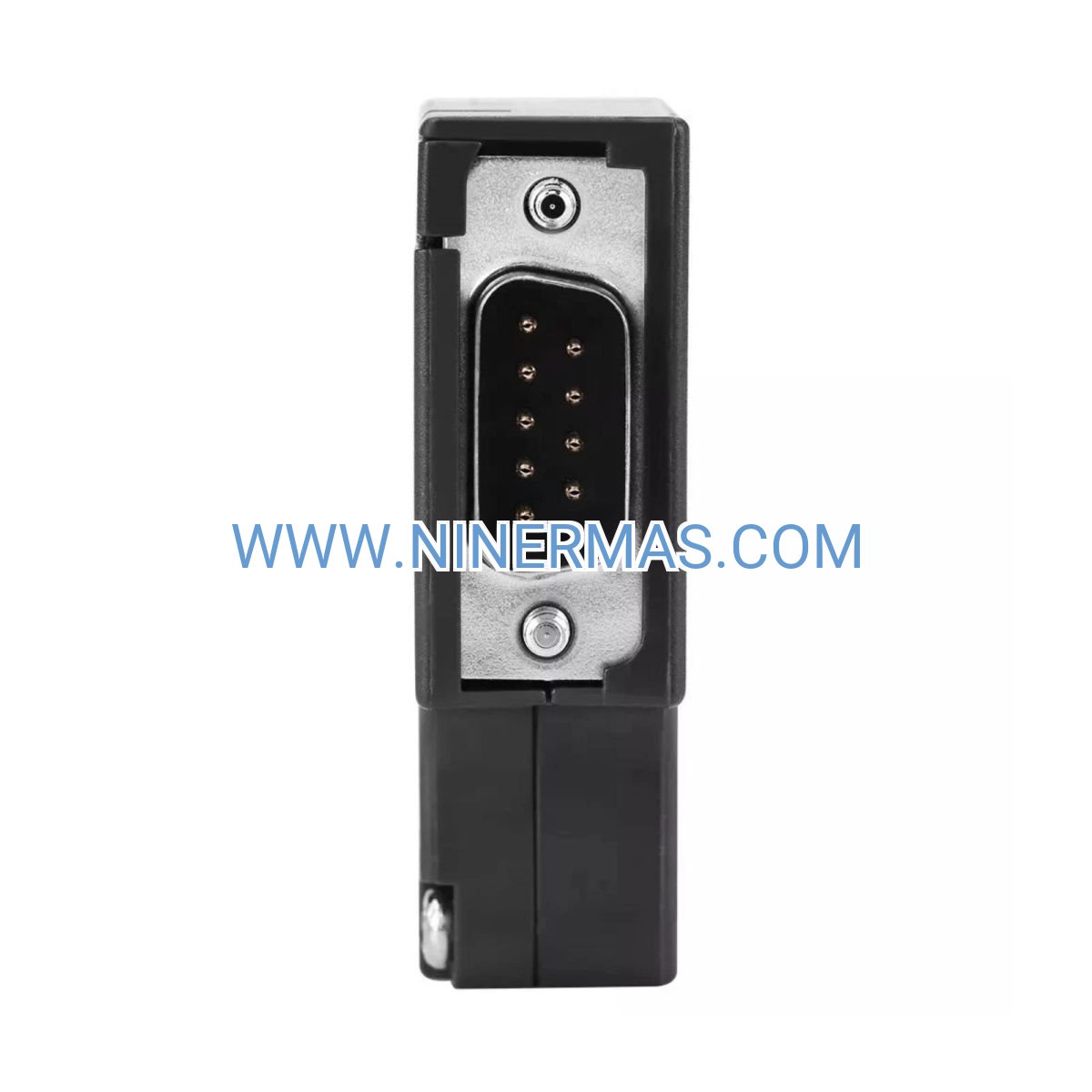

  Features standardized 9-pin D-sub connector with screw terminals or spring-cage wiring options, reducing commissioning time by approximately 40% compared to traditional hardwired solutions.
• Comprehensive Network Protection
  Integrated surge protection, short-circuit isolation, and bus termination resistor options safeguard against voltage spikes, ground loops, and cable faults, minimizing unplanned downtime.
• Industrial-Grade Environmental Resilience
  Operates reliably across -25°C to +70°C ambient temperature range with IP20 enclosure rating (IP65 available in panel-mount configurations), suitable for factory floors, outdoor cabinets, and mobile equipment.
• Seamless SIMATIC Ecosystem Integration
  Fully compatible with TIA Portal engineering software, S7-300/400/1200/1500 controllers, and ET200 distributed I/O families, enabling unified configuration, diagnostics, and asset management workflows.

Typical Application Scenarios

This PROFIBUS connector is engineered for environments demanding high communication reliability, real-time performance, and long-term operational stability, particularly in:

• Discrete Manufacturing & Assembly Lines
  Connects robotic cells, conveyor systems, vision inspection stations, and quality control devices in automotive, electronics, and packaging industries where cycle time precision directly impacts throughput.
• Process Industries & Continuous Production
  Links distributed field instruments (flow meters, pressure transmitters, valve positioners) to DCS/PLC systems in chemical plants, refineries, pharmaceutical facilities, and food processing operations requiring FDA/ATEX compliance.
• Building Automation & HVAC Systems
  Integrates chillers, air handling units, boiler controls, and energy meters in commercial buildings, hospitals, and data centers where energy efficiency monitoring and predictive maintenance are priorities.
• Water Treatment & Municipal Infrastructure
  Facilitates communication between pump stations, filtration systems, SCADA servers, and remote telemetry units in water distribution networks, wastewater treatment plants, and irrigation control systems.
• Energy & Power Generation Facilities
  Supports substation automation, turbine control, and grid synchronization applications in renewable energy plants, combined heat and power (CHP) systems, and utility-scale battery storage installations.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, we provide standardized technical parameters alongside customization options for project-specific requirements.

Selection Recommendations: When specifying this connector, consider the following factors: maximum network segment length, required baud rate for your control cycle time, number of nodes per segment, ambient temperature extremes, presence of electromagnetic interference sources (VFDs, welding equipment), and whether redundant communication paths are needed. For complex topologies involving multiple subnets, fiber-optic links, or integration with Industrial Ethernet (PROFINET), consult our application engineers who can provide network architecture diagrams and bill-of-materials tailored to your project.

Advanced Integration Capabilities

• Dual-Port Daisy-Chain Topology: Supports in/out bus connections enabling linear, tree, or star network configurations without external junction boxes.
• Diagnostic LED Indicators: Real-time visual feedback for bus activity, termination status, and fault conditions accelerates troubleshooting during commissioning and maintenance.
• Hot-Swap Capability: Allows module replacement without powering down the entire network segment (configuration-dependent), reducing mean time to repair (MTTR).
• GSD File Integration: Pre-configured device database files enable drag-and-drop configuration in TIA Portal, STEP 7, or third-party SCADA platforms, eliminating manual parameter entry errors.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from regional warehouses. Custom configurations (special cable lengths, IP65 housings, extended temperature variants) require 10-15 business days for assembly and testing.

Warranty Coverage: All units include a minimum 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans (up to 36 months) are available for critical infrastructure applications.

Technical Support: Our certified Siemens specialists provide remote configuration assistance, network diagnostics, and firmware update guidance. On-site commissioning services are available for large-scale installations (minimum order quantities apply).

Documentation Package: Each shipment includes detailed installation manual, wiring diagrams, GSD device files, compliance certificates (CE/UL), and quick-start guide in English. CAD drawings (DXF/STEP formats) and 3D models available upon request for panel design integration.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens 6ES7972-0BA40-0XA0 PROFIBUS bus connector to my existing automation network?
A: The connector uses a standard 9-pin D-sub interface. Connect the incoming PROFIBUS cable to the "IN" port and outgoing cable to the "OUT" port (for daisy-chain topology). Ensure proper cable shielding termination at both ends, activate the bus termination resistor on the last device in each segment, and verify baud rate settings match your PLC configuration (typically set via DIP switches or software).

Q: What is the maximum number of devices I can connect on a single PROFIBUS segment with this connector?
A: PROFIBUS-DP supports up to 126 nodes (addresses 0-125) per segment. However, practical limits depend on baud rate, cable quality, and segment length. For segments exceeding 32 devices or requiring distances beyond standard limits, use RS485 repeaters or fiber-optic converters to maintain signal integrity.

Q: How much energy savings can I expect compared to traditional hardwired I/O systems?
A: While the connector itself consumes minimal power (<1.5W), the primary savings come from reduced wiring labor (up to 60% less installation time), lower material costs (single bus cable vs. individual I/O wires), and improved diagnostic capabilities that reduce troubleshooting downtime by approximately 30-40% based on field studies.

Q: What are the environmental requirements for installing this PROFIBUS connector?
A: The standard IP20 version is designed for installation inside control cabinets with ambient temperatures between -25°C and +70°C and relative humidity up to 95% (non-condensing). For outdoor or washdown environments, specify the IP65 panel-mount variant with conformal coating and sealed connectors. Avoid direct exposure to corrosive gases, conductive dust, or continuous vibration exceeding 5g.

Q: Can I integrate this connector with remote monitoring systems or cloud-based SCADA platforms?
A: Yes. When connected to a SIMATIC S7 PLC or compatible gateway device, PROFIBUS data can be mapped to OPC UA, MQTT, or Modbus TCP protocols for integration with cloud platforms (AWS IoT, Azure IoT Hub, Siemens MindSphere). This enables remote diagnostics, predictive maintenance analytics, and mobile HMI access. Consult our IoT integration specialists for architecture recommendations.

Q: Is this connector compatible with non-Siemens PROFIBUS devices from other manufacturers?
A: Absolutely. PROFIBUS is an open, vendor-neutral standard (IEC 61158/61784). This connector works seamlessly with PROFIBUS-certified devices from ABB, Schneider Electric, Phoenix Contact, Pepperl+Fuchs, and hundreds of other manufacturers. Always verify device GSD files are imported into your engineering tool for proper configuration.

Request Technical Consultation & Quotation

To receive a customized solution proposal, detailed pricing, or application-specific technical support, please provide the following information to our engineering team:

• Project name and industry sector
• Application scenario (e.g., assembly line control, water treatment SCADA, building automation)
• Number of PROFIBUS nodes and network topology (linear/star/redundant)
• Maximum segment length and required baud rate
• Environmental conditions (temperature range, IP rating, hazardous area classification if applicable)
• Integration requirements (PLC model, SCADA platform, IoT connectivity)
• Quantity required and preferred delivery schedule

Our certified application engineers will respond within 24 hours with tailored recommendations, network architecture diagrams, and competitive quotations.
