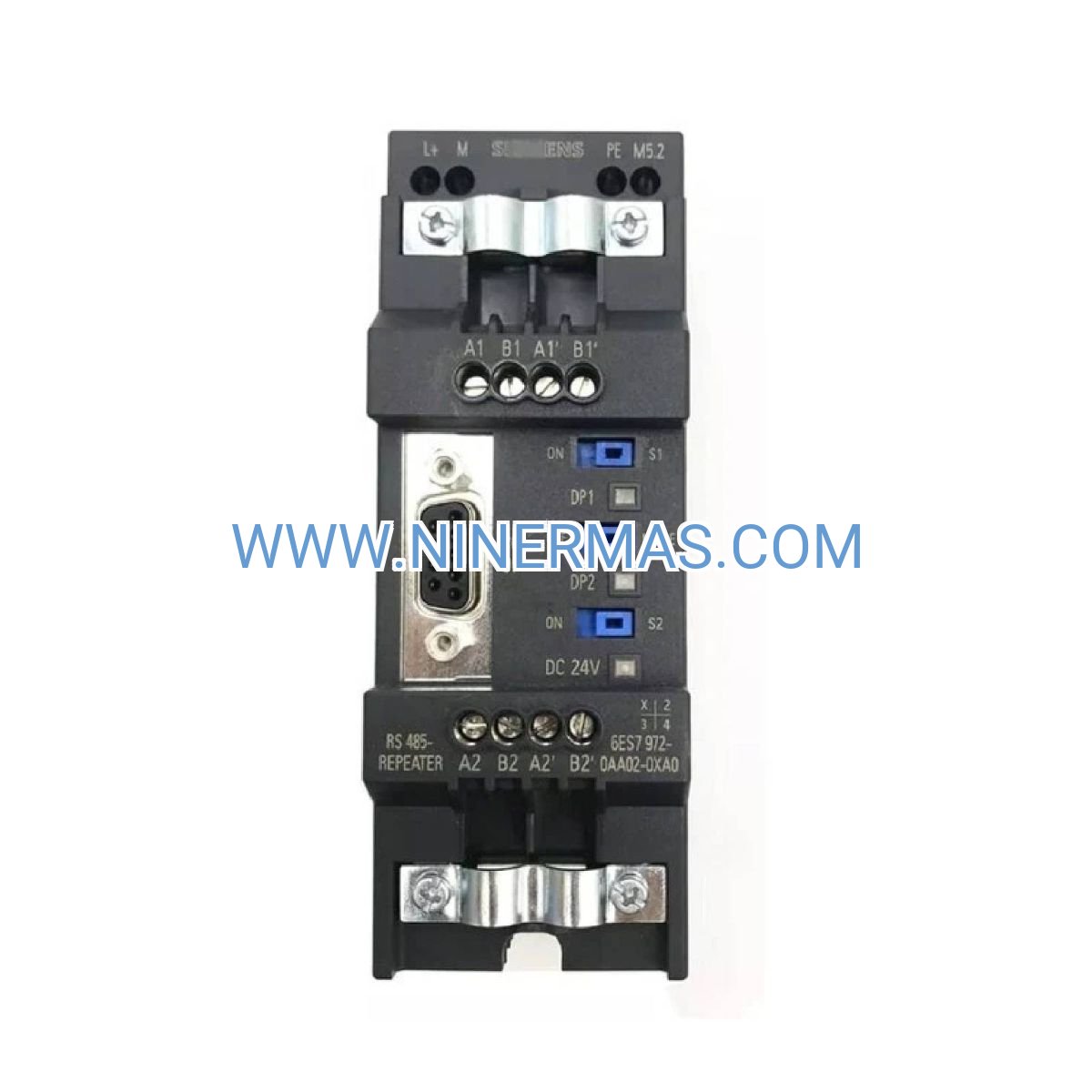

PROFIBUS DP RS485 Repeater | Siemens 6ES7972-0AA01-0XA0 Network Extender

PROFIBUS DP RS485 Repeater Module (Industrial Network Extension Solution)

The Siemens 6ES7972-0AA01-0XA0 is a professional-grade PROFIBUS DP repeater designed for extending RS485 network segments in demanding industrial environments. Through advanced signal regeneration and isolation technology, it enables reliable data transmission over extended distances while maintaining network integrity and communication stability across distributed control systems.

Engineered for factory automation, process control networks, building management systems, municipal infrastructure, and industrial monitoring applications, this repeater addresses critical challenges including signal attenuation over long cable runs, electromagnetic interference in harsh environments, network topology limitations, and the need for multi-segment architecture in large-scale installations.

Featuring standardized design with flexible configuration options, this module delivers exceptional signal quality, robust EMC performance, simplified installation procedures, and broad compatibility with SIMATIC and third-party PROFIBUS devices. Ideal for system integrators, automation engineers, plant maintenance teams, and OEM equipment manufacturers seeking reliable network infrastructure. Contact our engineering team for application-specific configuration guidance and technical specifications.

Core Features & Technical Advantages

• Extended Network Reach
  Regenerates PROFIBUS DP signals to extend segment length up to 1200 meters per repeater, enabling coverage of large industrial facilities while maintaining full protocol compliance and data integrity.
• High-Speed Data Transmission
  Supports baud rates up to 12 Mbps with minimal latency, ensuring real-time performance for time-critical control applications and high-throughput data acquisition systems.
• Electrical Isolation Protection
  Provides galvanic isolation between network segments, protecting against ground loops, voltage surges, and electrical noise that can compromise communication reliability in industrial power environments.
• Cascading Capability
  Allows multiple repeaters to be cascaded for ultra-long distance applications, with up to 9 repeaters per network segment following PROFIBUS specification guidelines.
• Diagnostic LED Indicators
  Equipped with multi-color status LEDs for power, transmission activity, and fault conditions, enabling rapid troubleshooting and reducing mean time to repair during maintenance operations.
• Compact DIN-Rail Design
  Space-efficient form factor with standard 35mm DIN-rail mounting, simplifying integration into control cabinets and minimizing panel space requirements in crowded installations.

Typical Application Scenarios

This PROFIBUS repeater is engineered for environments demanding extended network coverage, signal quality assurance, and operational continuity:

• Factory Automation & Manufacturing Lines
  Connects distributed I/O stations, motor control centers, and HMI panels across production floors spanning hundreds of meters, ensuring synchronized operation of assembly lines, material handling systems, and quality inspection stations.
• Process Control & Chemical Plants
  Extends PROFIBUS networks throughout refineries, pharmaceutical facilities, and water treatment plants where field instruments and actuators are geographically dispersed, maintaining precise control loop performance despite long cable runs.
• Building Automation & HVAC Systems
  Integrates HVAC controllers, lighting systems, and energy management devices across multi-story commercial buildings and campus environments, reducing installation costs while improving system responsiveness.
• Power Generation & Substations
  Facilitates communication between protective relays, SCADA systems, and monitoring equipment in electrical substations and power plants where equipment is distributed across large outdoor areas requiring robust signal transmission.
• Municipal Infrastructure & Water Distribution
  Supports remote monitoring and control of pumping stations, valve actuators, and flow meters in water supply networks, wastewater treatment facilities, and irrigation systems spanning kilometers of underground piping.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, we provide comprehensive technical parameters for system design and procurement:

Selection Recommendations: When specifying repeaters, consider maximum network length requirements, installed cable type (Type A vs. Type B), environmental conditions (temperature, EMI exposure), power supply availability at repeater locations, and total number of nodes per segment. For complex topologies or multi-drop configurations, consult with our application engineers who can provide network design validation and configuration worksheets.

Installation & Integration Support

Each repeater module includes comprehensive documentation and technical resources to streamline deployment:

• Wiring Diagrams: Detailed terminal connection schematics for RS485 bus wiring, power supply hookup, and grounding recommendations
• Configuration Guidelines: Step-by-step procedures for termination resistor settings, baud rate selection, and network topology planning
• Compatibility Matrix: Verified interoperability data with SIMATIC S7 PLCs, ET200 distributed I/O, and third-party PROFIBUS devices
• Troubleshooting Flowcharts: Diagnostic procedures for common installation issues including signal quality problems, addressing conflicts, and power supply faults

Delivery, Warranty & Technical Services

Standard catalog items ship within 3-5 business days from regional distribution centers; custom configurations or bulk orders typically require 7-14 days lead time. All products include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available for critical infrastructure applications.

Technical support services include remote consultation for network design validation, on-site commissioning assistance (subject to location and project scope), firmware update notifications, and access to our engineering knowledge base containing application notes, white papers, and video tutorials. Complete product documentation package includes installation manual, electrical schematics, PROFIBUS GSD file, and compliance certificates.

Frequently Asked Questions (FAQ)

Q: How does a PROFIBUS DP RS485 repeater integrate with existing network infrastructure?
A: The repeater connects in-line with your PROFIBUS cable, requiring only 24V DC power and proper bus termination. It automatically detects baud rate and requires no software configuration. Simply insert it at the point where signal extension is needed, ensuring proper cable shielding and grounding practices are maintained.

Q: What is the maximum number of repeaters that can be cascaded in a single network?
A: According to PROFIBUS specification, up to 9 repeaters can be cascaded per network segment. However, practical installations typically use 3-4 repeaters to maintain optimal signal quality and minimize cumulative latency. Each repeater adds approximately 1-2 bit times of delay.

Q: Can this repeater improve communication reliability in electrically noisy environments?
A: Yes, the galvanic isolation feature (1500V DC) effectively breaks ground loops and blocks common-mode noise between segments. This is particularly valuable in facilities with variable frequency drives, welding equipment, or high-voltage switching gear that generate electromagnetic interference.

Q: What cable types are compatible with this PROFIBUS repeater?
A: The repeater works with both Type A (shielded twisted pair for indoor use, up to 1200m at lower baud rates) and Type B (outdoor-rated cable for harsh environments). Cable impedance should be 135-165 ohms, and proper termination resistors (220 ohms + 390 ohms to ground) must be installed at network endpoints.

Q: Does the repeater support remote diagnostics or SCADA integration?
A: While the repeater itself operates transparently at the physical layer, its LED status indicators can be monitored via optional auxiliary contacts or integrated into cabinet-level monitoring systems. For advanced diagnostics, consider pairing with SIMATIC network diagnostic tools that can analyze segment health and traffic statistics.

Q: What are the power consumption and heat dissipation characteristics?
A: Typical power consumption is approximately 2.4W (100mA at 24V DC), generating minimal heat. No forced cooling is required when mounted vertically in a ventilated control cabinet. Ensure adequate spacing (10mm minimum) between adjacent devices for natural convection.

Request Technical Consultation & Quotation

For detailed application engineering support, custom configuration assistance, or project-specific pricing, please provide the following information to our technical sales team:

• Project name and application type (manufacturing, process control, infrastructure, etc.)
• Total network distance and number of segments requiring extension
• Installed or planned PROFIBUS baud rate
• Number of network nodes and device types (PLCs, I/O modules, drives, instruments)
• Environmental conditions (temperature range, EMI sources, indoor/outdoor installation)
• Quantity requirements and delivery timeline

Our certified automation engineers will provide comprehensive network topology recommendations, bill of materials, and implementation guidance tailored to your specific requirements.
