Siemens 6ES7971-0BA00 Power Supply Module | SIMATIC S7-300 24V DC Industrial Control

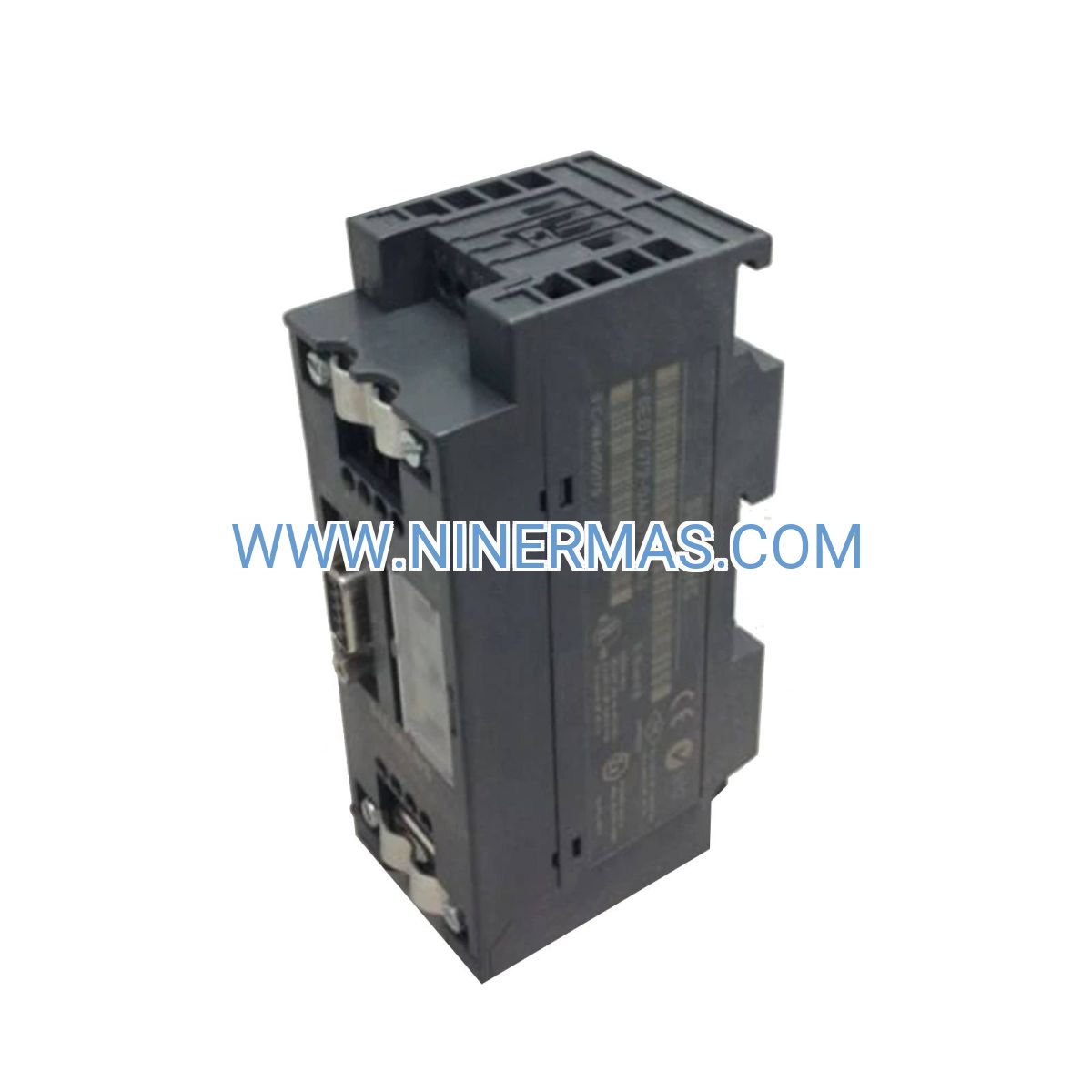

Siemens 6ES7971-0BA00 Power Supply Module (Industrial-Grade S7-300 Control System)

The Siemens 6ES7971-0BA00 is a high-reliability power supply module designed for SIMATIC S7-300 PLC systems, delivering stable 24V DC output through advanced switching regulation technology. This module ensures consistent power delivery for industrial automation controllers, I/O modules, and field devices in demanding environments.

Ideal for manufacturing plants, process automation facilities, chemical processing units, and energy management systems, this power module addresses critical challenges including voltage fluctuations, power interruptions, equipment downtime, and inadequate surge protection that can compromise production continuity.

Through standardized design and flexible integration capabilities, this product offers superior reliability, wide input voltage tolerance, compact DIN-rail mounting, and comprehensive protection features. Suitable for system integrators, automation engineers, OEM manufacturers, and facility maintenance teams. Contact our technical specialists for application guidance and quotation.

Core Functions & Advantages

Stable 24V DC Output Regulation
Precision voltage regulation maintains ±3% output stability across varying load conditions, protecting sensitive PLC logic and I/O circuits from voltage-induced errors and extending component lifespan.

Wide Input Voltage Range
Accepts 120/230V AC input with automatic voltage detection, eliminating manual switching and reducing installation errors. Operates reliably across ±15% input voltage variations common in industrial power grids.

Comprehensive Protection Mechanisms
Integrated overcurrent, short-circuit, overvoltage, and thermal protection safeguards both the power module and connected equipment. Automatic recovery reduces manual intervention and minimizes downtime costs.

High Efficiency & Low Heat Generation
Switching-mode design achieves >85% efficiency, reducing energy consumption by approximately 20-30% compared to linear supplies while minimizing cooling requirements and extending MTBF (Mean Time Between Failures).

Compact DIN-Rail Design
Standard 35mm DIN-rail mounting with minimal footprint (40mm width) optimizes panel space utilization. Tool-free installation clips enable rapid deployment and maintenance access.

LED Status Indication
Front-panel LED provides instant visual confirmation of output status, enabling quick diagnostics during commissioning and troubleshooting without requiring test equipment.

Typical Application Scenarios

This power supply module is engineered for applications requiring high availability, stable voltage delivery, and harsh environment operation, particularly in:

Manufacturing Automation & Assembly Lines
Powers S7-300 controllers managing robotic cells, conveyor systems, and quality inspection stations. Ensures uninterrupted operation during production shifts, preventing costly line stoppages in automotive, electronics, and consumer goods manufacturing.

Process Control & Chemical Plants
Maintains critical control system power in continuous process industries including petrochemical refineries, pharmaceutical production, and water treatment facilities where power interruptions can trigger safety shutdowns or batch losses.

Building Automation & HVAC Systems
Supports PLC-based control of commercial HVAC, lighting management, and access control systems in office buildings, hospitals, and data centers requiring 24/7 operational reliability.

Energy & Utilities Infrastructure
Provides dependable power for SCADA systems, substation automation, and renewable energy monitoring applications where environmental extremes and power quality issues are common.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive specifications for the 6ES7971-0BA00 module. Custom configurations available for specialized applications.

Electrical Specifications:

• Input Voltage: 120/230V AC (±15%), 50/60 Hz
• Output Voltage: 24V DC (±3%)
• Output Current: 2A continuous, 2.5A peak (5 seconds)
• Output Power: 48W nominal
• Efficiency: >85% at rated load
• Inrush Current: <20A at 230V AC

Mechanical & Environmental:

• Mounting: 35mm DIN rail (EN 60715)
• Dimensions: 40 x 125 x 117mm (W x H x D)
• Weight: Approximately 0.35 kg
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +70°C
• Humidity: 5% to 95% RH (non-condensing)
• Protection Rating: IP20

Compliance & Standards:

• CE, UL, cUL certified
• EMC: EN 61000-6-2, EN 61000-6-4
• Safety: EN 61010-2-201

Selection Recommendations:
When selecting a power supply, consider: total current draw of all connected S7-300 modules and field devices, ambient temperature conditions, required redundancy (N+1 configuration), available panel space, and input power quality. For systems exceeding 2A load or requiring redundant power, consult our engineering team with your system configuration details.

Extended Features & Integration

Parallel Operation Capability
Multiple units can be paralleled using external diode modules for redundant N+1 configurations, ensuring continuous operation even during single-unit failure or maintenance.

Universal Compatibility
Fully compatible with all SIMATIC S7-300 CPU modules, signal modules (SM), function modules (FM), and communication processors (CP). Also suitable for powering third-party 24V DC field devices and sensors.

Diagnostic Support
Integrates with S7-300 diagnostic systems through voltage monitoring modules, enabling predictive maintenance alerts and remote status verification via SCADA/HMI interfaces.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 2-3 business days; custom configurations require 7-14 days depending on specifications.

Warranty: 12-month manufacturer warranty covering material defects and workmanship. Extended warranty options available for critical applications.

Technical Support: Remote commissioning assistance, application engineering consultation, and replacement guidance provided by certified Siemens specialists. On-site support available in select regions.

Documentation Package: Each unit includes installation manual, dimensional drawings, wiring diagrams, and compliance certificates. CAD models and technical datasheets available for download.

Quality Certification: Genuine Siemens factory-sealed product with traceable serial numbers. ISO 9001 certified manufacturing and quality management systems.

Frequently Asked Questions (FAQ)

Q: How do I integrate the 6ES7971-0BA00 power supply module with my existing S7-300 PLC system?
A: The module mounts directly on standard 35mm DIN rail adjacent to your S7-300 rack. Connect AC input to L/N terminals, then distribute 24V DC output to the PLC backplane power bus and field devices via screw terminals. Verify total current draw does not exceed 2A continuous rating. Refer to installation manual for detailed wiring diagrams.

Q: What is the maximum number of S7-300 modules this power supply can support?
A: Capacity depends on individual module current consumption. Typical S7-300 CPU modules draw 0.8-1.2A, while I/O modules range from 0.05-0.3A each. A single 6ES7971-0BA00 (2A output) typically supports one CPU plus 4-8 I/O modules. For larger configurations, use multiple power supplies or higher-capacity models like 6ES7307-1KA02-0AA0 (10A).

Q: What energy savings can I expect compared to older linear power supplies?
A: Switching-mode design achieves 85-90% efficiency versus 50-60% for linear supplies. In a typical 40W load scenario, this reduces power consumption by approximately 15-20W (30-40% savings), lowering heat generation and cooling costs. Actual savings depend on load profile and ambient conditions.

Q: What are the installation environment requirements and protection rating?
A: The module is rated IP20 for indoor control cabinet installation. Operating temperature range is 0-60°C with 5-95% RH (non-condensing). For harsh environments with dust, moisture, or extreme temperatures, install within a sealed NEMA 12/IP54 or higher rated enclosure with adequate ventilation.

Q: Does this power supply support remote monitoring and data acquisition?
A: The 6ES7971-0BA00 itself does not have built-in communication interfaces. However, output voltage can be monitored using S7-300 analog input modules or dedicated voltage monitoring relays. For advanced diagnostics, integrate with SIMATIC HMI panels or SCADA systems via the connected PLC's communication network (PROFIBUS, PROFINET, Ethernet).

Q: Can I use this module in redundant power configurations?
A: Yes, redundant N+1 configurations are achievable using external diode decoupling modules (e.g., Siemens 6ES7307-1BA01-0AA0). This prevents reverse current flow and enables automatic failover if one supply fails, ensuring continuous system operation for critical applications.

Request Technical Support & Quotation

For detailed application engineering, custom configuration recommendations, or pricing information, please provide the following details: project name and industry, application environment (temperature, humidity, vibration), total system power requirements (CPU + I/O module count and types), input power specifications (voltage, frequency, quality), redundancy requirements (single/dual supply), and installation constraints (panel space, DIN rail availability).

Our certified automation engineers will provide personalized selection guidance, system design review, and competitive quotations within 24 hours.
