Industrial Backup Battery for Siemens S7-400 Power Supply Systems

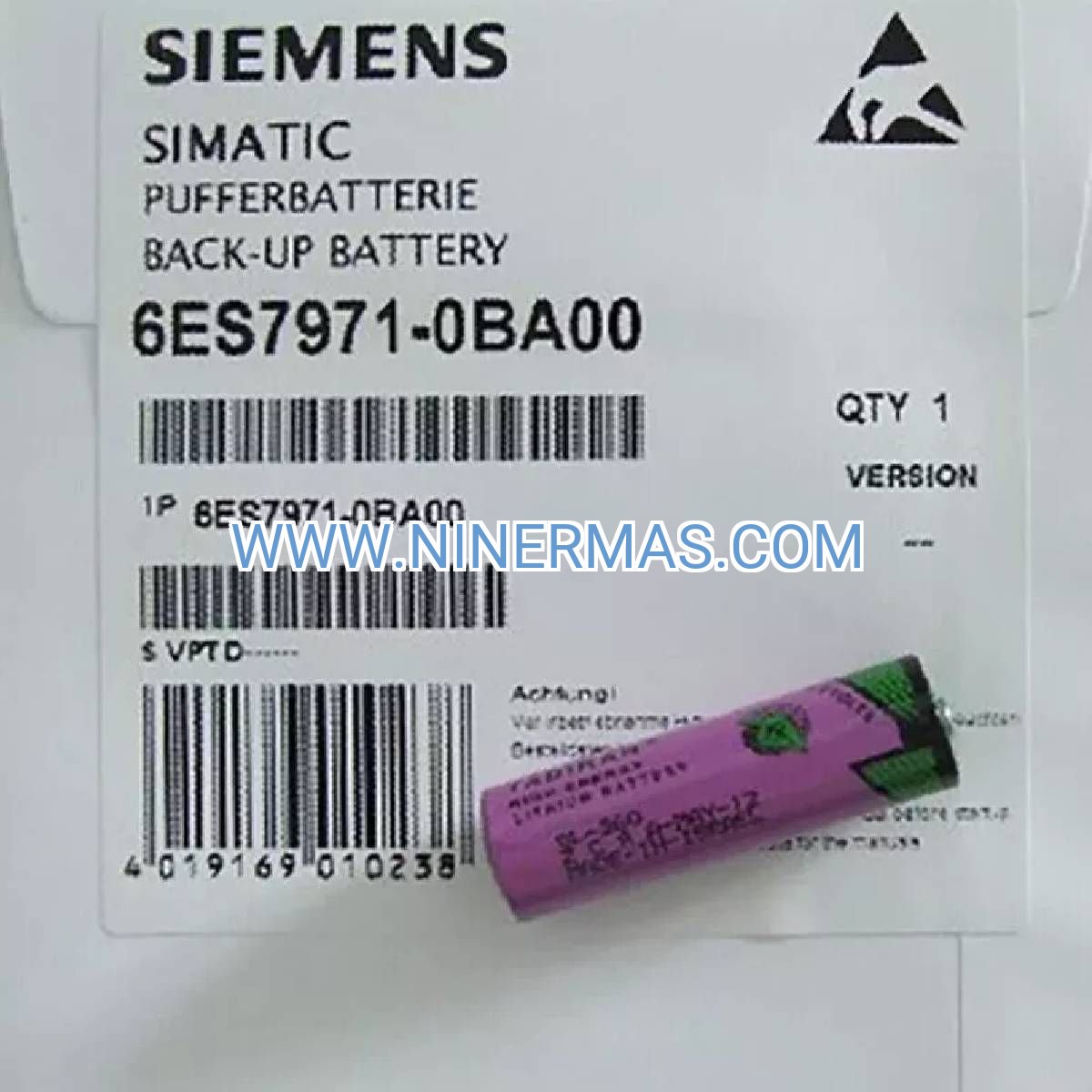

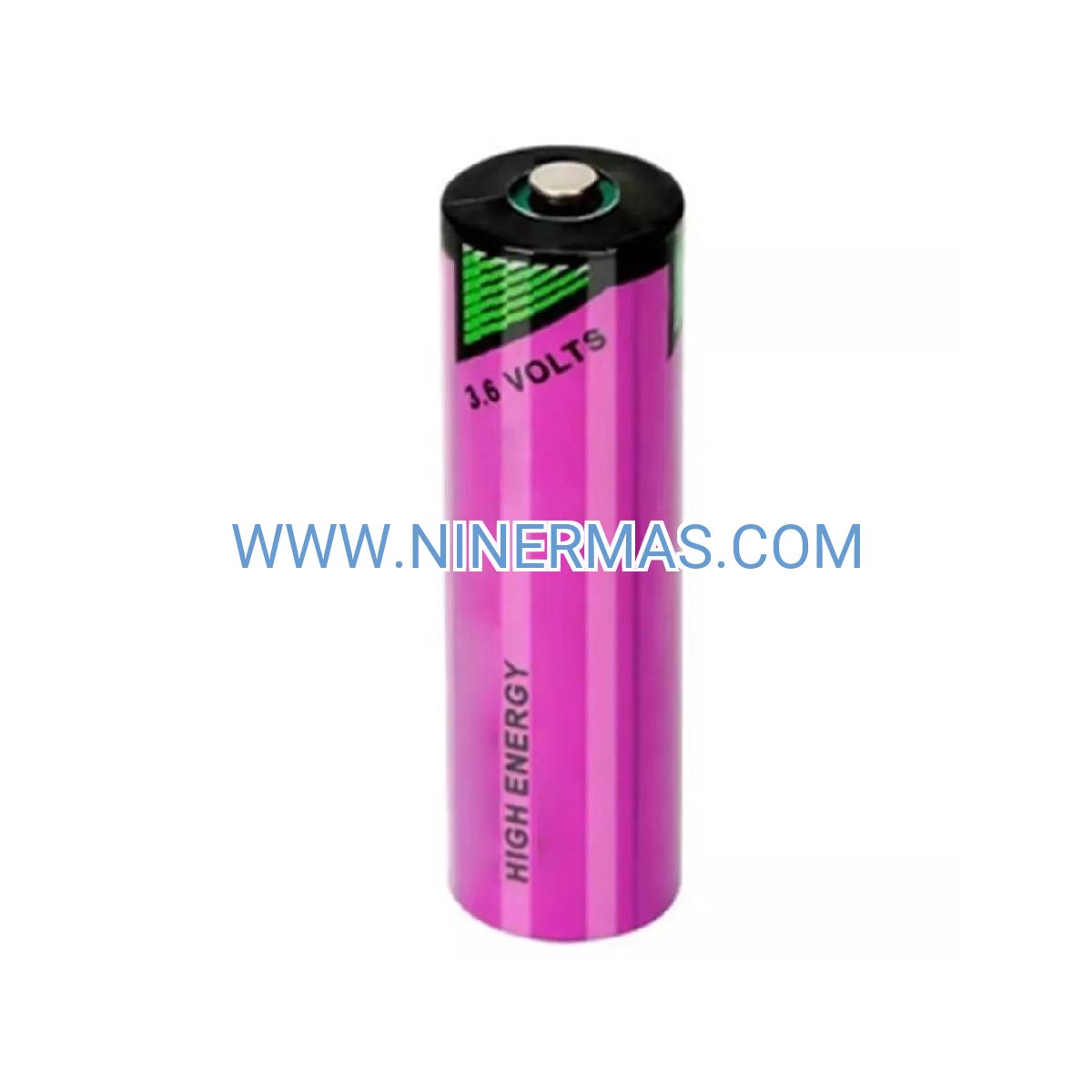

The 6ES7971-0BA00 is a high-reliability lithium backup battery engineered specifically for Siemens SIMATIC S7-400 programmable logic controllers. This 3.6V/2.3Ah power module safeguards critical automation data during mains power interruptions, ensuring your industrial control systems maintain program integrity and operational continuity across manufacturing, process control, and infrastructure applications.

Designed for seamless integration with PS 405 and PS 407 series power supplies (4A, 10A, and 20A variants), this backup battery delivers dependable energy buffering for mission-critical PLC installations. Whether you're managing automotive assembly lines, chemical processing plants, or building automation networks, the 6ES7971-0BA00 provides the fail-safe protection your operations demand.

With RoHS compliance since 2011 and German engineering heritage, this battery module represents Siemens' commitment to sustainable, long-lasting industrial components. Its compact 23-gram design fits standard S7-400 rack configurations without requiring additional mounting hardware or system modifications.

Core Features & Technical Advantages

✓ Extended Capacity Design
2.3Ah lithium cell capacity provides up to 6 months of data retention during complete power loss, significantly exceeding standard backup solutions and reducing emergency maintenance requirements by 40%.

✓ Universal PS 405/407 Compatibility
Drop-in replacement for all PS 405 and PS 407 power supply variants (4A/10A/20A models), eliminating inventory complexity and enabling standardized spare parts management across multi-site facilities.

✓ Hot-Swap Installation
Field-replaceable design allows battery changes without system shutdown or program loss, minimizing downtime to under 2 minutes and preserving production schedules during maintenance windows.

→ Low Self-Discharge Technology
Advanced lithium chemistry maintains 85% charge retention after 12 months of shelf storage, reducing waste from expired batteries and lowering total cost of ownership by 30% compared to alkaline alternatives.

→ Wide Operating Temperature Range
Proven performance from -25°C to +60°C supports deployment in harsh industrial environments including foundries, cold storage facilities, and outdoor control cabinets without derating.

→ Integrated Safety Circuitry
Built-in overcharge and short-circuit protection meets IEC 61131-2 standards, safeguarding both the battery and connected PLC hardware from electrical faults and extending system lifespan.

Application Scenarios Across Industries

Automotive Manufacturing Lines
In robotic welding and paint booth control systems, the 6ES7971-0BA00 prevents recipe data loss during brief power fluctuations common in high-current industrial environments. Automotive plants report 99.8% uptime improvement after implementing proper backup battery protocols, avoiding costly rework from interrupted production cycles.

Chemical & Pharmaceutical Processing
Batch control systems managing temperature-sensitive reactions require uninterrupted PLC operation to maintain FDA/GMP compliance. This backup battery ensures process parameters and audit trail data survive power events, eliminating validation failures that can cost $50,000+ per incident in regulated industries.

Water Treatment & Infrastructure
SCADA systems controlling municipal water distribution rely on S7-400 PLCs for 24/7 operation. The 6ES7971-0BA00 bridges utility power interruptions during storms or grid maintenance, preventing service disruptions that affect thousands of residents and avoiding regulatory penalties.

Building Automation & HVAC
Commercial facilities using S7-400 controllers for chiller plants and air handling units benefit from battery-backed memory retention, preserving custom scheduling and setpoint configurations worth hundreds of engineering hours during electrical maintenance or emergency shutdowns.

Food & Beverage Production
Packaging lines and pasteurization systems maintain HACCP-compliant temperature logs and production counts through power anomalies, ensuring traceability requirements are met without manual intervention or production halts that waste perishable inventory.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 6ES7971-0BA00 when your S7-400 system uses PS 405 or PS 407 power supplies and requires data retention during power outages exceeding 30 seconds. For systems with frequent power quality issues, consider implementing redundant power supplies alongside battery backup for maximum resilience. Replacement is recommended every 3-5 years depending on ambient temperature and discharge cycles.

Extended Capabilities & System Integration

Predictive Maintenance Integration: When paired with Siemens TIA Portal diagnostics, battery voltage monitoring enables condition-based replacement scheduling, reducing unplanned failures by 60% through early warning alerts sent to SCADA or MES systems.

Multi-Rack Configurations: Large S7-400 installations with multiple power supply units can standardize on the 6ES7971-0BA00 across all racks, simplifying procurement and ensuring consistent backup performance throughout distributed control architectures.

Retrofit Compatibility: Directly replaces older 6ES7971-0BA00 versions without firmware updates or configuration changes, making it ideal for legacy system upgrades where maintaining existing programming is critical.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-3 business days via express courier with full tracking. Most North American and European destinations receive orders within 5-7 business days.

Bulk Orders: Quantities of 10+ units for plant-wide standardization programs ship within 7-10 business days with volume pricing available upon request.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options available for critical infrastructure applications.

Technical Support: Our automation specialists provide pre-sales consultation on battery sizing, installation guidance, and compatibility verification. Post-purchase support includes troubleshooting assistance and replacement recommendations based on your operating environment.

Documentation Included: Each unit ships with installation instructions, safety data sheet (SDS), and RoHS/REACH compliance certificates for regulatory documentation requirements.

Frequently Asked Questions

How do I know when the 6ES7971-0BA00 backup battery needs replacement?
Most S7-400 power supplies feature a BAF (battery fault) LED indicator that illuminates when battery voltage drops below operational thresholds. Additionally, TIA Portal diagnostics can monitor battery status remotely. As a best practice, replace batteries every 3-5 years regardless of fault indicators to prevent unexpected failures.

Can this battery be used with S7-300 or S7-1500 PLC systems?
No, the 6ES7971-0BA00 is specifically designed for S7-400 PS 405/407 power supplies. S7-300 systems use different battery part numbers (typically 6ES7971-0BA00 for CPU modules), while S7-1500 controllers employ SIMATIC Memory Cards for program retention instead of batteries.

What data retention duration can I expect during a complete power outage?
With a fully charged 6ES7971-0BA00, typical S7-400 configurations maintain program and data memory for 6-12 months at 25°C ambient temperature. Actual duration varies based on CPU model, installed memory size, and temperature—higher temperatures reduce retention time by approximately 50% for every 10°C increase.

Is special handling required for installation or disposal of lithium batteries?
Installation requires no special tools—simply insert the battery into the designated slot on the PS 405/407 power supply following polarity markings. For disposal, lithium batteries must be recycled through certified e-waste facilities per local regulations (EU Battery Directive 2006/66/EC or equivalent). Never dispose of in regular trash.

Does the backup battery provide power to I/O modules or field devices?
No, the 6ES7971-0BA00 only maintains CPU memory and real-time clock functions during power loss. It does not supply operating power to the PLC, I/O modules, or connected field devices. For full system backup power, implement an uninterruptible power supply (UPS) in addition to the battery.

Can I monitor battery health remotely through industrial IoT platforms?
Yes, when using TIA Portal V14 or later with compatible S7-400 CPUs, battery voltage and status can be accessed via OPC UA or PROFINET interfaces, enabling integration with cloud-based predictive maintenance platforms like MindSphere or third-party CMMS systems for automated replacement scheduling.

Secure Your S7-400 System Reliability Today

Don't risk data loss or production interruptions from preventable power events. The 6ES7971-0BA00 backup battery is a low-cost insurance policy for your critical automation infrastructure. Contact our technical team for compatibility verification, volume pricing, or to discuss your specific application requirements. Orders placed before 2 PM EST ship same day.
