Siemens 6ES7960-1AA04-5AA0 Fiber Optic Sync Cable | S7-400H Redundant PLC 5m | Industrial Grade

Siemens 6ES7960-1AA04-5AA0 Fiber Optic Synchronization Cable (Industrial-Grade Redundant PLC Solution)

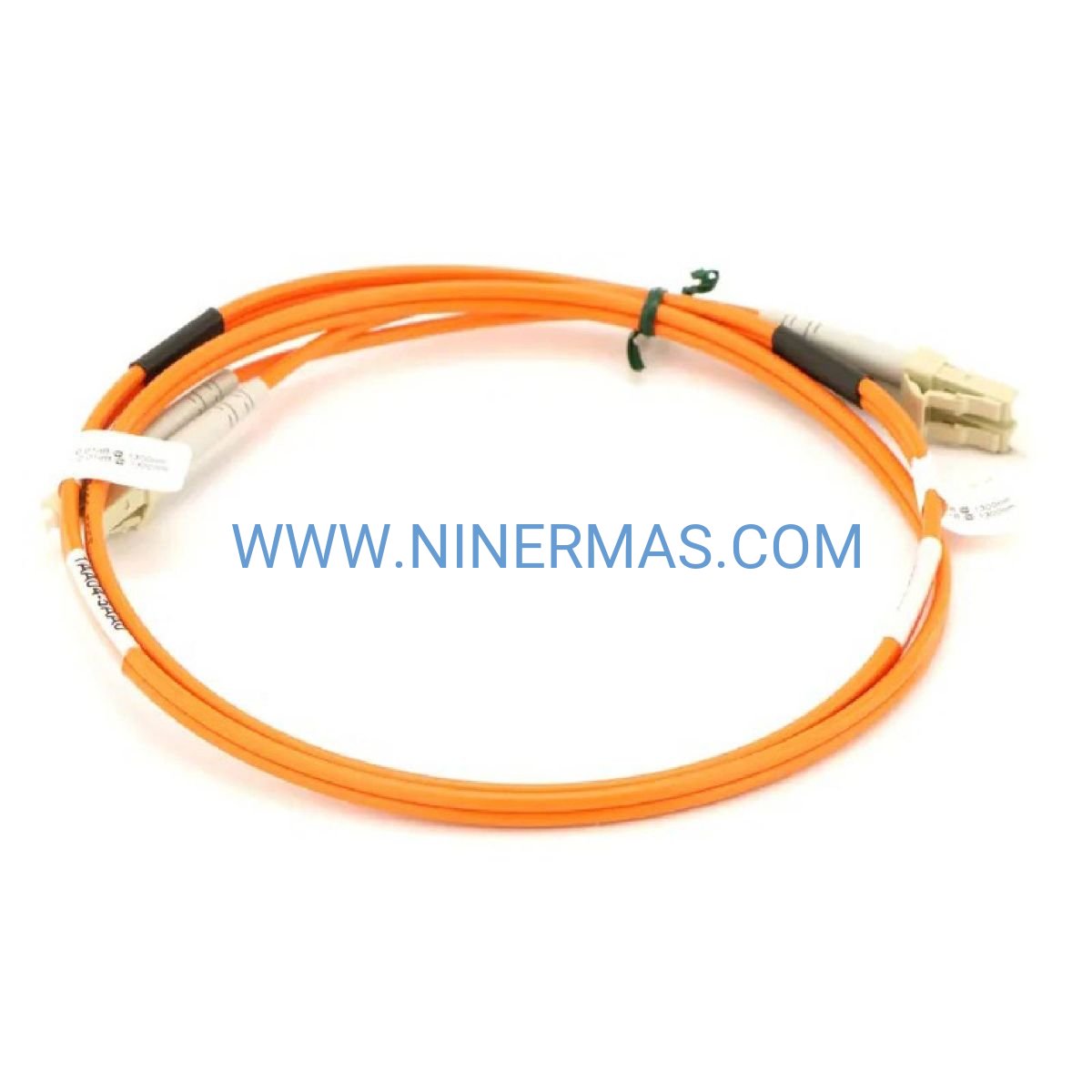

The Siemens 6ES7960-1AA04-5AA0 is a precision-engineered 5-meter fiber optic patch cable designed specifically for S7-400H redundant PLC systems. Through high-speed optical transmission technology, it enables real-time synchronization between dual CPU modules, ensuring continuous process control, fault tolerance, and zero-downtime automation in mission-critical industrial environments.

Ideal for applications demanding high availability—including petrochemical plants, power generation facilities, pharmaceutical manufacturing, and water treatment systems—this cable addresses challenges such as communication latency, single-point failures, and unplanned downtime. It supports seamless failover between primary and standby controllers, maintaining system integrity during component faults.

Featuring OEM-grade construction with standardized LC connectors and compliance with Siemens specifications, this synchronization cable delivers reliable performance, easy installation, and compatibility with all S7-400H CPU pairs. Suitable for design engineers, system integrators, automation contractors, and plant maintenance teams. Contact our technical team for application-specific guidance and quotations.

Core Features & Advantages

• High-Speed Synchronization Protocol
  Utilizes multi-mode fiber optic technology to achieve sub-millisecond synchronization between redundant CPUs, ensuring real-time data mirroring and state consistency across controller pairs.
• Enhanced System Availability
  Enables bumpless switchover during CPU failures, reducing mean time to recovery (MTTR) and supporting 99.99%+ uptime requirements in continuous process industries.
• Plug-and-Play Compatibility
  Factory-terminated LC duplex connectors ensure quick installation without field splicing, compatible with all Siemens S7-400H synchronization modules (e.g., 6ES7960 series).
• Industrial-Grade Durability
  Reinforced cable jacket withstands mechanical stress, temperature fluctuations (-25°C to +70°C), and electromagnetic interference (EMI) common in industrial control cabinets.
• Certified Quality Assurance
  Each cable undergoes optical insertion loss testing and continuity verification per Siemens manufacturing standards, backed by 12-month warranty and technical documentation (datasheet, installation guide, compliance certificates).
• Optimized Cable Management
  5-meter length accommodates standard cabinet layouts and rack-mount configurations, minimizing signal attenuation while maintaining organized wiring practices per IEC 61439 standards.

Typical Application Scenarios

This fiber optic synchronization cable is essential for industries where process interruptions result in safety risks, production losses, or regulatory non-compliance:

• Petrochemical & Refining
  Ensures continuous control of distillation columns, reactor vessels, and pipeline networks where emergency shutdown systems (ESD) require redundant logic solvers.
• Power Generation & Distribution
  Supports turbine control systems, substation automation (IEC 61850), and load management applications demanding fault-tolerant SCADA architectures.
• Pharmaceutical & Biotech Manufacturing
  Maintains GMP-compliant batch control, cleanroom HVAC regulation, and critical utility systems (WFI, pure steam) with validated redundancy.
• Water & Wastewater Treatment
  Provides reliable control for pumping stations, chemical dosing systems, and filtration processes where service continuity impacts public health and environmental compliance.
• Automotive & Discrete Manufacturing
  Enables high-availability control of robotic assembly lines, paint booths, and material handling systems where downtime costs exceed $10,000/hour.

Technical Parameters & Selection Guide

To ensure optimal system performance, verify the following specifications align with your S7-400H configuration:

Selection Considerations: When specifying synchronization cables, confirm the physical distance between redundant CPU racks, available cable routing paths (overhead tray vs. conduit), and environmental conditions (temperature extremes, vibration levels). For distances exceeding 5 meters, alternative lengths (10m, 20m, 50m) are available under different part numbers. Consult with our automation engineers to validate compatibility with your specific S7-400H CPU models (e.g., 412H, 414H, 417H) and TIA Portal configuration.

Extended Capabilities

• Hot-Swap Support: Allows cable replacement during system operation (with proper safety procedures) to minimize maintenance windows.
• Diagnostic Integration: Works with STEP 7 diagnostic buffers to monitor fiber link quality and detect degradation before failures occur.
• Multi-Vendor Interoperability: While optimized for Siemens hardware, the cable adheres to industry-standard LC connector specifications for potential use with compatible third-party redundant controllers.
• Scalability: Supports expansion from single redundant pair to multi-rack H-systems with additional synchronization links as process complexity grows.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 1-3 business days; custom cable assemblies (non-standard lengths, connector types) require 7-14 days fabrication time.

Warranty: 12-month manufacturer's warranty covering material defects and workmanship. Extended warranty options available for critical infrastructure projects.

Technical Support: Complimentary pre-sales consultation for cable selection, post-installation troubleshooting via phone/email, and on-site commissioning assistance (subject to location and project scope).

Documentation Package: Each order includes product datasheet, optical test report (insertion loss, return loss), installation instructions with torque specifications, and certificate of conformity. CAD drawings and 3D STEP files available upon request for cabinet design integration.

Quality Certifications: Manufactured in ISO 9001-certified facilities with traceability to raw material batches. Complies with EU RoHS, REACH, and UL flammability ratings for industrial wiring.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens 6ES7960-1AA04-5AA0 fiber optic cable to my existing S7-400H system?
A: The cable features LC duplex connectors that plug directly into the synchronization module ports on each redundant CPU rack. Ensure the fiber link LEDs illuminate green after connection, indicating proper optical alignment. Refer to the S7-400H installation manual (section on sync module wiring) for detailed pinout diagrams and torque specifications.

Q: What is the maximum number of synchronization cables required for a dual-CPU S7-400H configuration?
A: A standard S7-400H redundant pair requires two fiber optic cables—one for the primary sync link and one for the backup link—to ensure fault tolerance. Some configurations may use a single cable with automatic failover to Ethernet-based synchronization, but dual-fiber setups offer the highest reliability.

Q: Can this cable achieve energy savings compared to copper-based synchronization methods?
A: While fiber optic cables themselves consume negligible power, the primary benefit is reliability rather than energy efficiency. However, by preventing unplanned downtime (which often requires energy-intensive restart procedures), fiber-based redundancy indirectly supports operational efficiency and reduces waste.

Q: What environmental conditions does the cable support, and what is its IP rating?
A: The cable operates reliably in -25°C to +70°C ambient temperatures and is designed for IP20-rated control cabinet installations. For outdoor or harsh environments (IP54+), additional protective conduit or armored cable variants are recommended.

Q: Does the cable support remote monitoring and diagnostics via PROFINET or OPC UA?
A: The cable itself is a passive optical component, but the S7-400H synchronization modules provide diagnostic data accessible through STEP 7 TIA Portal, PROFINET IO, and OPC UA servers. You can monitor fiber link status, error counters, and synchronization quality in real time via SCADA/HMI systems.

Q: Is this cable compatible with single-mode fiber optic infrastructure?
A: No, the 6ES7960-1AA04-5AA0 is designed for multi-mode fiber (50/125 µm or 62.5/125 µm). For long-distance applications exceeding 300 meters, consult Siemens documentation for single-mode alternatives or fiber media converters.

Request a Quote & Technical Consultation

To receive a detailed selection proposal, pricing, or application-specific engineering support, please provide the following information:

• Project name and industry sector
• S7-400H CPU models (e.g., 6ES7414-5HM06-0AB0)
• Required cable quantity and lengths
• Installation environment (temperature range, cabinet IP rating)
• Delivery timeline and destination
• Compliance requirements (UL, CE, ATEX, etc.)

Our automation specialists will respond within 24 hours with a customized solution, including cable specifications, compatibility verification, and logistics coordination.
