Siemens 6ES7960-1AA04-0XA0 | S7-400H Sync Module V4 | Fault-Tolerant PLC Control

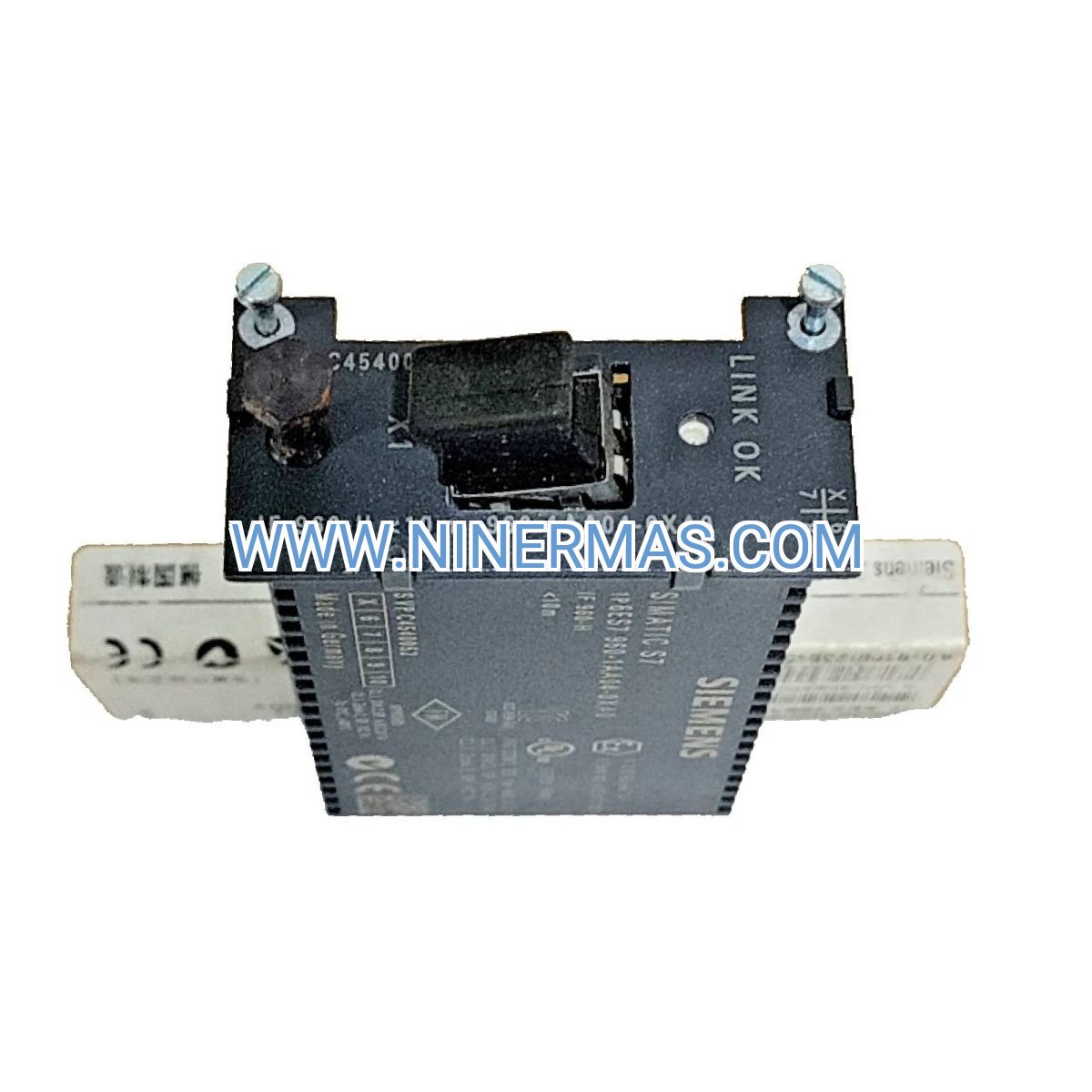

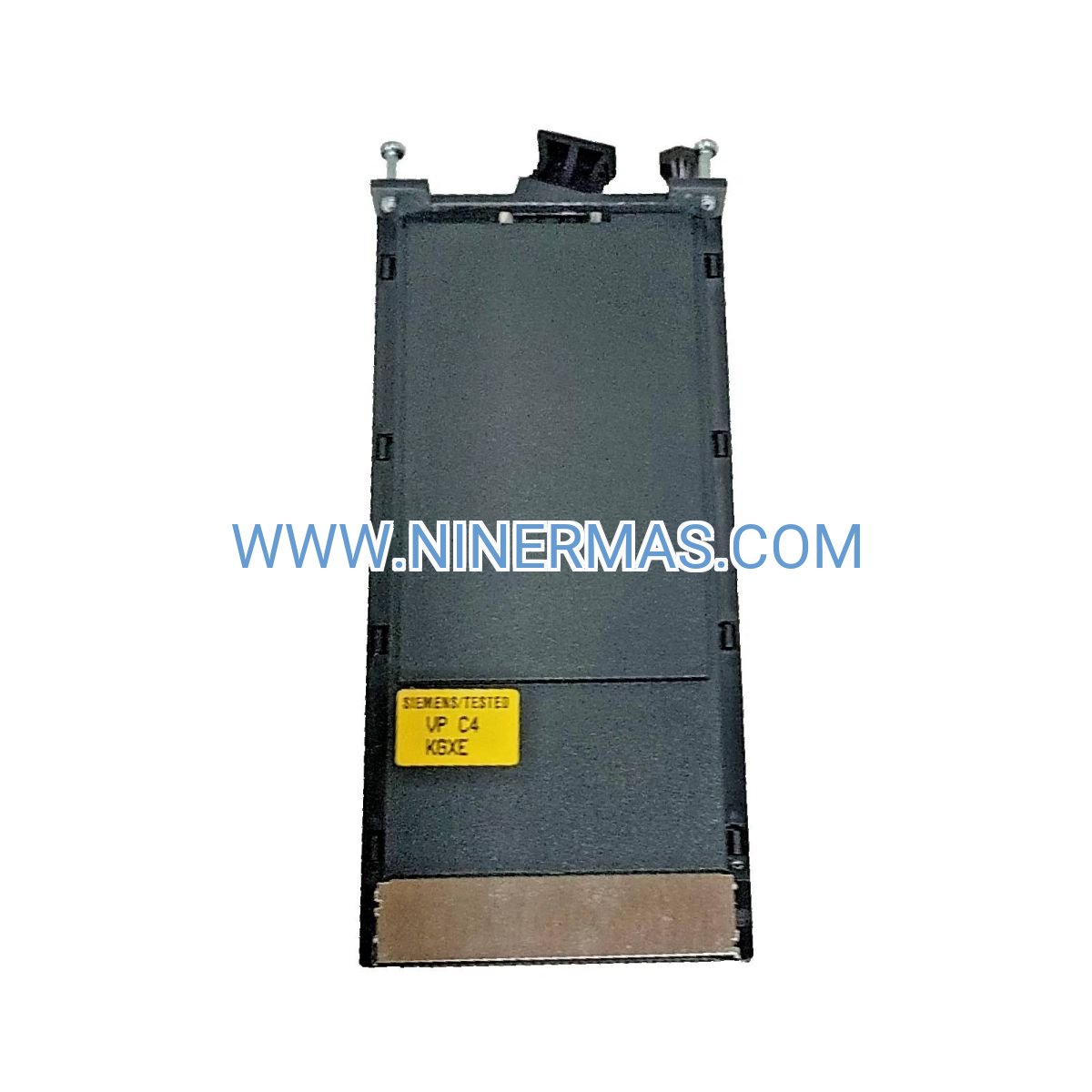

Siemens 6ES7960-1AA04-0XA0 S7-400H Synchronization Module (Industrial-Grade Fault-Tolerant Control System)

The Siemens 6ES7960-1AA04-0XA0 SIMATIC S7-400H Synchronization Module V4 is an industrial-grade control component designed for fault-tolerant automation systems. Through advanced redundancy architecture and real-time data synchronization technology, it ensures continuous operation and seamless failover in mission-critical applications, delivering uninterrupted process control even during component failures.

This module is specifically engineered for high-reliability scenarios including petrochemical plants, power generation facilities, pharmaceutical manufacturing, water treatment systems, and continuous production lines. It addresses critical challenges such as unexpected system downtime, data loss during controller switchover, insufficient fault detection capabilities, and complex manual recovery procedures.

Featuring standardized design with flexible configuration options, the 6ES7960-1AA04-0XA0 offers seamless integration, hot-swappable redundancy, comprehensive diagnostics, and proven reliability in harsh industrial environments. Ideal for system integrators, automation engineers, plant operators, and OEM equipment manufacturers seeking zero-downtime solutions. Contact our engineering team for application-specific configuration guidance and technical quotations.

Core Functions & Advantages

• Real-Time Redundancy Synchronization
  Utilizes dual-channel fiber-optic communication to maintain continuous data mirroring between primary and standby controllers, ensuring sub-millisecond switchover times with zero process interruption or data loss.
• Bumpless Failover Technology
  Automatically detects controller faults and executes seamless transition to the backup system without process disruption, eliminating manual intervention and reducing mean time to recovery (MTTR) by up to 95%.
• Enhanced System Availability
  Achieves 99.99% uptime through hot-standby architecture, supporting continuous 24/7 operation in critical infrastructure where even seconds of downtime can result in significant production losses or safety risks.
• Comprehensive Diagnostic Capabilities
  Provides real-time monitoring of synchronization status, communication health, and system integrity through integrated diagnostics, enabling predictive maintenance and rapid fault isolation to minimize unplanned outages.
• Simplified Maintenance & Serviceability
  Supports online module replacement and firmware updates without system shutdown, reducing maintenance windows and operational costs while extending overall system lifecycle and return on investment.
• Industrial-Hardened Design
  Built to withstand extreme temperatures (-25°C to +60°C), electromagnetic interference, vibration, and humidity variations typical in heavy industrial environments, ensuring reliable performance across diverse installation conditions.

Typical Application Scenarios

The 6ES7960-1AA04-0XA0 synchronization module is engineered for applications demanding maximum uptime, process continuity, and fail-safe operation, particularly in:

• Petrochemical & Refining Operations
  Ensures continuous control of distillation columns, reactor systems, and pipeline networks where process interruptions can lead to safety hazards, environmental incidents, or multi-million dollar production losses.
• Power Generation & Distribution
  Maintains uninterrupted control of turbine systems, boiler management, and grid synchronization in thermal, nuclear, and renewable energy plants where reliability directly impacts regional power supply stability.
• Pharmaceutical & Biotechnology Manufacturing
  Guarantees consistent environmental control, batch process integrity, and regulatory compliance in cleanroom operations, fermentation systems, and sterile filling lines where process deviations can compromise entire production batches.
• Water & Wastewater Treatment
  Provides fail-safe operation for municipal water purification, sewage treatment, and industrial effluent processing systems serving large populations or critical industrial facilities requiring 24/7 service availability.
• Continuous Process Industries
  Supports non-stop production in steel mills, cement plants, paper manufacturing, and chemical processing where planned or unplanned shutdowns result in equipment damage, quality issues, and extended restart procedures.

Technical Parameters & Selection Guide

To facilitate engineering design and system configuration, we provide comprehensive technical specifications for the Siemens 6ES7960-1AA04-0XA0 synchronization module. Custom configurations are available based on specific project requirements.

Selection Recommendations: When configuring an S7-400H redundant system, consider the following factors: process criticality level, required system response time, environmental conditions (temperature/humidity/vibration), existing automation infrastructure compatibility, fiber-optic cable routing distances, and maintenance accessibility. For optimal system design, provide our engineering team with process flow diagrams, I/O point counts, communication requirements, and site environmental data for customized configuration recommendations.

Extended Capabilities

• Multi-Protocol Communication Support: Compatible with PROFIBUS DP, PROFINET IO, Industrial Ethernet, and legacy MPI networks for seamless integration with existing plant infrastructure
• Scalable Architecture: Supports expansion from small-scale redundant systems to large distributed control networks with multiple redundant CPU pairs and thousands of I/O points
• Cybersecurity Features: Integrated access protection, encrypted communication channels, and audit logging capabilities meeting IEC 62443 industrial cybersecurity standards
• Engineering Efficiency: Full compatibility with Siemens TIA Portal for unified programming, diagnostics, and lifecycle management across entire automation portfolio

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers; custom-configured systems require 10-15 business days for factory integration and testing.

Warranty Coverage: All modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available for mission-critical installations.

Technical Support: Our certified Siemens automation specialists provide remote diagnostic assistance, on-site commissioning support (region-dependent), and application engineering consultation throughout project lifecycle.

Documentation Package: Each module ships with complete technical documentation including installation manual, wiring diagrams, configuration guidelines, diagnostic procedures, and TIA Portal library files for rapid system integration.

Quality Certifications: Factory-calibrated and tested to Siemens quality standards, with full traceability documentation and compliance certificates for regulated industries (FDA 21 CFR Part 11, GAMP 5, SIL 3 capable).

Frequently Asked Questions (FAQ)

Q: How does the S7-400H synchronization module integrate with existing non-redundant S7-400 systems?
A: The 6ES7960-1AA04-0XA0 requires a complete S7-400H redundant configuration including dual CPUs, dual power supplies, and compatible I/O modules. Migration from standard S7-400 involves hardware upgrades and program adaptation using TIA Portal's redundancy configuration tools. Our engineering team can assess your current system and provide a detailed migration roadmap.

Q: What is the maximum distance between redundant controller racks using this synchronization module?
A: With standard multimode fiber-optic cables, the synchronization link supports distances up to 10 kilometers between redundant CPU racks. For longer distances or harsh electromagnetic environments, single-mode fiber options can extend this to 80+ kilometers, ideal for geographically distributed facilities.

Q: What level of energy savings or efficiency improvement can be expected with fault-tolerant control?
A: While the synchronization module itself doesn't directly reduce energy consumption, preventing unplanned shutdowns eliminates energy-intensive restart procedures, product waste, and equipment damage. Customers in continuous process industries report 15-30% reduction in total cost of downtime through improved availability.

Q: What are the environmental requirements for installing this module in control cabinets?
A: The module operates reliably in ambient temperatures from -25°C to +60°C with IP20 protection rating, suitable for climate-controlled control rooms or industrial cabinets with adequate ventilation. For harsh environments, install within NEMA 4/IP65-rated enclosures with temperature management systems.

Q: Does the synchronization module support remote monitoring and data acquisition via SCADA or cloud platforms?
A: Yes, the S7-400H system integrates seamlessly with SCADA systems via OPC UA, PROFINET, or Industrial Ethernet protocols. Diagnostic data and synchronization status can be accessed through Siemens WinCC, third-party HMI platforms, or cloud-based analytics solutions using secure industrial IoT gateways.

Q: Can the synchronization module be replaced or upgraded without shutting down the entire control system?
A: The S7-400H architecture supports hot-swappable redundancy, allowing controlled switchover to the standby controller during maintenance. However, synchronization module replacement typically requires a brief planned outage of both controllers. Firmware updates can often be performed online with proper planning and Siemens technical guidance.
