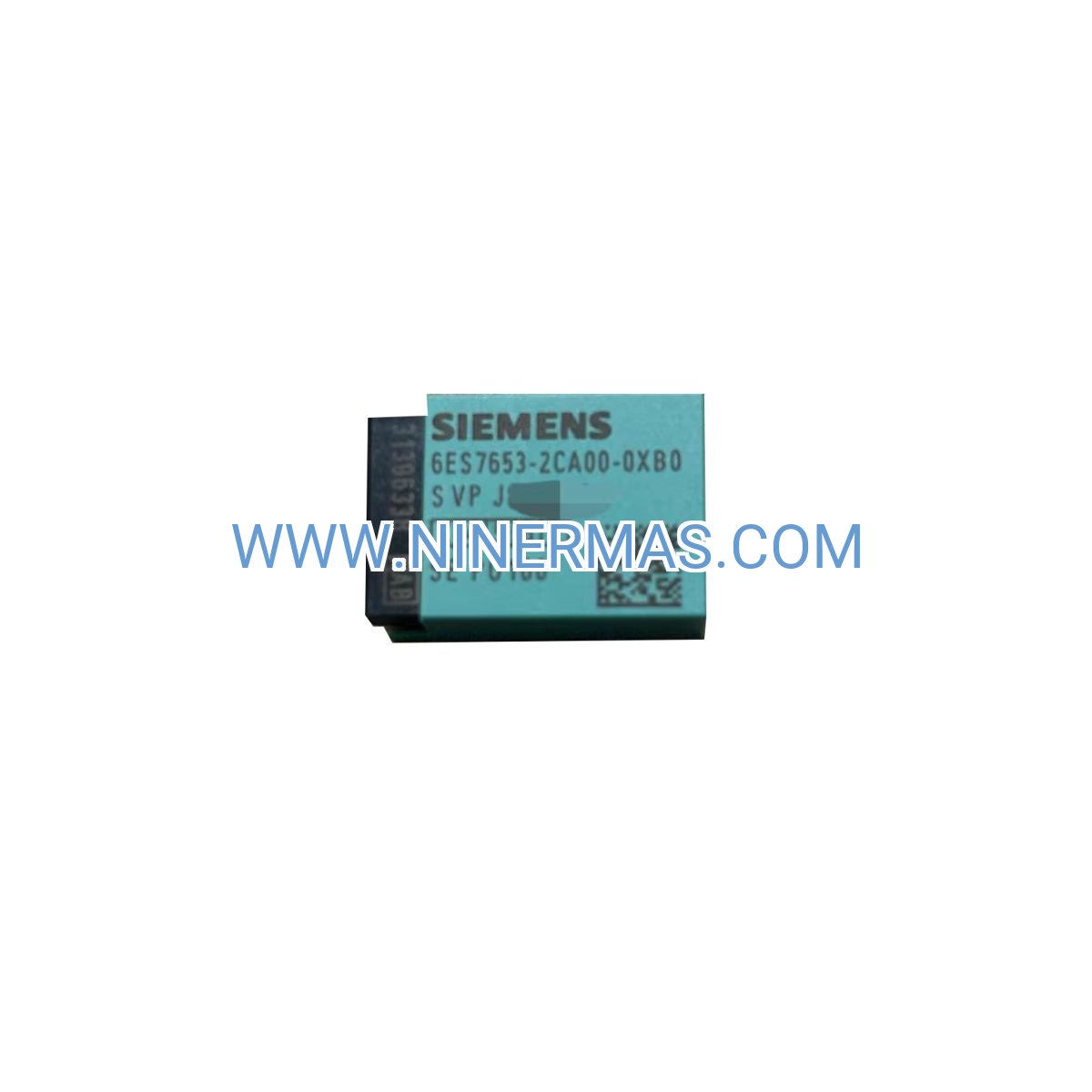

Siemens 6ES7653-2CA00-0XB0 System Expansion Card (Industrial-Grade PCS 7 Enhancement)

The Siemens 6ES7653-2CA00-0XB0 is a specialized system expansion card engineered to extend the processing capacity of your PCS 7 automation infrastructure. This compact module enables CPU 410-5H controllers to manage up to 100 additional process objects, delivering the scalability required for complex industrial operations. Designed for process industries requiring high-availability architectures, this expansion card ensures seamless integration with existing SIMATIC S7-400H redundant systems while maintaining full compliance with international safety and environmental standards.

Manufacturing facilities, chemical plants, and utilities rely on this expansion solution to accommodate growing automation demands without costly hardware replacements. The card's lightweight design (21g) and plug-and-play architecture minimize installation time while maximizing system uptime. Whether you're scaling production lines or integrating new process zones, this expansion card provides the headroom your critical control systems need.

Backed by Siemens' proven engineering excellence and PM300 active product status, the 6ES7653-2CA00-0XB0 delivers long-term availability and technical support. Expand your automation capabilities with confidence—this card is your pathway to enhanced process control without system disruption.

Core Features & Benefits

✓ Capacity Expansion: Adds 100 process objects to CPU 410-5H, enabling larger control strategies and more complex automation logic without CPU replacement—reducing capital expenditure by up to 40% compared to full controller upgrades.

✓ High-Availability Integration: Seamlessly compatible with S7-400H redundant architectures, ensuring zero-downtime expansion in mission-critical environments where process interruptions cost thousands per minute.

✓ Lightweight & Compact: At just 21 grams, this card installs in seconds without mechanical stress on existing hardware, ideal for retrofit projects in space-constrained control cabinets.

✓ Active Product Lifecycle (PM300): Guaranteed long-term availability and ongoing technical support from Siemens, protecting your investment and ensuring spare parts accessibility for years to come.

✓ Compliance-Ready: RoHS-compliant since 2013, WEEE-certified, and REACH-disclosed for lead content—meets EU environmental regulations and simplifies procurement for multinational operations.

✓ Plug-and-Play Deployment: No complex configuration required; the card auto-integrates with PCS 7 engineering tools, reducing commissioning time from hours to minutes and minimizing engineering labor costs.

Typical Application Scenarios

→ Chemical Process Expansion: When batch reactors require additional control loops for temperature, pressure, and flow monitoring, this card enables operators to add 100 new I/O points without replacing the primary CPU—maintaining existing safety certifications while expanding production capacity by 25-30%.

→ Power Generation Upgrades: Utilities modernizing turbine control systems use this expansion card to integrate new emissions monitoring and efficiency optimization algorithms into legacy CPU 410-5H installations, avoiding multi-million-dollar control system replacements.

→ Pharmaceutical Manufacturing: FDA-regulated facilities leverage this card to add process analytical technology (PAT) monitoring points to existing batch control systems, ensuring 21 CFR Part 11 compliance while maintaining validated system integrity.

→ Water Treatment Facilities: Municipal plants expanding treatment capacity deploy this card to accommodate new filtration stages and chemical dosing loops, supporting population growth without full SCADA system overhauls.

→ Oil & Gas Midstream Operations: Pipeline operators use this expansion to add leak detection zones and flow measurement points across extended pipeline networks, enhancing safety monitoring without disrupting existing SIL-rated control architectures.

Technical Parameters & Selection Guide

Selection Criteria: Verify your CPU model is 410-5H before ordering—this card is not compatible with other S7-400 series CPUs. Calculate your total process object count including existing and planned I/O to ensure this 100-object expansion meets your capacity requirements. For systems requiring more than 100 additional objects, consult with your Siemens representative about multi-card configurations or CPU upgrade paths.

Extended Functions

PCS 7 Engineering Integration: The expansion card automatically registers with SIMATIC Manager and PCS 7 Engineering Station, enabling immediate access to additional object libraries and control modules without manual configuration files.

Redundancy Support: In H-system configurations, the card maintains synchronization between primary and standby CPUs, ensuring failover protection extends to all expanded process objects with sub-second switchover times.

Diagnostic Transparency: System diagnostics via TIA Portal or STEP 7 display real-time utilization of expanded object capacity, helping engineers optimize resource allocation and plan future expansions proactively.

Delivery & Service Assurance

Lead Time: Standard delivery within 5-7 business days for in-stock units; custom orders or bulk quantities may require 2-3 weeks depending on regional availability.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship; extended warranty options available through authorized Siemens distributors.

Technical Support: Access to Siemens Industry Online Support (SIOS) portal with 24/7 documentation, firmware updates, and engineering assistance for integration troubleshooting.

Documentation Included: Installation manual, compatibility matrix, RoHS/REACH declarations, and SCIP registration number (78324b25-51fe-4561-b273-42d215be9791) for environmental compliance tracking.

Frequently Asked Questions

Q: How do I install the 6ES7653-2CA00-0XB0 expansion card into my CPU 410-5H?
A: Power down the CPU, insert the card into the designated expansion slot on the CPU module, and power up. The PCS 7 system will auto-detect the additional capacity during startup. Detailed installation steps are provided in the included manual and Siemens SIOS portal.

Q: What is the maximum number of process objects I can achieve with this expansion card?
A: The card adds 100 process objects to your CPU 410-5H's base capacity. Total achievable objects depend on your CPU's original configuration—consult your system documentation or contact our technical team for capacity planning assistance.

Q: Does this expansion card improve energy efficiency in my control system?
A: While the card itself consumes minimal power (negligible impact on cabinet thermal load), it enables more efficient process control by allowing finer-grained monitoring and optimization algorithms, which can reduce overall plant energy consumption by 3-8% through better setpoint management.

Q: Can I use multiple expansion cards on a single CPU 410-5H?
A: CPU 410-5H supports specific expansion configurations—refer to the CPU's technical specifications or contact Siemens technical support to confirm multi-card compatibility for your firmware version and hardware revision.

Q: Is remote monitoring and diagnostics supported for the expanded process objects?
A: Yes, all process objects added via this expansion card are fully accessible through SIMATIC WinCC SCADA, PCS 7 Web Server, and third-party OPC UA/DA clients, enabling remote monitoring, alarming, and trending identical to native CPU objects.

Q: What are the installation requirements for integrating this card into an existing system?
A: Minimal requirements: CPU 410-5H with compatible firmware, available expansion slot, and PCS 7 engineering software for configuration. No special tools or calibration needed—installation typically takes under 10 minutes including system restart.

Ready to Expand Your Automation Capacity?

Contact our industrial automation specialists today to verify compatibility with your existing PCS 7 infrastructure and receive a detailed quotation. Our team provides pre-sales engineering support to ensure seamless integration and optimal system performance.
