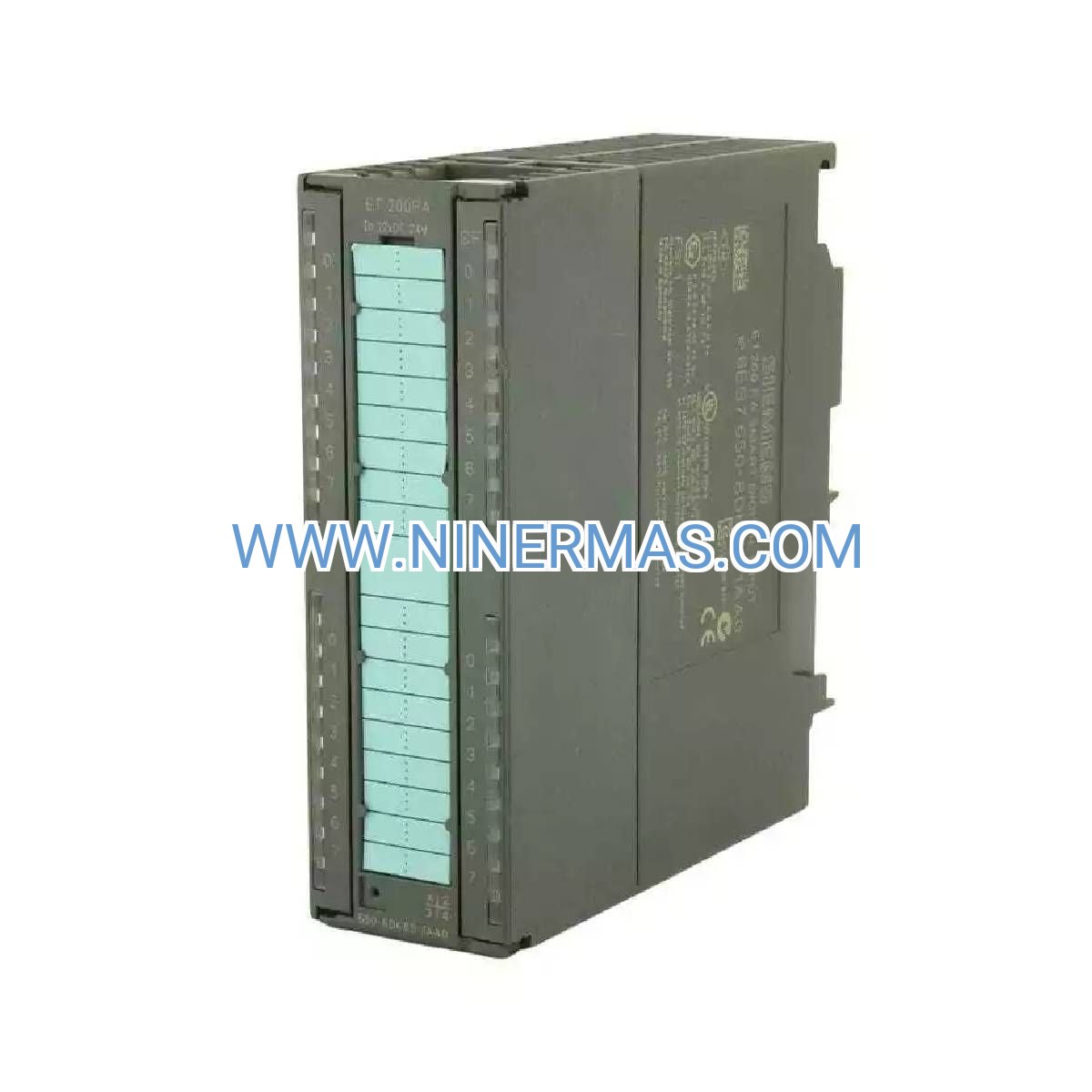

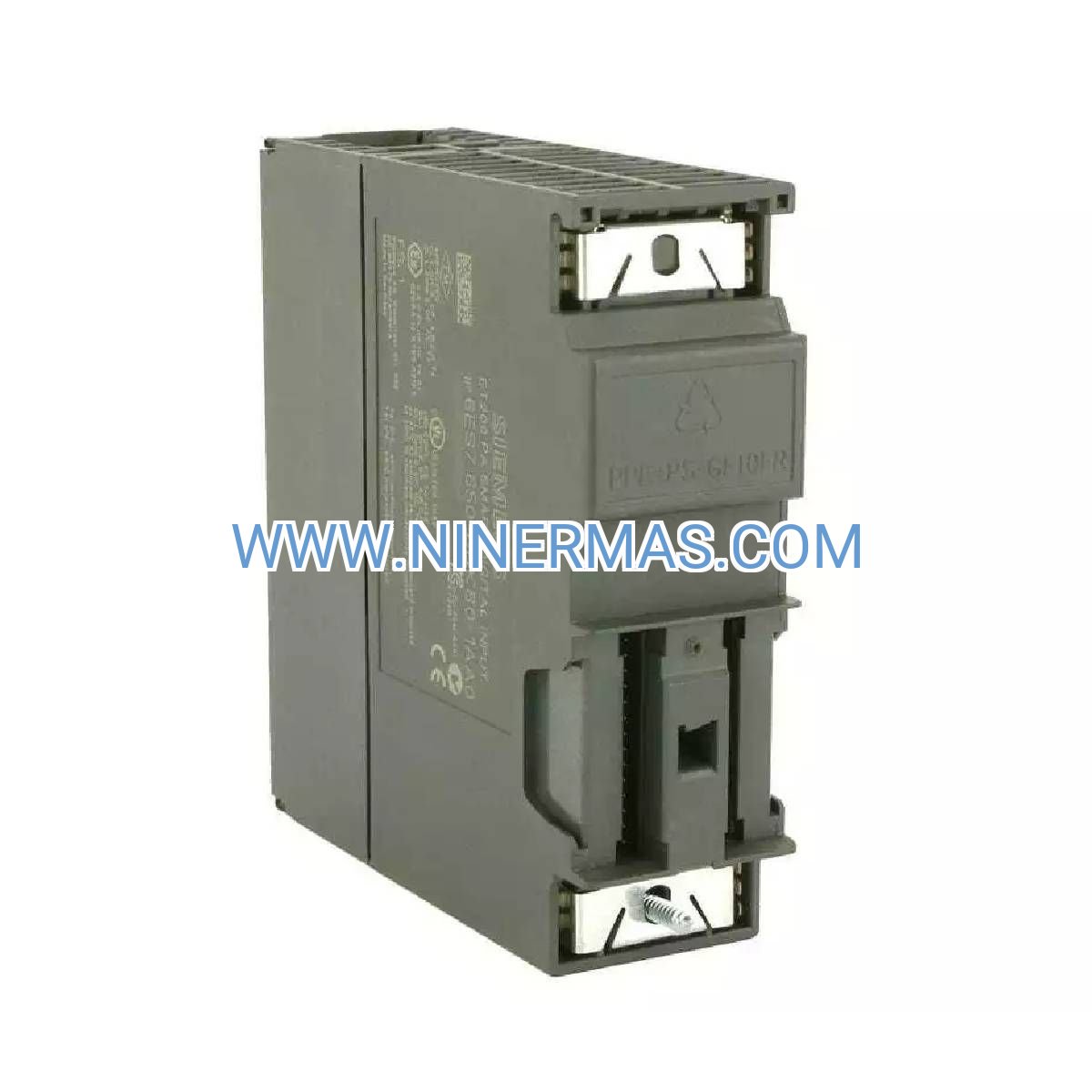

SIEMENS 6ES7650-8DK80-1AA0 Digital Input Module (Industrial-Grade Signal Acquisition)

The SIEMENS 6ES7650-8DK80-1AA0 represents a professional-grade digital input solution engineered for the ET 200PA SMART distributed I/O platform. This 32-channel module transforms field signals into actionable data for your SIMATIC S7 control system, delivering galvanically isolated inputs with 24V DC operation. Designed for manufacturers, system integrators, and plant engineers who demand uncompromising reliability in process automation, manufacturing execution, and critical infrastructure monitoring.

Whether you're modernizing legacy control systems or deploying new distributed architectures, this module solves the challenge of acquiring multiple discrete signals in electrically harsh environments. Its conformal coating protection and isolated channel design ensure stable operation in chemical plants, power generation facilities, and heavy manufacturing environments where signal integrity is non-negotiable.

With compact dimensions (13.10 × 15.10 × 5.10 cm) and a 40-pole connector interface, the 6ES7650-8DK80-1AA0 maximizes cabinet space efficiency while simplifying field wiring. The module integrates seamlessly with IM 650-8PH interface modules and existing ET 200PA infrastructure, enabling rapid deployment and minimizing engineering overhead.

Core Features & Benefits

✓ 32 Galvanically Isolated Digital Inputs
Each channel features electrical isolation to eliminate ground loops and cross-talk, ensuring clean signal acquisition even in noisy industrial environments. This translates to fewer false triggers and improved system uptime.

✓ ISA-S71.04 G1/G2/G3 Conformal Coating
Advanced protective coating shields circuitry from corrosive gases, humidity, and airborne contaminants. Your investment remains protected in chemical processing, wastewater treatment, and coastal industrial facilities where atmospheric conditions challenge standard electronics.

✓ 24V DC Standard Voltage Operation
Aligns with global industrial automation standards, enabling direct connection to proximity sensors, limit switches, photoelectric devices, and safety relays without additional signal conditioning.

✓ Integrated Diagnostic Capabilities
Built-in diagnostics communicate module health and channel status to your SIMATIC controller, enabling predictive maintenance strategies and reducing mean time to repair (MTTR) by up to 40%.

✓ Compact Modular Architecture
Space-efficient design reduces panel footprint by approximately 25% compared to traditional terminal block assemblies, lowering installation costs and improving cabinet thermal management.

✓ Hot-Swap Capability (System-Dependent)
When configured appropriately within ET 200PA systems, supports module replacement during operation, minimizing process interruptions during maintenance activities.

Application Scenarios

→ Chemical & Pharmaceutical Manufacturing
Monitor valve position feedback, emergency stop circuits, and reactor safety interlocks across distributed process units. The G3-rated coating withstands aggressive chemical vapors while maintaining signal accuracy for batch control and recipe management systems.

→ Automotive & Discrete Manufacturing
Capture sensor data from assembly line conveyors, robotic work cells, and quality inspection stations. The module's fast response time supports high-speed production lines operating at cycle times below 2 seconds.

→ Power Generation & Distribution
Interface with circuit breaker auxiliary contacts, turbine vibration monitors, and protective relay outputs. Isolated inputs prevent ground potential differences between substations from corrupting control signals.

→ Water & Wastewater Treatment
Acquire signals from level switches, pump run status indicators, and flow detection devices across multiple treatment stages. The conformal coating ensures reliable operation in high-humidity pump rooms and outdoor installations.

→ Food & Beverage Processing
Integrate with CIP (Clean-In-Place) system sensors, packaging line jam detectors, and temperature alarm contacts. Meets hygiene requirements for installations near washdown areas.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ES7650-8DK80-1AA0 when your application requires high-density digital input acquisition (32+ points per module), operates in corrosive or high-humidity environments (G1/G2/G3 rating required), or demands galvanic isolation for electrical noise immunity. For applications with fewer input requirements, consider 8-channel or 16-channel alternatives within the ET 200PA family.

Extended Functions

PROFIBUS DP Integration: When paired with appropriate interface modules, the ET 200PA system communicates via PROFIBUS DP protocol, enabling deterministic data exchange with cycle times as low as 1ms for time-critical applications.

TIA Portal Configuration: Full integration with Siemens TIA Portal engineering software streamlines configuration, diagnostics, and documentation. Hardware catalogs auto-populate module parameters, reducing commissioning time by 30-50%.

Redundancy Support: Compatible with redundant controller configurations for high-availability applications in utilities, transportation, and continuous process industries.

Customization Options: Available with factory-configured channel grouping, custom labeling, and pre-tested cable assemblies for turnkey integration into OEM machinery and skid-mounted systems.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory preparation and testing.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to certified SIMATIC engineers for configuration assistance, troubleshooting guidance, and system optimization recommendations. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module ships with installation manual, wiring diagrams, GSD files for PROFIBUS configuration, and TIA Portal hardware catalog updates.

Frequently Asked Questions

Q: Which interface module connects this digital input module to my SIMATIC S7 controller?
A: The 6ES7650-8DK80-1AA0 requires the IM 650-8PH interface module, which handles PROFIBUS DP communication and power distribution to the I/O modules.

Q: What input voltage range does each channel accept for reliable signal detection?
A: The module operates with 24V DC nominal input voltage. Typical detection thresholds are 15V for logic "1" and 5V for logic "0", providing robust noise immunity.

Q: Can I install this module in outdoor enclosures or high-humidity environments?
A: Yes, the ISA-S71.04 G1/G2/G3 conformal coating protects against humidity, salt spray, and corrosive gases. Ensure the enclosure maintains IP54 or better protection and operates within -25°C to +60°C ambient temperature range.

Q: How does the isolated input design improve system reliability compared to non-isolated modules?
A: Galvanic isolation prevents ground loops between field devices and the control system, eliminating false triggers caused by ground potential differences. This is critical in large facilities where sensors may be hundreds of meters from the controller.

Q: Is firmware updating required for this hardware module?
A: No, the 6ES7650-8DK80-1AA0 is a hardware-based I/O module without user-updateable firmware. Configuration is managed through the SIMATIC controller and TIA Portal software.

Q: What cable types are recommended for connecting field devices to the 40-pole connector?
A: Use shielded twisted-pair cables (minimum 0.5mm² conductor cross-section) for signal integrity. SIEMENS offers pre-assembled cable sets (order separately) that match the 40-pole connector pinout.

Ready to Enhance Your Control System?

The SIEMENS 6ES7650-8DK80-1AA0 delivers the signal acquisition performance your critical processes demand. Contact our automation specialists today for technical consultation, system design support, or volume pricing for multi-module projects.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667
