Siemens S7-1500 Mounting Rail – Industrial-Grade Profile Rail for PLC Control Systems

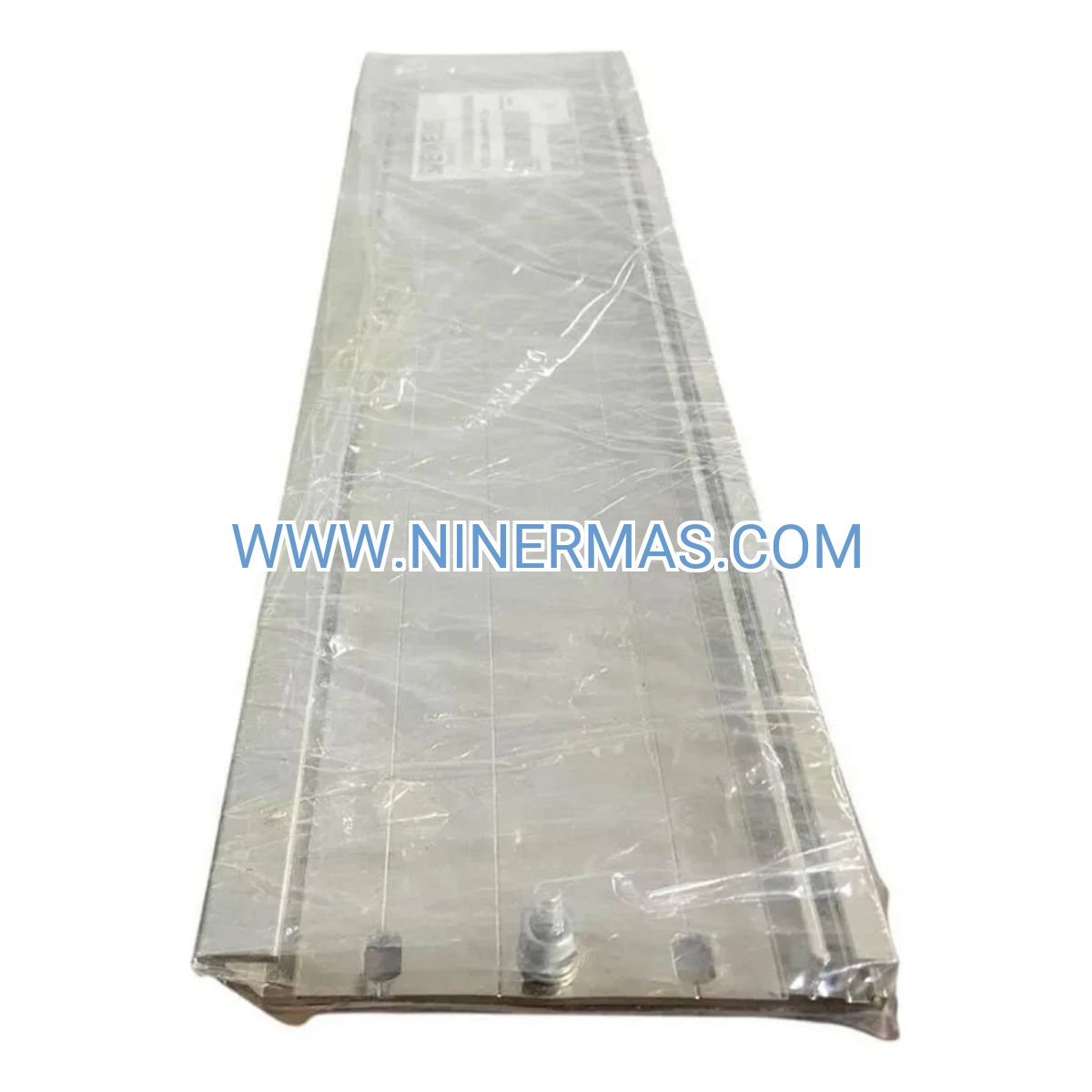

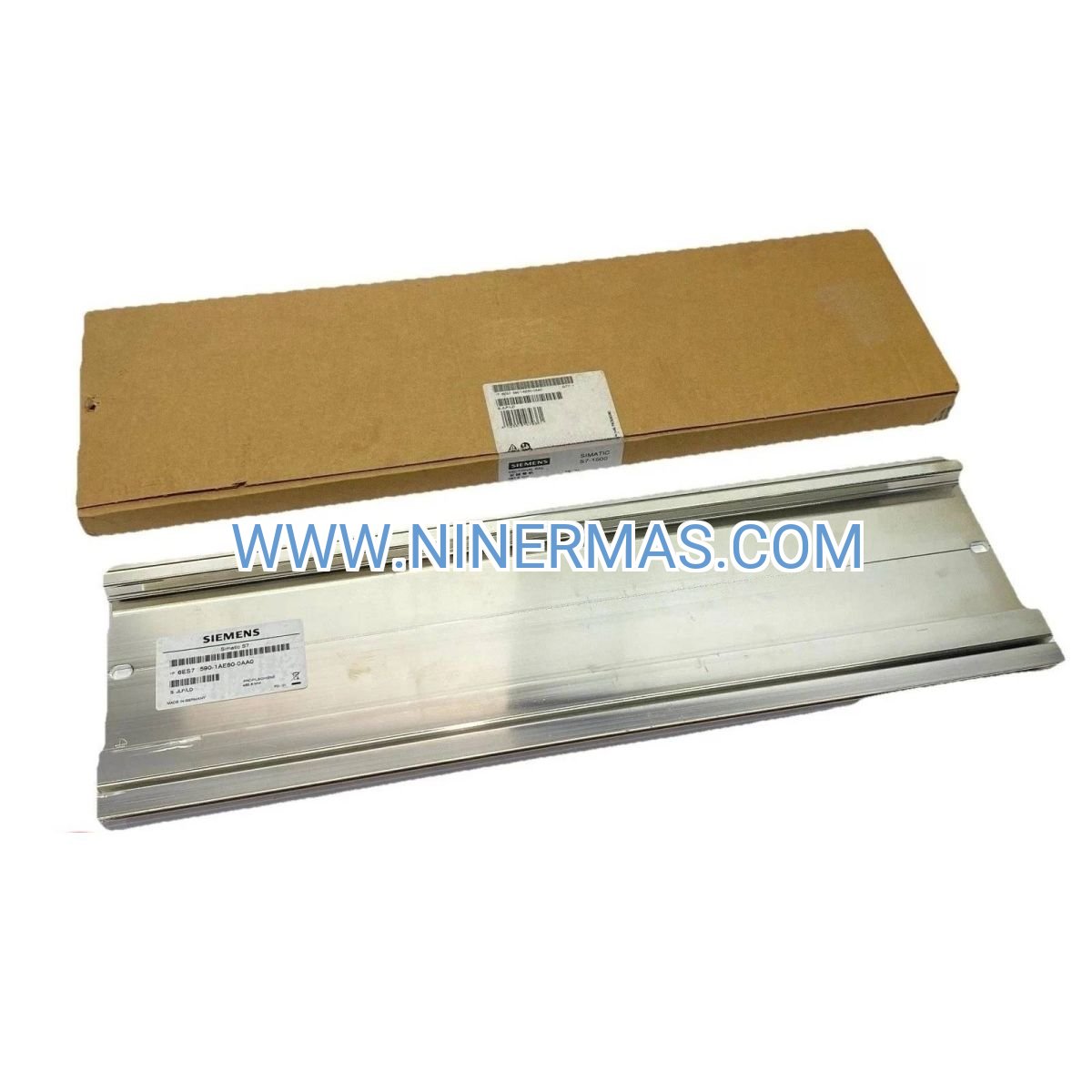

The Siemens 6ES7590-1AC40-0AA0 is a precision-engineered 482mm (19-inch) mounting rail designed specifically for SIMATIC S7-1500 PLC systems. Utilizing robust aluminum construction and standardized DIN rail geometry, this profile rail enables secure module installation, efficient heat dissipation, and reliable mechanical support in industrial control cabinets and automation panels.

Ideal for applications in manufacturing automation, process control, building management systems, and industrial machinery integration, this mounting rail addresses common challenges such as limited cabinet space, module alignment precision, thermal management, and long-term mechanical stability in harsh industrial environments.

Through standardized design and compatibility with the complete S7-1500 ecosystem, this product offers rapid installation, flexible configuration, easy maintenance, and proven reliability. Suitable for system integrators, control panel builders, OEM manufacturers, and plant maintenance teams. Contact our engineers for configuration guidance and technical specifications.

Core Features & Advantages

• Precision Alignment System
  Engineered with exact dimensional tolerances to ensure perfect module alignment and secure locking mechanism engagement, eliminating installation errors and reducing commissioning time by up to 40%.
• Optimized Thermal Performance
  Aluminum alloy construction provides excellent heat conductivity, facilitating passive cooling for mounted modules and extending component lifespan in continuous operation environments.
• Standardized 19-Inch Format
  482mm length matches standard rack cabinet widths, enabling seamless integration with existing infrastructure and maximizing space utilization in control enclosures.
• Robust Mechanical Protection
  IP20 protection rating with corrosion-resistant surface treatment, suitable for typical industrial environments including manufacturing floors, utility rooms, and climate-controlled facilities.
• Universal S7-1500 Compatibility
  Fully compatible with all SIMATIC S7-1500 CPU modules, I/O modules, communication processors, and power supplies, ensuring system scalability and future expansion capability.
• Simplified Installation & Maintenance
  Tool-free module mounting with snap-on mechanism, color-coded positioning guides, and accessible wiring channels reduce installation time and simplify troubleshooting procedures.

Typical Application Scenarios

This mounting rail is engineered for industrial environments requiring high reliability, precise module positioning, and long-term operational stability, particularly in:

• Manufacturing Automation & Production Lines
  Provides stable mounting platform for PLC control systems managing conveyor systems, robotic cells, assembly stations, and quality inspection equipment in automotive, electronics, and consumer goods manufacturing.
• Process Control & SCADA Systems
  Supports distributed control architectures in chemical processing, pharmaceutical production, food & beverage manufacturing, and water treatment facilities where continuous operation and regulatory compliance are critical.
• Building Automation & Infrastructure
  Enables centralized control panel construction for HVAC systems, lighting control, access management, and energy monitoring in commercial buildings, hospitals, airports, and data centers.
• Machine Building & OEM Equipment
  Facilitates standardized control cabinet design for packaging machinery, material handling systems, CNC machine tools, and specialized industrial equipment requiring compact, reliable automation solutions.
• Retrofit & Modernization Projects
  Simplifies control system upgrades in existing facilities, allowing gradual migration from legacy systems to modern S7-1500 platforms while maintaining operational continuity.

Technical Specifications & Selection Guide

To ensure optimal system configuration and reliable operation, please review the following technical parameters and selection criteria:

Selection Recommendations: When specifying mounting rails, consider the following factors: total number of modules to be installed, cabinet width and depth dimensions, ambient temperature conditions, required protection rating for the installation environment, and future expansion requirements. For custom cabinet configurations or multi-rail installations, our engineering team can provide layout drawings and module placement recommendations. Please provide your system architecture details for personalized selection assistance.

Extended Configuration Options

• Multi-Rail Configurations: For larger control systems, multiple rails can be installed in parallel or stacked vertically within the same cabinet, with recommended spacing of 185mm between rail centers for optimal module accessibility.
• Grounding & EMC Compliance: Integrated grounding points ensure proper electrical continuity and electromagnetic compatibility when combined with Siemens shielding accessories and grounding terminals.
• Cable Management Integration: Compatible with Siemens cable ducts, wire routing channels, and labeling systems for organized, maintainable control panel construction.
• Modular Expansion Capability: Supports hot-swappable module replacement and system expansion without disrupting adjacent modules or requiring complete system shutdown.

Delivery, Service & Quality Assurance

Delivery Timeline: Standard catalog items typically ship within 3-5 business days from our regional distribution centers. For bulk orders or project-specific requirements, delivery schedules range from 7-14 days depending on quantity and destination.

Warranty Coverage: All products include a minimum 12-month manufacturer warranty covering material defects and workmanship issues. Extended warranty options and service agreements are available for critical applications.

Technical Support: Our engineering team provides pre-sales consultation, system design assistance, installation guidance, and post-sales technical support. Remote troubleshooting and on-site commissioning services are available based on project scope and location.

Documentation Package: Each shipment includes product datasheet, dimensional drawings, installation instructions, compliance certificates, and compatibility matrix. CAD models and technical manuals are available for download from our technical resource portal.

Frequently Asked Questions (FAQ)

Q: How do I determine the correct mounting rail length for my S7-1500 control system?
A: Calculate the total width of all modules to be installed (including CPU, I/O modules, power supplies, and communication processors), add 10-15% margin for cable routing and future expansion, then select the nearest standard rail length. The 482mm rail typically accommodates 8-12 standard modules depending on their width.

Q: Can this mounting rail be used with other PLC systems besides S7-1500?
A: This rail is specifically designed for S7-1500 series with optimized geometry and locking features. While it may physically fit some S7-300/400 modules, we recommend using manufacturer-specified rails for each system to ensure proper mechanical support and warranty compliance.

Q: What is the maximum ambient temperature for reliable operation?
A: The rail itself supports ambient temperatures from 0°C to +60°C for horizontal installation. However, actual operating limits depend on the mounted modules' specifications and cabinet ventilation design. For high-temperature environments, consider forced ventilation or air conditioning.

Q: Does the rail require grounding, and how is it implemented?
A: Yes, proper grounding is essential for EMC compliance and safety. The rail features integrated grounding points that connect to the cabinet's protective earth system. Use Siemens grounding terminals (order separately) to establish low-impedance ground connections.

Q: Can I cut or modify the rail length for custom cabinet sizes?
A: While technically possible, modifying the rail may void warranty and compromise structural integrity. We recommend selecting standard lengths or consulting our engineering team for custom-length options available through special order programs.

Q: What accessories are recommended for a complete installation?
A: Typical accessories include end brackets for rail mounting, grounding terminals, cable ducts for wire management, module labels, and shielding connection elements. We can provide complete accessory kits based on your specific configuration.

Request Technical Support & Quotation

For detailed configuration recommendations, project-specific pricing, or technical assistance, please provide the following information to our engineering team:

• Project name and application type (manufacturing, process control, building automation, etc.)
• Total number of S7-1500 modules to be installed and their specific model numbers
• Cabinet dimensions and environmental conditions (temperature, humidity, protection rating)
• Quantity required and preferred delivery timeline
• Any special requirements (certifications, documentation, custom configurations)

Our application engineers will respond within 24 hours with personalized recommendations, technical drawings, and competitive quotations.
