Siemens 6ES7531-7QF00-0AB0 Analog Input Module | 8-Channel AI U/I/RTD for S7-1500 PLC

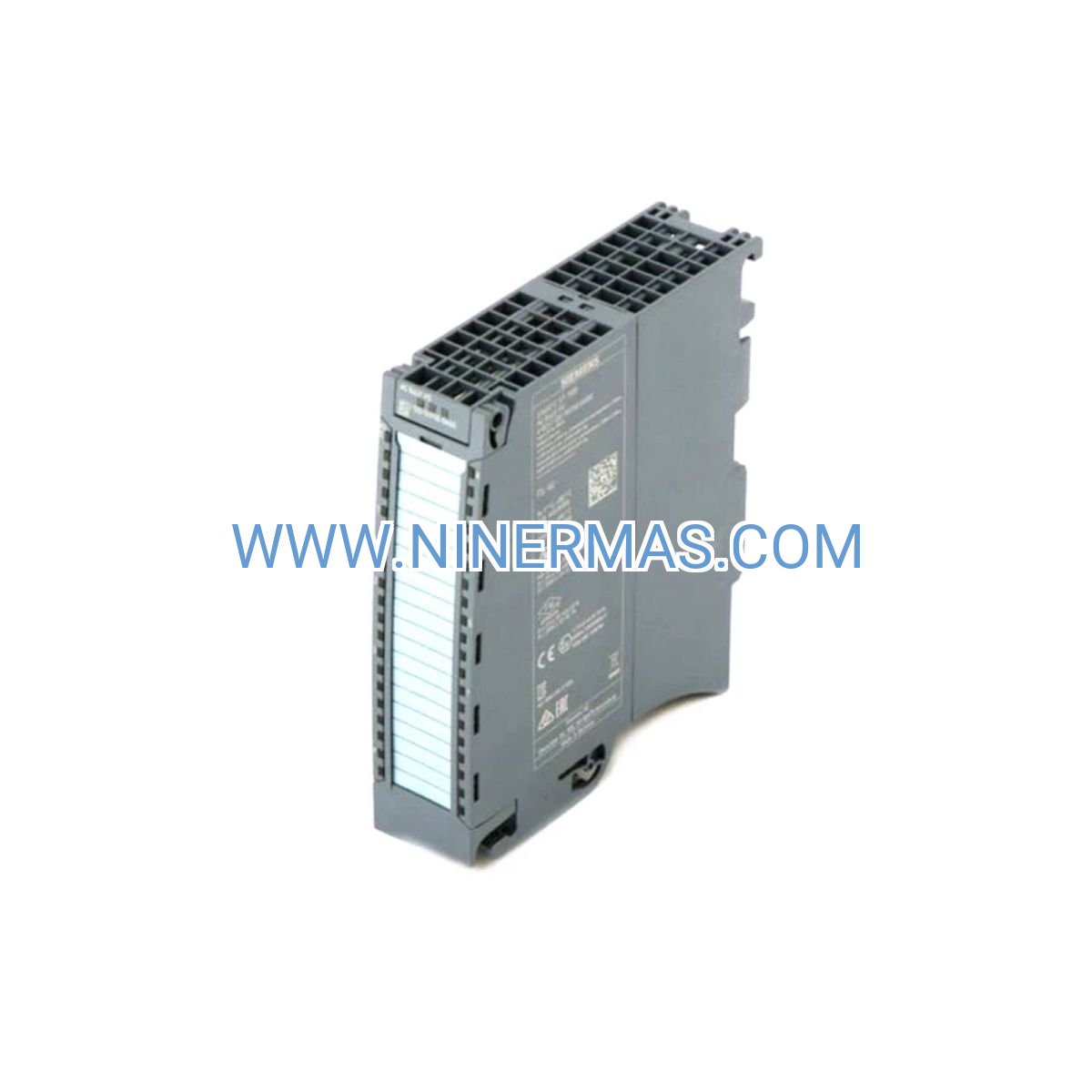

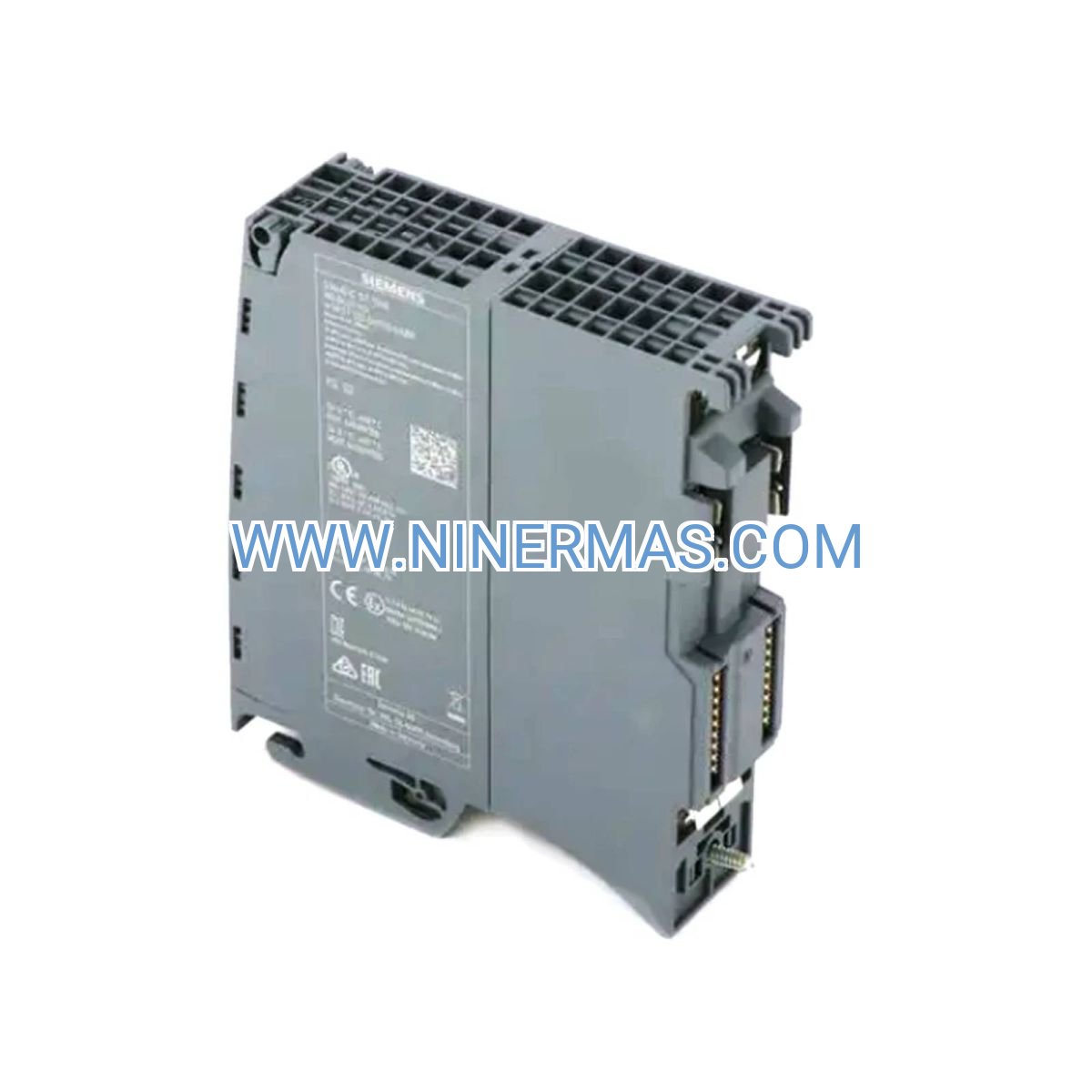

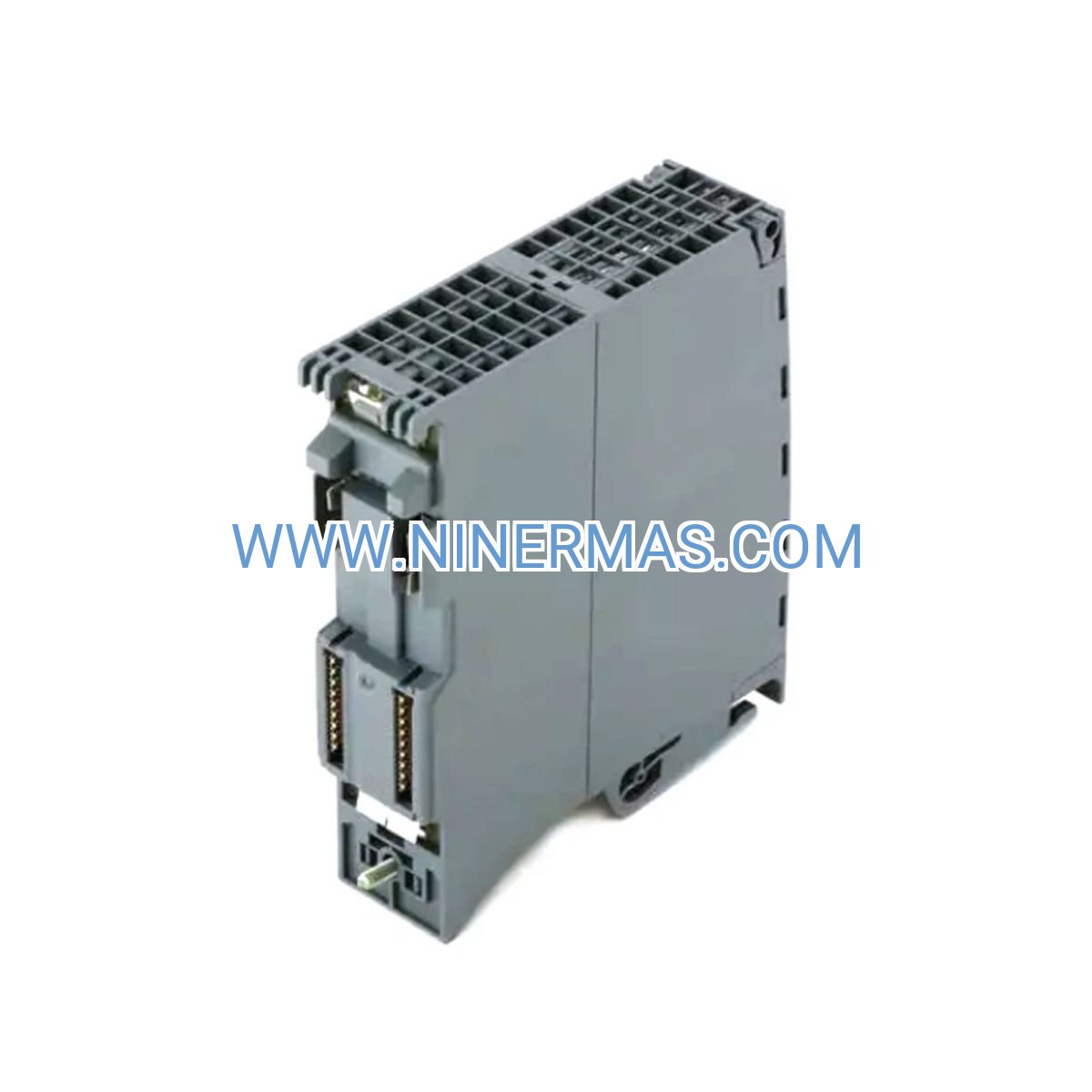

Siemens 6ES7531-7QF00-0AB0 Analog Input Module (8-Channel AI U/I/R/RTD for S7-1500)

The Siemens 6ES7531-7QF00-0AB0 is a high-precision analog input module designed for SIMATIC S7-1500 PLC systems, delivering accurate measurement of voltage, current, resistance, and RTD (Resistance Temperature Detector) signals. Through advanced 16-bit A/D conversion and factory calibration technology, this module ensures stable data acquisition for critical process control applications.

Engineered for demanding industrial environments including chemical processing, energy management, HVAC systems, and manufacturing automation, this module addresses common challenges such as signal drift, measurement inaccuracy, manual monitoring inefficiencies, and inadequate fault diagnostics. Its robust design guarantees reliable performance in temperature monitoring, pressure sensing, and multi-parameter process control scenarios.

With standardized configuration and flexible channel mapping, the 6ES7531-7QF00-0AB0 offers exceptional versatility, seamless integration, diagnostic transparency, and long-term stability. Ideal for system integrators, design engineers, OEM manufacturers, and plant maintenance teams seeking precision measurement solutions. Contact our technical team for application-specific configuration guidance and quotation.

Core Features & Advantages

Multi-Signal Compatibility
Supports voltage (±10V, 1-5V), current (0-20mA, 4-20mA), resistance (150Ω, 300Ω, 600Ω), and RTD (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000) inputs. Each channel can be individually configured, enabling diverse sensor integration within a single module and reducing hardware complexity.

High-Precision Measurement
Features 16-bit resolution with ±0.1% accuracy (typical), ensuring reliable data for critical control loops. Factory calibration eliminates field adjustment requirements, minimizing commissioning time and maintaining measurement consistency across temperature variations.

Advanced Diagnostics & Protection
Equipped with wire-break detection, short-circuit protection, overload monitoring, and channel-specific fault indication. Real-time diagnostic data transmitted to TIA Portal enables predictive maintenance and reduces unplanned downtime by up to 40%.

Hot-Swappable Design
Supports online module replacement without system shutdown, critical for continuous process industries. Automatic parameter restoration from controller backup ensures rapid recovery and operational continuity.

Seamless S7-1500 Integration
Native compatibility with TIA Portal V13 and later versions. Intuitive configuration interface with pre-defined scaling functions, alarm thresholds, and data logging capabilities. Supports PROFINET communication with cycle times down to 1ms for time-critical applications.

Industrial-Grade Reliability
Operating temperature range: -25°C to +60°C. Conformal coating protection against humidity, dust, and corrosive gases. MTBF exceeds 500,000 hours under standard industrial conditions, ensuring long-term investment protection.

Typical Application Scenarios

This module excels in applications demanding high measurement accuracy, signal diversity, and system reliability:

Process Temperature Monitoring
Ideal for multi-zone furnace control, reactor temperature profiling, and heat treatment processes. RTD inputs provide ±0.15°C accuracy for pharmaceutical, food processing, and semiconductor manufacturing compliance requirements.

Energy & Utilities Management
Monitors flow rates, pressure transmitters, and power consumption in district heating, water treatment plants, and building automation systems. Supports energy optimization strategies through precise analog data acquisition and trend analysis.

Chemical & Petrochemical Processing
Handles corrosive environment sensor signals with galvanic isolation up to 1500V DC. Suitable for distillation column control, batch reactor monitoring, and pipeline pressure management where safety and accuracy are paramount.

Manufacturing & Assembly Lines
Integrates with load cells, position sensors, and quality inspection instruments. Enables real-time process adjustment in automotive, electronics, and packaging industries to maintain product consistency and reduce scrap rates.

Technical Specifications & Selection Guide

To facilitate system design and procurement, we provide comprehensive technical parameters for the 6ES7531-7QF00-0AB0:

Key Specifications:

• Input Channels: 8 (individually configurable)
• Signal Types: Voltage (±10V, 1-5V), Current (0-20mA, 4-20mA), Resistance (150-600Ω), RTD (Pt100/200/500/1000, Ni100/1000)
• Resolution: 16-bit (±32,767 counts)
• Conversion Time: Configurable from 2.5ms to 100ms per channel
• Accuracy: ±0.1% of full scale (voltage/current), ±0.3°C (RTD at 25°C)
• Isolation: 1500V DC between channels and backplane bus
• Power Consumption: Max 1.5W from S7-1500 backplane
• Operating Temperature: -25°C to +60°C
• Protection Rating: IP20 (suitable for control cabinet installation)
• Dimensions: 35mm (W) × 147mm (H) × 129mm (D)
• Certifications: CE, UL, cULus, ATEX Zone 2, IECEx, EAC

Selection Considerations:
When specifying this module, evaluate: total analog input points required, sensor types and signal ranges, required measurement accuracy, environmental conditions (temperature/humidity/vibration), communication cycle time requirements, and available S7-1500 rack space. For applications exceeding 8 channels, multiple modules can be installed with synchronized data acquisition. Our application engineers provide complimentary system architecture review and module selection assistance—submit your I/O list and process requirements for personalized recommendations.

Configuration & Integration Support

TIA Portal Configuration: Module auto-detection upon insertion into S7-1500 rack. Channel parameters configured via hardware catalog with options for: signal type selection, measurement range, filter time constant, limit value monitoring, and scaling to engineering units. Diagnostic buffer automatically logs wire-break events and out-of-range conditions.

Wiring & Installation: Front connector system (40-pin) with removable terminal blocks for simplified maintenance. Color-coded wiring diagrams included. Supports shielded twisted-pair cables for noise immunity in electrically noisy environments. Recommended cable specifications: 0.5-1.5mm² for current loops, shielded for RTD connections.

Firmware & Updates: Firmware updates delivered through TIA Portal online/offline update function. Current firmware version supports extended temperature range RTDs and enhanced EMC performance. Backward compatible with legacy S7-1500 controller firmware.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules (pre-programmed parameters or special labeling) require 10-15 business days.

Warranty: 12-month manufacturer warranty covering material defects and workmanship. Extended warranty options available for critical infrastructure projects.

Technical Support: Complimentary remote commissioning assistance via phone/email. On-site startup services available in major industrial regions (quoted separately). Comprehensive documentation package includes: electrical schematics, terminal assignment diagrams, TIA Portal sample project, and troubleshooting flowcharts.

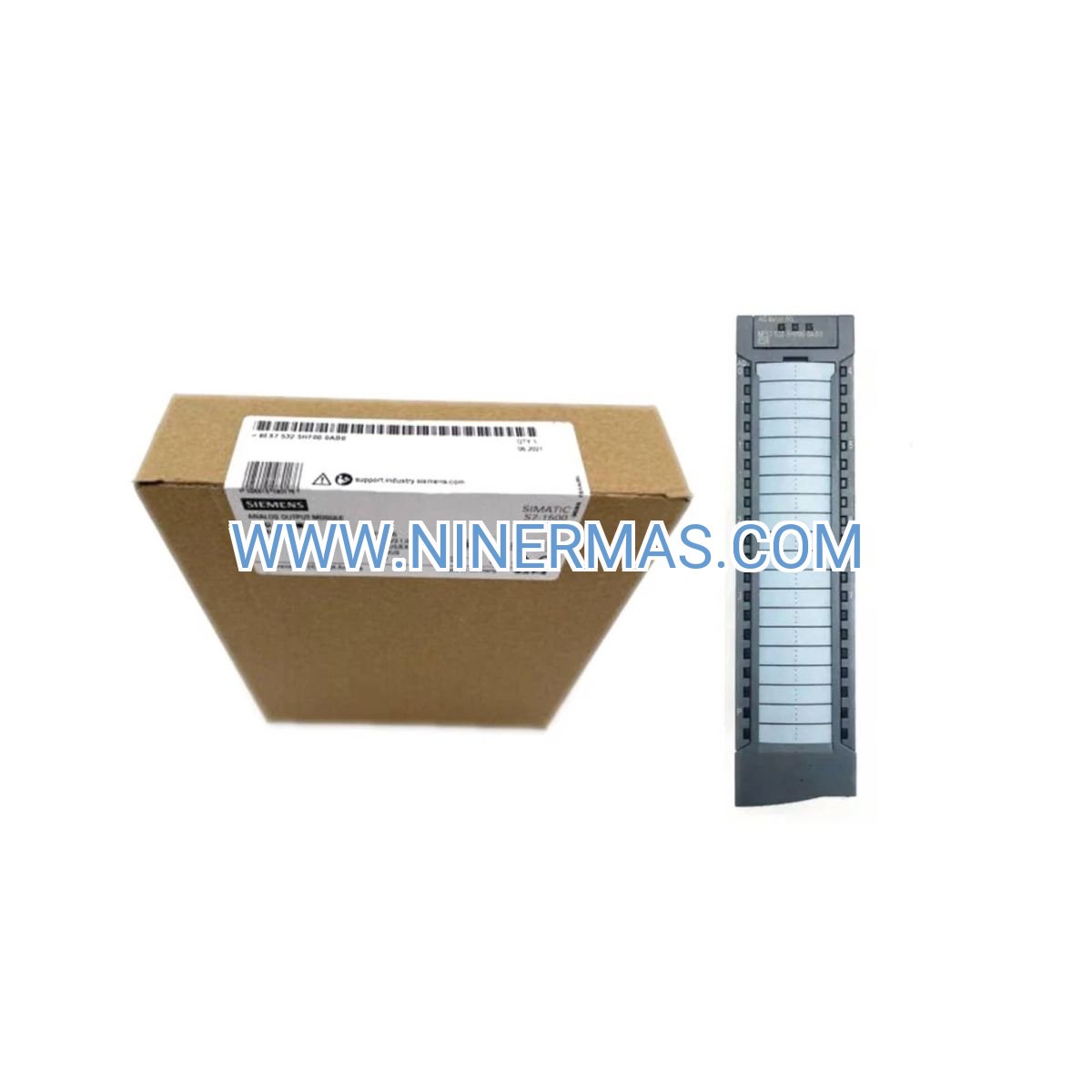

Quality Certifications: Factory-sealed packaging with traceability labels. Each module undergoes 100% functional testing including burn-in cycle and calibration verification. Certificates of conformity and calibration reports provided upon request.

Frequently Asked Questions (FAQ)

Q: How does the Siemens 6ES7531-7QF00-0AB0 analog input module integrate with existing S7-1500 PLC systems?
A: The module features plug-and-play installation into any S7-1500 rack slot. Upon insertion, TIA Portal automatically detects the module and loads default parameters. Users configure channel assignments, signal types, and scaling through the intuitive hardware configuration interface. No additional gateway or adapter hardware required—direct PROFINET backplane communication ensures deterministic data transfer.

Q: What is the maximum number of analog input channels supported in a single S7-1500 system?
A: A standard S7-1500 CPU supports up to 32 I/O modules per rack. Using 6ES7531-7QF00-0AB0 modules (8 channels each), you can achieve 256 analog inputs in a single rack. For larger systems, expansion racks via PROFINET interface extend capacity to thousands of channels with synchronized sampling.

Q: What accuracy improvement can be expected compared to standard 12-bit analog modules?
A: The 16-bit resolution provides 16× finer measurement granularity than 12-bit modules. For a 0-10V signal, 16-bit resolution yields 0.15mV steps versus 2.4mV for 12-bit. This translates to ±0.1% accuracy versus ±0.3%, critical for applications like pharmaceutical batch control, precision temperature regulation, and quality assurance measurements where regulatory compliance demands tight tolerances.

Q: What environmental protection does the module offer for harsh industrial installations?
A: The module features IP20 enclosure rating suitable for control cabinet mounting. Conformal coating on PCB assemblies provides protection against condensation, dust, and chemical vapors. Operating temperature range of -25°C to +60°C accommodates unheated enclosures in extreme climates. For outdoor or washdown environments, install within IP54-rated or higher control panels with adequate ventilation.

Q: Can the module support remote monitoring and data logging via SCADA or cloud platforms?
A: Yes. Analog data acquired by the module is accessible via S7-1500 CPU communication interfaces including PROFINET, OPC UA, and Modbus TCP. Integration with SCADA systems (WinCC, Ignition, Wonderware) enables real-time trending and alarm management. For cloud connectivity, use Siemens Industrial Edge or third-party IoT gateways supporting MQTT/OPC UA protocols to stream data to AWS, Azure, or private cloud platforms.

Q: What diagnostic capabilities help reduce troubleshooting time during commissioning and operation?
A: The module provides channel-level diagnostics including wire-break detection (for RTD/resistance inputs), short-circuit indication, overload alerts, and out-of-range warnings. Diagnostic data appears in TIA Portal's online diagnostic view with timestamp and channel identification. LED indicators on module front panel provide at-a-glance status: green for normal operation, red for channel fault, flashing for configuration error. Diagnostic buffer logs facilitate root-cause analysis and predictive maintenance scheduling.

Request Technical Consultation & Quotation

To receive a tailored solution proposal, pricing, and technical support for your project, please provide the following information: project name and industry sector, application description (process type, control objectives), required measurement parameters (temperature, pressure, flow, etc.), number of analog input points and signal types, S7-1500 CPU model and TIA Portal version, environmental conditions (temperature range, enclosure type), and any special requirements (certifications, extended warranty, commissioning support). Our application engineers will respond within 24 hours with a comprehensive selection guide and competitive quotation.
