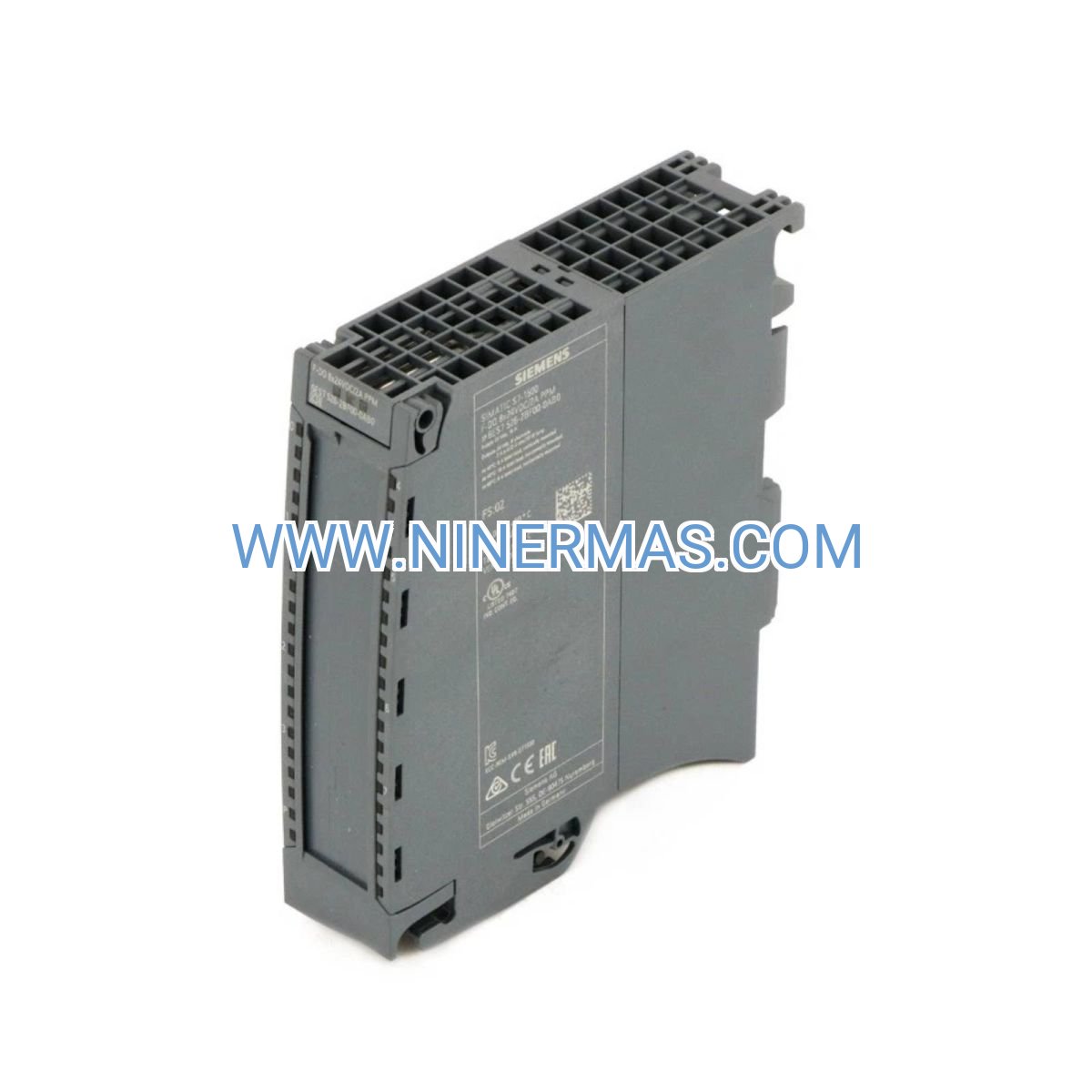

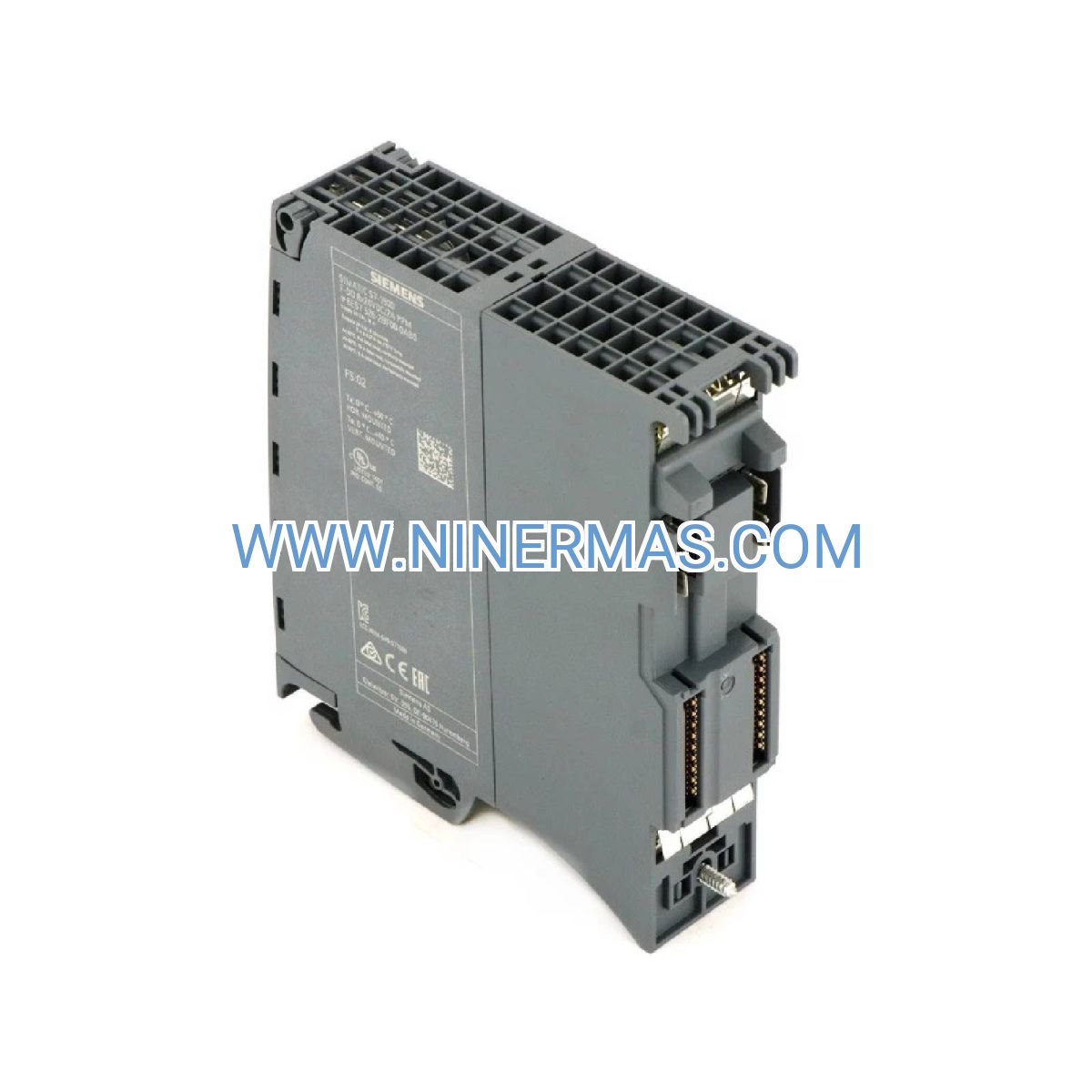

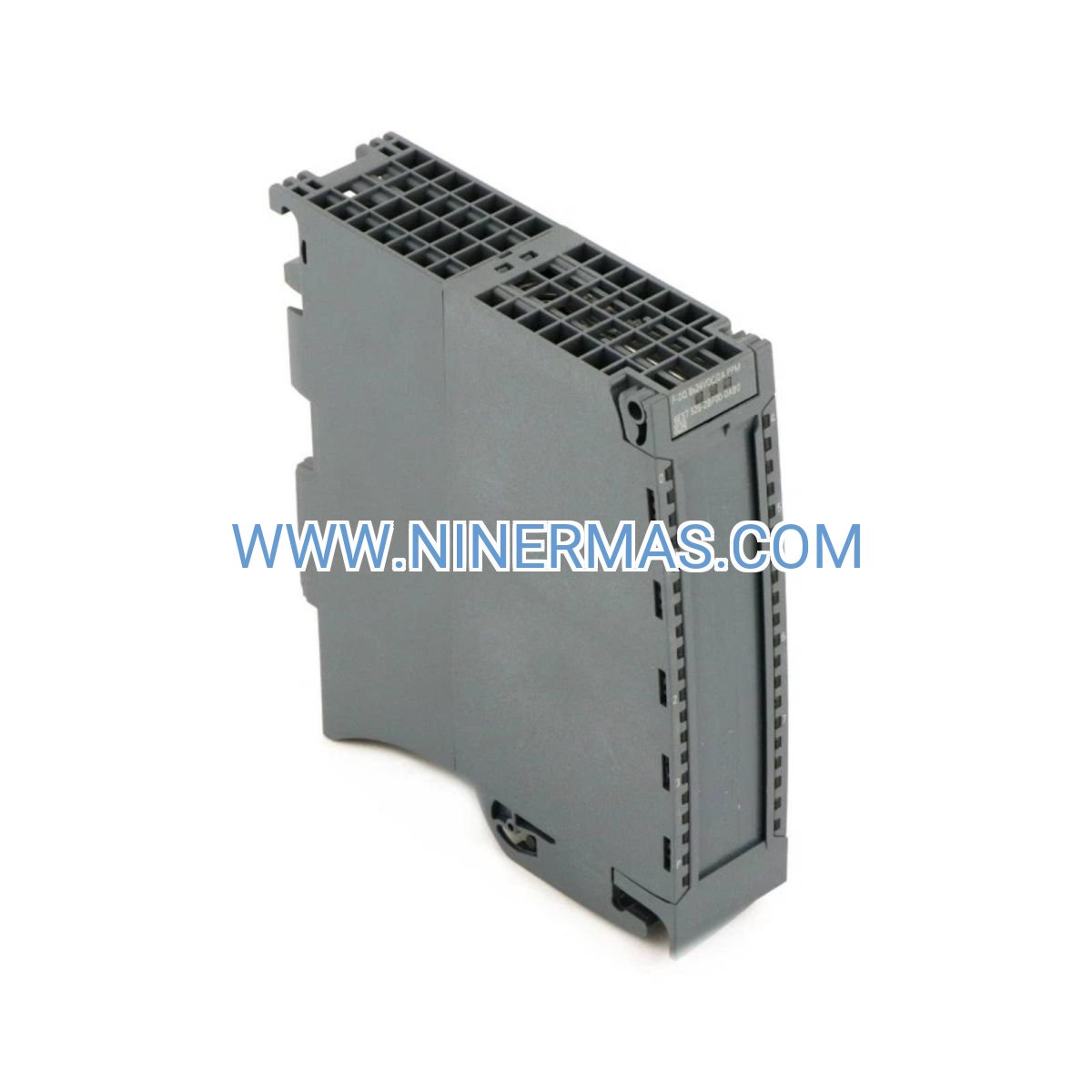

Siemens 6ES7522-1BL10-0AA0 Digital Output Module (S7-1500 Series High-Density I/O Solution)

The Siemens 6ES7522-1BL10-0AA0 is a high-performance digital output module designed for the SIMATIC S7-1500 PLC platform. Featuring 32 independent output channels with 24VDC/0.5A per channel, this module delivers precise control for solenoid valves, actuators, indicator lights, and relay-driven equipment in demanding industrial environments. Through advanced diagnostics and hot-swappable design, it ensures maximum uptime and simplified maintenance for automation engineers.

Ideal for manufacturing plants, process automation systems, building automation, and energy management applications, this module addresses common challenges such as limited I/O density, complex wiring, diagnostic blind spots, and unplanned downtime. It integrates seamlessly with TIA Portal for streamlined configuration and real-time monitoring.

Engineered with industrial-grade reliability, conformal coating protection, and comprehensive short-circuit safeguards, the 6ES7522-1BL10-0AA0 is trusted by system integrators, control panel builders, OEM manufacturers, and plant maintenance teams worldwide. Contact our engineering team for application-specific selection guidance, technical documentation, and competitive quotations.

Core Features & Technical Advantages

High-Density Output Configuration
Provides 32 independent digital outputs in a compact form factor, reducing cabinet space requirements by up to 40% compared to legacy I/O systems while maintaining full electrical isolation and individual channel diagnostics.

Robust 24VDC/0.5A Output Capability
Each channel delivers up to 0.5A continuous current at 24VDC, suitable for driving solenoid valves, contactors, pilot lights, and small motors. Built-in overload protection prevents damage from short circuits or excessive inrush current.

Advanced Diagnostic & Monitoring
Real-time channel-level diagnostics detect wire breaks, short circuits, and overload conditions. Integrated LED indicators and TIA Portal visualization enable rapid troubleshooting, reducing mean time to repair (MTTR) by an average of 35%.

Hot-Swap & Modular Design
Supports online module replacement without shutting down the entire system, minimizing production interruptions. The backplane connector ensures secure mechanical and electrical connection with tool-free installation.

Industrial-Grade Environmental Protection
Conformal coating protects against humidity, dust, and corrosive gases. Operating temperature range of -25°C to +60°C and vibration resistance up to 5g make it suitable for harsh factory floors, outdoor enclosures, and mobile equipment.

Seamless TIA Portal Integration
Fully compatible with STEP 7 V13 and later versions. Drag-and-drop configuration, symbolic addressing, and integrated simulation tools accelerate commissioning and reduce engineering time by up to 50% compared to traditional programming methods.

Typical Application Scenarios

This module is engineered for applications requiring high reliability, precise timing, and extensive output control, including:

Discrete Manufacturing & Assembly Lines
Controls pneumatic actuators, conveyor motors, pick-and-place units, and safety gates in automotive, electronics, and packaging industries. Supports synchronized multi-axis motion and rapid cycle times with sub-millisecond response accuracy.

Process Automation & Chemical Plants
Operates motorized valves, dosing pumps, agitators, and alarm indicators in batch processing, mixing, and fluid handling systems. Ensures compliance with safety standards (SIL, ATEX) through certified diagnostics and fail-safe output states.

Building & Infrastructure Automation
Manages HVAC dampers, lighting circuits, access control locks, and fire alarm relays in commercial buildings, data centers, and transportation hubs. Integrates with BACnet, Modbus, and PROFINET for centralized facility management.

Energy & Utilities Control
Drives circuit breakers, switchgear interlocks, pump starters, and status indicators in power distribution, water treatment, and renewable energy installations. Withstands electrical noise and transient surges common in high-voltage environments.

Material Handling & Logistics
Coordinates sortation gates, diverters, stackers, and barcode scanners in warehouses and distribution centers. Supports high-speed switching (up to 100 Hz) for dynamic routing and real-time inventory tracking.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, review the following key parameters:

Electrical Specifications

• Output Channels: 32 (electronically isolated groups)
• Rated Output Voltage: 24VDC (L+)
• Output Current per Channel: 0.5A continuous, 0.6A peak (100ms)
• Total Module Current: 8A maximum (sum of all channels)
• Output Type: Sourcing (P-switching), short-circuit proof
• Switching Frequency: 100 Hz (resistive load), 2.5 Hz (inductive load with suppression)

Mechanical & Environmental

• Dimensions (W×H×D): 35mm × 147mm × 129mm
• Weight: Approx. 190g
• Mounting: DIN rail (S7-1500 profile rail)
• Protection Rating: IP20 (enclosure required for IP54+ applications)
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +70°C
• Humidity: 5% to 95% RH (non-condensing)

Compliance & Certifications

• CE, UL, cULus, RCM, EAC, KC
• ATEX Zone 2 (with approved barriers)
• IEC 61131-2, IEC 61010-2-201
• PROFINET conformance class B

Selection Recommendations
When specifying this module, consider: total output current demand (ensure sum ≤ 8A), load type (resistive vs. inductive with suppression diodes), wiring distance (voltage drop calculation), ambient temperature (derating above 55°C), and cabinet ventilation. For custom configurations or multi-module systems, consult our application engineers with your I/O list, load specifications, and environmental conditions.

Extended Capabilities & System Integration

PROFINET Real-Time Communication
Supports IRT (Isochronous Real-Time) mode for deterministic I/O updates down to 250μs cycle time, critical for motion control and synchronized multi-axis applications.

Redundancy & Failover Support
Compatible with S7-1500R redundant controller configurations. Automatic switchover maintains output states during CPU failover, ensuring zero-downtime operation in critical processes.

Energy Monitoring & Efficiency
Integrated current measurement enables load monitoring and predictive maintenance. Detect abnormal current draw indicating worn actuators or valve blockages before catastrophic failure.

Cybersecurity Features
Firmware integrity checks, access control lists, and encrypted communication protect against unauthorized configuration changes and cyber threats in connected factory environments.

Delivery, Service & Quality Assurance

Stock Availability & Lead Time
Standard catalog items ship within 1-3 business days from regional warehouses (Asia, Europe, Americas). Custom-configured modules or bulk orders typically require 2-4 weeks. Expedited shipping available for urgent projects.

Warranty & Technical Support
All modules include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and preventive maintenance contracts available. Our technical support team provides remote diagnostics, firmware updates, and on-site commissioning assistance (region-dependent).

Documentation & Resources
Each shipment includes: product datasheet, wiring diagrams, GSD/GSDML files for PROFINET configuration, sample STEP 7 code blocks, and quick-start guide. Comprehensive manuals, 3D CAD models (STEP/IGES), and video tutorials available via our online portal.

Quality Certifications
Factory-sealed packaging with anti-static protection. All units undergo 100% functional testing, burn-in cycles, and environmental stress screening per Siemens Quality Management System (ISO 9001, ISO 14001). Traceability documentation provided for regulated industries.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens 6ES7522-1BL10-0AA0 digital output module to my existing S7-1500 PLC system?
A: The module mounts directly onto the S7-1500 profile rail adjacent to the CPU or other I/O modules. Connect the 24VDC power supply to the L+ and M terminals, then wire your output devices to the corresponding channel terminals (0.0 to 3.7). Use the TIA Portal hardware configuration tool to assign the module to a slot and download the configuration to the CPU. Refer to the wiring diagram in the manual for terminal assignments and grounding requirements.

Q: What is the maximum number of output modules I can use in a single S7-1500 system?
A: The S7-1500 supports up to 32 modules per CPU (depending on CPU model), with a maximum of 8,192 digital outputs across the entire system. Ensure your power budget and backplane current capacity are sufficient when adding multiple high-density modules. Consult the S7-1500 system manual for detailed configuration limits.

Q: Can this module drive inductive loads like solenoid valves and relay coils?
A: Yes, but inductive loads require external suppression diodes or varistors to prevent voltage spikes during switching. The module's switching frequency is limited to 2.5 Hz for inductive loads to ensure long-term reliability. For higher-frequency inductive switching, consider using solid-state relays or modules with integrated suppression circuits.

Q: What environmental protection does the module offer for installation in dusty or humid environments?
A: The module has an IP20 protection rating and conformal coating on the PCB, suitable for controlled cabinet environments. For outdoor, washdown, or Zone 2 hazardous area installations, mount the module inside an IP54 or higher-rated enclosure with proper ventilation and temperature management. Ensure ambient temperature stays within -25°C to +60°C.

Q: Does the 6ES7522-1BL10-0AA0 support remote monitoring and predictive maintenance?
A: Yes, the module provides channel-level diagnostics accessible via PROFINET and TIA Portal. You can monitor output current, detect wire breaks or short circuits, and log fault events for trend analysis. Integration with SIMATIC Energy Manager or third-party SCADA systems enables predictive maintenance based on load current patterns and switching cycle counts.

Q: Is firmware update required, and how is it performed?
A: Firmware updates are occasionally released to add features or address security vulnerabilities. Updates are performed via TIA Portal using the online firmware update function—no module removal required. Always review release notes and test updates in a non-production environment before deploying to critical systems.

Request a Custom Solution

For tailored configurations, volume pricing, or technical consultation, please provide the following details to our engineering team:

• Project name and application overview
• Total number of digital outputs required
• Load types and current ratings per channel
• Operating environment (temperature, humidity, vibration)
• Communication protocol and cycle time requirements
• Compliance or certification needs (UL, ATEX, SIL, etc.)
• Preferred delivery timeline and destination

Our specialists will respond within 24 hours with a detailed selection guide, system architecture recommendations, and competitive quotation.
