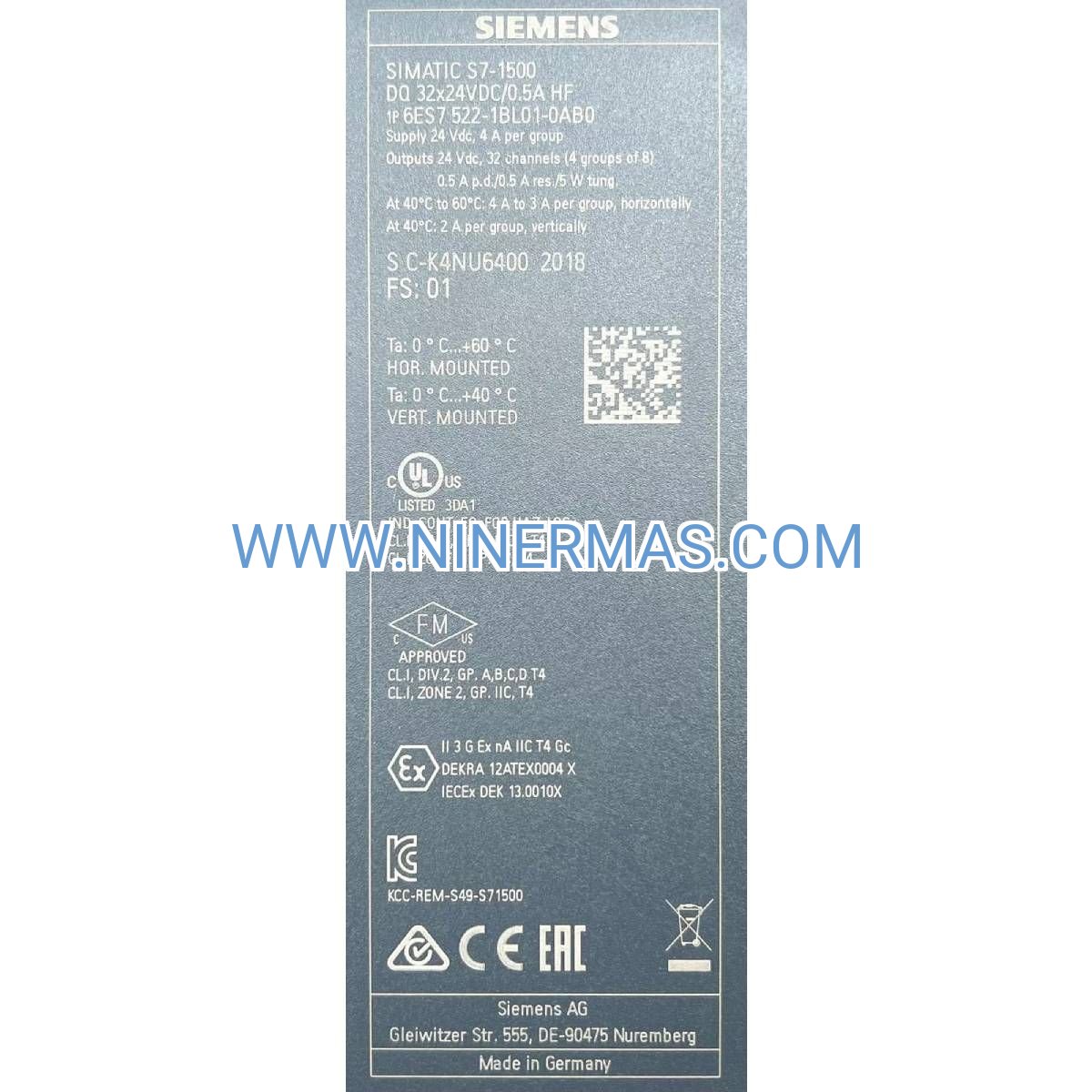

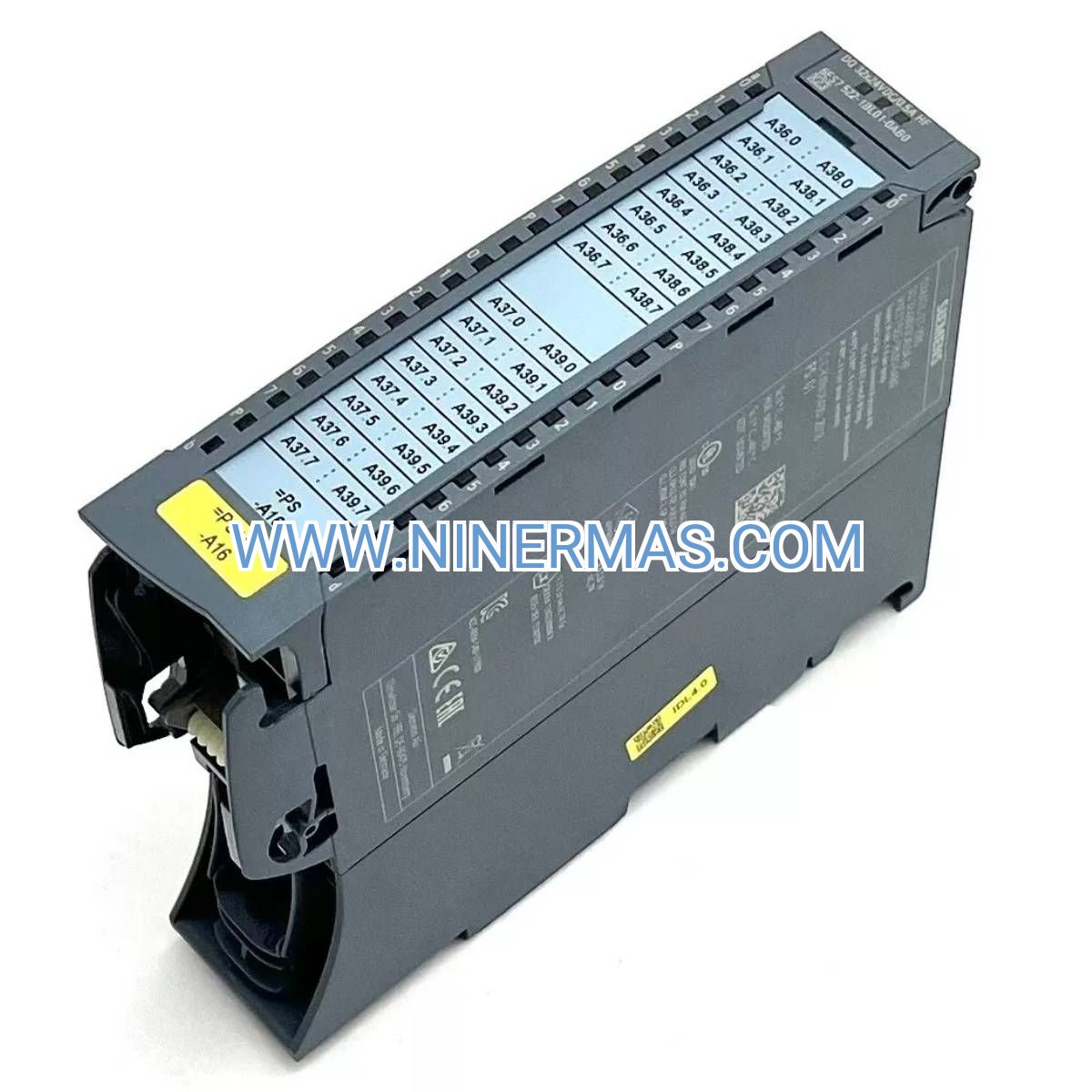

6ES7522-1BL01-0AB0 Digital Output Module (Industrial-Grade 32-Channel Solution)

The Siemens 6ES7522-1BL01-0AB0 represents a high-performance digital output solution engineered for demanding industrial automation environments. This 32-channel DQ module delivers reliable 24V DC switching with 0.5A current capacity per channel, making it the ideal choice for controlling solenoid valves, indicator lights, motor starters, and relay-driven actuators across manufacturing, process control, and infrastructure applications.

Designed for seamless integration with SIMATIC S7-1500 programmable logic controllers, this module addresses critical challenges in modern automation: the need for scalable I/O expansion, real-time diagnostics, and safety-compliant load management. Whether you're retrofitting legacy systems or building new production lines, the 6ES7522-1BL01-0AB0 provides the density, diagnostics, and durability required for mission-critical operations.

With built-in safety features certified to SIL2 (EN IEC 62061:2021) and Category 3/PL d (EN ISO 13849-1:2015), this module enables safe shutdown of load groups without additional safety relays, reducing panel space and wiring complexity while maintaining compliance with international safety standards.

Core Features & Technical Advantages

✓ High-Density I/O Architecture: 32 digital outputs organized in 8-channel groups deliver maximum I/O density in minimal footprint, reducing cabinet space requirements by up to 40% compared to traditional 16-channel modules while maintaining 4A group current capacity.

✓ Single-Channel Diagnostics: Individual channel monitoring detects short circuits, wire breaks, and overload conditions in real-time, transmitting fault data directly to the PLC for predictive maintenance and reducing unplanned downtime by enabling proactive troubleshooting.

✓ Integrated Safety Functions: Certified for safety-oriented shutdown up to SIL2 and PL d without external safety modules, this feature eliminates the need for separate safety relays in emergency stop circuits, cutting installation costs and simplifying safety validation.

→ Switching Cycle Counter: Embedded lifecycle tracking monitors actuator switching operations, providing data-driven insights for preventive replacement scheduling and extending equipment service life through condition-based maintenance strategies.

→ Substitute Value Configuration: Programmable fallback states ensure controlled behavior during communication faults or CPU failures, preventing unsafe conditions and maintaining process integrity during system transitions or emergency scenarios.

→ Hot-Swap Capability: Module replacement during operation (with appropriate safety precautions) minimizes production interruptions, enabling maintenance activities during scheduled breaks rather than requiring full line shutdowns.

Typical Application Scenarios

Automotive Assembly Lines: Controls pneumatic actuators, part ejectors, and quality gates across multi-station assembly cells. The high channel count reduces module proliferation while single-channel diagnostics pinpoint faulty stations instantly, cutting troubleshooting time from hours to minutes and maintaining takt time compliance.

Water Treatment Facilities: Manages valve banks, chemical dosing pumps, and alarm indicators in SCADA-integrated systems. Safety-rated shutdown capabilities ensure fail-safe operation during emergency conditions, while substitute values maintain critical valves in safe positions during controller maintenance.

Packaging Machinery: Drives conveyor diverters, label applicators, and reject mechanisms in high-speed packaging lines. The 0.5A output capacity handles inductive loads like solenoid valves directly, eliminating interposing relays and reducing panel complexity by 30%.

Building Automation: Operates HVAC dampers, lighting contactors, and access control locks in commercial facilities. Switching cycle counters enable predictive replacement of motorized dampers before failure, preventing comfort complaints and reducing emergency service calls.

Material Handling Systems: Controls sortation gates, transfer stations, and accumulation zones in distribution centers. Group-based current management allows flexible load distribution while diagnostics identify conveyor jams or mechanical binding through abnormal current draw patterns.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when you need more than 16 outputs in a single slot, require safety-rated shutdown without external relays, or demand channel-level diagnostics for critical processes. For applications with lower I/O density requirements (8-16 points), consider the 6ES7522-1BH01-0AB0. For relay outputs or AC loads, evaluate the 6ES7522-5HH00-0AB0 relay module instead.

Extended Functions & Integration Capabilities

TIA Portal Integration: Full configuration and diagnostics through Siemens TIA Portal V13 or later, enabling unified engineering across hardware, PLC programming, and HMI development with automatic hardware detection and parameter import.

PROFINET Diagnostics: Real-time channel status accessible via PROFINET network, allowing SCADA systems and MES platforms to monitor I/O health without PLC program modifications, supporting Industry 4.0 condition monitoring initiatives.

Customization Options: Factory pre-configuration services available for large projects (minimum 50 units), including pre-loaded parameter sets, custom labeling, and project-specific testing protocols to accelerate commissioning timelines.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Bulk orders (10+ modules) ship within 5-7 business days with consolidated packaging to reduce freight costs.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical infrastructure applications requiring 5-year coverage.

Technical Support: Pre-sales application engineering assistance, post-sales commissioning support via email/phone, and access to Siemens technical documentation library including CAD drawings, certification documents, and programming examples.

Documentation Package: Each module ships with quick start guide, safety instructions, and EU Declaration of Conformity. Complete manuals, GSD files, and TIA Portal hardware catalogs available for download from Siemens Industry Online Support portal.

Frequently Asked Questions

Q: What front connector do I need for screw terminal connections?
A: Order the 6ES7592-1AM00-0XB0 (40-pin screw terminal connector). For push-in spring terminals that eliminate screwdrivers, specify the 6ES7592-1BM00-0XB0. Both connectors support 0.5-2.5mm² wire gauge and include integrated labeling strips.

Q: Can this module drive 24V DC motors directly?
A: Yes, for motors drawing ≤0.5A per channel with proper inductive load suppression (flyback diodes). For higher current motors (0.5-2A), use one output per motor with external contactors. The module's inductive load rating is 5W per channel at L/R ≤ 1ms.

Q: How much energy does the module consume during operation?
A: Backplane power consumption is 1.5W (typical) from the S7-1500 system power supply. Load power depends on connected devices—32 channels at 0.5A draw 384W total from the 24V DC field supply, though typical applications use 30-50% of available capacity.

Q: What installation clearances are required for proper cooling?
A: Maintain 25mm minimum clearance above and below the module for convection cooling. Horizontal mounting (standard orientation) supports full 60°C ambient rating. Vertical mounting reduces maximum ambient to 40°C per Siemens derating guidelines.

Q: Does this module support remote I/O via ET 200 systems?
A: No, the 6ES7522-1BL01-0AB0 is designed exclusively for local mounting in S7-1500 racks. For distributed I/O applications, consider the ET 200SP equivalent (6ES7132-6BH01-0BA0) which offers identical functionality in a compact IP20 module for remote installation.

Q: How do I monitor switching cycles for predictive maintenance?
A: Access the switching cycle counter via TIA Portal diagnostics or read system data block SDB values in your PLC program. Set threshold alarms (e.g., 80% of rated cycles) to trigger maintenance notifications before actuator failure occurs.
