Siemens CPU 1517-3 PN/DP (6ES7517-3AP00-0AB0) | S7-1500 PLC Central Processor with PROFINET & PROFIBUS

Siemens CPU 1517-3 PN/DP – Industrial-Grade Central Processing Unit for S7-1500 PLC Systems

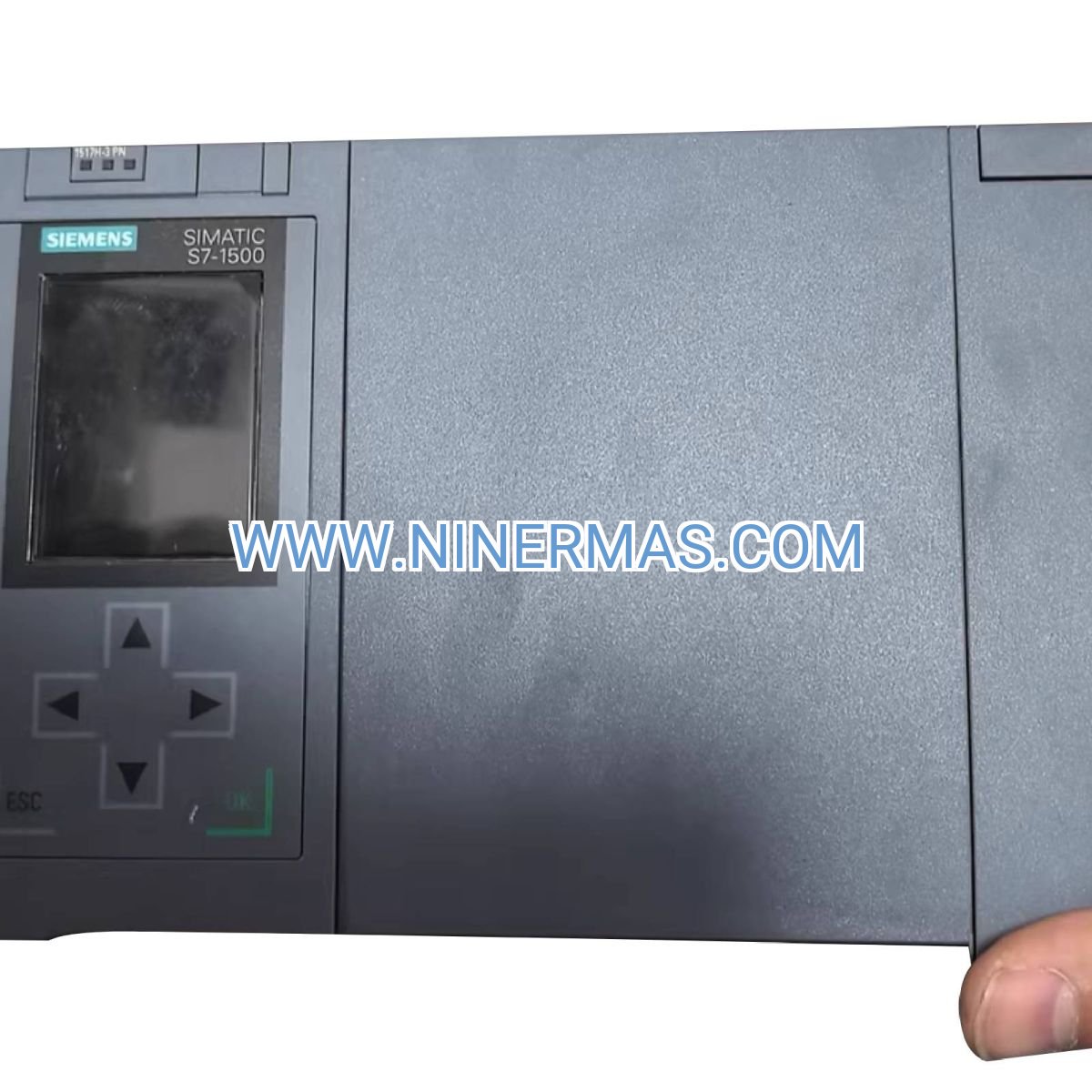

The Siemens CPU 1517-3 PN/DP (6ES7517-3AP00-0AB0) is a high-performance central processing unit designed for demanding industrial automation and process control applications. Equipped with dual communication interfaces—PROFINET IRT and PROFIBUS DP—this CPU enables seamless integration into complex multi-protocol networks, delivering precise control, rapid data processing, and exceptional system reliability.

Ideal for manufacturing plants, chemical processing facilities, energy management systems, and large-scale production lines, the CPU 1517-3 addresses critical challenges such as network protocol compatibility, real-time data synchronization, distributed I/O management, and system scalability. It supports both centralized and distributed control architectures, making it suitable for brownfield upgrades and greenfield installations.

With standardized S7-1500 architecture and flexible configuration options, this CPU offers superior processing speed (up to 30 ns per instruction), extensive memory capacity (2 MB work memory, expandable load memory), robust diagnostics, and comprehensive safety integration. It is the preferred choice for system integrators, design engineers, OEM manufacturers, and plant operators seeking reliable, future-proof automation solutions. Contact our application engineers for customized system design, technical specifications, and quotation assistance.

Core Features & Technical Advantages

• Dual-Protocol Communication Capability
  Integrated PROFINET IRT interface (2-port switch) and PROFIBUS DP master interface enable simultaneous operation on both networks, facilitating smooth migration from legacy PROFIBUS systems to modern PROFINET infrastructure without disrupting production.
• High-Speed Processing Performance
  Bit operation execution time as fast as 30 ns, with 2 MB work memory and support for up to 8 MB load memory via SIMATIC Memory Card, ensuring rapid scan cycles and responsive control even in complex logic applications.
• Scalable I/O & Module Expansion
  Supports up to 32 local modules and extensive distributed I/O via PROFINET and PROFIBUS, accommodating systems with thousands of I/O points for large-scale automation projects.
• Integrated Safety & Diagnostics
  Compatible with SIMATIC Safety Integrated for SIL 3 / PLe safety applications; built-in web server and diagnostic buffer provide real-time system monitoring, alarm management, and predictive maintenance capabilities.
• Robust Industrial Design
  Conformal-coated circuit boards, wide operating temperature range (-25°C to +60°C with derating), and high electromagnetic immunity (EMC Class A) ensure reliable operation in harsh industrial environments.
• Seamless TIA Portal Integration
  Fully supported by Siemens TIA Portal engineering software, offering unified programming (LAD, FBD, STL, SCL), simulation, commissioning, and lifecycle management tools for streamlined project execution.

Typical Application Scenarios

The CPU 1517-3 PN/DP is engineered for applications requiring high availability, multi-protocol connectivity, and deterministic real-time performance, including:

• Automotive & Discrete Manufacturing
  Controls assembly lines, robotic cells, and material handling systems where PROFINET motion control and PROFIBUS DP field devices coexist, ensuring synchronized production with minimal downtime.
• Chemical & Petrochemical Process Control
  Manages distributed control systems (DCS) with mixed PROFINET I/O and legacy PROFIBUS instrumentation, providing precise regulation of temperature, pressure, flow, and level in continuous processes.
• Energy & Utilities Infrastructure
  Operates in power generation plants, substations, and water treatment facilities, coordinating SCADA integration, remote I/O, and intelligent field devices for reliable grid management and resource optimization.
• Food & Beverage Production
  Ensures hygienic design compliance and batch traceability in packaging, filling, and pasteurization lines, with support for recipe management and FDA 21 CFR Part 11 data integrity requirements.
• Building Automation & HVAC Systems
  Integrates with BACnet/IP gateways and PROFINET-enabled sensors for centralized control of lighting, climate, and access systems in commercial buildings and industrial campuses.

Technical Specifications & Selection Guide

To facilitate system design and component selection, key technical parameters are outlined below. Custom configurations are available based on project-specific requirements.

Selection Recommendations: When specifying the CPU 1517-3, consider the following factors: total I/O count (local + distributed), required communication protocols (PROFINET, PROFIBUS, or both), program complexity and memory requirements, safety integrity level (SIL) if applicable, environmental conditions (temperature, vibration, EMI), and future expansion needs. For assistance with system architecture design, I/O allocation, and performance estimation, please provide your application details—our engineering team will recommend the optimal configuration and supporting components (power supplies, I/O modules, communication processors).

Advanced Functionality & Integration Options

• Redundancy & High Availability: Supports S7-1500R redundant system configurations for mission-critical applications requiring fault-tolerant operation.
• Motion Control: Integrated technology objects for positioning, speed control, and synchronous operation via PROFIdrive over PROFINET.
• OPC UA Server: Native OPC UA interface for Industry 4.0 connectivity, enabling secure data exchange with MES, ERP, and cloud platforms.
• Web-Based HMI: Embedded web server allows browser-based monitoring and diagnostics without additional software licenses.
• Cybersecurity Features: Access control, encrypted communication (TLS), and integrity protection comply with IEC 62443 industrial security standards.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–5 business days; custom-configured systems require 10–15 business days depending on specifications and testing requirements.

Warranty: All units include a 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty and service contracts are available upon request.

Technical Support: Comprehensive support includes pre-sales application consulting, system commissioning assistance (remote or on-site, region-dependent), and post-sales troubleshooting. Firmware updates and security patches are provided via Siemens Industry Online Support portal.

Documentation Package: Each CPU ships with complete technical documentation including hardware installation manual, system manual, communication function manual, electrical wiring diagrams, and TIA Portal configuration examples—facilitating rapid deployment and maintenance.

Frequently Asked Questions (FAQ)

Q: How does the CPU 1517-3 PN/DP integrate with existing PROFIBUS DP networks?
A: The integrated PROFIBUS DP master interface supports direct connection to legacy PROFIBUS DP slaves (remote I/O, drives, instruments) at speeds up to 12 Mbps. Configuration is performed via TIA Portal hardware configuration; no additional gateway or coupler is required. Ensure proper bus termination and cable specifications (Type A or Type B) for reliable operation.

Q: What is the maximum number of I/O points this CPU can handle?
A: The CPU 1517-3 supports up to 32 local modules plus extensive distributed I/O via PROFINET (up to 128 IO devices) and PROFIBUS DP (up to 125 slaves). Total addressable I/O depends on module types and network configuration; typical systems range from 2,000 to 8,000+ I/O points.

Q: Can this CPU be used in safety-related applications?
A: Yes, the CPU 1517-3 is compatible with SIMATIC Safety Integrated. When combined with fail-safe I/O modules (ET 200SP F, ET 200MP F) and programmed using the F-LAD/F-FBD safety programming languages in TIA Portal, it achieves SIL 3 (IEC 61508) and PLe Category 4 (ISO 13849-1) safety integrity levels.

Q: What are the environmental and installation requirements?
A: The CPU operates reliably in ambient temperatures from -25°C to +60°C (horizontal mounting; derate above 40°C or use forced ventilation). It requires a 24 VDC power supply (PS 1507 or equivalent), standard S7-1500 profile rail mounting, and IP20 enclosure protection. For harsh environments, conformal-coated versions and extended temperature variants are available.

Q: Does the CPU support remote monitoring and Industry 4.0 connectivity?
A: Yes, the CPU 1517-3 features an integrated OPC UA server for secure, standardized data exchange with SCADA, MES, and cloud platforms. The embedded web server provides browser-based diagnostics and monitoring. Additionally, PROFINET supports SNMP and LLDP for network management, and integration with Siemens MindSphere IoT platform is supported via Industrial Edge or Cloud Connector.

Q: What programming languages and tools are supported?
A: The CPU is programmed using Siemens TIA Portal (V13 or later recommended). Supported IEC 61131-3 languages include Ladder Logic (LAD), Function Block Diagram (FBD), Statement List (STL), Structured Control Language (SCL), and GRAPH for sequential control. Safety programs use F-LAD and F-FBD. Simulation and virtual commissioning are supported via PLCSIM Advanced.

Request a Customized Solution

To receive a detailed system design proposal, technical specification sheet, or quotation tailored to your project, please provide the following information: project name and application type, total I/O count and signal types (digital/analog inputs/outputs), required communication protocols (PROFINET, PROFIBUS, Ethernet/IP, Modbus TCP), safety requirements (if applicable), environmental conditions (temperature, humidity, vibration), and power supply specifications. Our application engineers will respond within 24 hours with a comprehensive selection guide and system architecture recommendation.
