Siemens S7-1500 CPU 1516-3 PN/DP Module | 6ES7516-3AN02-0AB0 Industrial PLC Controller

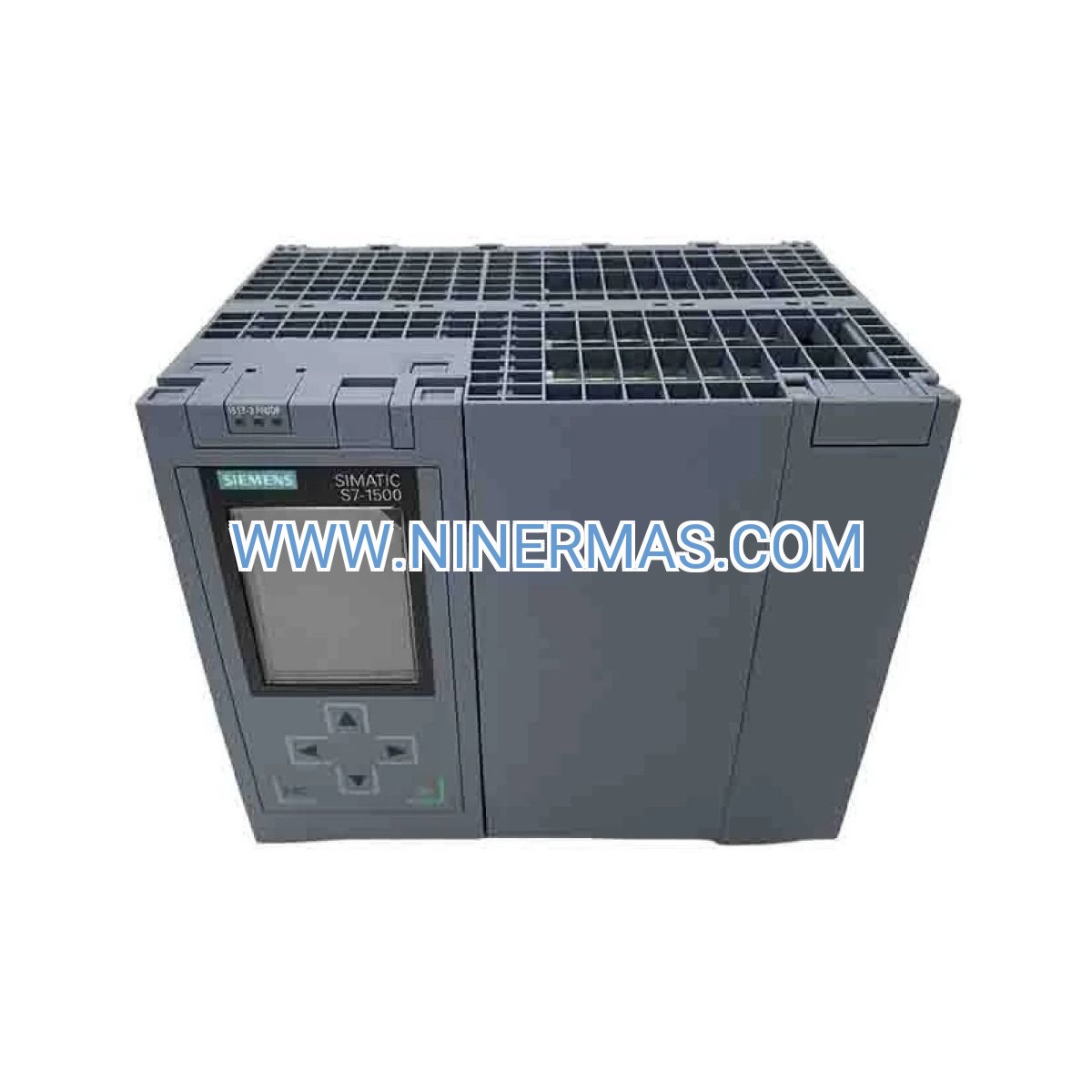

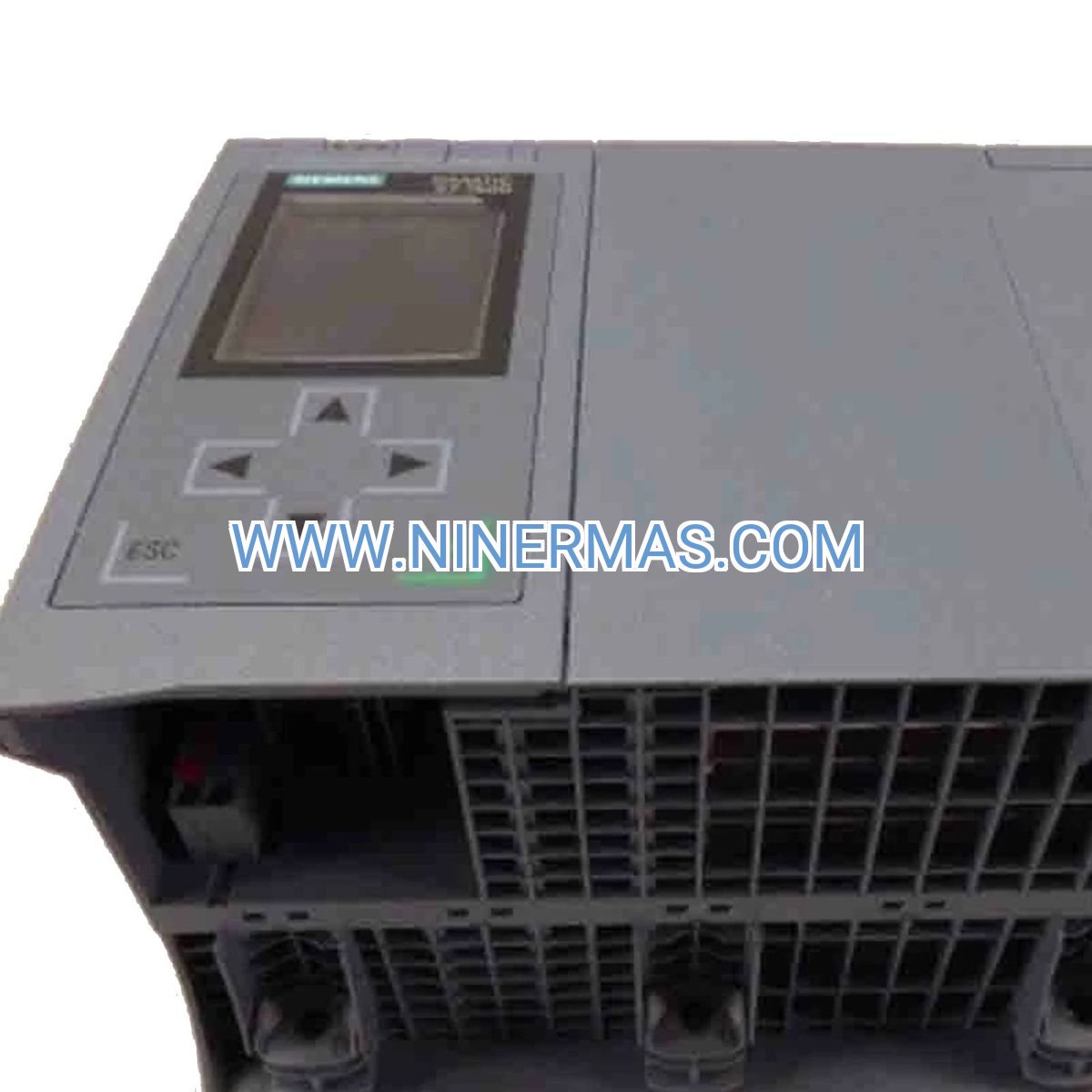

Siemens S7-1500 CPU 1516-3 PN/DP Module (Industrial-Grade PLC Controller)

The Siemens 6ES7516-3AN02-0AB0 CPU 1516-3 PN/DP is a high-performance central processing unit designed for advanced industrial automation systems. Through integrated PROFINET and PROFIBUS DP interfaces combined with powerful processing capabilities, it delivers reliable control, seamless network integration, and real-time data processing for mission-critical applications.

Ideal for process automation, manufacturing execution systems, chemical plants, energy facilities, and complex machinery control scenarios. This module addresses challenges such as multi-protocol communication requirements, high-speed data acquisition demands, distributed I/O management, and the need for scalable system architectures with minimal downtime risks.

With standardized S7-1500 platform compatibility and extensive customization options, this CPU module offers exceptional processing speed, robust diagnostics, simplified programming environment, and long-term system reliability. Suitable for automation engineers, system integrators, OEM manufacturers, and plant maintenance teams. Contact our engineers for application-specific configuration guidance and quotations.

Core Features & Advantages

High-Performance Processing Architecture
Equipped with 1.5 MB work memory and advanced instruction execution speed, enabling complex logic operations, data handling, and multi-tasking capabilities for demanding industrial processes.

Dual Network Interface Flexibility
Integrated PROFINET IO controller and PROFIBUS DP master interfaces allow seamless integration with distributed I/O systems, field devices, and legacy equipment, reducing installation complexity and system costs.

Scalable System Configuration
Supports extensive I/O expansion through signal modules, communication processors, and technology modules, enabling system growth from small machines to plant-wide automation without platform migration.

Comprehensive Diagnostic Capabilities
Built-in system diagnostics with detailed fault logging, online monitoring, and predictive maintenance features minimize unplanned downtime and accelerate troubleshooting processes.

Intuitive Engineering Environment
Fully compatible with TIA Portal engineering software, offering unified programming, configuration, and commissioning tools with reusable code blocks and standardized function libraries for faster project deployment.

Industrial-Grade Reliability
Designed for harsh industrial environments with wide operating temperature range, electromagnetic compatibility, and conformal coating options, ensuring stable operation in chemical, metallurgical, and heavy manufacturing facilities.

Typical Application Scenarios

This CPU module is engineered for applications requiring high reliability, multi-protocol connectivity, and advanced control algorithms, especially in:

Process Automation & Chemical Manufacturing
Controls continuous processes including mixing, reaction, distillation, and packaging lines where precise timing, analog control loops, and batch management are critical for product quality and safety compliance.

Discrete Manufacturing & Assembly Lines
Manages automated production equipment, robotic cells, material handling systems, and quality inspection stations in automotive, electronics, and consumer goods manufacturing with synchronized motion control and traceability requirements.

Energy & Utilities Infrastructure
Monitors and controls power generation equipment, water treatment facilities, HVAC systems, and building automation networks requiring redundant communication paths and long-term operational stability.

Material Handling & Logistics Systems
Coordinates conveyor networks, sorting systems, warehouse automation, and AGV fleets where distributed I/O architecture and real-time data exchange optimize throughput and inventory accuracy.

Machine Tool & CNC Integration
Interfaces with precision machining centers, grinding equipment, and coordinate measuring machines requiring high-speed I/O response, position control, and integration with MES/ERP systems.

Technical Specifications & Selection Guide

To facilitate engineering design and system selection, we provide key technical parameters for the Siemens 6ES7516-3AN02-0AB0 CPU module. Custom configurations available based on project requirements.

Core Specifications:

• Work Memory: 1.5 MB (expandable with memory cards)
• Load Memory: Integrated, expandable via SIMATIC Memory Card
• Processing Speed: Optimized for complex control algorithms and data-intensive operations
• PROFINET Interface: 2-port switch, 10/100/1000 Mbit/s, IRT support
• PROFIBUS DP Interface: Integrated master/slave, up to 12 Mbit/s
• I/O Addressing: Up to 32,768 digital inputs/outputs, 8,192 analog inputs/outputs
• Power Supply: 24V DC nominal (19.2-28.8V DC range)
• Operating Temperature: 0°C to 60°C (horizontal installation)
• Protection Rating: IP20 (suitable for control cabinet mounting)
• Dimensions: Standard S7-1500 profile rail mounting format
• Certifications: CE, UL, cULus, FM, ATEX, IECEx compliant

Selection Considerations:
When specifying this CPU module, consider: total I/O point count requirements, communication protocol needs (PROFINET/PROFIBUS/Industrial Ethernet), program complexity and memory demands, cycle time requirements, redundancy needs, and environmental conditions. For assistance with system architecture design, please provide application details including process description, I/O list, network topology, and performance targets. Our engineering team will recommend optimal configuration and compatible modules.

Extended Capabilities & Integration Options

Communication Expansion: Add CP communication processors for PROFIBUS, Industrial Ethernet/IP, Modbus TCP, or OPC UA connectivity to integrate with third-party systems and cloud platforms.

Technology Functions: Integrate TM technology modules for motion control, high-speed counting, PID control, or cam profiling without external controllers.

Redundancy Options: Implement S7-1500R redundant system architecture for critical processes requiring zero-downtime failover capabilities.

Safety Integration: Combine with F-CPU or F-I/O modules to create integrated safety systems meeting SIL 3 / PLe requirements within the same controller platform.

Remote Access & Diagnostics: Enable secure remote monitoring and maintenance through VPN, cloud connectivity, or Siemens Industrial Remote Services for global asset management.

Delivery, Service & Quality Assurance

Standard catalog items ship from stock within 2-5 business days; custom-configured systems require 7-15 days lead time depending on module availability. All products include minimum 12-month manufacturer warranty with extended warranty options available. We provide remote technical consultation and on-site commissioning support for major projects (availability varies by region).

Complete technical documentation package includes: hardware installation manual, system wiring diagrams, TIA Portal configuration files, function block libraries, and quick-start commissioning guide. All materials support efficient installation, programming, and long-term maintenance operations.

Products are factory-sealed with full traceability documentation, quality certificates, and compliance declarations. We maintain ISO 9001 quality management systems and authorized distribution partnerships ensuring genuine Siemens components with full technical support access.

Frequently Asked Questions (FAQ)

Q: How does the Siemens S7-1500 CPU 1516-3 PN/DP integrate with existing automation systems?
A: This CPU module supports both PROFINET and PROFIBUS DP protocols, enabling seamless integration with distributed I/O, field devices, and legacy equipment. Connection requires network configuration via TIA Portal software, with support for standard industrial protocols including S7 communication, OPC UA, and Modbus TCP through additional communication modules. Our engineers can assist with network architecture design and protocol gateway selection.

Q: What is the maximum I/O capacity supported by this CPU module?
A: The CPU 1516-3 PN/DP supports up to 32,768 digital I/O points and 8,192 analog I/O points through distributed I/O expansion. Actual capacity depends on communication bandwidth, cycle time requirements, and module selection. For large-scale systems, we recommend distributed architecture planning to optimize performance.

Q: What programming languages and development tools are compatible?
A: This module is programmed using Siemens TIA Portal (V13 or higher recommended), supporting IEC 61131-3 languages including Ladder Logic (LAD), Function Block Diagram (FBD), Structured Text (ST), and Statement List (STL). The platform offers integrated simulation, diagnostics, and version control tools for efficient project development.

Q: What are the environmental requirements for installation?
A: The CPU module requires IP20-rated control cabinet mounting with ambient temperature range 0-60°C (horizontal installation) and relative humidity 5-95% non-condensing. Adequate ventilation and DIN rail mounting are essential. For harsh environments, consider additional cabinet climate control and conformal coating options.

Q: Can this CPU support remote monitoring and data acquisition?
A: Yes, through integrated PROFINET interface and optional communication modules, the system supports OPC UA server functionality, MQTT protocol, and cloud connectivity for remote SCADA integration, mobile monitoring, and predictive maintenance platforms. Secure VPN access and firewall configuration are recommended for industrial cybersecurity compliance.

Q: What is the typical energy consumption and power supply requirement?
A: The CPU module operates on 24V DC power supply with typical consumption around 8-10W depending on I/O configuration and communication load. Power supply sizing should account for total system load including I/O modules, with recommended 30% safety margin and backup power options for critical applications.

Request Technical Support & Quotation

For detailed system configuration recommendations, pricing, or technical consultation, please provide the following information: project name and application description, required I/O point count and signal types, communication protocol requirements, environmental conditions, power supply specifications, and delivery timeline. Our automation engineers will provide personalized selection guidance and competitive quotations within 24 hours.
