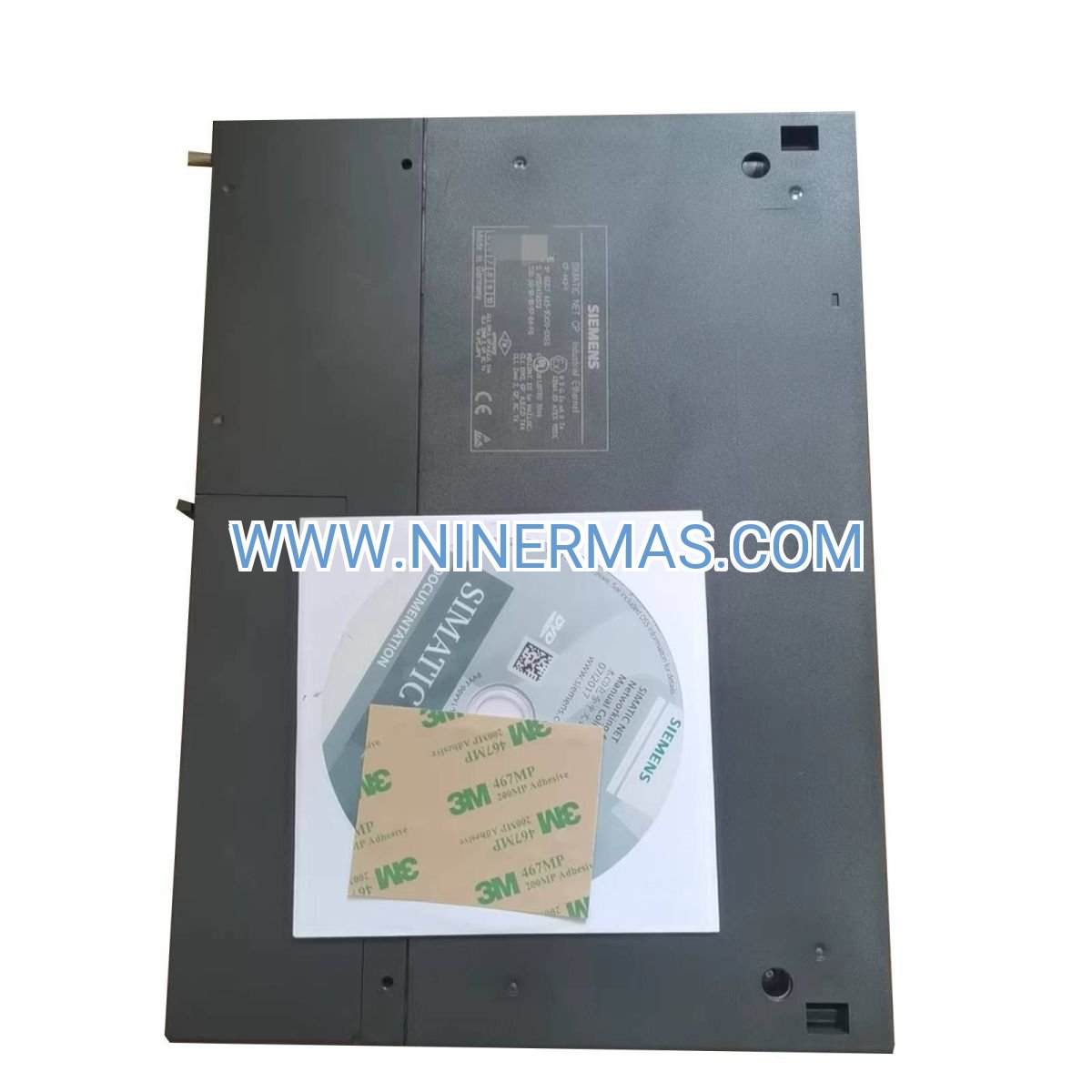

Siemens CP 443-1 Advanced Ethernet Processor 6ES7443-1EX20-0XE0 | S7-400 Industrial Communication Module

CP 443-1 Advanced Ethernet Communication Processor (Industrial-Grade Networking Solution for S7-400)

The Siemens CP 443-1 Advanced (6ES7443-1EX20-0XE0) is a high-performance Ethernet communication processor designed for SIMATIC S7-400 PLC systems. Through integrated PROFINET I/O controller functionality and comprehensive TCP/IP protocol support, it enables seamless data exchange between automation controllers, SCADA systems, HMI panels, and enterprise networks—delivering reliable, real-time communication for mission-critical industrial applications.

Ideal for process automation, manufacturing execution systems (MES), and distributed control architectures across chemical plants, power generation facilities, automotive production lines, and water treatment stations. It addresses common challenges such as network latency, protocol incompatibility, limited I/O expansion capacity, and insufficient diagnostic capabilities in legacy fieldbus systems.

Leveraging standardized design with flexible configuration options, this module offers high-speed data throughput, robust EMC immunity, hot-swap capability, and comprehensive security features—making it the preferred choice for system integrators, automation engineers, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for tailored system architecture recommendations and technical quotations.

Core Functions & Advantages

PROFINET I/O Controller with IRT Support
Functions as a PROFINET I/O controller with Isochronous Real-Time (IRT) capability, enabling deterministic communication cycles down to 250 μs for motion control and synchronized drive applications, reducing jitter and improving process precision.

Multi-Protocol Industrial Ethernet Connectivity
Supports TCP/IP, ISO-on-TCP, UDP, S7 communication, and open Ethernet protocols, allowing integration with third-party devices, ERP systems, cloud platforms, and legacy equipment without additional gateways.

High-Speed Data Exchange & Scalability
Delivers up to 100 Mbps full-duplex Ethernet throughput with auto-negotiation and auto-crossover (Auto-MDI/MDIX), supporting up to 64 PROFINET I/O devices and 128 simultaneous S7 connections for large-scale distributed systems.

Integrated Diagnostics & Security Features
Equipped with web-based diagnostics, SNMP v1/v3 support, and integrated firewall functionality to monitor network health, detect anomalies, and protect against unauthorized access—minimizing downtime and maintenance costs.

Hot-Swap & Redundancy Ready
Supports online module replacement (hot-swap) and redundant system configurations (with CP 443-1 EX40 or redundant S7-400H controllers), ensuring maximum uptime for continuous production environments.

User-Friendly Configuration Interface
Configured via TIA Portal or STEP 7 Classic with intuitive graphical tools, offering built-in wizards for PROFINET device assignment, IP address management, and communication diagnostics—reducing commissioning time by up to 40%.

Typical Application Scenarios

This module is engineered for industrial environments demanding high network reliability, real-time performance, and seamless IT/OT integration, particularly in:

Process Automation & Continuous Manufacturing
Connects distributed I/O, field instruments, and analytical devices in chemical reactors, pharmaceutical batch systems, and food processing lines, ensuring stable process control and regulatory compliance (FDA 21 CFR Part 11, GAMP 5).

Automotive & Discrete Manufacturing
Integrates robotic cells, vision systems, servo drives, and quality inspection stations in assembly lines, enabling synchronized motion control and real-time production data acquisition for Industry 4.0 initiatives.

Energy & Utilities Infrastructure
Facilitates communication between turbine controllers, substation automation systems, and SCADA networks in power plants, substations, and water/wastewater treatment facilities, supporting IEC 61850 and DNP3 protocol mapping.

Building Automation & HVAC Systems
Manages large-scale HVAC control networks, lighting systems, and energy monitoring platforms in commercial buildings, data centers, and hospitals, providing BACnet/IP and Modbus TCP gateway functionality.

Technical Parameters & Selection Guide

To streamline engineering design and procurement, we provide standardized technical specifications and application-specific configuration guidelines. Custom firmware versions and extended temperature variants are available upon request.

Key Technical Specifications:

• Order Code: 6ES7443-1EX20-0XE0
• Ethernet Ports: 2 × RJ45 (10/100 Mbps, auto-sensing, integrated switch)
• PROFINET I/O Devices: Up to 64 (128 with shared device mode)
• S7 Connections: Up to 128 (configurable as client/server)
• Supported Protocols: PROFINET IRT/RT, TCP/IP, ISO-on-TCP, UDP, S7, SNMP, HTTP/HTTPS
• Cycle Time: 250 μs minimum (IRT mode)
• Power Supply: 5 V DC via S7-400 backplane (typical 1.2 A)
• Operating Temperature: 0°C to +60°C (horizontal installation) / 0°C to +40°C (vertical installation)
• Protection Rating: IP20 (for control cabinet installation)
• Certifications: CE, UL, cULus, ATEX Zone 2, IECEx, marine (DNV GL, ABS)
• Dimensions (W×H×D): 40 mm × 290 mm × 219 mm
• Weight: Approx. 1.0 kg

Selection Recommendations:
When selecting a CP 443-1 module, consider the following project-specific factors: total number of PROFINET I/O devices, required cycle time (standard RT vs. IRT), number of simultaneous S7 connections, network topology (line/star/ring), redundancy requirements, and ambient operating conditions. For applications requiring fiber-optic connectivity, consider the CP 443-1 EX40 variant. For assistance, please provide your system architecture diagram, I/O count, and communication matrix—our engineers will recommend the optimal configuration and provide a detailed bill of materials (BOM).

Extended Capabilities

Open Communication via TCP/IP & UDP
Enables custom protocol implementation using SEND/RECEIVE function blocks in STEP 7, allowing integration with barcode scanners, RFID readers, weighing systems, and third-party MES/ERP platforms.

Web-Based Diagnostics & Remote Access
Built-in web server provides real-time module status, network statistics, and diagnostic buffers accessible via standard web browsers—facilitating remote troubleshooting and predictive maintenance.

Time Synchronization (NTP/SIMATIC Time)
Supports NTP client/server and SIMATIC Time synchronization for time-stamping events, coordinating distributed processes, and ensuring audit trail accuracy in regulated industries.

Security Features (Firewall & Access Control)
Configurable IP access lists, port filtering, and HTTPS encryption protect against cyber threats, meeting IEC 62443 industrial cybersecurity standards.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3–5 business days; custom-configured modules or extended temperature variants require 10–15 business days.

Warranty: 12-month manufacturer warranty covering material defects and workmanship; extended warranty and service contracts available.

Technical Support: Complimentary pre-sales application consulting, post-sales commissioning guidance, and remote diagnostics support (subject to regional availability). On-site startup assistance and training programs available upon request.

Documentation Package: Each module includes hardware installation manual, configuration guide (TIA Portal/STEP 7), communication function block library, terminal wiring diagrams, and CE/UL certification documents—ensuring smooth installation and compliance verification.

Frequently Asked Questions (FAQ)

Q: How does the CP 443-1 Advanced integrate with existing S7-400 PLC systems?
A: The module installs directly into the S7-400 UR1/UR2 rack via the standard backplane connector. Configuration is performed in TIA Portal (V13 or later) or STEP 7 Classic (V5.5 or later) using the hardware catalog. Ensure your CPU firmware supports PROFINET I/O controller functionality (e.g., CPU 414-3, 416-3, 417-4).

Q: What is the maximum number of PROFINET devices and S7 connections supported?
A: The CP 443-1 Advanced supports up to 64 PROFINET I/O devices (128 with shared device configuration) and 128 simultaneous S7 connections (configurable as client, server, or mixed mode). Actual capacity depends on CPU performance and network cycle time requirements.

Q: What level of energy savings or performance improvement can be expected?
A: Compared to legacy fieldbus systems (e.g., PROFIBUS DP), PROFINET IRT reduces communication cycle times by up to 75%, enabling faster control loops and improved process stability. Network diagnostics reduce troubleshooting time by approximately 50%, lowering operational costs.

Q: What are the environmental and installation requirements?
A: The module is rated IP20 for installation in enclosed control cabinets with ambient temperatures between 0°C and +60°C (horizontal mounting). Ensure adequate ventilation and avoid exposure to corrosive gases, excessive vibration, or condensation. For harsh environments, consider additional cabinet climate control.

Q: Does the module support remote monitoring and data acquisition via industrial IoT protocols?
A: Yes, the CP 443-1 Advanced supports OPC UA server functionality (via S7-400 CPU with appropriate firmware), MQTT client integration (using third-party gateways), and direct Ethernet/IP connectivity for cloud-based SCADA platforms. Modbus TCP and PROFINET-to-OPC UA mapping are also supported.

Q: Is the module compatible with redundant S7-400H systems?
A: Yes, when used with S7-400H redundant CPUs and the CP 443-1 EX40 variant, the module supports fault-tolerant communication with automatic switchover, ensuring zero downtime for critical applications.

Request a Customized Solution

To receive a detailed selection proposal, technical quotation, or application-specific configuration, please provide the following project information: project name, application scenario, required number of PROFINET I/O devices, desired communication cycle time, number of S7 connections, power supply specifications, and environmental conditions. Our application engineers will deliver a one-on-one consultation with optimized system architecture and component recommendations.
