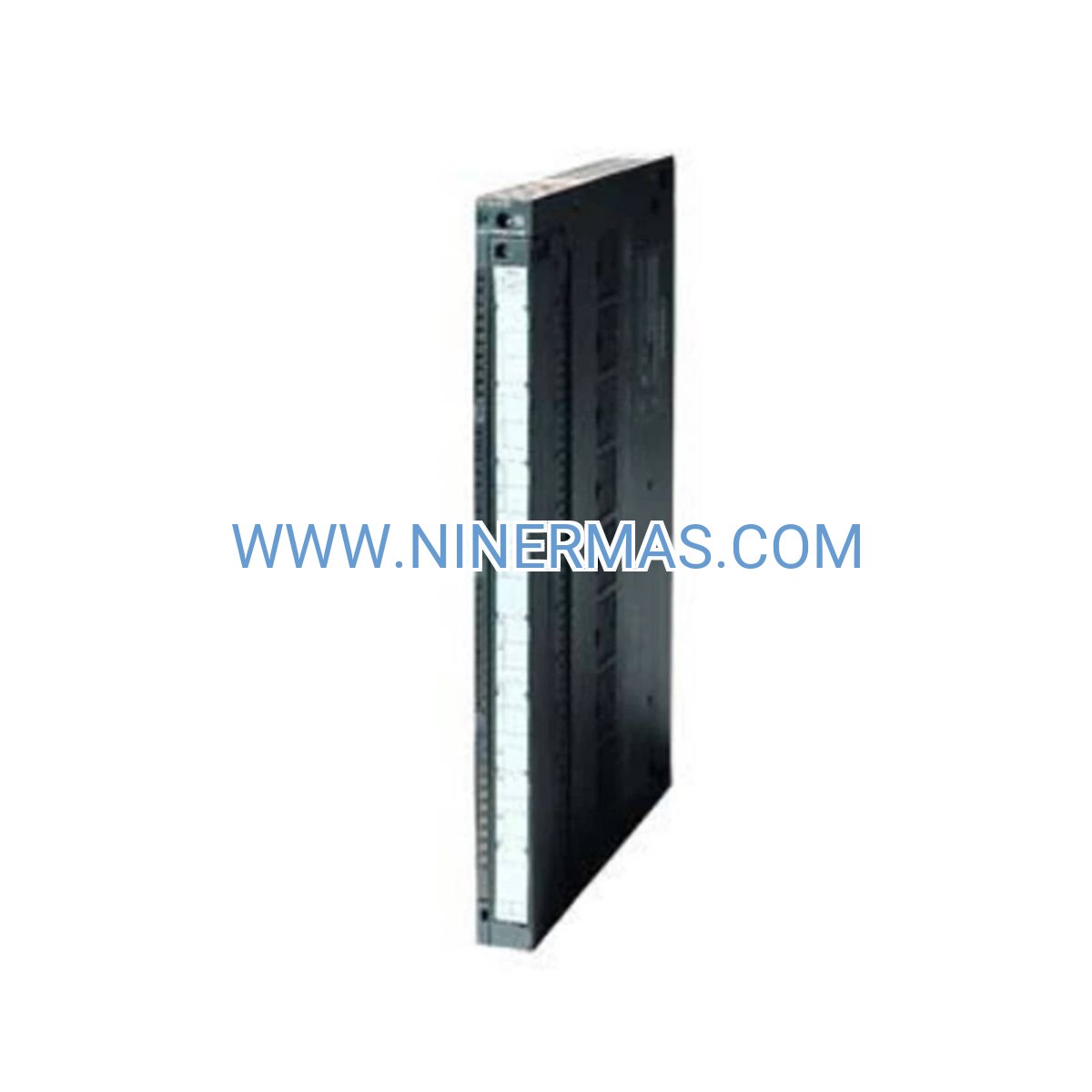

Siemens 6ES7431-1KF00-0AB0 | S7-400 AI Module 8×16Bit | Industrial Analog Input

Siemens 6ES7431-1KF00-0AB0 SIMATIC S7-400 Analog Input Module (8-Channel 16-Bit Precision)

The Siemens 6ES7431-1KF00-0AB0 is a high-performance analog input module designed for the SIMATIC S7-400 PLC platform. Through 8 differential input channels with 16-bit resolution, it delivers precise signal acquisition for voltage, current, and thermocouple/RTD temperature sensors, enabling accurate process monitoring and control in demanding industrial environments.

Ideal for process automation, chemical plants, power generation, water treatment facilities, and manufacturing systems, this module addresses critical challenges including signal drift, measurement inaccuracy, harsh environmental interference, and integration complexity with legacy DCS systems.

With standardized S7-400 architecture and flexible configuration options, the 6ES7431-1KF00-0AB0 offers exceptional measurement accuracy, robust EMC immunity, hot-swappable design, and seamless TIA Portal integration—making it the preferred choice for system integrators, control engineers, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized I/O configuration and technical consultation.

Core Features & Technical Advantages

• High-Precision Multi-Channel Acquisition
  8 galvanically isolated differential inputs with 16-bit A/D conversion deliver ±0.1% accuracy across ±10V, 0-10V, ±20mA, 0-20mA, 4-20mA ranges, plus direct thermocouple (Type K/J/E/N/R/S) and RTD (Pt100/Pt1000) support for temperature measurement without external transmitters.
• Industrial-Grade Reliability
  Operates reliably in -25°C to +60°C ambient temperatures with conformal-coated PCBs, exceeding IEC 61131-2 standards for vibration, shock, and EMC immunity—reducing false alarms and unplanned downtime in harsh factory floors.
• Hot-Swap & Diagnostic Intelligence
  Front-accessible module replacement without system shutdown, combined with built-in wire-break detection, short-circuit protection, and channel-specific fault diagnostics via TIA Portal, minimizes MTTR (Mean Time To Repair) by up to 40%.
• Flexible Signal Conditioning
  Software-configurable input ranges, programmable filtering (50/60Hz rejection), and adjustable conversion times (2.5ms to 100ms per channel) adapt to diverse sensor types and process dynamics without hardware modifications.
• Seamless System Integration
  Native compatibility with STEP 7, TIA Portal V13 and later, plus PROFIBUS DP/PROFINET communication ensures plug-and-play deployment in brownfield upgrades and greenfield projects with minimal engineering effort.
• Comprehensive Protection Mechanisms
  Overvoltage protection up to 75VDC, reverse polarity safeguards, and galvanic isolation (500V channel-to-backplane) protect both field instruments and PLC backplane from electrical faults and ground loop interference.

Typical Application Scenarios

This module excels in applications demanding stable signal integrity, continuous process visibility, and long-term measurement reliability:

• Chemical & Petrochemical Process Control
  Monitor reactor temperatures, pressure transmitters, and flow meters in distillation columns, batch reactors, and pipeline systems where ±0.1% accuracy prevents product quality deviations and safety incidents.
• Power Generation & Energy Management
  Acquire turbine vibration signals, generator winding temperatures, and boiler pressure data in thermal/nuclear power plants and renewable energy facilities, supporting predictive maintenance and grid stability.
• Water & Wastewater Treatment
  Track pH, conductivity, dissolved oxygen, and level transmitters in municipal water treatment plants and industrial effluent systems, ensuring regulatory compliance and optimized chemical dosing.
• Manufacturing & Discrete Automation
  Interface with load cells, position sensors, and analog feedback devices in automotive assembly lines, food processing equipment, and packaging machinery for closed-loop quality control.
• Building Automation & HVAC Systems
  Integrate with temperature sensors, humidity transmitters, and pressure gauges in large-scale commercial buildings and data centers for energy-efficient climate control and equipment protection.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide key electrical, mechanical, and environmental parameters:

Selection Recommendations: When specifying this module, consider: (1) total number of analog signals and required channel density, (2) sensor output types (voltage/current/temperature), (3) required measurement accuracy and update rate, (4) ambient temperature and EMC environment, (5) available S7-400 rack slots and power budget. For complex multi-rack systems or redundant configurations, consult our automation engineers with your I/O list and P&ID drawings for optimized module allocation.

Advanced Configuration Options

• Redundant System Support: Compatible with S7-400H redundant controllers for fault-tolerant process control in critical infrastructure
• Distributed I/O via ET 200M: Can be deployed in remote ET 200M stations connected via PROFIBUS DP for decentralized signal acquisition
• HART Protocol Pass-Through: Supports HART-over-4-20mA for accessing smart transmitter diagnostics and configuration data
• Calibration & Linearization: Built-in software calibration and custom linearization tables for non-standard sensor curves
• Data Logging & Trending: Integrates with SIMATIC WinCC SCADA and PCS 7 DCS for real-time trending and historical archiving

Delivery, Service & Quality Assurance

Lead Time: Factory-sealed units typically ship within 3-5 business days from our regional warehouse; custom-configured modules or bulk orders may require 10-15 days depending on Siemens production schedule.

Warranty: All modules include a standard 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for mission-critical applications.

Technical Support: Our certified Siemens Solution Partners provide pre-sales application consulting, post-sales commissioning assistance, and remote troubleshooting support. On-site startup services available in major industrial regions (subject to location and project scope).

Documentation Package: Each shipment includes: product data sheet, wiring diagram, GSD file for PROFIBUS configuration, TIA Portal hardware catalog entry, and quick-start guide in English. Full technical manual and CAD drawings (EPLAN, AutoCAD) downloadable from Siemens Industry Online Support portal.

Quality Certifications: Products sourced directly from Siemens authorized distribution channels with full traceability. Compliance certificates (CE, UL, ATEX) and material declarations (RoHS, REACH) provided upon request for regulatory documentation.

Frequently Asked Questions (FAQ)

Q: How do I connect 4-20mA transmitters to the Siemens 6ES7431-1KF00-0AB0 analog input module?
A: For 2-wire transmitters, connect the positive terminal to the module's input channel (+) and negative to (-), then configure the channel for 4-20mA range in TIA Portal. Ensure your 24VDC sensor supply can provide sufficient loop power (typically 500Ω load resistance). For 4-wire transmitters, connect signal wires to input terminals and power the transmitter separately.

Q: What is the maximum cable length between field sensors and the S7-400 AI module?
A: For shielded twisted-pair cables, maximum recommended lengths are: 200m for voltage signals (±10V), 600m for current signals (4-20mA), and 100m for thermocouple/RTD to minimize noise pickup and signal degradation. Always use grounded cable shields connected at the module end only.

Q: Can this module measure both voltage and current signals simultaneously?
A: Yes, each of the 8 channels can be independently configured for different input types (voltage, current, thermocouple, or RTD) via software in STEP 7 or TIA Portal. No hardware jumpers or DIP switches required—full flexibility through programming.

Q: What is the actual energy savings or accuracy improvement compared to older S7-300 analog modules?
A: The S7-400 series offers 16-bit resolution versus 12-bit in many S7-300 modules, providing 16× finer measurement granularity (0.0015% vs 0.024% of full scale). This translates to tighter process control, reduced material waste, and fewer false alarms—customers report 15-25% improvement in control loop stability in temperature-critical applications.

Q: Does the module support hot-swapping without shutting down the entire PLC system?
A: Yes, the 6ES7431-1KF00-0AB0 supports hot-swap replacement when installed in an S7-400 rack with redundant power supplies. The system automatically detects module removal/insertion and reinitializes the channels without affecting other modules or controller operation—ideal for minimizing downtime during maintenance.

Q: Can I integrate this module with third-party SCADA systems or Modbus RTU devices?
A: The module itself communicates via the S7-400 backplane bus. However, the S7-400 CPU supports PROFINET, PROFIBUS, and Ethernet/IP communication, allowing integration with most industrial SCADA platforms (Wonderware, Ignition, iFIX) via OPC UA/DA servers. For Modbus RTU devices, use a Siemens CP communication processor or protocol gateway.

Request Technical Consultation & Quotation

To receive a detailed application solution, competitive pricing, or engineering support, please provide the following project information:

• Project name and industry sector
• Application scenario (process type, control objectives)
• Number of analog signals and sensor types (voltage/current/temperature)
• Required measurement accuracy and response time
• Existing PLC platform and communication protocol
• Installation environment (temperature, humidity, hazardous area classification)
• Delivery timeline and quantity requirements

Our automation specialists will respond within 24 hours with customized I/O architecture recommendations, wiring diagrams, and budget quotations tailored to your specific application.
