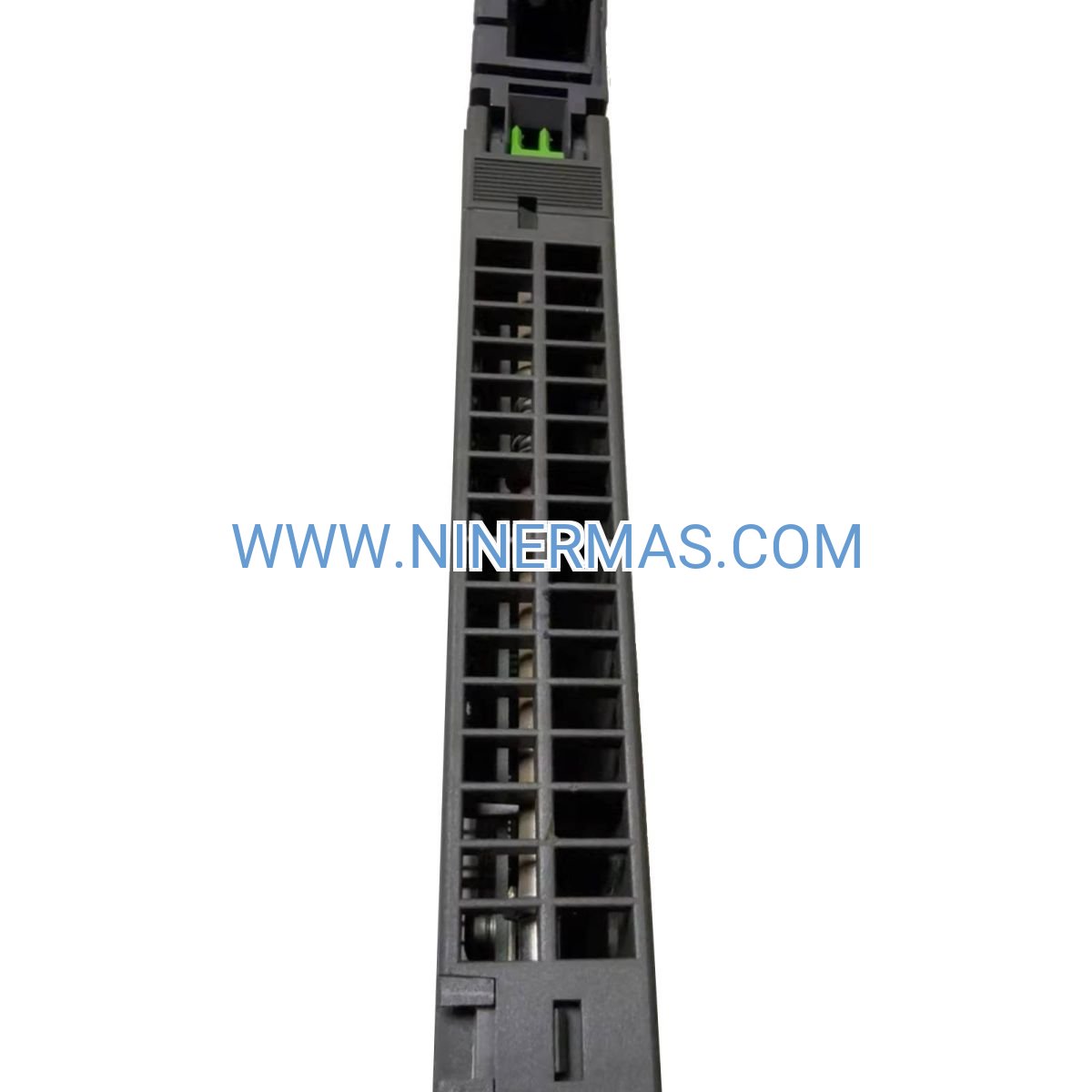

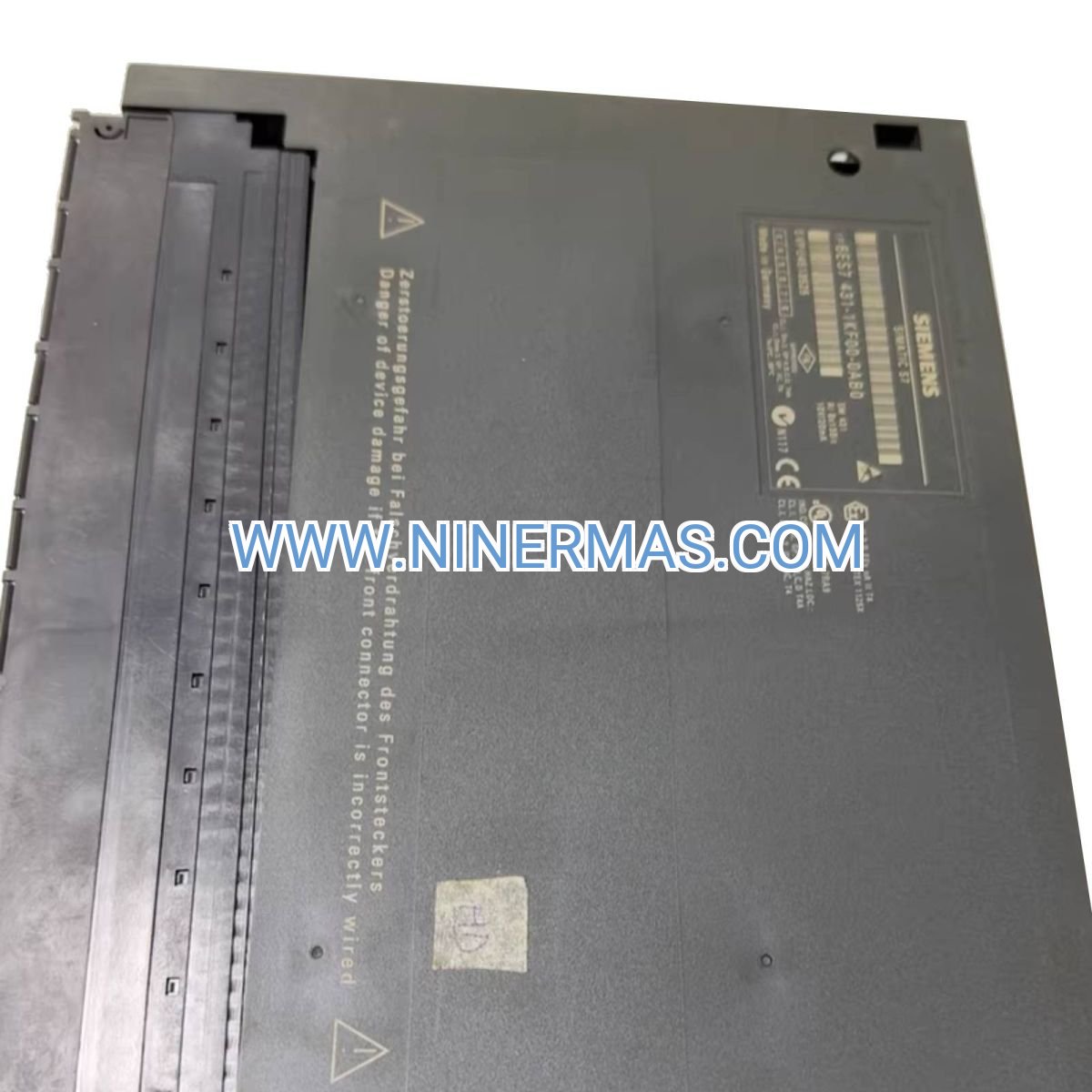

Siemens 6ES7431-1KF00-0AB0 Analog Input Module (Industrial-Grade Signal Acquisition System)

The Siemens 6ES7431-1KF00-0AB0 is a high-precision analog input module designed for SIMATIC S7-400 PLC systems, delivering reliable signal acquisition through 8 independent channels with 16-bit resolution. By integrating advanced signal conditioning and galvanic isolation technology, this module ensures accurate real-time data collection from field sensors including temperature transmitters, pressure transducers, and flow meters.

Engineered for demanding industrial environments including chemical processing plants, power generation facilities, water treatment systems, and manufacturing automation lines, this module addresses critical challenges such as signal interference, measurement drift, multi-point monitoring complexity, and system integration compatibility issues.

Through standardized design and flexible configuration options, the 6ES7431-1KF00-0AB0 delivers exceptional measurement accuracy, robust EMC performance, seamless STEP 7 integration, and simplified maintenance procedures. Ideal for process engineers, system integrators, automation contractors, and plant maintenance teams. Contact our application engineers for customized configuration guidance and technical quotations.

Core Features & Advantages

High-Precision Multi-Channel Acquisition
Equipped with 8 differential analog inputs supporting voltage (±10V, 1-5V) and current (0-20mA, 4-20mA) signals, the 16-bit A/D converter delivers ±0.1% accuracy, ensuring reliable data for critical process control loops and quality monitoring systems.

Superior Noise Immunity
Features channel-to-channel isolation up to 500V AC and integrated low-pass filtering, effectively suppressing industrial electromagnetic interference and ground loop currents, maintaining signal integrity in harsh electrical environments with VFDs and high-power equipment.

Flexible Signal Configuration
Each channel independently configurable for different signal types (voltage/current) and measurement ranges via STEP 7 software, eliminating the need for hardware jumpers and enabling rapid commissioning and future system modifications.

Comprehensive Diagnostic Capabilities
Built-in wire-break detection, over-range alarms, and module status LEDs provide real-time fault indication, reducing troubleshooting time by up to 60% and minimizing unplanned downtime in continuous production environments.

Seamless S7-400 Integration
Hot-swappable design with automatic hardware detection, direct mounting on S7-400 rack systems, and native support for PROFIBUS DP communication ensures plug-and-play installation and centralized data management through SCADA/HMI platforms.

Industrial-Grade Reliability
Operating temperature range of -25°C to +60°C, conformal coating protection against humidity and corrosive atmospheres, and MTBF exceeding 500,000 hours guarantee long-term stability in 24/7 industrial operations.

Typical Application Scenarios

This module is specifically designed for applications requiring high-accuracy analog signal monitoring and stable data acquisition, particularly in:

Chemical & Petrochemical Process Control
Monitors reactor temperatures, distillation column pressures, and flow rates in refining units. Ensures process parameter stability within ±0.5% tolerance, preventing batch quality deviations and safety incidents in hazardous area classifications (Zone 2/Division 2 when properly installed).

Power Generation & Energy Management
Acquires turbine vibration signals, boiler steam pressure, and cooling water temperatures in thermal, combined-cycle, and cogeneration plants. Supports predictive maintenance strategies and real-time efficiency optimization for utility-scale operations.

Water & Wastewater Treatment Systems
Collects pH, dissolved oxygen, turbidity, and chlorine residual measurements from treatment basins and distribution networks. Enables automated dosing control and regulatory compliance reporting for municipal and industrial facilities.

Manufacturing Automation & Quality Control
Integrates with load cells, position sensors, and environmental monitors in automotive assembly, food processing, and pharmaceutical production lines. Provides traceability data for ISO 9001/FDA 21 CFR Part 11 compliance and SPC analysis.

HVAC & Building Automation
Interfaces with temperature, humidity, and pressure sensors in large commercial buildings, data centers, and cleanroom facilities. Optimizes energy consumption while maintaining precise environmental conditions per ASHRAE standards.

Technical Specifications & Selection Guide

To facilitate engineering design and module selection, we provide key technical parameters below. Custom configurations available based on project-specific requirements.

Electrical Specifications:

• Input Channels: 8 differential analog inputs
• Signal Types: Voltage (±10V, ±5V, ±2.5V, ±1V, 1-5V) / Current (±20mA, 0-20mA, 4-20mA)
• Resolution: 16-bit (1:65,536)
• Conversion Time: 625 µs per channel (typical)
• Accuracy: ±0.1% of full scale at 25°C
• Input Impedance: >10 MΩ (voltage) / 50 Ω (current)
• Isolation: 500V AC channel-to-backplane, 75V AC channel-to-channel

Environmental & Mechanical:

• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95% non-condensing
• Protection Rating: IP20 (when installed in enclosure)
• Dimensions: 25mm (W) × 290mm (H) × 210mm (D)
• Weight: Approximately 450g
• Mounting: S7-400 profile rail (standard DIN rail compatible)

System Integration:

• Compatible Controllers: All S7-400 CPUs (CPU 412 and higher recommended)
• Configuration Software: STEP 7 V5.x or TIA Portal V13 and later
• Communication: Backplane bus (K-bus) for data exchange
• Power Consumption: 1.5W typical from backplane
• Certifications: CE, UL 508, cULus, ATEX (when used with approved barriers)

Selection Recommendations:
When selecting this module, consider: maximum number of analog sensors, required signal types (voltage/current), measurement accuracy requirements, environmental conditions (temperature/humidity/vibration), available rack slots in existing S7-400 system, and integration with SCADA/HMI platforms. For applications requiring intrinsically safe inputs, combine with approved Zener barriers or isolators. Our application engineers can recommend optimal configurations based on your P&ID drawings and I/O lists.

Extended Functionality Options

Redundancy & High-Availability Configurations
For critical process control applications, this module supports redundant S7-400H systems with automatic failover capabilities, ensuring continuous operation during controller maintenance or unexpected failures.

Advanced Diagnostics Integration
Compatible with Siemens PCS 7 and WinCC SCADA platforms for centralized alarm management, historical trending, and predictive maintenance analytics based on signal quality metrics and module health indicators.

Calibration & Linearization
STEP 7 function blocks enable software-based sensor calibration, multi-point linearization for non-linear transducers (thermocouples, RTDs), and engineering unit scaling without external signal conditioners.

Delivery, Service & Quality Assurance

Lead Time & Inventory: Standard catalog items typically ship within 3-5 business days from regional warehouses. Custom-configured modules or large project quantities may require 2-3 weeks. Expedited shipping available for urgent requirements.

Warranty & Support: All modules include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure projects. Technical support includes remote diagnostics assistance, configuration file review, and on-site commissioning services (subject to location and project scope).

Documentation Package: Each module ships with complete technical documentation including hardware installation manual, STEP 7 configuration guide, terminal wiring diagrams, and GSD files for third-party integration. CAD drawings (DWG/PDF) and 3D STEP models available upon request for panel design.

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities with full traceability. Products undergo 100% functional testing including burn-in cycles and environmental stress screening per IEC 61131-2 standards.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens 6ES7431-1KF00-0AB0 analog input module to existing field sensors?
A: The module uses removable screw-terminal front connectors (40-pin). For 4-20mA current loop sensors, connect the positive signal to the channel input terminal and negative to the common (MANA). For voltage signals, connect across the input and MANA terminals. Ensure proper shielding: connect cable shields to the shield terminal bar on the module front, grounded at one end only to prevent ground loops. Refer to the wiring diagram in the manual for specific terminal assignments.

Q: What is the maximum number of analog input modules I can install in one S7-400 rack?
A: This depends on your CPU model and rack configuration. A standard UR2 rack (9 slots) can accommodate up to 8 I/O modules after the CPU and power supply. For larger systems, use ER1/ER2 extension racks connected via IM interface modules. Each rack can support multiple AI modules, limited only by total backplane current budget (check your power supply specifications). Typical systems handle 4-6 AI modules per rack without issues.

Q: What energy savings or efficiency improvements can I expect from using this analog input module?
A: While the module itself consumes minimal power (1.5W), the real value lies in process optimization. Accurate real-time data enables closed-loop control strategies that can reduce energy consumption by 15-30% in applications like variable-speed pump control, boiler optimization, and HVAC management. For example, precise temperature monitoring in a heat exchanger can minimize steam usage by maintaining setpoints within ±0.5°C instead of ±2°C with lower-resolution systems.

Q: What are the environmental requirements for installing this module? What is its protection rating?
A: The module is rated IP20, suitable for installation inside control cabinets or electrical enclosures. Operating temperature range is -25°C to +60°C with 5-95% relative humidity (non-condensing). For outdoor or harsh environments, install in NEMA 4/4X or IP65-rated enclosures with adequate ventilation or climate control. Avoid direct exposure to corrosive gases, excessive vibration (>2g), or conductive dust. Conformal coating provides additional protection against humidity and mild chemical atmospheres.

Q: Can I remotely monitor and collect data from this analog input module? What communication protocols are supported?
A: Yes, remote monitoring is fully supported. The module communicates via the S7-400 backplane bus to the CPU, which can then share data through multiple protocols: PROFIBUS DP, PROFINET, Industrial Ethernet (TCP/IP), and OPC UA. For cloud connectivity and IIoT applications, integrate with Siemens MindSphere using the appropriate edge gateway or use third-party MQTT/REST API converters. STEP 7 and TIA Portal provide built-in web server functionality for browser-based diagnostics and data visualization.

Q: Is this module suitable for safety-critical applications or SIL-rated systems?
A: The 6ES7431-1KF00-0AB0 is a standard I/O module not certified for safety functions (SIL 0). For safety-instrumented systems (SIS) requiring SIL 2/3 certification per IEC 61508, use Siemens S7-400F safety modules (e.g., 6ES7431-7QH00-0AB0). However, this module is appropriate for non-safety process monitoring within SIL-rated systems when properly segregated from safety logic.

Request Technical Support & Quotation

To receive detailed application engineering support, customized configuration recommendations, or project quotations, please provide the following information: project name and industry sector, application description (process type, control objectives), number and types of field sensors (4-20mA, 0-10V, etc.), required measurement accuracy and response time, existing S7-400 system configuration (CPU model, rack type), environmental conditions (temperature, humidity, hazardous area classification), and preferred delivery timeline. Our certified automation engineers will respond within 24 hours with tailored solutions and competitive pricing.
