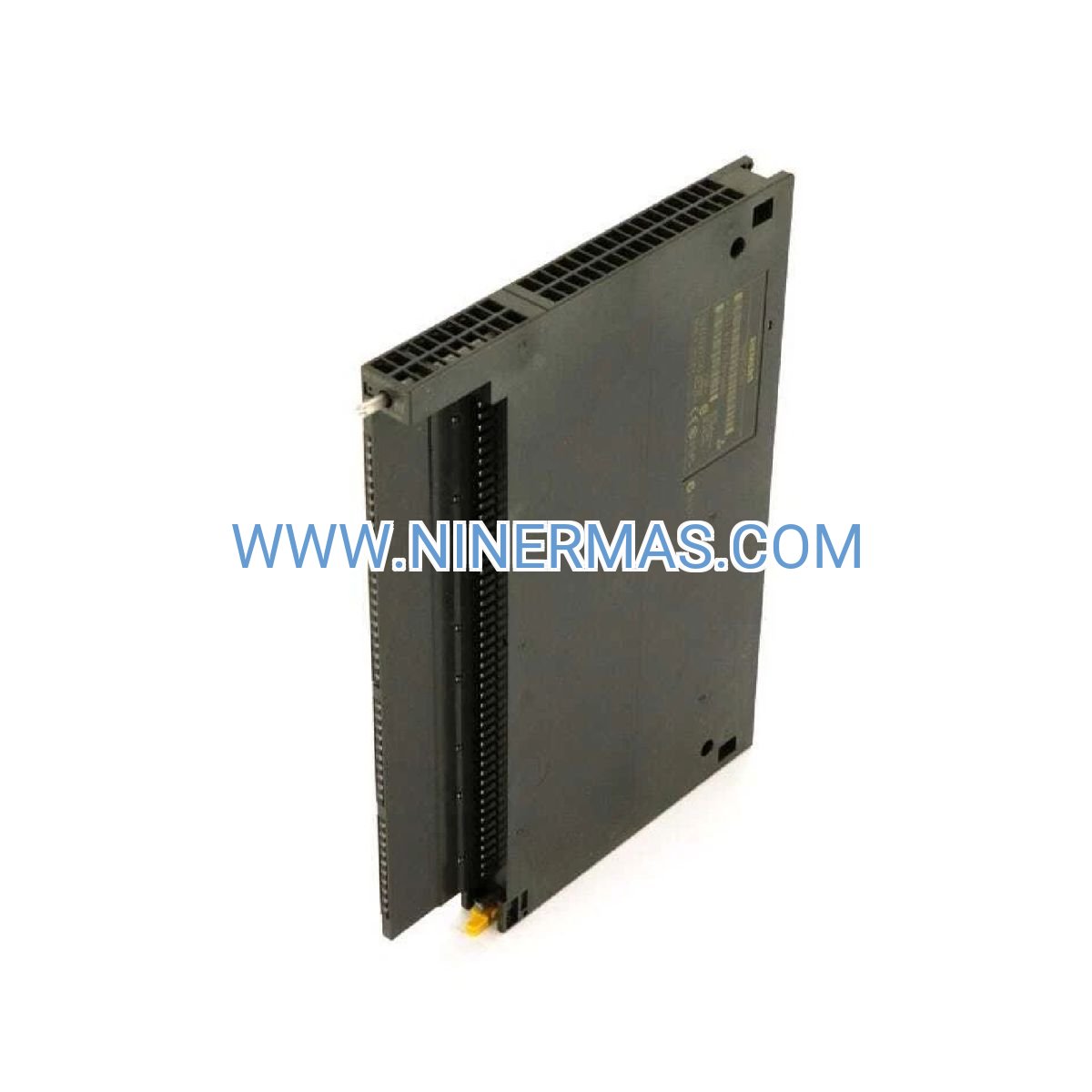

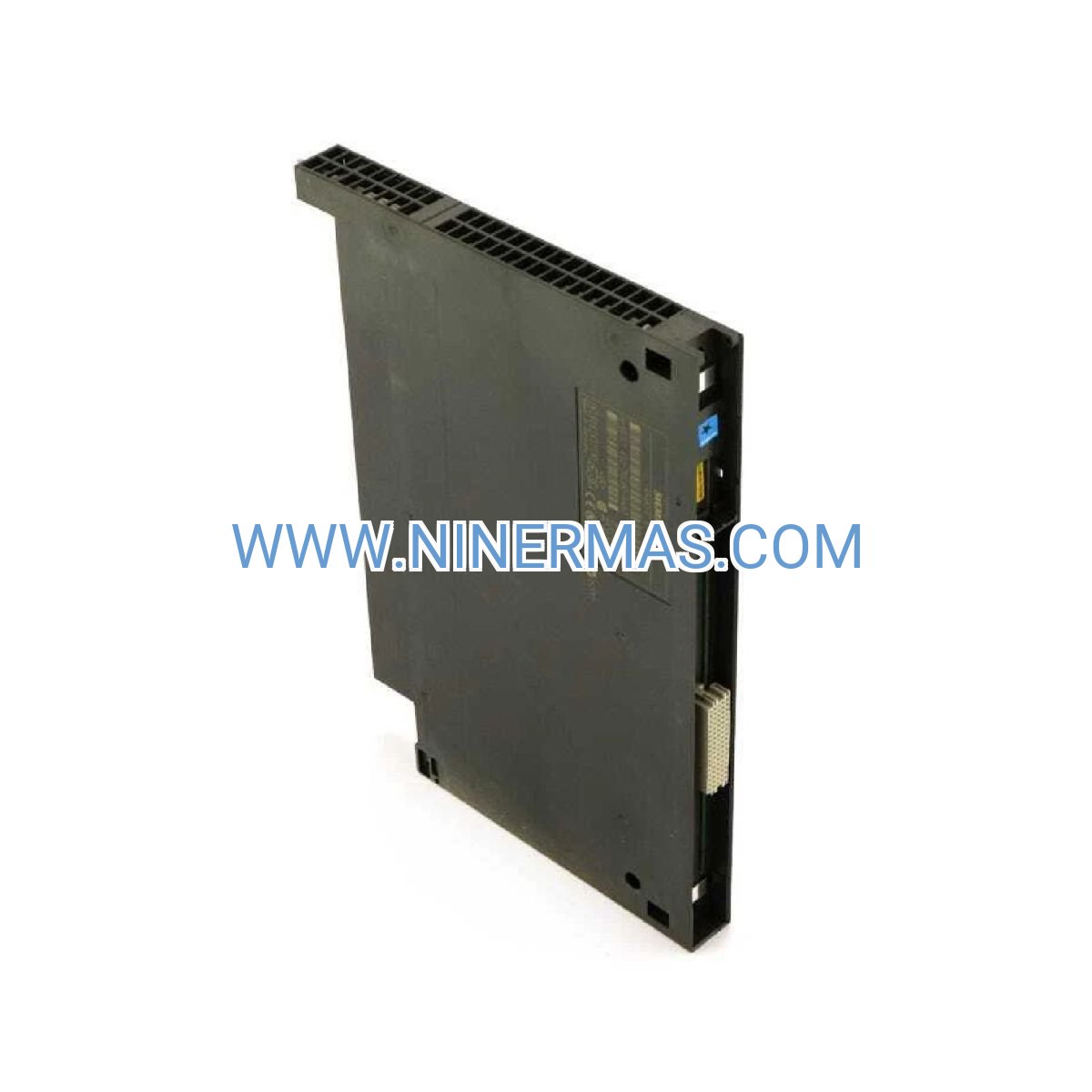

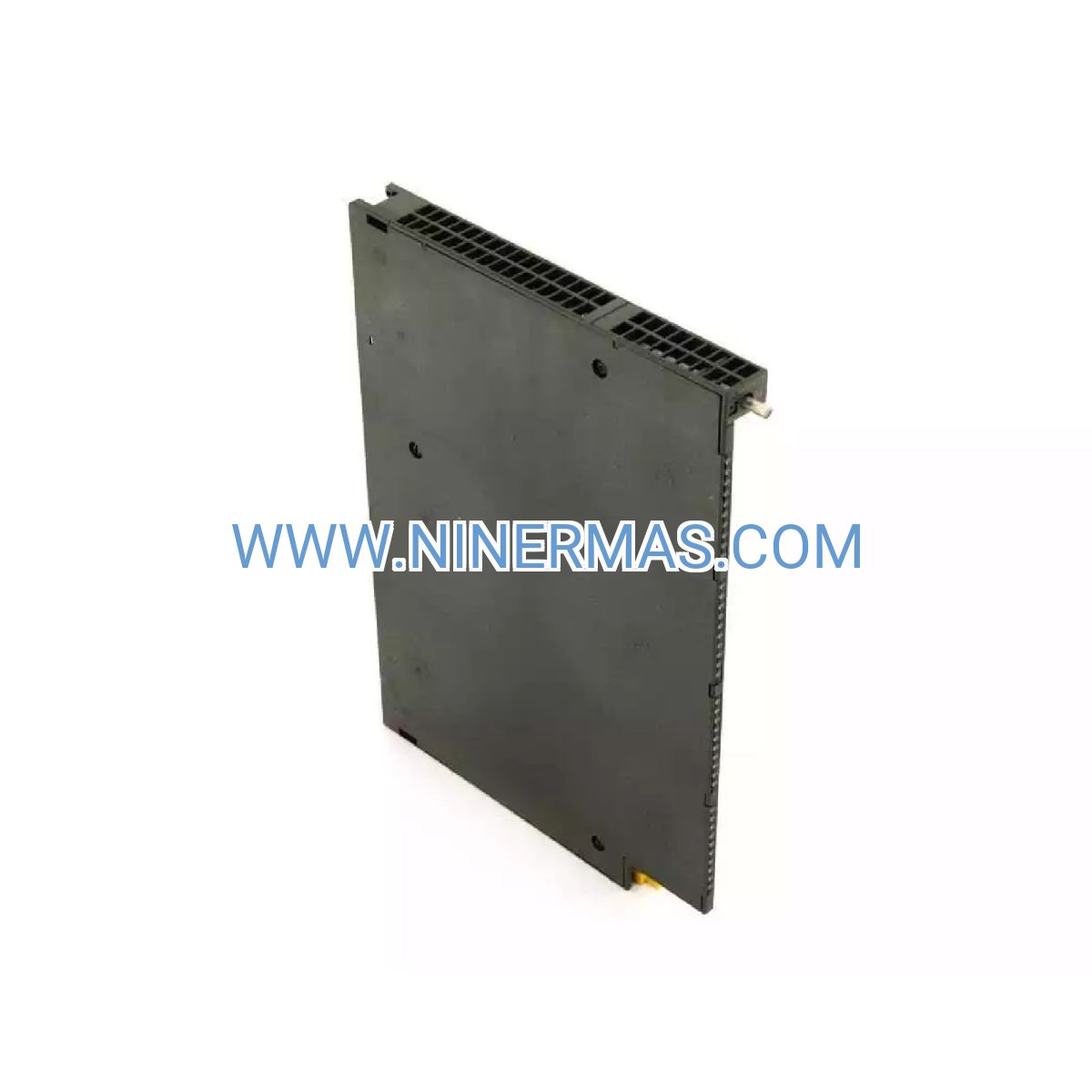

Siemens SM 422 Digital Output Module (Industrial-Grade 32-Channel Controller)

The Siemens 6ES7422-7BL00-0AB0 SM 422 is a high-density digital output module engineered for demanding industrial automation environments. This galvanically isolated 32-channel controller delivers reliable 24V DC switching with 0.5A per output, making it the ideal solution for manufacturers requiring precise control over multiple actuators, valves, and relay systems. Designed exclusively for SIMATIC S7-400 platforms, this module combines fast response times (0.15ms delay) with comprehensive diagnostics to ensure maximum uptime in mission-critical applications.

Industrial facilities worldwide trust the SM 422 for its robust construction and proven reliability in harsh operating conditions. Whether you're managing complex production lines, coordinating material handling systems, or controlling process equipment, this module provides the performance and durability your operations demand. With built-in diagnostic capabilities and galvanic isolation, you gain both operational visibility and protection against electrical interference that could compromise system integrity.

Ready to upgrade your S7-400 control system? The SM 422 offers seamless integration with existing SIMATIC infrastructure, reducing installation time and minimizing configuration complexity. Contact our technical team to discuss your specific application requirements and discover how this proven solution can enhance your automation capabilities.

Core Features & Technical Advantages

✓ High-Density Output Architecture
32 independent digital output channels in a single compact module maximize rack space efficiency while reducing wiring complexity. This translates to lower installation costs and simplified maintenance procedures for your facility.

✓ Galvanic Isolation Protection
Each output channel features electrical isolation that safeguards your PLC system from voltage spikes, ground loops, and electromagnetic interference common in industrial environments. This protection extends equipment lifespan and prevents costly downtime.

✓ Ultra-Fast Switching Response
With only 0.15ms output delay, the SM 422 enables precise timing control for high-speed manufacturing processes, synchronized motion control, and time-critical safety functions where milliseconds matter.

✓ Robust Current Capacity
0.5A per channel supports direct connection to industrial solenoids, contactors, indicator lights, and small motors without requiring external amplification, simplifying your control architecture.

✓ Integrated Diagnostic Intelligence
Real-time monitoring detects short circuits, wire breaks, and overload conditions, enabling predictive maintenance strategies that prevent unexpected failures and optimize maintenance scheduling.

✓ Industrial-Grade Reliability
Manufactured in Germany to Siemens' stringent quality standards, this active-lifecycle product (PM300 status) ensures long-term availability and support for your automation investment.

Application Scenarios & Industry Solutions

→ Automotive Manufacturing & Assembly
Control pneumatic actuators, welding guns, and conveyor systems across multi-station assembly lines. The SM 422's fast response time ensures precise synchronization between robotic cells and material handling equipment, reducing cycle times by up to 15% while maintaining quality standards.

→ Chemical & Process Industries
Manage valve banks, pump controls, and emergency shutdown systems in hazardous environments. Galvanic isolation protects control systems from electrical noise generated by variable frequency drives and high-power equipment, ensuring reliable operation in Class I Division 2 locations.

→ Food & Beverage Production
Coordinate filling stations, packaging machinery, and sanitation systems with the reliability required for 24/7 operations. The module's diagnostic capabilities enable condition-based maintenance that minimizes unplanned downtime during peak production periods.

→ Water Treatment Facilities
Operate motor starters, valve actuators, and alarm systems across distributed pump stations. The 32-channel density reduces panel footprint while the 24V DC architecture aligns with industry-standard safety practices for municipal infrastructure.

→ Material Handling & Logistics
Drive sortation systems, diverters, and automated storage retrieval systems (AS/RS) in distribution centers. High channel count supports complex routing logic while maintaining the deterministic performance required for just-in-time fulfillment operations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SM 422 when your application requires more than 16 outputs per module, galvanic isolation is mandatory for noise immunity, or diagnostic feedback is essential for maintenance operations. For lower channel counts, consider the SM 422 16-channel variant. For relay outputs or AC switching, evaluate the SM 426 series instead.

Extended Capabilities & Integration Options

SCADA & HMI Integration
Seamlessly connects with WinCC, TIA Portal, and third-party visualization platforms through standard S7-400 communication protocols. Output status and diagnostic data are accessible via PROFIBUS DP or PROFINET for centralized monitoring.

Redundancy Configuration
Supports S7-400H redundant controller architectures for applications requiring 99.99% availability. Automatic switchover ensures continuous operation during controller maintenance or failure scenarios.

Custom Output Grouping
Flexible channel assignment allows logical grouping of outputs by machine zone, process stage, or safety category. This simplifies programming and troubleshooting while supporting modular machine design principles.

Energy Monitoring
When combined with Siemens SENTRON power monitoring devices, track energy consumption patterns across output groups to identify optimization opportunities and support sustainability initiatives.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units to major industrial regions. Expedited shipping available for urgent project requirements.

Custom Configuration: Pre-programmed and tested modules available within 7-10 business days. Our engineering team can configure I/O addressing, diagnostic parameters, and documentation to your specifications.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Lifetime access to our automation specialists for configuration assistance, troubleshooting guidance, and application engineering. Phone, email, and remote diagnostic support included at no additional cost.

Documentation Package: Complete technical manual, wiring diagrams, GSD files, and sample PLC code provided with every order. TIA Portal library objects available for download from our technical resource center.

Frequently Asked Questions

Q: Can this module interface directly with 24V solenoid valves without external relays?
A: Yes, the 0.5A per channel rating supports most industrial solenoid valves rated 12W or less. For higher-current loads, use the outputs to drive intermediate relays or contactors rated for your specific load requirements.

Q: What diagnostic information does the module provide to the PLC program?
A: The SM 422 reports short-circuit conditions, wire breaks, and overload situations on a per-channel basis. Diagnostic data is accessible through standard S7-400 diagnostic functions (SFC 13, SFC 51) and can trigger alarms or automatic shutdown sequences.

Q: Is this module compatible with S7-300 or S7-1500 controller families?
A: No, the 6ES7422-7BL00-0AB0 is designed exclusively for S7-400 rack mounting and communication architecture. For S7-300 systems, specify SM 322 modules; for S7-1500, use the DQ series digital output modules.

Q: How does galvanic isolation improve system reliability in noisy electrical environments?
A: Isolation prevents ground potential differences and electromagnetic interference from affecting the PLC backplane. This is critical in facilities with VFDs, welding equipment, or long cable runs where electrical noise can cause false triggering or data corruption.

Q: Can I hot-swap this module during system operation without shutting down the entire rack?
A: The SM 422 supports hot-swapping in S7-400 systems configured for this capability. However, proper safety procedures must be followed, and the affected outputs will be de-energized during the replacement process. Consult your system integrator for specific implementation requirements.

Q: What is the expected service life for this module in continuous industrial operation?
A: Siemens specifies a minimum 10-year service life under rated conditions (0-60°C ambient, proper ventilation). Many installations exceed 15 years with regular maintenance. The solid-state output design eliminates mechanical wear associated with relay-based modules.

Upgrade Your Automation Infrastructure Today

The Siemens SM 422 digital output module represents proven technology trusted by thousands of industrial facilities worldwide. Whether you're expanding existing S7-400 systems, replacing aging I/O modules, or designing new automation solutions, this module delivers the performance, reliability, and diagnostic capabilities modern manufacturing demands.

Ready to specify the SM 422 for your next project? Our automation specialists are standing by to provide technical consultation, generate detailed quotations, and expedite delivery to meet your project timeline. Contact us today to discuss volume pricing, custom configuration services, or integration support.

Request a Quote: Email sale@ninermas.com or call +0086 187 5021 5667
Technical Documentation: Download datasheets, manuals, and CAD files from our resource library
Application Support: Schedule a consultation with our certified Siemens automation engineers
