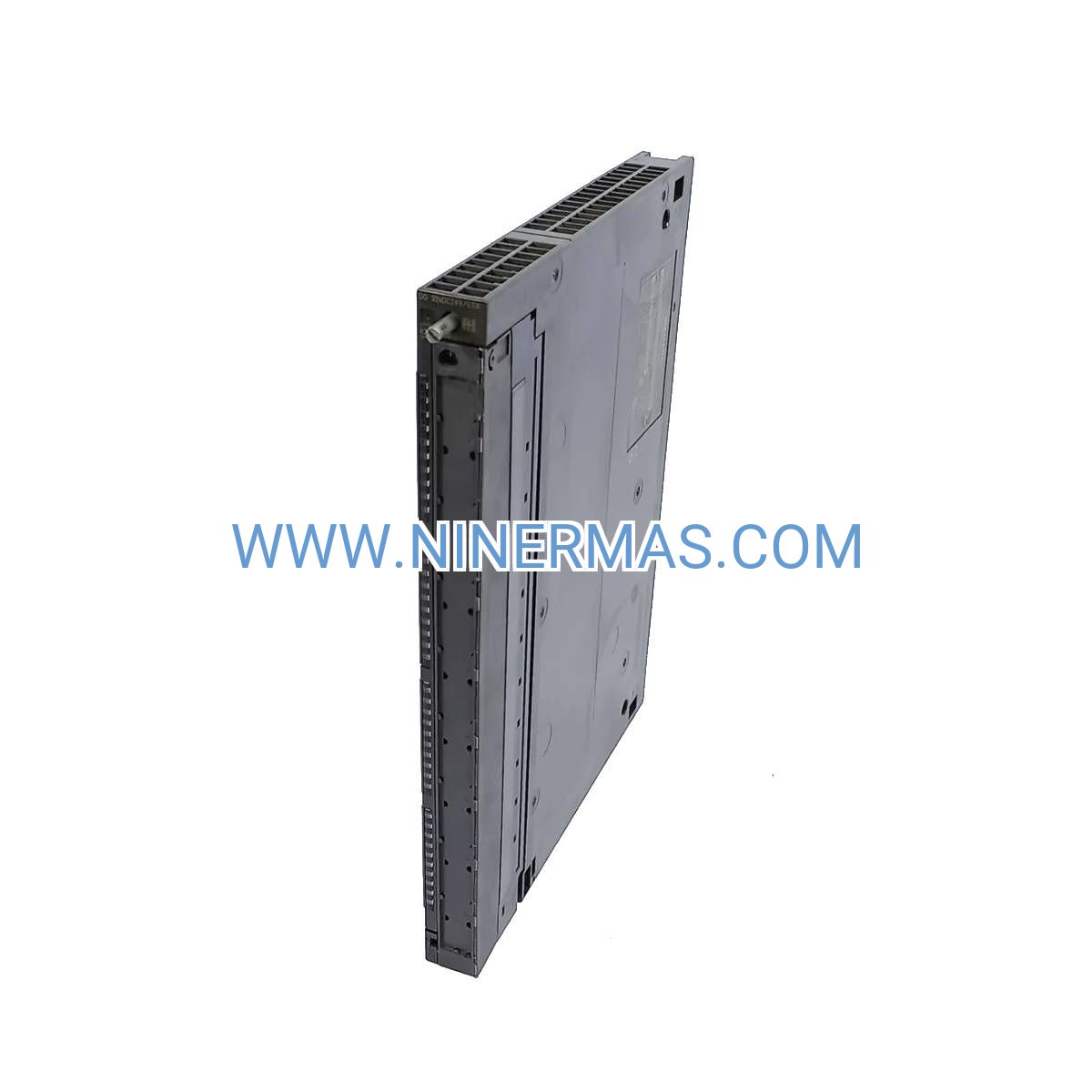

Siemens SM 422 Digital Output Module (Industrial-Grade 32-Channel Controller)

The Siemens 6ES7422-1BL00-0AA0 represents a proven solution in industrial digital output control, engineered specifically for SIMATIC S7-400 automation architectures. This SM 422 module delivers 32 isolated digital output channels operating at 24V DC with 0.5A current capacity per channel, providing the robust signal distribution required in demanding manufacturing and process control environments.

Designed for system integrators and automation engineers managing complex production lines, this module addresses the critical need for reliable, high-density output control in applications ranging from conveyor systems to packaging machinery. Its galvanic isolation architecture protects sensitive control circuits while maintaining signal integrity across distributed I/O networks.

With active product lifecycle status (PM300) and RoHS compliance since 2008, the SM 422 combines field-proven reliability with modern regulatory standards. Whether you're expanding existing S7-400 installations or designing new automation systems, this module delivers the performance density and electrical protection that industrial applications demand.

Core Features & Technical Advantages

✓ High-Density Output Architecture: 32 isolated digital outputs in a single module footprint reduce cabinet space requirements by up to 40% compared to legacy 16-channel designs while simplifying wiring infrastructure.

✓ Galvanic Isolation Protection: Each output channel features electrical isolation that safeguards your S7-400 CPU from voltage spikes, ground loops, and field-side faults—critical for maintaining system uptime in harsh industrial environments.

✓ 24V DC Standard Compatibility: Operates on industry-standard 24V DC power with 0.5A switching capacity per channel, ensuring seamless integration with solenoid valves, indicator lights, relay coils, and other common actuators.

→ Proven Reliability Track Record: Active product status with continuous availability since introduction, backed by Siemens' global support network and extensive installed base across automotive, pharmaceutical, and food processing sectors.

→ Hot-Swap Capability: Module replacement during operation minimizes production downtime, with automatic configuration restoration from the S7-400 CPU reducing commissioning time to under 5 minutes.

→ Diagnostic LED Indicators: Per-channel status visualization enables rapid troubleshooting, reducing mean time to repair (MTTR) by providing immediate visual feedback on output states and fault conditions.

Industrial Application Scenarios

Automotive Assembly Lines: Controls pneumatic actuators, part presence indicators, and conveyor routing gates across multi-station body welding and paint systems. The module's isolation prevents electrical noise from welding equipment from disrupting control signals, while high channel density reduces panel space in crowded production cells.

Packaging & Material Handling: Drives label applicators, diverter gates, reject mechanisms, and status towers in high-speed packaging lines. Rapid output switching (typical 0.5ms response) ensures precise timing for products moving at 200+ units per minute, directly improving throughput and reducing product giveaway.

Water & Wastewater Treatment: Operates pump starters, valve actuators, and alarm annunciators in SCADA-controlled treatment facilities. Galvanic isolation protects against ground potential differences common in geographically distributed installations, while the module's -25°C to +60°C operating range accommodates outdoor enclosure mounting.

Chemical Process Control: Manages solenoid valves for batch dosing, reactor agitators, and emergency shutdown systems in classified hazardous locations. The module's compliance with international safety standards supports SIL-rated safety function implementation when properly configured.

Building Automation & HVAC: Controls damper actuators, pump contactors, and zone indicators in large commercial facilities. The 32-channel density allows a single module to manage an entire floor's HVAC distribution, simplifying both initial installation and ongoing maintenance.

Technical Specifications & Selection Guide

Selection Criteria: Choose the SM 422 when your application requires more than 16 outputs in a single rack slot, when electrical isolation is mandated by safety requirements, or when cabinet space constraints demand maximum I/O density. For applications requiring higher current switching (>0.5A), consider pairing with external relay modules. For safety-critical outputs, verify compatibility with your S7-400 safety CPU configuration.

Extended Capabilities & System Integration

PROFIBUS DP Integration: Seamlessly integrates into distributed I/O configurations via ET 200M stations, enabling remote output control up to 1200m from the central controller while maintaining deterministic response times under 10ms.

TIA Portal Configuration: Full support for Siemens TIA Portal engineering environment allows drag-and-drop hardware configuration, symbolic addressing, and integrated diagnostics that reduce commissioning time by 30% compared to legacy STEP 7 Classic workflows.

Redundancy Options: Compatible with S7-400H redundant controller architectures for applications requiring 99.99%+ availability, with automatic switchover maintaining output states during CPU failover events.

Custom Output Grouping: Software-configurable channel grouping allows tailored isolation schemes—critical for applications mixing different ground references or requiring separate power domains within a single module.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock items ship within 1-3 business days via expedited carrier. Custom configurations or bulk orders (10+ units) typically require 2-4 weeks; contact our team for project-specific scheduling.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical infrastructure applications requiring 3-5 year coverage.

Technical Assistance: Pre-sales application engineering support included—our certified Siemens specialists assist with I/O calculations, wiring diagrams, and system architecture reviews. Post-sale support includes configuration file review and troubleshooting guidance.

Documentation Package: Each module ships with installation manual, wiring diagrams, GSD file for PROFIBUS configuration, and sample TIA Portal hardware configuration. CAD drawings (DXF/STEP) available upon request for panel layout design.

Frequently Asked Questions

Q: What connection method does the SM 422 use for field wiring?
A: The module uses a 40-pin front connector (order separately: 6ES7492-1AL00-0AA0) that accepts 0.5-1.5mm² wire gauge. Spring-cage terminal blocks provide tool-free wiring with vibration-resistant connections suitable for industrial environments.

Q: Can this module handle inductive loads like solenoid valves?
A: Yes, each output includes integrated freewheeling diodes for inductive load protection. For loads exceeding 0.5A or requiring AC switching, use external relay modules or contactors rated for your specific load characteristics.

Q: How much power does the SM 422 consume from the S7-400 backplane?
A: The module draws approximately 1.5W from the 5V backplane supply plus the sum of connected load currents from the 24V DC field supply. Ensure your S7-400 power supply has adequate capacity—typically 10W total budget per SM 422 module including typical loads.

Q: Is the SM 422 compatible with older S7-400 CPU models?
A: Yes, the module is backward compatible with all S7-400 CPUs from firmware version V4.0 onward. Verify your CPU firmware level in TIA Portal or STEP 7; firmware updates available from Siemens support portal if required.

Q: What diagnostic capabilities help with remote troubleshooting?
A: Beyond front-panel LEDs, the module provides detailed diagnostics accessible via TIA Portal including per-channel short-circuit detection, overload conditions, and missing load power supply. These diagnostics can trigger SCADA alarms or email notifications when integrated with your HMI system.

Q: Can I mix SM 422 modules with other I/O types in the same rack?
A: Absolutely. The S7-400 architecture supports mixed I/O configurations—combine digital outputs, analog inputs, communication processors, and specialty modules in any sequence within rack slot and power budget constraints.

Ready to Optimize Your S7-400 System?

The Siemens SM 422 digital output module delivers the channel density, isolation protection, and proven reliability your industrial automation project demands. Whether you're retrofitting existing systems or engineering new installations, our application specialists are ready to verify compatibility and provide technical guidance.

Contact our team today for: Technical datasheets, wiring diagrams, volume pricing, or application-specific configuration assistance. We support system integrators, OEMs, and end users across manufacturing, infrastructure, and process industries.
