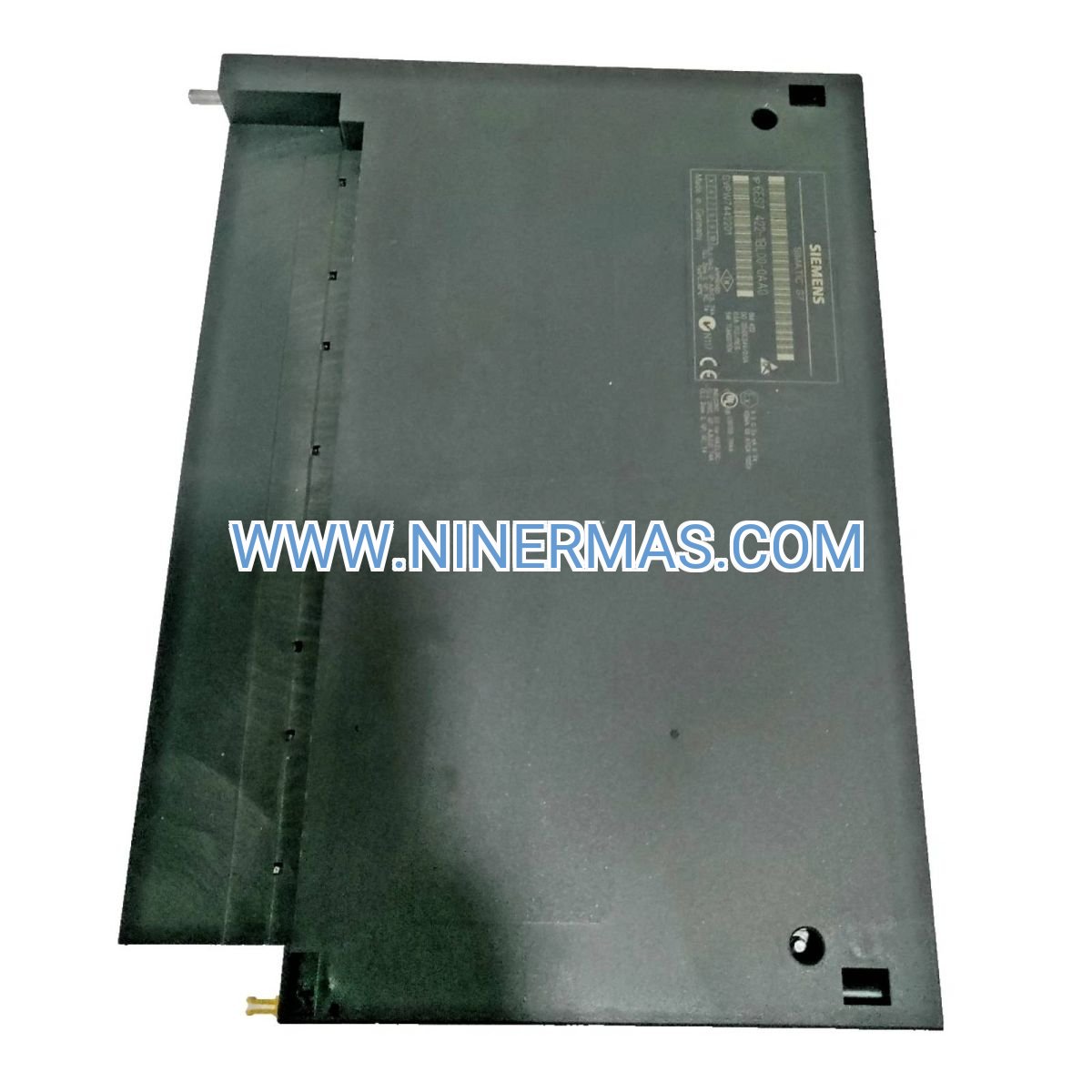

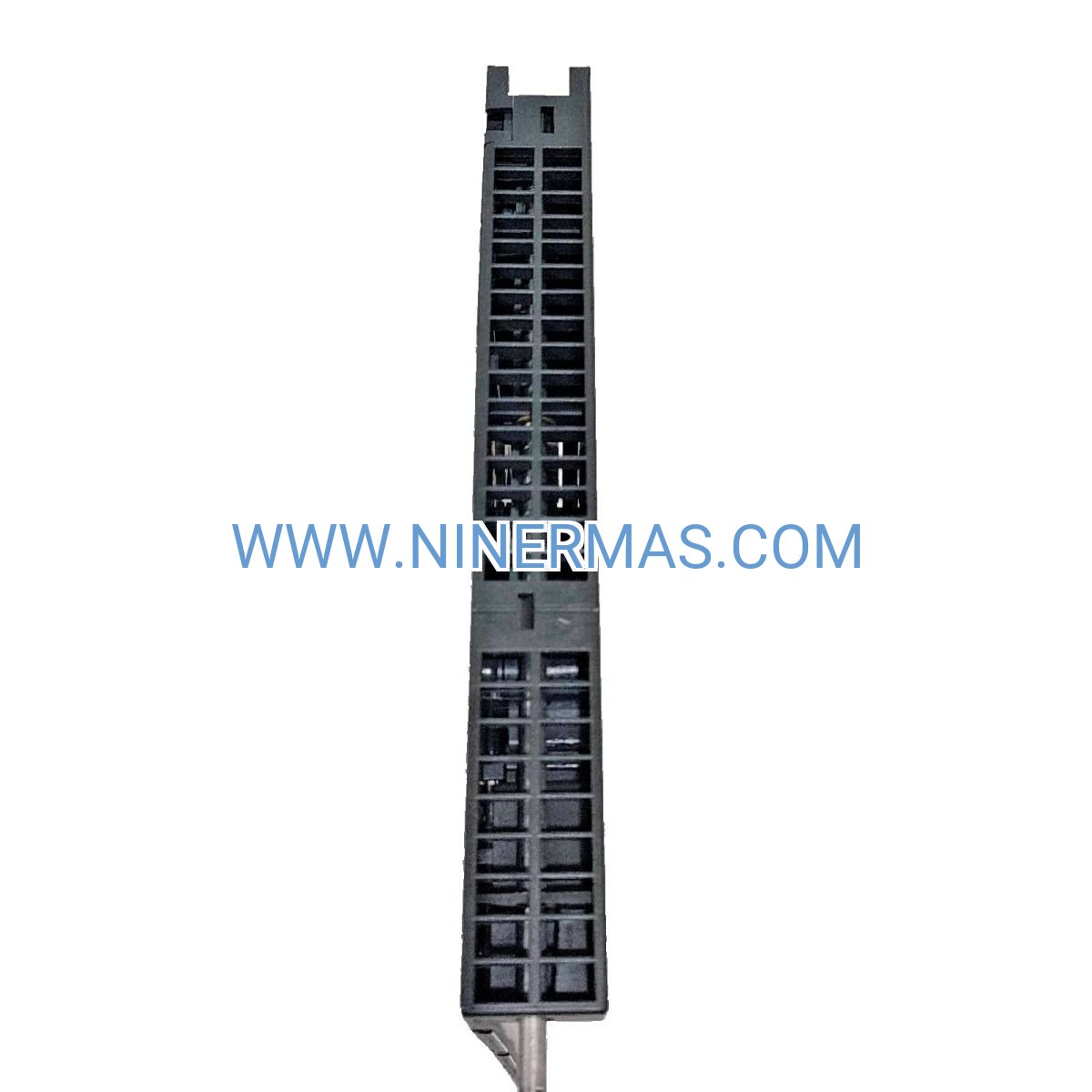

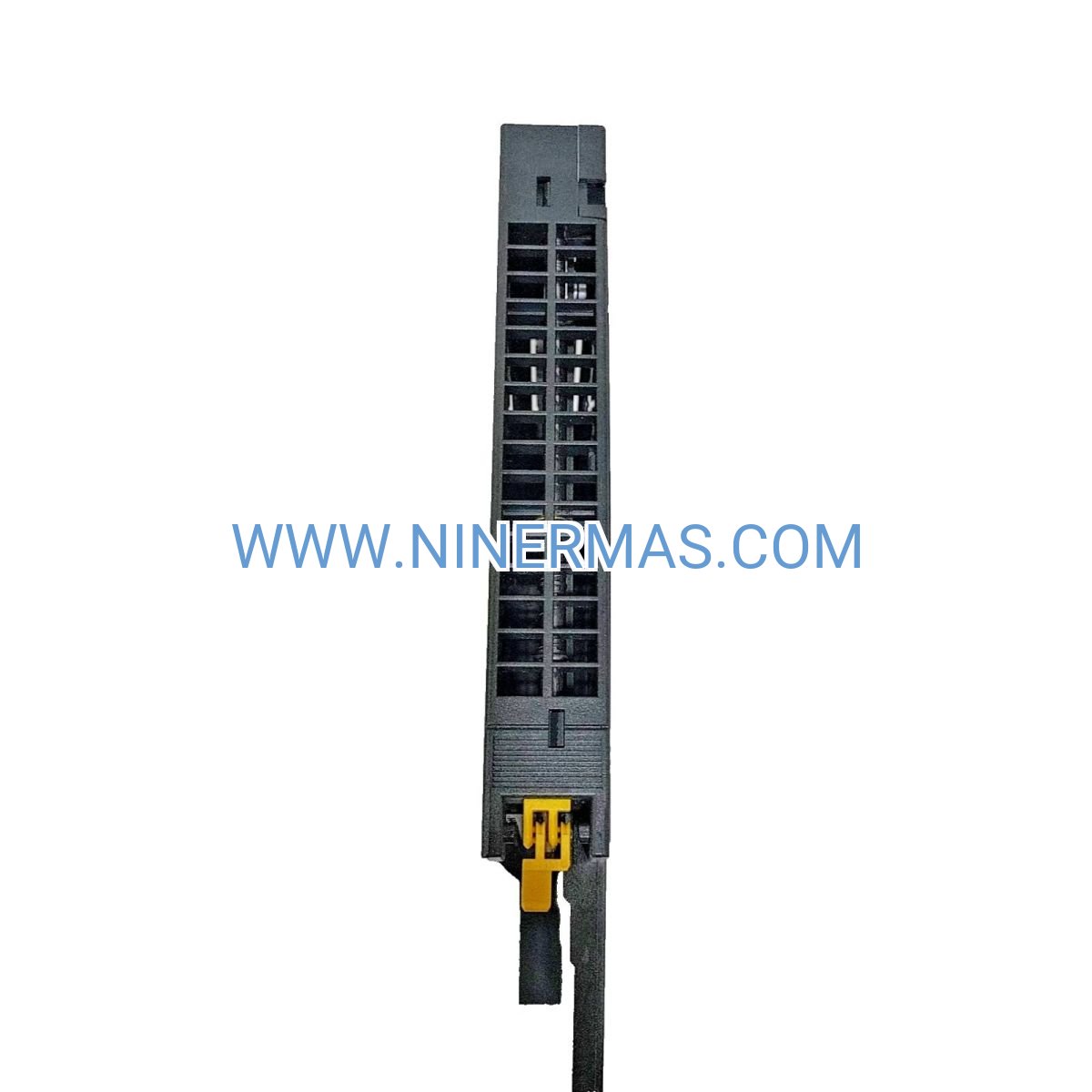

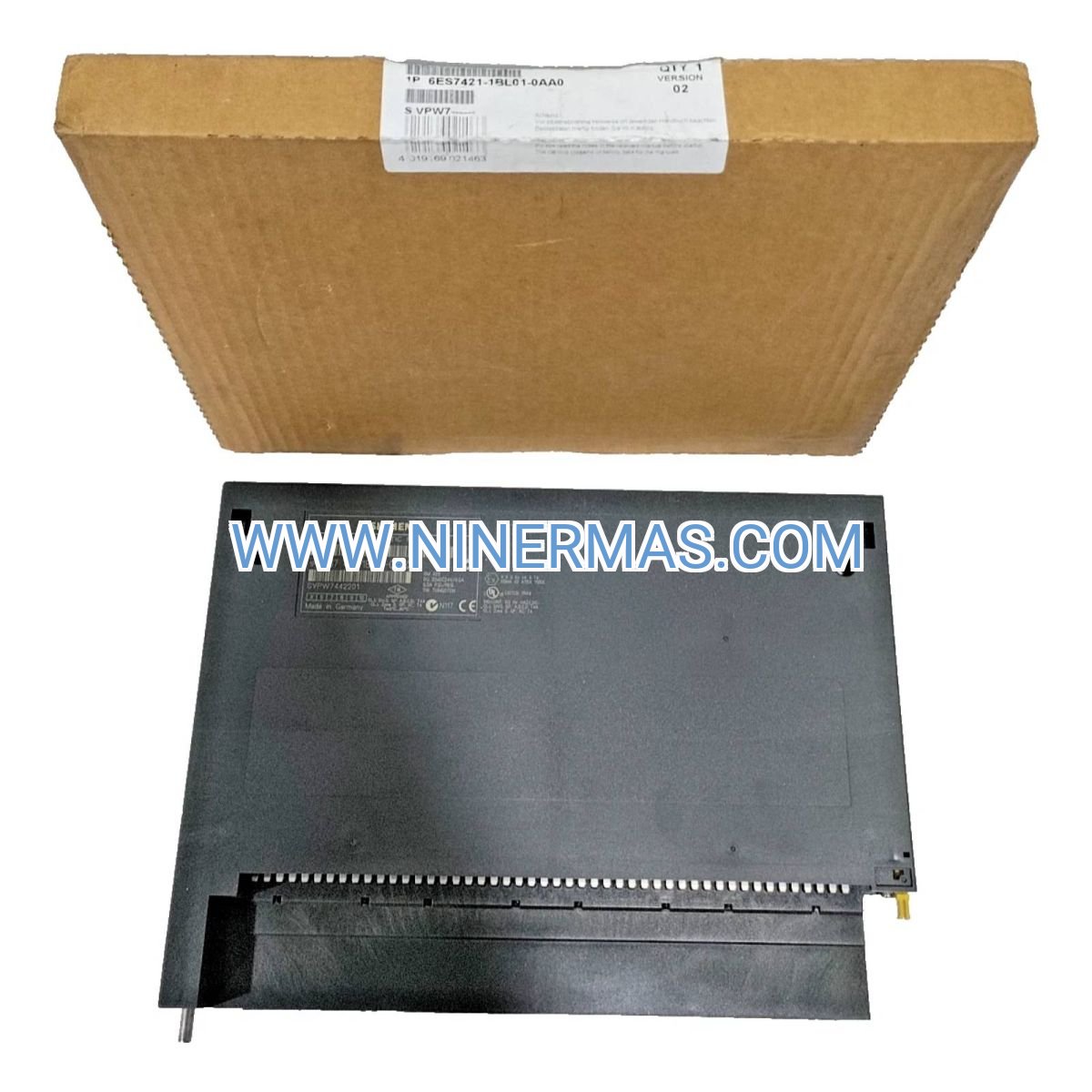

Siemens SM 421 Digital Input Module 6ES7421-1BL00-0AA0 | 32-Channel 24VDC for S7-400 PLC

Siemens SM 421 Digital Input Module (Industrial-Grade Signal Acquisition Solution)

The Siemens 6ES7421-1BL00-0AA0 SM 421 is a high-performance digital input module designed for S7-400 PLC systems, enabling reliable acquisition of 32 binary signals at 24V DC. Through galvanic isolation and advanced filtering technology, it ensures accurate signal detection in harsh industrial environments, supporting applications from discrete manufacturing to process control.

Ideal for chemical plants, power generation facilities, automotive assembly lines, water treatment systems, and building automation projects where real-time monitoring of sensors, limit switches, proximity detectors, and safety devices is critical. It addresses challenges such as signal interference, wiring complexity, diagnostic difficulty, and system scalability limitations.

With standardized S7-400 mounting and flexible configuration options, this module delivers fast response times, comprehensive diagnostics, hot-swappable capability, and seamless integration with SIMATIC engineering tools. Suitable for design institutes, system integrators, OEM manufacturers, and end-user facilities. Contact our engineers for application-specific selection guidance and quotations.

Core Features & Advantages

• High-Density Signal Acquisition
  32 digital input channels in a compact form factor reduce cabinet space requirements and wiring costs, ideal for applications with numerous field devices.
• Robust Electrical Isolation
  Galvanic isolation between channels and backplane protects the PLC system from ground loops, voltage spikes, and electromagnetic interference common in industrial settings.
• Fast Signal Processing
  Input delay times as low as 0.1 ms enable real-time response to high-speed events such as encoder pulses, emergency stops, and production line triggers.
• Comprehensive Diagnostics
  Built-in self-monitoring detects wire breaks, short circuits, and power supply faults, with status LEDs and STEP 7 integration for rapid troubleshooting and reduced downtime.
• Flexible Configuration Options
  Supports individual channel parameterization including input filters, interrupt generation, and diagnostic alarms through SIMATIC Manager or TIA Portal software.
• Hot-Swap Capability
  Module replacement during operation (with appropriate S7-400 CPU support) minimizes production interruptions and maintenance windows in 24/7 facilities.

Typical Application Scenarios

This module is engineered for environments demanding high signal integrity, system availability, and long-term reliability, particularly in:

• Chemical & Petrochemical Processing
  Monitors valve positions, level switches, pressure transmitters, and safety interlocks in reactors, distillation columns, and storage tank farms where process safety is paramount.
• Power Generation & Distribution
  Acquires status signals from circuit breakers, isolators, protection relays, and auxiliary contacts in substations, thermal plants, and renewable energy installations.
• Automotive & Discrete Manufacturing
  Interfaces with photoelectric sensors, inductive proximity switches, and quality inspection gates on assembly lines, welding stations, and material handling conveyors.
• Water & Wastewater Treatment
  Collects input from flow meters, pump status contacts, filter condition sensors, and alarm panels in municipal treatment plants and industrial effluent systems.
• Building Automation & HVAC
  Integrates with occupancy sensors, door/window contacts, fire alarm systems, and equipment status indicators in commercial buildings and data centers.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide key specifications below. Custom configurations and extended temperature variants are available upon request.

Selection Recommendations: When specifying this module, consider the total number of binary inputs required, sensor supply voltage compatibility, required response speed, cabinet ambient temperature, and whether hot-swap capability is needed. For systems exceeding 32 inputs, multiple modules can be installed on the same S7-400 rack. Our application engineers can assist with I/O mapping, load calculations, and redundancy planning—please provide your I/O list, PLC configuration, and environmental conditions.

Extended Capabilities

• Interrupt-Driven Processing
  Supports hardware interrupts for time-critical events, enabling CPU to respond immediately to alarm conditions without polling delays.
• Distributed I/O Integration
  Compatible with PROFIBUS DP and PROFINET IO architectures when used with appropriate interface modules, allowing decentralized installation near field devices.
• Redundancy Support
  Can be integrated into S7-400H redundant systems for high-availability applications in utilities, pharmaceuticals, and critical infrastructure.
• Third-Party Device Compatibility
  Interfaces with sensors and actuators from multiple vendors adhering to IEC 61131-2 Type 1/3 input standards, ensuring flexible sourcing and future expansion.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–7 business days subject to stock availability; custom-configured modules or bulk orders may require 2–4 weeks—contact us for current lead times.

Warranty: All modules carry a minimum 12-month manufacturer-backed warranty covering defects in materials and workmanship. Extended warranty and spare parts programs available for long-term projects.

Technical Support: We provide pre-sales application consulting, configuration file templates, and post-sales remote diagnostics assistance. On-site commissioning and training services can be arranged for major installations (subject to location and project scope).

Documentation Package: Each module ships with or provides access to: product data sheet, wiring diagrams, GSD/GSDML files (if applicable), dimensional drawings, and quick-start guide. Full manuals available via Siemens Industry Online Support portal.

Compliance & Certifications: Manufactured to ISO 9001 quality standards, CE marked, and compliant with relevant EMC and safety directives for industrial environments.

Frequently Asked Questions (FAQ)

Q: How do I integrate the SM 421 digital input module with my existing S7-400 PLC system?
A: The module installs directly onto the S7-400 profile rail and connects via the backplane bus. You'll need to configure it in STEP 7 or TIA Portal by adding the module to your hardware configuration, assigning input addresses, and downloading the configuration to the CPU. Ensure your power supply has sufficient capacity for additional modules.

Q: What is the maximum cable length from field sensors to the SM 421 module?
A: For 24V DC signals, typical maximum cable length is 600 meters with shielded cable (consult Siemens guidelines for exact limits based on cable type and environmental conditions). Longer distances may require signal repeaters or remote I/O solutions.

Q: Can this module detect sensor wire breaks or short circuits?
A: Yes, the SM 421 includes diagnostic functions that can detect certain fault conditions such as wire breaks (when sensors support 2-wire monitoring) and provide group fault signals. Detailed diagnostics are accessible through the PLC program and engineering software.

Q: Is the module hot-swappable during PLC operation?
A: Hot-swap capability depends on your S7-400 CPU model and system configuration. Many S7-400H and newer CPUs support module replacement under power with appropriate safety precautions. Consult your CPU manual and follow Siemens hot-swap procedures to avoid system faults.

Q: What input filter settings are available, and how do they affect response time?
A: The module allows configurable input filters (typically 0.1 ms, 0.5 ms, 3 ms, or longer) to suppress contact bounce and electrical noise. Shorter filter times provide faster response but may be more susceptible to interference; longer filters improve noise immunity at the cost of slower signal recognition. Select based on your application's speed and noise environment.

Q: Does this module support PROFINET or only PROFIBUS communication?
A: The SM 421 is a centralized I/O module for S7-400 backplane installation. For distributed I/O over PROFINET or PROFIBUS, you would use ET 200 series remote I/O stations with equivalent input modules. However, the S7-400 CPU itself can communicate via PROFINET/PROFIBUS to coordinate the overall system.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing, or application-specific technical support, please provide the following information: project name, application description, number of digital inputs required, sensor voltage levels, PLC model and firmware version, environmental conditions (temperature, humidity, vibration), and any special requirements (redundancy, certifications, extended warranty).

Our engineering team will respond with a tailored recommendation, including module quantity, accessories (terminal blocks, cables, labels), configuration templates, and estimated delivery schedule.
