Siemens CPU 417H 6ES7417-4HL01-0AB0 | S7-400H Redundant Controller for Critical Automation

Siemens CPU 417H – Industrial-Grade Redundant Controller for S7-400H Systems

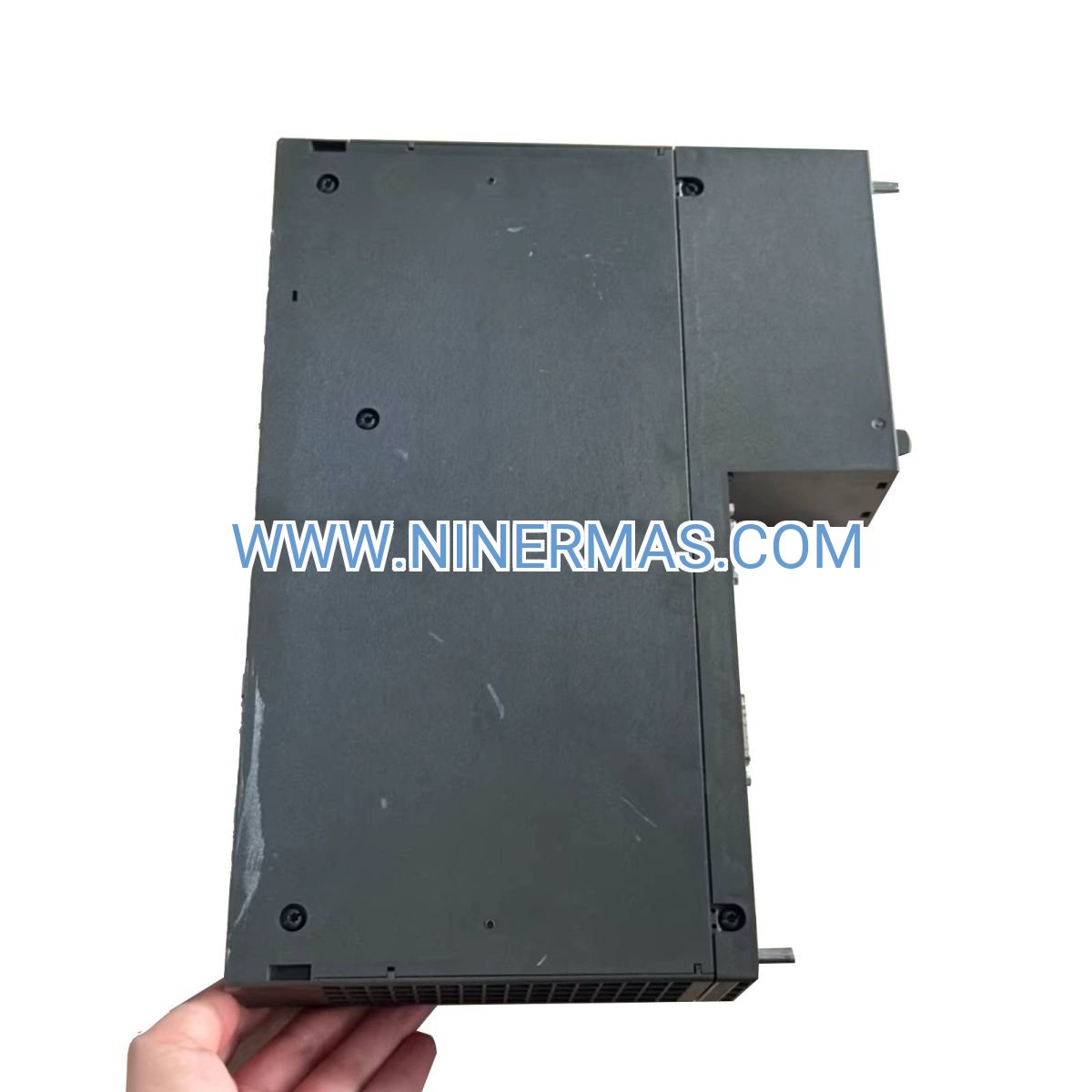

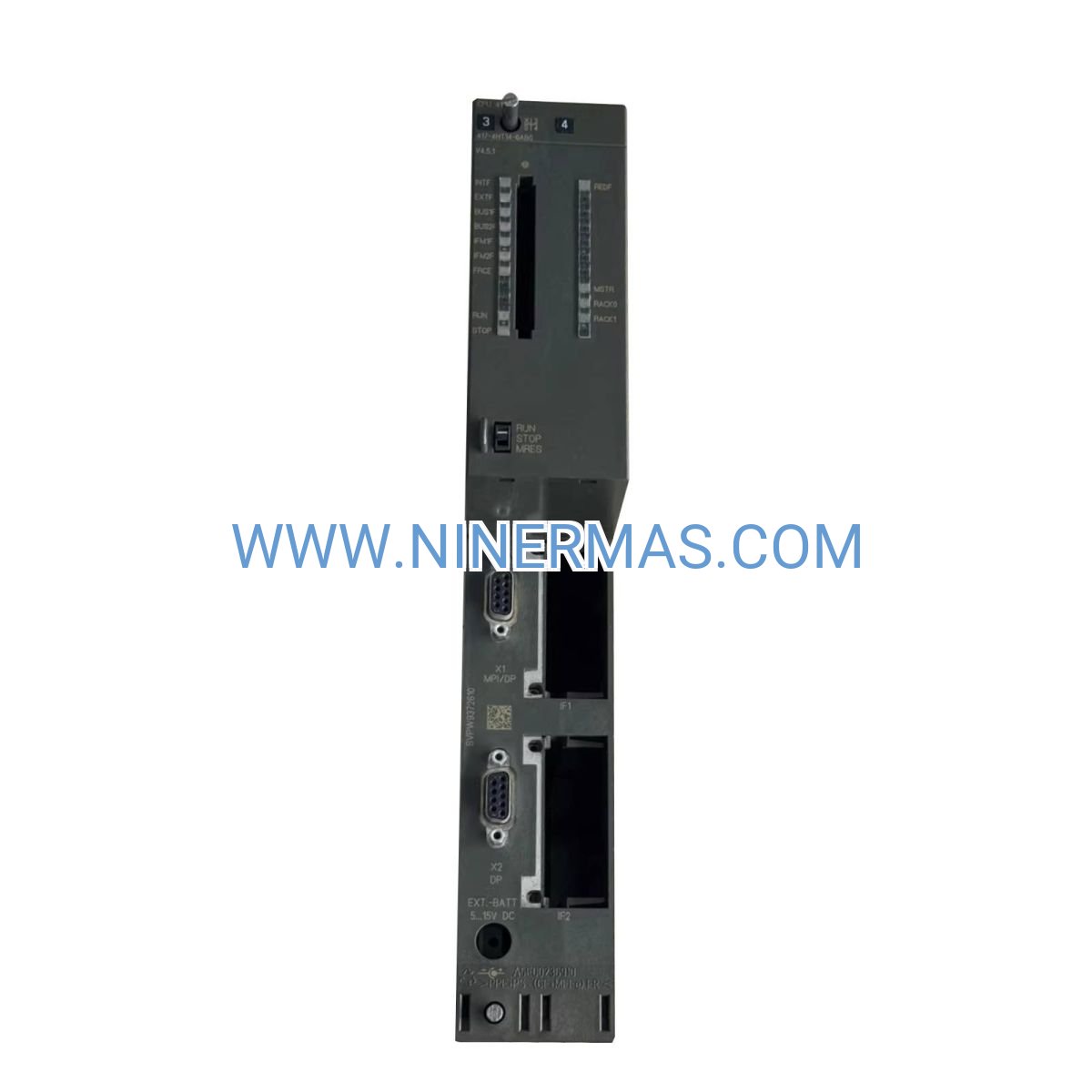

The Siemens CPU 417H (6ES7417-4HL01-0AB0) is a high-performance central processing unit designed for S7-400H redundant automation systems. Through advanced hot-standby architecture and seamless failover technology, it ensures continuous operation and maximum system availability in mission-critical industrial environments.

Ideal for process control applications in energy generation, chemical processing, oil & gas, water treatment, and pharmaceutical manufacturing, this controller addresses challenges such as unplanned downtime, single-point failures, production interruptions, and insufficient fault diagnostics. It provides robust protection for operations where system reliability directly impacts safety and productivity.

With standardized design and flexible configuration options, the CPU 417H delivers exceptional reliability, deterministic performance, comprehensive diagnostics, and seamless integration with existing SIMATIC ecosystems. It serves design engineers, system integrators, automation contractors, and plant maintenance teams seeking proven redundancy solutions. Contact our engineering team for application-specific configuration guidance and technical quotations.

Core Features & Advantages

Hot-Standby Redundancy Architecture
Dual-CPU configuration with automatic synchronization ensures zero-downtime operation. When the active CPU fails, the standby unit takes over within milliseconds, maintaining process continuity without manual intervention or production loss.

High-Performance Processing Capacity
Equipped with 30MB integrated work memory and optimized instruction execution, the CPU 417H handles complex control algorithms, data logging, and communication tasks simultaneously, supporting large-scale distributed control systems.

Comprehensive Fault Protection
Built-in diagnostics monitor power supply integrity, communication links, I/O module health, and CPU synchronization status. Advanced protection against voltage fluctuations, electromagnetic interference, and thermal stress reduces maintenance costs and extends service life.

Seamless PROFIBUS DP Integration
Native PROFIBUS DP interface enables high-speed communication with distributed I/O, drives, and field devices. Supports redundant communication paths for enhanced network reliability in geographically distributed installations.

Intuitive Engineering Environment
Fully compatible with STEP 7 programming software, offering IEC 61131-3 compliant languages (LAD, FBD, STL, SCL). Comprehensive diagnostic displays, online monitoring, and remote access capabilities simplify commissioning, troubleshooting, and system optimization.

Industrial-Grade Construction
Designed for harsh industrial environments with wide operating temperature range, conformal coating protection, and robust EMC immunity. Meets international standards for safety, reliability, and environmental compliance.

Typical Application Scenarios

This controller is engineered for applications demanding maximum uptime, safety integrity, and process continuity, including:

Power Generation & Distribution
Controls turbine sequencing, generator synchronization, and substation automation where unplanned shutdowns result in grid instability and significant financial losses. Redundant architecture ensures regulatory compliance and operational safety.

Chemical & Petrochemical Processing
Manages reactor control, distillation columns, and batch processing where process interruptions compromise product quality, safety, and environmental compliance. Hot-standby failover prevents hazardous conditions and production waste.

Water & Wastewater Treatment
Orchestrates pumping stations, filtration systems, and chemical dosing for municipal and industrial facilities. Continuous operation ensures public health standards and environmental discharge compliance.

Oil & Gas Production
Supervises offshore platforms, pipeline networks, and refinery operations where downtime impacts safety, environmental protection, and revenue. Redundant control systems meet stringent industry safety standards (SIL, API).

Pharmaceutical Manufacturing
Executes validated batch processes, cleanroom environmental control, and critical utility systems requiring 21 CFR Part 11 compliance. System redundancy supports GMP requirements and audit trail integrity.

Technical Parameters & Selection Guide

To facilitate engineering design and system specification, we provide comprehensive technical data for the CPU 417H:

Core Specifications:

• Work Memory: 30 MB integrated (program and data)
• Load Memory: Requires external MMC (up to 8 MB)
• Processing Speed: Bit operations 0.01 μs, word operations 0.01 μs
• I/O Capacity: Up to 65,536 digital I/O, 8,192 analog I/O
• Communication Interfaces: 2x PROFIBUS DP (redundant), MPI/DP multiprotocol
• Power Supply: DC 24V (redundant power modules recommended)
• Operating Temperature: 0°C to +60°C (horizontal installation)
• Protection Rating: IP20 (for control cabinet installation)
• Dimensions: 50 x 290 x 219 mm (W x H x D)
• Certifications: CE, UL, cULus, ATEX, IECEx, marine approvals

System Configuration Considerations:

• Redundant power supply modules (PS 407 series) for complete fault tolerance
• Fiber-optic synchronization links for electrical isolation and EMI immunity
• Redundant communication processors for PROFINET, Ethernet, or Industrial Ethernet
• Distributed I/O via ET 200M, ET 200S, or ET 200pro stations
• Integration with SIMATIC PCS 7 or WinCC SCADA for plant-wide visualization

Selection Recommendations:
When specifying the CPU 417H, consider maximum program complexity, I/O point count, communication network topology, required cycle times, and environmental conditions. For applications requiring safety functions (SIL 2/3), combine with fail-safe I/O modules and safety-certified programming. Our application engineers can review your P&ID, I/O lists, and control narratives to recommend optimal system architecture.

Extended Capabilities

Advanced Diagnostics & Maintenance
Integrated web server provides browser-based access to system status, diagnostic buffers, and performance metrics without additional software. Supports predictive maintenance through trend analysis and alarm history logging.

Cybersecurity Features
Password protection, access level management, and encrypted communication protocols safeguard against unauthorized access. Compatible with industrial firewalls and security modules for defense-in-depth strategies.

Scalability & Future-Proofing
Modular architecture allows incremental expansion as production requirements grow. Backward compatibility with legacy S7-400 components protects existing investments while enabling technology migration paths.

Delivery, Service & Quality Assurance

Lead Times: Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom-configured systems or project-specific assemblies require 2-4 weeks depending on scope and testing requirements.

Warranty Coverage: All CPU modules include a comprehensive 12-month warranty covering manufacturing defects and component failures. Extended warranty programs and service contracts available for critical applications.

Technical Support: Our certified automation engineers provide pre-sales application consulting, system design review, commissioning assistance, and post-installation troubleshooting. Remote diagnostic support and on-site services available based on geographic location and service agreement.

Documentation Package: Each controller ships with complete technical documentation including hardware installation manual, electrical connection diagrams, STEP 7 configuration guidelines, GSD files, and safety instructions in multiple languages. CAD drawings and 3D models available for panel design integration.

Quality Certifications: Products sourced through authorized Siemens distribution channels with full traceability. Compliance with ISO 9001 quality management, RoHS environmental directives, and REACH substance regulations.

Frequently Asked Questions (FAQ)

Q: How does the CPU 417H integrate with existing S7-400 non-redundant systems?
A: The CPU 417H requires a complete S7-400H redundant rack configuration including dual power supplies, synchronization modules, and compatible I/O modules. Migration from non-redundant S7-400 systems involves hardware upgrades and program adaptation for redundancy management. Our engineering team can assess your current installation and provide detailed migration roadmaps including hardware lists, programming modifications, and testing protocols.

Q: What is the maximum number of I/O modules supported in a redundant configuration?
A: A single S7-400H system supports up to 21 racks (including central and expansion racks) with a maximum of 65,536 digital I/O points and 8,192 analog I/O points. Distributed I/O via PROFIBUS DP can extend this capacity significantly. Actual limits depend on communication bandwidth, cycle time requirements, and system architecture.

Q: What level of energy savings can be achieved compared to non-redundant architectures?
A: Redundant systems inherently consume more power due to dual CPUs and power supplies. However, the CPU 417H's optimized power management and efficient processing reduce overall energy consumption by approximately 15-20% compared to previous-generation redundant controllers. The primary value proposition is eliminating costly downtime rather than direct energy savings – a single avoided shutdown in critical processes typically justifies the investment within months.

Q: What environmental conditions must be maintained for reliable operation?
A: The CPU 417H operates reliably in ambient temperatures from 0°C to +60°C (horizontal mounting) with relative humidity up to 95% non-condensing. Installation requires IP20-rated control cabinets with adequate ventilation or forced cooling for high-density configurations. Avoid exposure to corrosive gases, excessive vibration (>0.5g), or altitudes above 2,000 meters without derating. Conformal coating options available for harsh chemical or marine environments.

Q: Can the system support remote monitoring and data acquisition for Industry 4.0 applications?
A: Yes, the CPU 417H integrates seamlessly with SIMATIC IT solutions, cloud connectivity modules (e.g., SIMATIC IOT2050), and OPC UA servers for secure data exchange with MES, ERP, and analytics platforms. Supports standard industrial protocols including Modbus TCP, PROFINET, and Ethernet/IP through communication processors. Our team can configure secure VPN tunnels, edge computing gateways, and data historians for comprehensive IIoT implementations.

Q: What programming and commissioning training is recommended for maintenance personnel?
A: We recommend Siemens-certified training courses covering S7-400H system architecture (TIA-SYSUP), STEP 7 programming (TIA-PRO1), and redundancy configuration (TIA-REDUN). For plant-specific applications, we offer customized on-site training including hands-on commissioning exercises, troubleshooting simulations, and documentation workshops. Training can be tailored to operator, technician, or engineer skill levels.

Request Engineering Support

To receive detailed system configuration recommendations, budget quotations, or technical consultation, please provide the following project information:

• Project name and application industry
• Process description and control requirements
• Total I/O point count (digital inputs/outputs, analog inputs/outputs)
• Communication network topology and protocols
• Environmental conditions and installation constraints
• Safety integrity level (SIL) requirements if applicable
• Preferred delivery timeline and project milestones

Our application engineers will respond within 24 hours with preliminary system architecture, component selection guidance, and commercial proposals tailored to your specific requirements.
