Siemens CPU 417H 6ES7417-4HL01-0AB0 | S7-400H Redundant Controller for Mission-Critical Systems

Siemens CPU 417H – Industrial-Grade Redundant Controller for Fault-Tolerant Automation

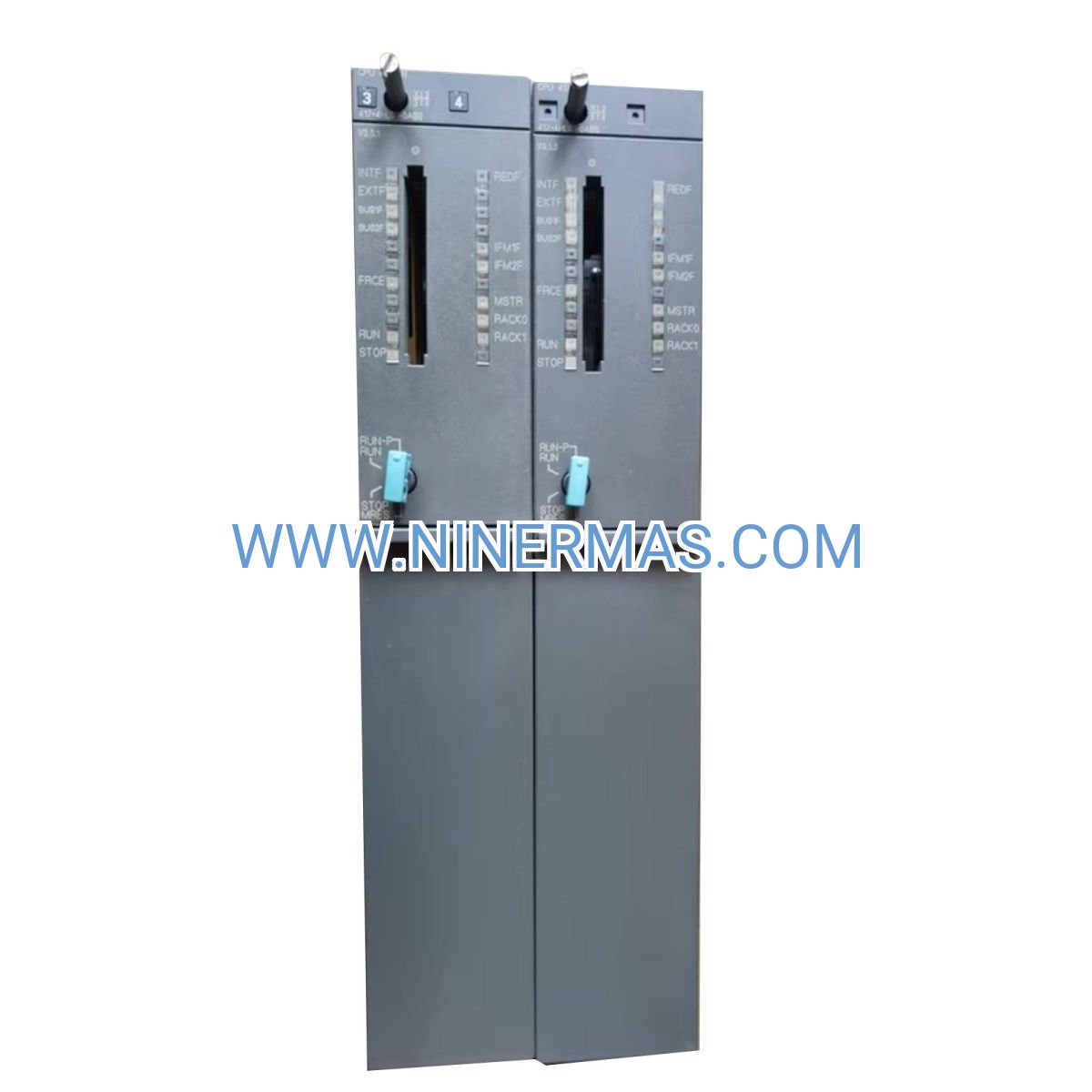

The Siemens CPU 417H (6ES7417-4HL01-0AB0) is a high-performance central processing unit designed for S7-400H redundant automation systems. Through advanced hot-standby architecture and seamless failover mechanisms, it ensures continuous process control even during component failures, making it the preferred choice for mission-critical industrial environments.

Engineered for applications demanding maximum uptime and reliability, this controller serves process industries, power generation facilities, water treatment plants, and manufacturing operations where unplanned downtime translates to significant operational and financial losses. With 30MB work memory, dual-processor synchronization, and comprehensive diagnostic capabilities, the CPU 417H delivers enterprise-level control performance.

Featuring standardized S7-400H platform compatibility and flexible I/O expansion options, this unit integrates seamlessly into existing Siemens ecosystems while supporting custom engineering requirements. Suitable for design institutes, system integrators, OEM manufacturers, and end-user facilities seeking proven redundancy solutions. Contact our automation engineers for application-specific configuration guidance and technical consultation.

Core Features & Technical Advantages

• Hot-Standby Redundancy Architecture
  Dual CPU configuration with automatic synchronization ensures bumpless switchover within milliseconds during primary controller failure, eliminating process interruptions and maintaining control integrity across all I/O points.
• High-Capacity Processing Performance
  Equipped with 30MB work memory and optimized instruction execution speed, capable of handling complex control algorithms, data logging, and real-time communication tasks simultaneously without performance degradation.
• Comprehensive Fault Detection & Diagnostics
  Built-in self-monitoring continuously validates CPU health, memory integrity, communication links, and I/O module status. Detailed diagnostic buffers and event logs facilitate rapid troubleshooting and predictive maintenance.
• PROFIBUS DP Integration
  Native PROFIBUS DP interface supports distributed I/O architecture, enabling cost-effective field device connectivity while reducing cabinet wiring complexity and installation time by up to 40% compared to centralized configurations.
• Modular Expansion Capability
  Compatible with full range of S7-400 signal modules, communication processors, and function modules. Supports up to 21 expansion racks, accommodating thousands of I/O points for large-scale process control applications.
• Industrial-Hardened Design
  Operates reliably in harsh environments with extended temperature range (-25°C to +60°C), vibration resistance, and EMC compliance. Conformal coating options available for corrosive atmosphere protection.

Typical Application Scenarios

This redundant controller is specifically engineered for industries and processes where control system availability directly impacts safety, production continuity, and regulatory compliance:

• Oil & Gas Processing Facilities
  Manages critical separation, compression, and pipeline control systems in upstream, midstream, and downstream operations. Redundancy ensures continuous operation during maintenance activities and component failures in hazardous area installations.
• Power Generation & Distribution
  Controls turbine sequencing, boiler management, and auxiliary systems in thermal, combined-cycle, and cogeneration plants. Meets stringent availability requirements for grid-connected facilities and ensures safe shutdown procedures during emergencies.
• Chemical & Petrochemical Manufacturing
  Orchestrates batch reactors, continuous distillation columns, and material handling systems where process upsets can result in product quality issues, equipment damage, or safety incidents. Supports SIL-rated safety integration.
• Water & Wastewater Treatment
  Regulates pumping stations, filtration processes, and chemical dosing systems for municipal and industrial applications. Redundant control prevents service interruptions affecting public health and environmental compliance.
• Pharmaceutical & Biotechnology Production
  Maintains precise environmental control, fermentation processes, and clean-in-place (CIP) systems under FDA 21 CFR Part 11 compliance requirements. Audit trail capabilities and validated operation protocols supported.

Technical Specifications & Selection Guide

To facilitate system design and component selection, key technical parameters are outlined below. Custom configurations available based on project-specific requirements:

Selection Considerations: When specifying this controller, evaluate total I/O count requirements, communication protocol needs (PROFIBUS, PROFINET, Industrial Ethernet), environmental conditions, and redundancy architecture (1:1 hot-standby vs. distributed redundancy). For applications requiring safety functions, integrate with F-modules and TÜV-certified safety programming. Our application engineers can review P&ID drawings and functional specifications to recommend optimal configuration.

Advanced Integration Capabilities

• SCADA & HMI Connectivity: Native support for SIMATIC WinCC, PCS 7, and third-party SCADA platforms via OPC UA, OPC DA, and S7 communication protocols
• Industrial Ethernet Networking: Optional CP 443-1 communication processor enables PROFINET IO controller functionality and IT/OT network integration with cybersecurity features
• Remote Access & Diagnostics: Secure VPN connectivity for remote programming, monitoring, and troubleshooting via TeleService adapters, reducing on-site service requirements by up to 60%
• Asset Management Integration: Compatible with Siemens SIMATIC PDM, PCS 7 Asset Management, and third-party CMMS systems for lifecycle documentation and predictive maintenance workflows

Delivery, Service & Quality Assurance

Lead Time: Factory-sealed units typically ship within 3-5 business days from regional distribution centers. Custom-configured systems with pre-loaded programs and tested I/O assemblies available with 10-15 day lead time.

Warranty Coverage: All units include 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Complimentary pre-sales application consultation, post-installation commissioning assistance (remote or on-site based on location), and access to certified Siemens technical documentation including hardware manuals, programming guidelines, and communication protocol specifications.

Documentation Package: Each shipment includes hardware installation manual, electrical connection diagrams, GSD files for PROFIBUS configuration, sample ladder logic programs, and certificate of conformity. Custom documentation for engineered systems provided upon request.

Frequently Asked Questions (FAQ)

Q: How does the CPU 417H redundant controller integrate with existing S7-400 systems?
A: The CPU 417H requires a redundant S7-400H rack configuration with synchronized I/O modules and fiber-optic synchronization links between redundant CPUs. Existing S7-400 standard systems can be migrated by adding redundant hardware and converting programs to H-compatible format. Our engineers provide migration planning and validation services.

Q: What is the maximum I/O capacity supported by a single redundant pair?
A: Each CPU 417H pair supports up to 65,536 digital I/O points and 4,096 analog channels across distributed PROFIBUS DP networks and local expansion racks. Practical limits depend on communication cycle time requirements and program complexity – typical installations range from 2,000 to 8,000 I/O points.

Q: Can this controller achieve SIL 2 or SIL 3 safety ratings?
A: The CPU 417H itself is a standard automation controller. For safety-rated applications, integrate with S7-400FH safety CPUs or use F-modules with safety program blocks. Combined systems can achieve SIL 3 / PLe certification when properly engineered and validated per IEC 61508 standards.

Q: What programming software is required for configuration and maintenance?
A: SIMATIC STEP 7 V5.x (TIA Portal not compatible with S7-400H) is required for programming, diagnostics, and online modifications. Licenses available in single-user and network versions. We can provide pre-configured project templates to accelerate commissioning.

Q: How much energy savings can redundant architecture provide compared to non-redundant systems?
A: Redundant systems consume approximately 1.8× the power of single-CPU configurations due to dual processors and synchronized I/O. However, the business value lies in eliminating downtime costs – in process industries, avoiding a single hour of unplanned shutdown typically justifies the incremental energy cost for an entire year.

Q: What environmental protection rating does the CPU module offer?
A: Standard units are IP20 rated for enclosed control cabinet installation. When mounted in IP54/IP65 rated enclosures with proper climate control, the system operates reliably in dusty, humid, and temperature-variable industrial environments. Conformal coating services available for corrosive atmosphere applications.

Request Engineering Support

For detailed system architecture recommendations, bill-of-materials generation, or technical quotations, please provide our automation specialists with the following project information:

• Application description and process overview
• Total I/O count (digital inputs/outputs, analog signals)
• Communication requirements (PROFIBUS, PROFINET, Industrial Ethernet)
• Environmental conditions and installation location
• Redundancy requirements and availability targets
• Integration with existing control systems or SCADA platforms

Our certified Siemens solution partners will deliver customized proposals including hardware selection, network topology design, and implementation timelines within 48 hours.
