Siemens CPU 414H 6ES7414-4HJ00-0AB0 | S7-400H Redundant Controller for Critical Process Automation

Siemens CPU 414H 6ES7414-4HJ00-0AB0 – Industrial-Grade Redundant Controller for Mission-Critical Automation

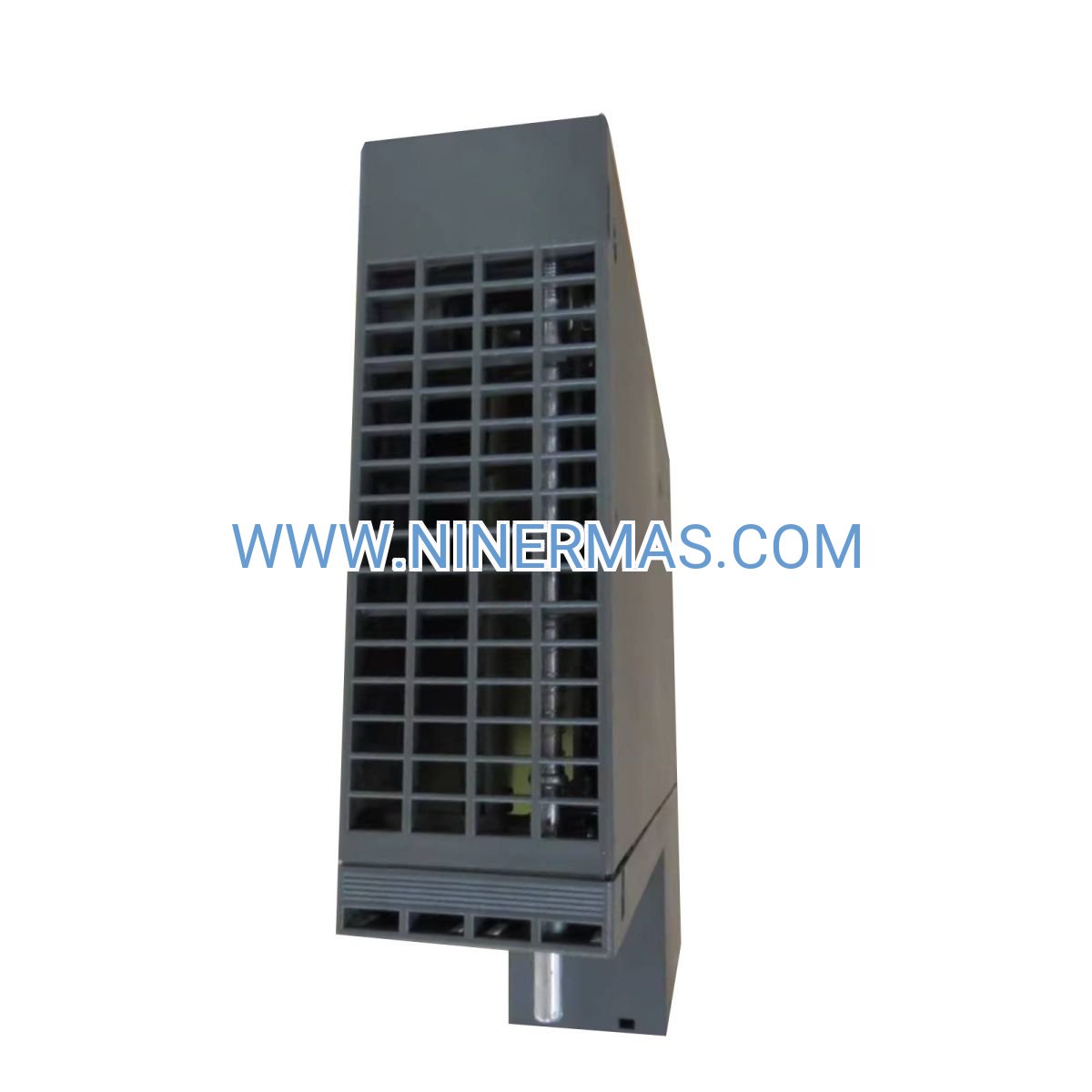

The Siemens CPU 414H (6ES7414-4HJ00-0AB0) is a high-availability central processing unit designed for S7-400H redundant automation systems. Through dual-CPU hot-standby architecture and seamless failover technology, it ensures zero-downtime operation in critical industrial processes where system interruptions can lead to production losses, safety hazards, or environmental risks.

Engineered for power generation facilities, petrochemical plants, pharmaceutical manufacturing, and water treatment systems, this controller addresses challenges such as unexpected equipment failures, process interruptions, and insufficient fault diagnostics. With built-in redundancy management and real-time synchronization, the CPU 414H minimizes unplanned downtime and maintenance costs.

Featuring 512KB work memory, 1.4MB load memory, and integrated PROFIBUS-DP interface, this module delivers robust performance for complex control logic and distributed I/O networks. Suitable for design institutes, system integrators, OEM manufacturers, and end-user facilities requiring certified industrial-grade components. Contact our automation engineers for application-specific configuration guidance and technical quotations.

Core Features & Technical Advantages

• Redundant Hot-Standby Architecture
  Dual-CPU configuration with automatic failover ensures continuous operation during hardware faults or maintenance activities. Synchronization occurs in real-time, eliminating process disruptions and maintaining control integrity across all I/O modules.
• High-Performance Processing Capacity
  Equipped with 512KB work memory and 1.4MB load memory, the CPU 414H handles complex automation tasks including advanced PID control, batch processing, and multi-axis motion coordination with execution speeds optimized for time-critical applications.
• Integrated PROFIBUS-DP Communication
  Built-in PROFIBUS-DP master interface supports distributed I/O networks up to 12 Mbps, enabling seamless integration with remote I/O stations, intelligent field devices, and third-party automation components across extended industrial networks.
• Hot-Swap & Online Diagnostics
  Module replacement during operation without system shutdown reduces maintenance windows. Comprehensive diagnostic buffers and LED status indicators provide real-time visibility into CPU health, communication status, and fault conditions for proactive maintenance planning.
• Comprehensive Protection Mechanisms
  Features include watchdog timer monitoring, memory integrity checks, power supply redundancy support, and electromagnetic compatibility (EMC) compliance to IEC 61000 standards, ensuring reliable operation in harsh industrial environments with electrical noise and temperature fluctuations.
• Scalable System Architecture
  Compatible with S7-400H rack systems supporting up to 21 modules per rack, expandable through UR2-H link modules for multi-rack configurations. Supports integration with SIMATIC HMI panels, SCADA systems, and MES platforms via PROFINET, Ethernet/IP, and OPC protocols.

Typical Application Scenarios

The CPU 414H is specifically designed for industries and processes where continuous operation and fault tolerance are mandatory:

• Power Generation & Distribution Systems
  Controls turbine management, generator synchronization, and substation automation in thermal, hydro, and renewable energy plants. Redundant architecture prevents cascading failures during grid disturbances or equipment malfunctions, maintaining stable power delivery.
• Petrochemical & Refining Operations
  Manages distillation columns, reactor control, and pipeline monitoring in oil refineries and chemical processing facilities. Ensures safe shutdown procedures and emergency response coordination during abnormal process conditions or safety system activations.
• Pharmaceutical & Biotechnology Manufacturing
  Regulates cleanroom environmental controls, batch reactor sequences, and sterile filling operations compliant with FDA 21 CFR Part 11 and EU GMP Annex 11 requirements. Audit trail capabilities and validated system documentation support regulatory inspections.
• Water & Wastewater Treatment Plants
  Automates pumping stations, filtration processes, and chemical dosing systems for municipal water supply and industrial effluent treatment. Redundancy prevents service interruptions affecting public health or environmental discharge compliance.
• Metallurgical & Heavy Industry
  Coordinates rolling mills, blast furnace controls, and continuous casting systems in steel production and metal processing. High-speed I/O processing and deterministic response times ensure product quality and equipment protection during high-temperature operations.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, the following specifications outline the CPU 414H's capabilities and system requirements:

Selection Considerations

When specifying the CPU 414H for your automation project, evaluate the following factors to ensure optimal system performance:

• Process Complexity: Assess total I/O count, control loop quantity, and program size to verify memory adequacy. For applications exceeding 512KB work memory, consider CPU 416H or CPU 417H variants.
• Communication Requirements: Determine PROFIBUS-DP network topology, slave device count, and cycle time constraints. Additional CP communication processors may be required for multi-protocol integration (PROFINET, Ethernet/IP, Modbus TCP).
• Redundancy Configuration: Plan for dual power supplies, redundant communication links, and synchronized I/O modules. Consult Siemens configuration manuals for fiber-optic link modules and geographic redundancy setups.
• Environmental Conditions: Verify ambient temperature, humidity, vibration levels, and EMC exposure against datasheet limits. Extended temperature variants or conformal coating may be necessary for extreme environments.
• Lifecycle & Support: Confirm product availability status and migration paths for long-term projects. Siemens typically provides 10+ years of spare parts availability and backward compatibility with legacy S7-400 systems.

For customized system architecture design, our automation engineers can provide detailed I/O allocation plans, network topology diagrams, and bill-of-materials based on your P&ID drawings and functional specifications.

System Integration & Expansion Capabilities

The CPU 414H seamlessly integrates into comprehensive automation ecosystems through standardized interfaces and protocol support:

• Distributed I/O Networks: Connect ET 200M, ET 200S, and ET 200pro remote I/O stations via PROFIBUS-DP for decentralized field device installation, reducing cabinet space and wiring costs.
• HMI & SCADA Connectivity: Compatible with SIMATIC WinCC, WinCC flexible, and third-party SCADA platforms (Wonderware, Ignition, iFIX) via S7 communication protocols and OPC DA/UA servers.
• Safety Integration: Interfaces with SIMATIC Safety Integrated systems (F-I/O modules, F-CPUs) for SIL 2/SIL 3 safety functions including emergency shutdown (ESD), fire & gas detection, and burner management systems (BMS).
• Asset Management: Supports SIMATIC PDM, PCS 7 Asset Management, and HART/PROFIBUS PA device integration for predictive maintenance, calibration tracking, and digital twin applications.
• Cloud & IIoT Readiness: Enables data connectivity to MindSphere, AWS IoT, Azure IoT Hub, and on-premise historians through CP 443-1 Advanced Ethernet modules with MQTT, REST API, and OPC UA pub/sub capabilities.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–5 business days from regional distribution centers. Custom-configured systems or bulk orders may require 2–4 weeks depending on component availability and factory testing requirements.

Warranty Coverage: All Siemens CPU modules include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans and advance replacement services are available through authorized service partners.

Technical Support: Comprehensive support includes pre-sales application consulting, commissioning assistance, remote diagnostics, and on-site troubleshooting (subject to geographic location and service agreement terms). Access to Siemens Industry Online Support portal for firmware updates, technical bulletins, and knowledge base articles.

Documentation Package: Each unit ships with complete technical documentation including hardware installation manual, programming guidelines, communication protocol specifications, CAD drawings (EPLAN, AutoCAD), and certificate of conformity. GSD files and STEP 7 hardware catalogs provided for engineering software integration.

Quality Certifications: Products sourced through authorized distribution channels with full traceability to Siemens manufacturing facilities. Compliance certificates available for CE, UL, ATEX, IECEx, and marine classification societies (DNV, ABS, Lloyd's) upon request.

Frequently Asked Questions (FAQ)

Q: How does the CPU 414H redundant system handle switchover during primary CPU failure?
A: The S7-400H system continuously synchronizes both CPUs in real-time. Upon detecting a primary CPU fault (hardware failure, communication loss, or watchdog timeout), the standby CPU assumes control within 500 milliseconds to 1 second, maintaining all process values and I/O states without interrupting field operations. Diagnostic buffers log the event for post-incident analysis.

Q: What is the maximum number of I/O modules supported in a redundant S7-400H configuration?
A: A single CPU 414H pair can address up to 65,536 digital I/O points and 4,096 analog channels across multiple racks. Typical configurations support 4–6 central racks plus distributed ET 200 stations. Actual capacity depends on communication bandwidth, cycle time requirements, and I/O module types (standard vs. high-density).

Q: Can the CPU 414H achieve energy savings compared to non-redundant systems?
A: While redundant systems inherently consume more power due to dual CPUs, the CPU 414H incorporates energy-efficient processing and optimized backplane communication. Primary savings come from eliminating unplanned downtime costs—studies show redundant automation can reduce production losses by 30–50% in continuous process industries, far outweighing incremental energy consumption.

Q: What environmental protection is required for CPU 414H installation?
A: The module is rated IP20 for installation in enclosed control cabinets with climate control. Ambient temperature must remain within 0–60°C (horizontal mounting) or 0–40°C (vertical mounting). Ensure adequate ventilation, dust filtration, and humidity control (5–95% RH, non-condensing). For harsh environments, consider NEMA 4X or IP65-rated enclosures with air conditioning.

Q: Does the CPU 414H support remote monitoring and cloud-based data analytics?
A: Yes, when paired with CP 443-1 Advanced communication processors or SIMATIC IOT2050 edge gateways, the system can transmit process data to cloud platforms (MindSphere, AWS, Azure) via secure VPN tunnels or cellular networks. Supports OPC UA, MQTT, and REST API protocols for integration with predictive maintenance, energy management, and production intelligence applications.

Q: What information is needed for accurate system sizing and quotation?
A: Please provide: (1) Total I/O count breakdown (digital inputs/outputs, analog inputs/outputs), (2) Required communication protocols and network topology, (3) Control program complexity estimate (function blocks, data blocks), (4) Redundancy requirements (hot-standby, geographic separation), (5) Environmental conditions and installation constraints, (6) Integration with existing systems (HMI, SCADA, safety systems). Our engineers will recommend optimized hardware configuration and provide detailed pricing.

Request Technical Consultation & Quotation

To receive a customized system proposal, technical specification review, or pricing quotation, please submit the following project details:

• Project name and application industry
• Process description and control objectives
• Total I/O requirements (digital/analog, standard/safety)
• Communication network architecture (PROFIBUS, PROFINET, Ethernet)
• Redundancy level and failover time constraints
• Environmental conditions and installation location
• Integration requirements (existing systems, third-party devices)
• Project timeline and delivery schedule

Our automation specialists will provide one-on-one engineering support including system architecture design, component selection, configuration assistance, and lifecycle cost analysis.
