Siemens CPU 412-3H 6ES7412-1XJ05-0AB0 | S7-400H Redundant PLC Controller with Hot-Standby Failover

Siemens CPU 412-3H (6ES7412-1XJ05-0AB0) – Industrial-Grade Redundant PLC Controller for Mission-Critical Applications

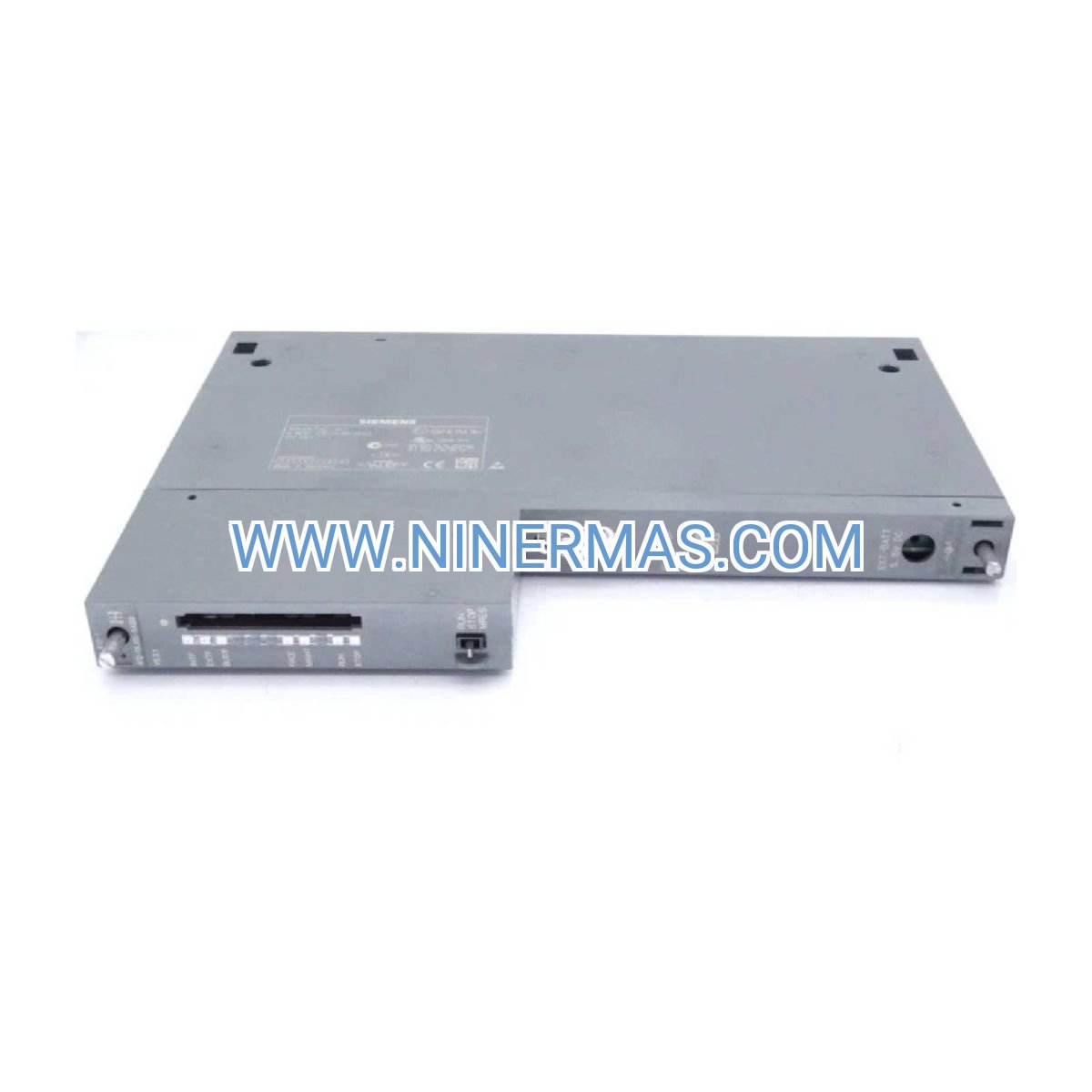

The Siemens CPU 412-3H is a high-availability redundant controller designed for S7-400H fault-tolerant automation systems. Through advanced hot-standby architecture and seamless failover technology (switchover time <100ms), it ensures continuous process control and maximizes system uptime in critical industrial environments.

Ideal for applications demanding zero-downtime operation—including petrochemical plants, power generation facilities, pharmaceutical manufacturing, water treatment systems, and continuous production lines—this controller addresses challenges such as single-point failures, unplanned shutdowns, production losses, and safety compliance requirements in hazardous processes.

Featuring standardized design with flexible configuration options, the CPU 412-3H delivers SIL 3 safety certification, 512KB work memory, bumpless switchover capability, and comprehensive diagnostic functions. Suitable for design engineers, system integrators, automation contractors, and plant maintenance teams. Contact our engineering team for customized redundancy solutions and technical quotations.

Core Features & Advantages

• Hot-Standby Redundancy Architecture
  Dual-CPU configuration with automatic synchronization and failover ensures uninterrupted operation. When the active CPU fails, the standby unit takes over within 100 milliseconds, eliminating process disruption and maintaining production continuity.
• Enhanced System Reliability
  Compared to simplex control systems, redundant architecture reduces downtime risk by up to 99.9%, significantly lowering maintenance costs and production losses in 24/7 continuous operation scenarios.
• SIL 3 Safety Certification
  Compliant with IEC 61508 functional safety standards, suitable for safety-instrumented systems (SIS) in hazardous industries such as oil & gas, chemical processing, and nuclear power applications.
• Comprehensive Diagnostic & Monitoring
  Built-in self-diagnostics, event logging, and real-time status monitoring via STEP 7 engineering software. Supports PROFIBUS DP, PROFINET IO, and industrial Ethernet communication for seamless SCADA/HMI integration.
• Flexible Expansion Capability
  Supports up to 21 expansion racks with distributed I/O modules, accommodating large-scale automation projects. Compatible with Siemens ET 200 remote I/O systems for cost-effective distributed control.
• User-Friendly Engineering Environment
  Programmed using STEP 7 (TIA Portal or Classic), supporting LAD, FBD, STL, SCL, and GRAPH languages. Extensive function libraries and pre-tested code blocks accelerate commissioning and reduce engineering time.

Typical Application Scenarios

The CPU 412-3H is engineered for high-reliability applications where process continuity and safety are paramount:

• Petrochemical & Refining Plants
  Controls critical processes such as distillation columns, catalytic crackers, and pipeline transportation systems. Redundant architecture prevents catastrophic failures and ensures compliance with API and NFPA safety standards.
• Power Generation & Distribution
  Manages turbine control, boiler automation, and substation protection systems in thermal, hydro, and combined-cycle power plants. Guarantees stable grid operation and rapid fault response.
• Pharmaceutical & Biotechnology Manufacturing
  Ensures GMP-compliant batch control, fermentation monitoring, and cleanroom environmental control. Maintains product quality and regulatory traceability in sterile production environments.
• Water & Wastewater Treatment
  Automates pumping stations, filtration processes, and chemical dosing systems for municipal and industrial water infrastructure. Provides reliable operation in unmanned remote facilities.
• Continuous Process Industries
  Supports steel mills, cement plants, pulp & paper production, and food processing lines where unplanned downtime results in significant financial losses and equipment damage.

Technical Specifications & Selection Guide

To facilitate system design and component selection, we provide key technical parameters for the CPU 412-3H:

Selection Recommendations:
When configuring a redundant S7-400H system, consider the following factors: required I/O capacity, communication protocol requirements (PROFIBUS/PROFINET), environmental conditions (temperature/humidity/vibration), power supply redundancy, and compliance with industry-specific safety standards (ATEX, IECEx for hazardous areas). Our application engineers can assist with system architecture design, hardware selection, and performance optimization based on your process requirements.

System Configuration & Integration Options

A complete S7-400H redundant system typically includes:

• Dual CPU 412-3H modules with synchronized operation
• Redundant power supply modules (PS 407 series recommended)
• Fiber-optic synchronization cables for inter-CPU communication
• Redundant communication processors (CP 443-1 for PROFINET, CP 443-5 for PROFIBUS)
• Distributed I/O via ET 200M/ET 200S redundant stations
• Engineering workstation with STEP 7 Professional software
• HMI/SCADA integration via WinCC or third-party systems

We offer turnkey system integration services including hardware supply, software configuration, FAT (Factory Acceptance Testing), on-site commissioning, and operator training.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 3-5 business days; custom-configured systems require 10-15 business days for assembly and testing.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and preventive maintenance contracts available.

Technical Support: Remote diagnostics, firmware updates, and application troubleshooting provided by certified Siemens engineers. On-site commissioning and training services available (region-dependent).

Documentation Package: Complete technical documentation including hardware manual, wiring diagrams, sample programs, and configuration guidelines provided with each shipment to facilitate installation and maintenance.

Frequently Asked Questions (FAQ)

Q: How does the CPU 412-3H redundant controller integrate with existing S7-400 systems?
A: The CPU 412-3H requires a dedicated S7-400H rack with redundant backplane and synchronization modules. It cannot be directly retrofitted into standard S7-400 racks. Migration from simplex to redundant architecture requires system re-engineering, including dual power supplies, fiber-optic sync cables, and STEP 7 program adaptation for redundancy management.

Q: What is the maximum I/O capacity supported by a single CPU 412-3H redundant pair?
A: Each CPU 412-3H supports up to 65,536 digital I/O points and 4,096 analog I/O channels across distributed ET 200 stations. Actual capacity depends on communication bandwidth, scan cycle requirements, and program complexity.

Q: What level of energy savings or efficiency improvement can be expected?
A: While the CPU itself does not directly reduce energy consumption, redundant architecture prevents costly unplanned shutdowns (which often waste raw materials, energy, and production time). In continuous process industries, avoiding a single 1-hour downtime event can save thousands of dollars in lost production and restart energy costs.

Q: What are the environmental and installation requirements for the CPU 412-3H?
A: Operating temperature range: 0°C to 60°C (horizontal mounting); storage: -40°C to +70°C. Relative humidity: 5% to 95% (non-condensing). Protection rating: IP20 (requires installation in enclosed control cabinets). Avoid exposure to corrosive gases, excessive vibration, or electromagnetic interference.

Q: Does the CPU 412-3H support remote monitoring and data acquisition?
A: Yes. Via PROFINET or Industrial Ethernet (with CP 443-1 module), the CPU 412-3H supports OPC UA, Modbus TCP, and S7 communication protocols for integration with SCADA systems, cloud platforms, and IIoT gateways. Real-time process data, alarms, and diagnostics can be accessed remotely.

Q: Is the CPU 412-3H suitable for safety-critical applications (SIL 3)?
A: Yes. The CPU 412-3H is certified for SIL 3 applications when configured according to Siemens safety guidelines. For dedicated safety functions (emergency shutdown, fire & gas detection), consider pairing with Siemens Safety Integrated modules or dedicated F-CPUs for enhanced safety integrity.

Request a Customized Solution

To receive a detailed system configuration proposal, technical quotation, or application-specific engineering support, please provide the following information:

• Project name and industry sector
• Application scenario (process type, criticality level)
• Required I/O capacity (digital/analog points)
• Communication protocol requirements (PROFIBUS/PROFINET/Ethernet)
• Environmental conditions and installation constraints
• Safety certification requirements (SIL, ATEX, etc.)

Our automation engineers will provide one-on-one consultation, system architecture recommendations, and competitive pricing within 24 hours.
