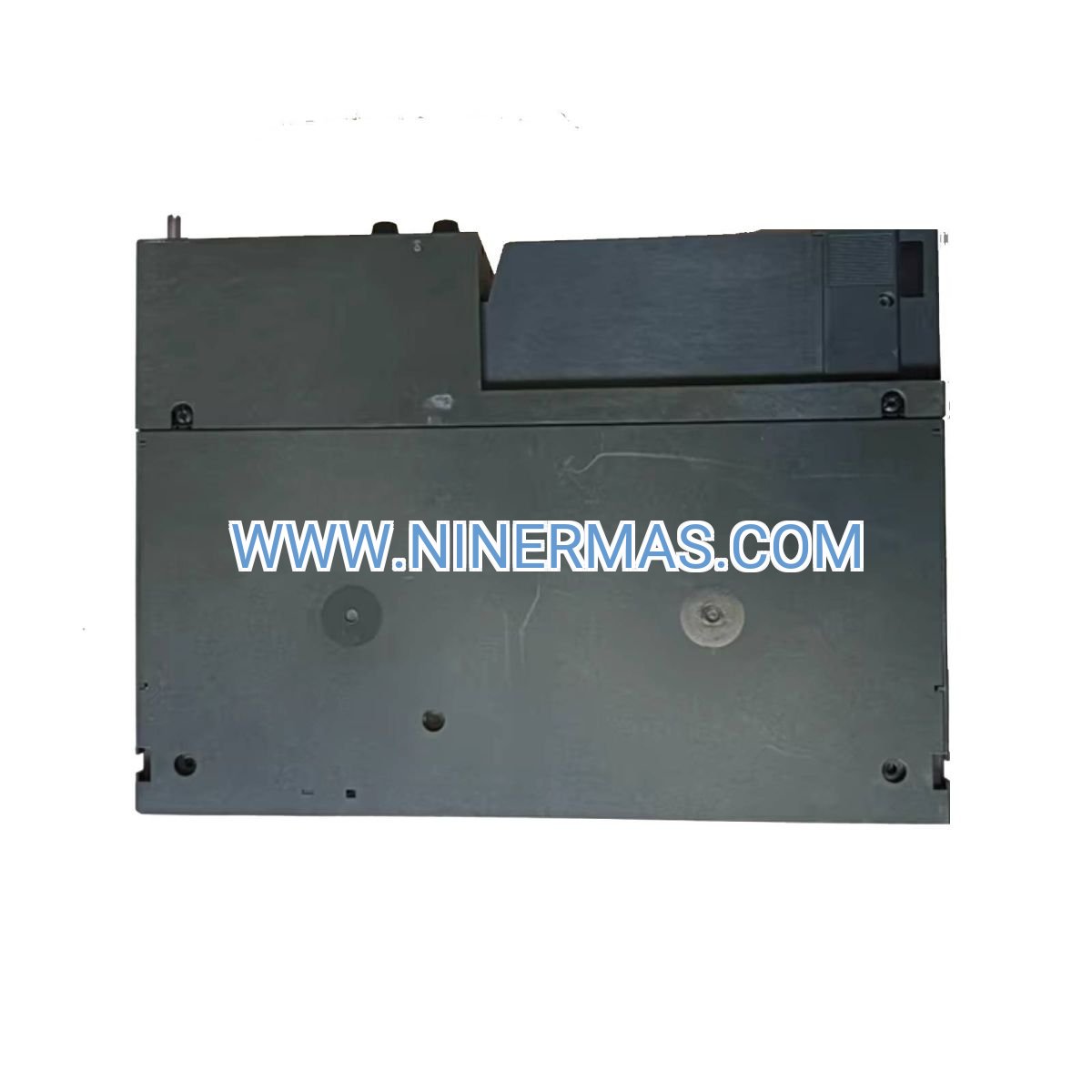

Siemens PS 407 10A Power Supply Module (Industrial-Grade Control System Component)

The Siemens 6ES7407-0KA01-0AA0 PS 407 is an industrial-grade power supply module designed specifically for S7-400 PLC systems, delivering stable 10A output through advanced switching-mode technology with wide-range voltage input (120/230V AC). It ensures continuous, reliable power distribution for mission-critical automation control applications.

Ideal for process automation, manufacturing control systems, energy management installations, and industrial data acquisition networks, this module addresses common challenges including voltage fluctuations, system downtime risks, redundancy requirements, and maintenance accessibility in 24/7 production environments.

Through standardized design and hot-swappable architecture, this power supply offers high reliability, energy efficiency, easy maintenance, and seamless S7-400 compatibility—suitable for design engineers, system integrators, OEM manufacturers, and plant maintenance teams. Contact our application engineers for selection guidance and technical specifications.

Core Features & Advantages

Wide-Range Input Voltage
Accepts 120/230V AC input with automatic voltage detection, eliminating manual switching and reducing installation errors across different regional power standards.

Hot-Swappable Design
Enables live replacement without system shutdown, minimizing production interruptions and supporting proactive maintenance strategies in continuous operation environments.

High Efficiency & Low Heat Generation
Switching-mode topology achieves up to 30% better efficiency compared to linear supplies, reducing cooling requirements and extending component lifespan in enclosed control cabinets.

Comprehensive Protection Functions
Integrated overvoltage, overcurrent, short-circuit, and thermal protection mechanisms safeguard downstream PLC modules and reduce unplanned downtime costs.

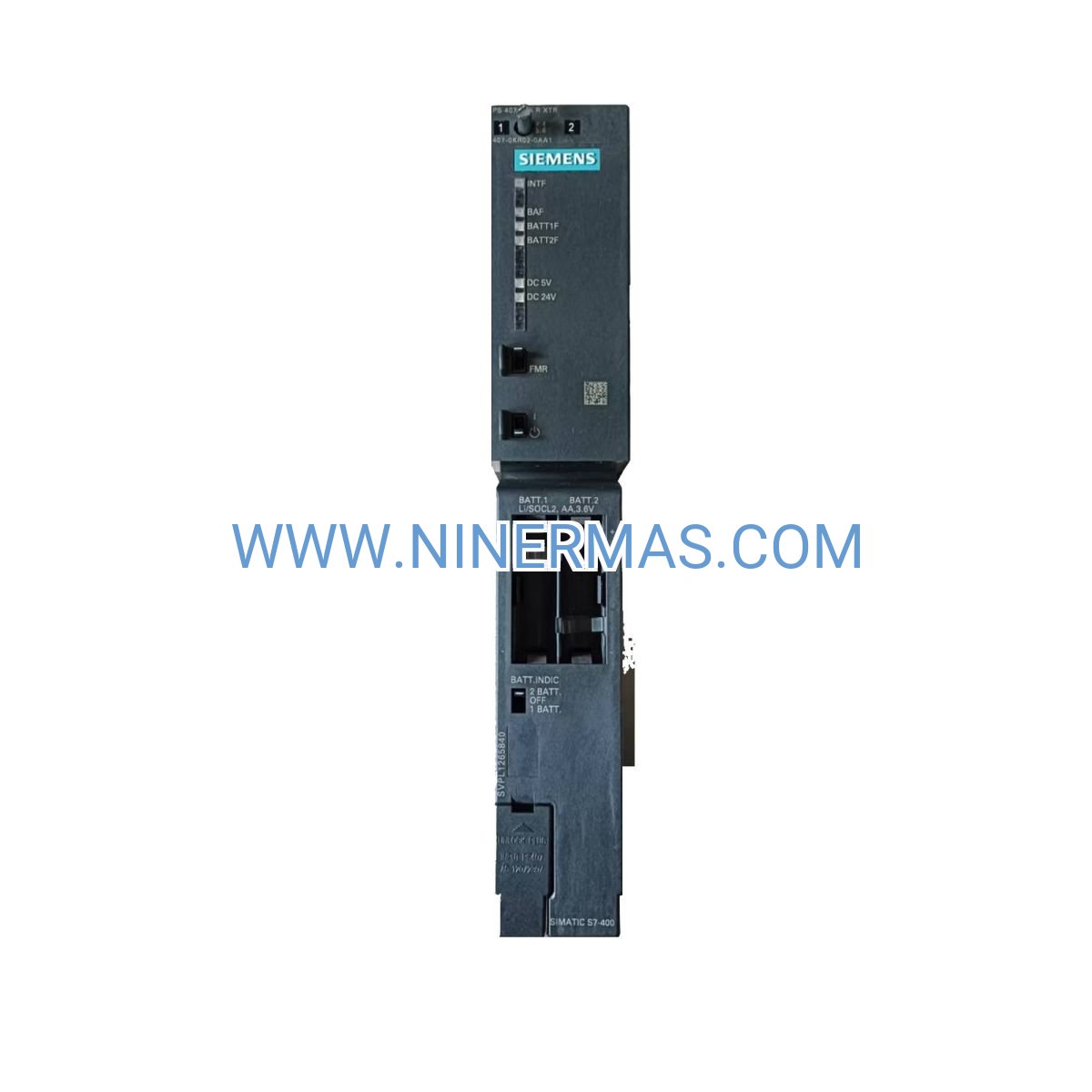

Diagnostic LED Indicators
Front-panel status LEDs provide instant visual feedback on power status and fault conditions, accelerating troubleshooting and reducing mean-time-to-repair (MTTR).

Compact DIN Rail Mounting
Standard S7-400 rack-mount form factor optimizes cabinet space utilization and ensures mechanical compatibility with existing Siemens automation infrastructure.

Typical Application Scenarios

This power supply module is engineered for applications demanding high power stability, system availability, and operational continuity, particularly in:

Process Automation & SCADA Systems
Provides reliable power backbone for distributed control systems (DCS) in chemical processing, oil & gas, water treatment, and pharmaceutical manufacturing where process interruptions carry significant safety and financial risks.

Manufacturing Execution Systems (MES)
Supports production line controllers, robotic work cells, and material handling systems in automotive, electronics assembly, and food & beverage industries requiring synchronized multi-axis control.

Energy Management & Building Automation
Powers HVAC control systems, lighting management networks, and utility monitoring installations in commercial buildings, data centers, and smart grid infrastructure.

Critical Infrastructure & Transportation
Ensures uninterrupted operation of railway signaling systems, airport baggage handling, tunnel ventilation control, and other applications where system failures impact public safety.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized electrical and mechanical specifications. Custom configurations available for special project requirements.

Key Specifications:

• Output Current: 10A @ 5V DC
• Input Voltage Range: 120/230V AC ±15% (auto-sensing)
• Input Frequency: 47-63 Hz
• Efficiency: Typically >85%
• Holdup Time: >20ms @ 230V AC
• Operating Temperature: 0°C to +60°C (horizontal mounting)
• Protection Rating: IP20 (for enclosed cabinet installation)
• Dimensions: Standard S7-400 module width
• Certifications: CE, UL, cUL, FM approved

Selection Recommendations:
When selecting power supplies, consider: total current consumption of installed CPU and I/O modules, ambient temperature and ventilation conditions, redundancy requirements (N+1 configuration), available input voltage at site, and future expansion capacity. For assistance, provide system configuration details and our engineers will recommend appropriate models and quantities.

Extended Functionality

Redundant Power Configuration Support
Multiple PS 407 modules can be paralleled in the same S7-400 rack to create N+1 redundant power architectures, automatically load-sharing during normal operation and providing full backup capacity during single-module failure.

Remote Monitoring Integration
Status signals can be interfaced with SCADA systems or building management platforms via digital I/O modules, enabling centralized power monitoring and predictive maintenance scheduling.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom-configured systems require 10-15 days depending on specifications.

Warranty: 12-month manufacturer warranty covering material and workmanship defects; extended service agreements available.

Technical Support: Remote application engineering assistance included; on-site commissioning support available for major projects (region-dependent).

Documentation Package: Each module ships with installation manual, electrical schematics, terminal wiring diagrams, and compliance certificates to facilitate installation and regulatory approval.

Frequently Asked Questions (FAQ)

Q: How do I integrate the PS 407 power supply with existing S7-400 PLC racks?
A: The PS 407 uses standard S7-400 rack mounting. Simply slide the module into any available slot on the mounting rail and secure with the locking mechanism. No special tools required. Verify total current draw does not exceed 10A capacity.

Q: Can one PS 407 module power an entire S7-400 system?
A: It depends on your configuration. Calculate the sum of current consumption for your CPU, communication processors, and I/O modules. If total is below 8A (recommended 80% derating), a single PS 407 is sufficient. For larger systems or redundancy, use multiple modules.

Q: What energy savings can I expect compared to older power supplies?
A: Switching-mode PS 407 modules typically achieve 85-90% efficiency versus 50-60% for linear supplies, potentially reducing power consumption by 30-40% and significantly lowering heat dissipation in control cabinets.

Q: What are the environmental requirements for installation?
A: Operate within 0-60°C ambient temperature (horizontal mounting; derate for vertical), ensure adequate ventilation (minimum 50mm clearance above/below), and install in IP20-rated or better enclosures to meet protection specifications.

Q: Does the PS 407 support remote monitoring and diagnostics?
A: The module provides LED status indicators for local diagnostics. For remote monitoring, interface the status signals with S7-400 digital input modules, then access via PROFIBUS, PROFINET, or Ethernet communication networks.

Q: Is the module compatible with both 120V and 230V power systems?
A: Yes, the PS 407 features auto-sensing wide-range input (120/230V AC ±15%), automatically adapting to available voltage without manual configuration or jumper settings.

Request Technical Support & Quotation

For detailed selection assistance, project-specific pricing, or technical consultation, please provide the following information: project name, application type, S7-400 system configuration (CPU model, I/O module count and types), total estimated current draw, input voltage available at site, environmental conditions, and redundancy requirements. Our application engineers will provide personalized recommendations and competitive quotations within 24 hours.
