Siemens 6ES7392-1BJ00-0AA0 | 40-Pin Screw Terminal Front Connector for S7-300 PLC

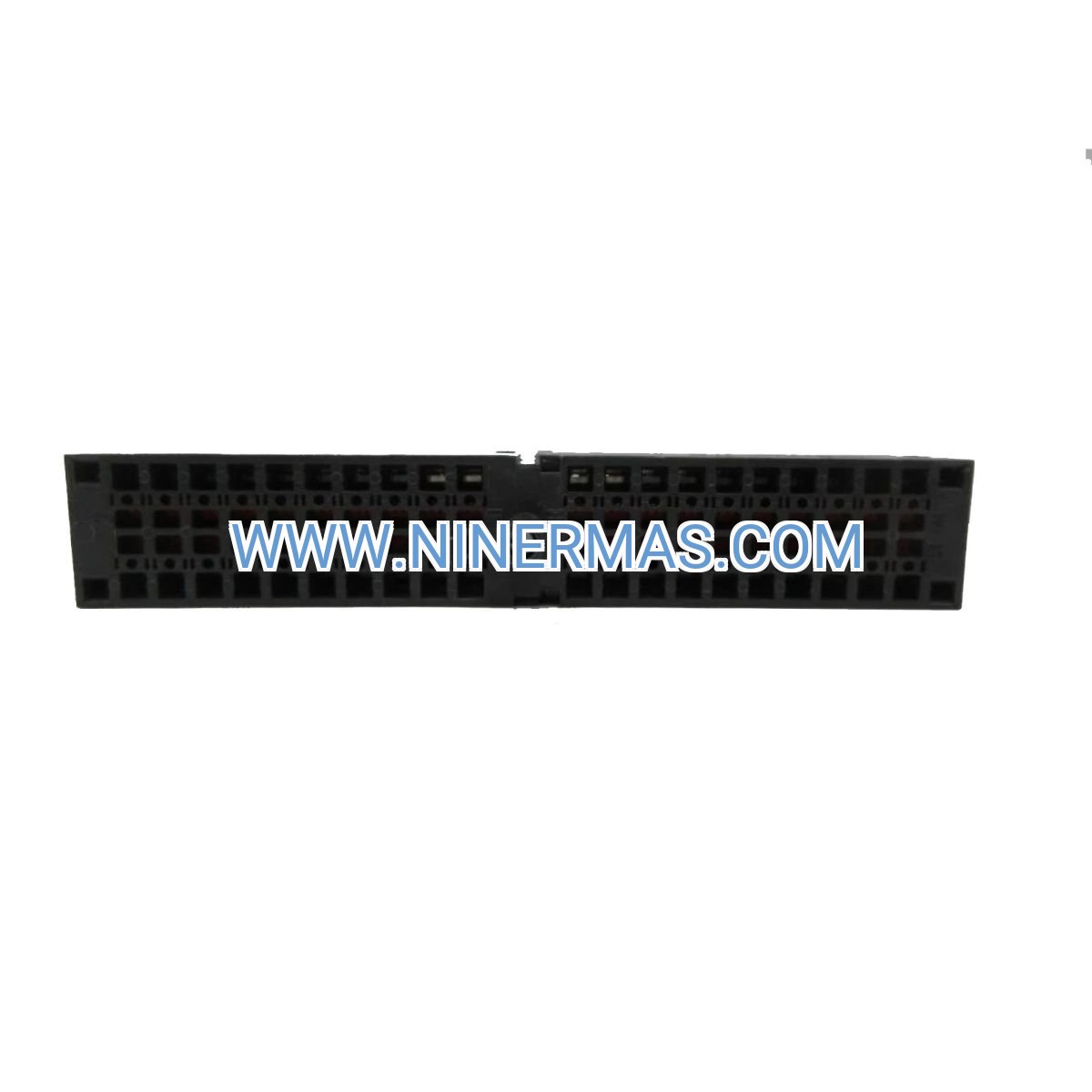

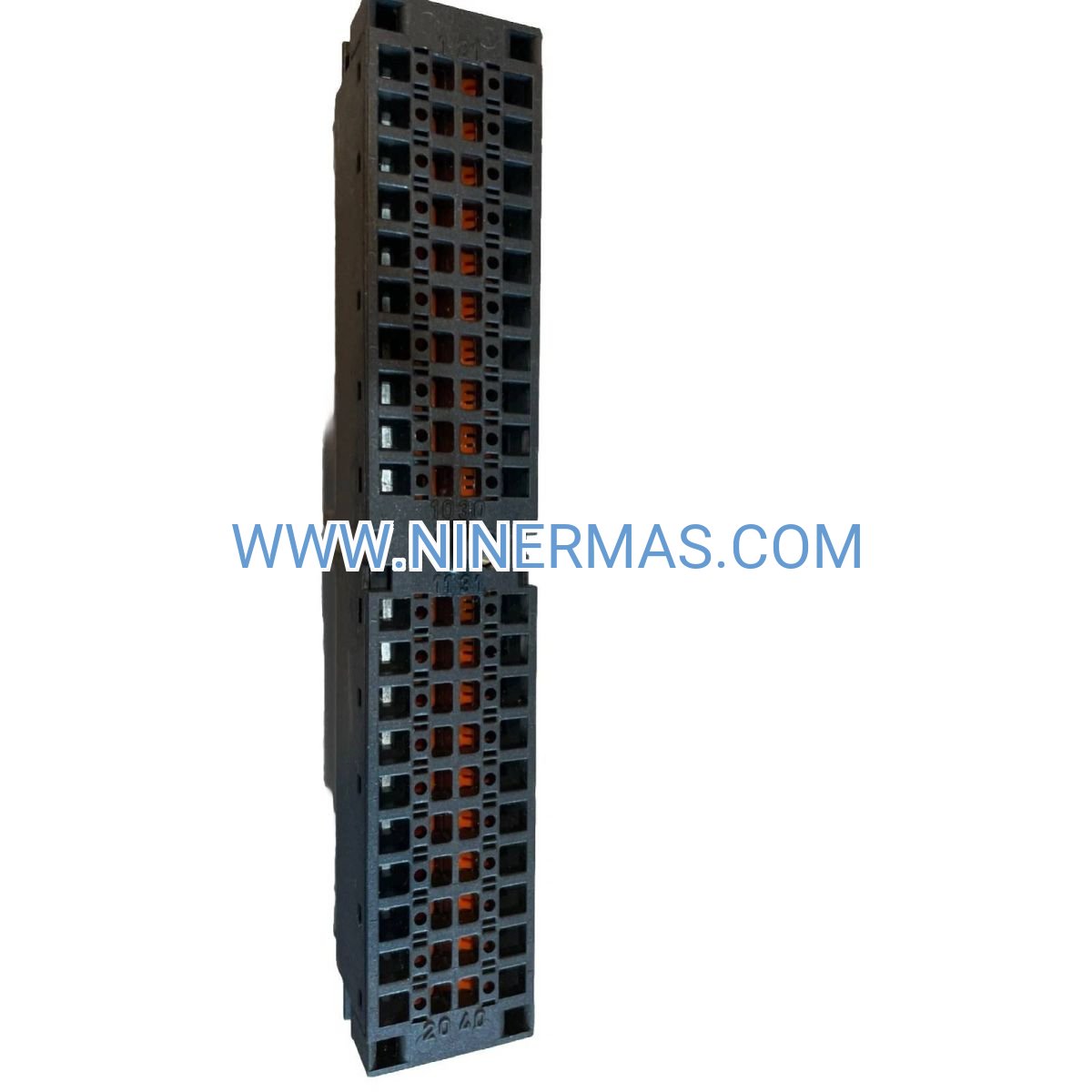

Siemens 6ES7392-1BJ00-0AA0 Front Connector (Industrial-Grade Screw Terminal Solution)

The Siemens 6ES7392-1BJ00-0AA0 is a 40-pin screw terminal front connector designed specifically for S7-300 digital I/O modules. Through its quick-disconnect mechanism and vibration-resistant screw terminals, it ensures reliable signal transmission and simplified maintenance in industrial automation systems.

Ideal for manufacturing plants, process control systems, machine automation, and industrial control panels where frequent wiring changes or module replacements are required. This connector addresses common challenges including loose connections due to vibration, time-consuming field wiring, signal integrity issues, and unplanned downtime during maintenance.

With standardized design and proven Siemens quality, this front connector delivers fast installation, maintenance-free operation, excellent compatibility with S7-300 ecosystem, and long-term reliability. Suitable for system integrators, control panel builders, OEM manufacturers, and plant maintenance teams. Contact our engineers for technical specifications and volume pricing.

Core Features & Advantages

Quick-Disconnect Design
Tool-free module replacement enabled by front connector architecture. Simply unplug the connector to swap modules without rewiring, reducing maintenance downtime by up to 70% compared to direct-wired installations.

Vibration-Resistant Screw Terminals
Industrial-grade screw clamps maintain secure wire contact even in high-vibration environments such as press lines, packaging machinery, and mobile equipment applications.

40-Pin High-Density Configuration
Supports full 32-point digital I/O modules plus auxiliary connections. Accommodates wire gauges from 0.5 to 2.5 mm² (AWG 20-14), suitable for both signal and power wiring requirements.

Clear Terminal Identification
Numbered terminal positions with color-coded labeling areas reduce wiring errors during installation and troubleshooting. Compatible with standard industrial label printers for custom identification.

IP20 Protection Rating
Enclosed terminal design prevents accidental contact and dust ingress, meeting safety requirements for control cabinet installations per IEC 60529 standards.

Proven Siemens Quality
Manufactured to original Siemens specifications with UL, CE, and RoHS compliance. Backed by comprehensive technical documentation and global support network.

Typical Application Scenarios

This front connector is engineered for industrial environments demanding high reliability, easy maintenance, and system flexibility:

Manufacturing Automation & Production Lines
Connects digital sensors, actuators, and safety devices to S7-300 PLCs in automotive assembly, electronics manufacturing, and food processing plants. Quick-disconnect capability minimizes production interruptions during equipment upgrades or troubleshooting.

Process Control & SCADA Systems
Interfaces field instruments in chemical plants, water treatment facilities, and oil & gas installations. Screw terminals ensure reliable connections in environments with temperature fluctuations and mechanical stress.

Machine Building & OEM Equipment
Standard component for packaging machines, textile equipment, printing presses, and material handling systems. Simplifies panel wiring during machine assembly and facilitates on-site commissioning.

Building Automation & Infrastructure
Connects HVAC controls, lighting systems, and access control devices in commercial buildings and industrial facilities requiring centralized monitoring and control.

Retrofit & Modernization Projects
Enables modular upgrades of existing S7-300 installations without complete system rewiring. Particularly valuable when adding I/O capacity or replacing obsolete modules.

Technical Parameters & Selection Guide

To ensure optimal compatibility and performance, please verify the following specifications match your application requirements:

Basic Specifications:

• Article Number: 6ES7392-1BJ00-0AA0
• Terminal Type: Screw terminals (cage clamp design)
• Number of Pins: 40-pin configuration
• Wire Cross-Section: 0.5 to 2.5 mm² (AWG 20-14)
• Stripping Length: 6-7 mm recommended
• Tightening Torque: 0.5 Nm (4.4 lb-in)

Compatibility & Environment:

• Compatible Modules: S7-300 digital input/output modules (32-point DI/DO/DIO)
• Mounting: Direct snap-on to S7-300 module front face
• Protection Rating: IP20 (enclosed installation required)
• Operating Temperature: 0 to +60°C (32 to 140°F)
• Storage Temperature: -40 to +70°C (-40 to 158°F)
• Humidity: 5% to 95% RH, non-condensing

Compliance & Standards:

• CE marked, UL listed, RoHS compliant
• Meets IEC 61131-2 for programmable controllers
• Conforms to EN 60529 for IP protection ratings

Selection Recommendations:
When selecting front connectors, consider: (1) I/O module type and pin count – verify 40-pin requirement; (2) Wire gauge and type – solid or stranded conductors within specified range; (3) Installation environment – temperature, vibration, and accessibility for maintenance; (4) Labeling requirements – plan for terminal identification scheme. For assistance with system design or bulk orders, provide your module configuration, panel layout, and environmental conditions to our engineering team for customized recommendations.

Installation & Wiring Best Practices

Pre-Installation Checklist:

• Verify module compatibility (check S7-300 module part number)
• Prepare wires: strip 6-7 mm insulation, use ferrules for stranded wire
• Plan terminal assignments using wiring diagram
• Ensure power is disconnected before installation

Installation Steps:

• Wire the front connector on workbench before mounting (easier access)
• Use appropriate screwdriver (3.5 mm blade width recommended)
• Tighten terminals to 0.5 Nm – avoid over-tightening
• Apply terminal labels before connecting to module
• Align connector with module pins and press firmly until click
• Verify secure mechanical connection before power-up

Maintenance & Troubleshooting:

• Inspect terminal tightness annually in high-vibration environments
• Check for wire insulation damage or discoloration
• Clean connector housing with dry cloth (no solvents)
• For intermittent signals, verify terminal torque and wire condition
• Replacement connectors available for damaged units – no module replacement needed

Delivery, Service & Quality Assurance

Product Availability:
Standard Siemens original parts typically ship within 3-7 business days from regional warehouses. For urgent requirements or large quantities, expedited delivery options are available. Custom cable assemblies or pre-wired connectors can be arranged with 10-15 day lead time.

Warranty & Support:
All Siemens original products include 12-month manufacturer warranty covering material and workmanship defects. Technical support available via phone and email for installation guidance, troubleshooting assistance, and compatibility verification. On-site commissioning support can be arranged for major projects (location-dependent).

Documentation & Resources:
Each connector ships with installation instructions and terminal layout diagram. Complete technical specifications, CAD drawings, and wiring examples available for download. Our engineering team can provide customized wiring diagrams for your specific application upon request.

Quality Certifications:
Manufactured in Siemens certified facilities with ISO 9001 quality management. Products undergo electrical continuity testing, mechanical fit verification, and environmental stress screening before shipment. Full traceability documentation available for regulated industries.

Frequently Asked Questions (FAQ)

Q: How do I verify this front connector is compatible with my S7-300 module?
A: This 6ES7392-1BJ00-0AA0 connector is designed for 40-pin S7-300 digital I/O modules. Check your module part number – if it's a 32-point DI, DO, or DIO module (such as 6ES7321, 6ES7322, or 6ES7323 series with 32 channels), this connector will fit. Refer to the module datasheet or contact us with your module part number for confirmation.

Q: Can I use stranded wire with these screw terminals?
A: Yes, both solid and stranded wires are supported within the 0.5-2.5 mm² range. For stranded wire, we strongly recommend using wire ferrules (end sleeves) to prevent strand breakage and ensure reliable long-term connection. Ferrules also allow higher tightening torque without wire damage.

Q: What's the advantage of using a front connector versus direct wiring to the module?
A: Front connectors enable module replacement without rewiring – simply unplug the connector, swap the module, and reconnect. This reduces maintenance time from 30-60 minutes to under 5 minutes, critical for minimizing production downtime. Additionally, pre-wiring connectors on the workbench improves wiring quality and reduces installation errors.

Q: Is this connector suitable for outdoor or harsh industrial environments?
A: The connector itself is rated IP20, meaning it must be installed inside an enclosed control cabinet or panel. The cabinet should provide appropriate environmental protection (typically IP54 or higher for industrial settings). The screw terminals are designed to withstand vibration and temperature variations typical of industrial environments when properly enclosed.

Q: Can I order pre-wired connectors with custom cable lengths?
A: Yes, we offer custom cable assembly services. Provide your wiring schedule (terminal assignments, wire colors, cable length, and connector type on the opposite end) and we can supply pre-wired, tested connectors. This service is particularly valuable for OEM machine builders producing multiple identical units. Lead time is typically 10-15 business days depending on quantity.

Q: Do you provide technical support for wiring and installation?
A: Absolutely. Our technical team can assist with terminal assignment planning, wire sizing calculations, and troubleshooting. For complex projects, we can review your electrical schematics and provide wiring recommendations. Contact us with your project details – we're here to ensure successful implementation.

Request Technical Support & Quotation

For detailed selection assistance, volume pricing, or technical consultation, please provide the following information:

• Project Overview: Application type and industry
• Module Configuration: S7-300 module part numbers and quantity
• Connector Quantity: Number of units required
• Wiring Requirements: Wire gauge, cable type, custom assembly needs
• Delivery Timeline: Project schedule and required delivery date
• Installation Environment: Temperature range, vibration level, cabinet specifications

Our application engineers will respond within 24 hours with technical recommendations, compatibility confirmation, and competitive pricing. We support system integrators, panel builders, and end users worldwide with expert guidance and reliable product supply.
