Siemens 6ES7390-1AE80-0AA0 Mounting Rail for S7-300 PLC Systems

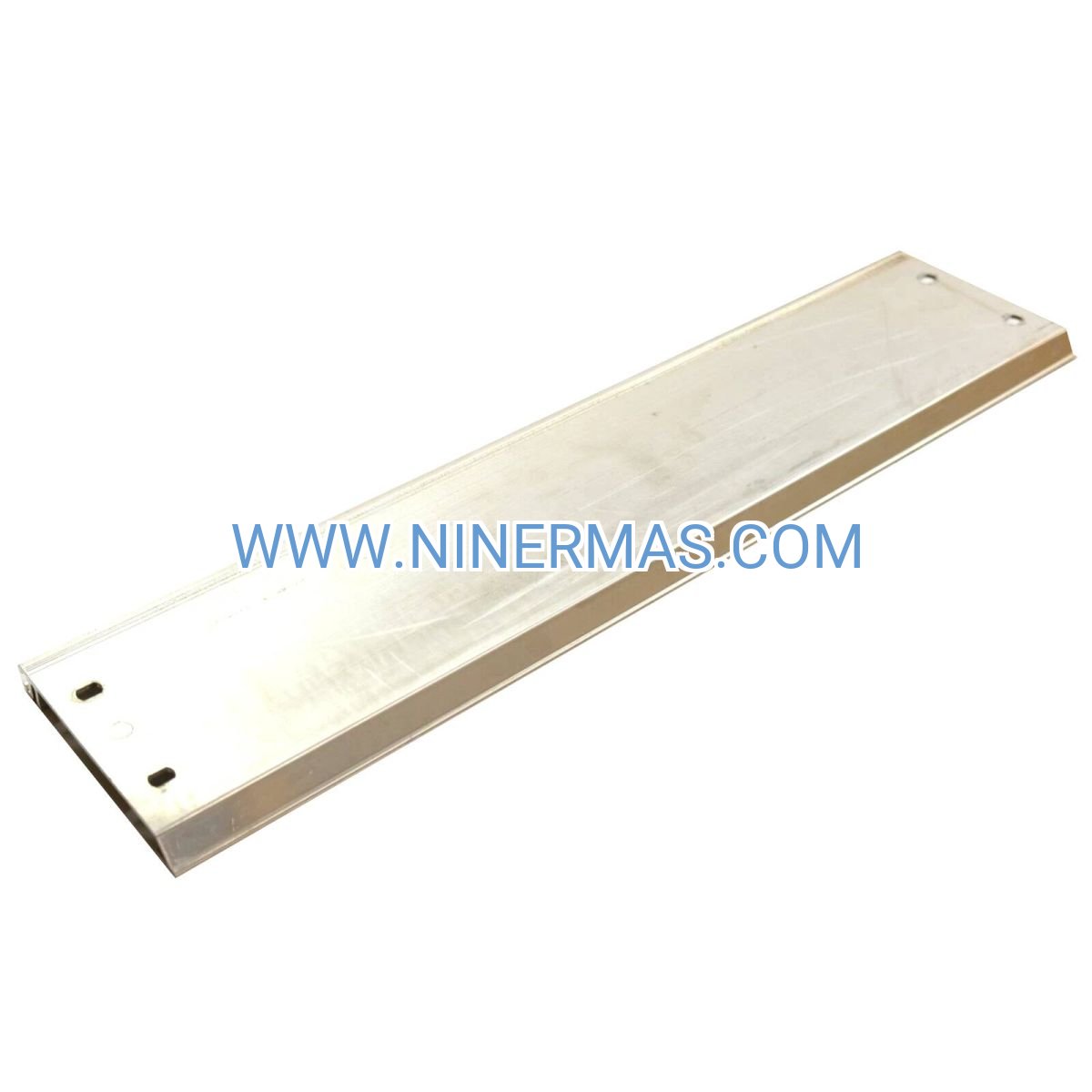

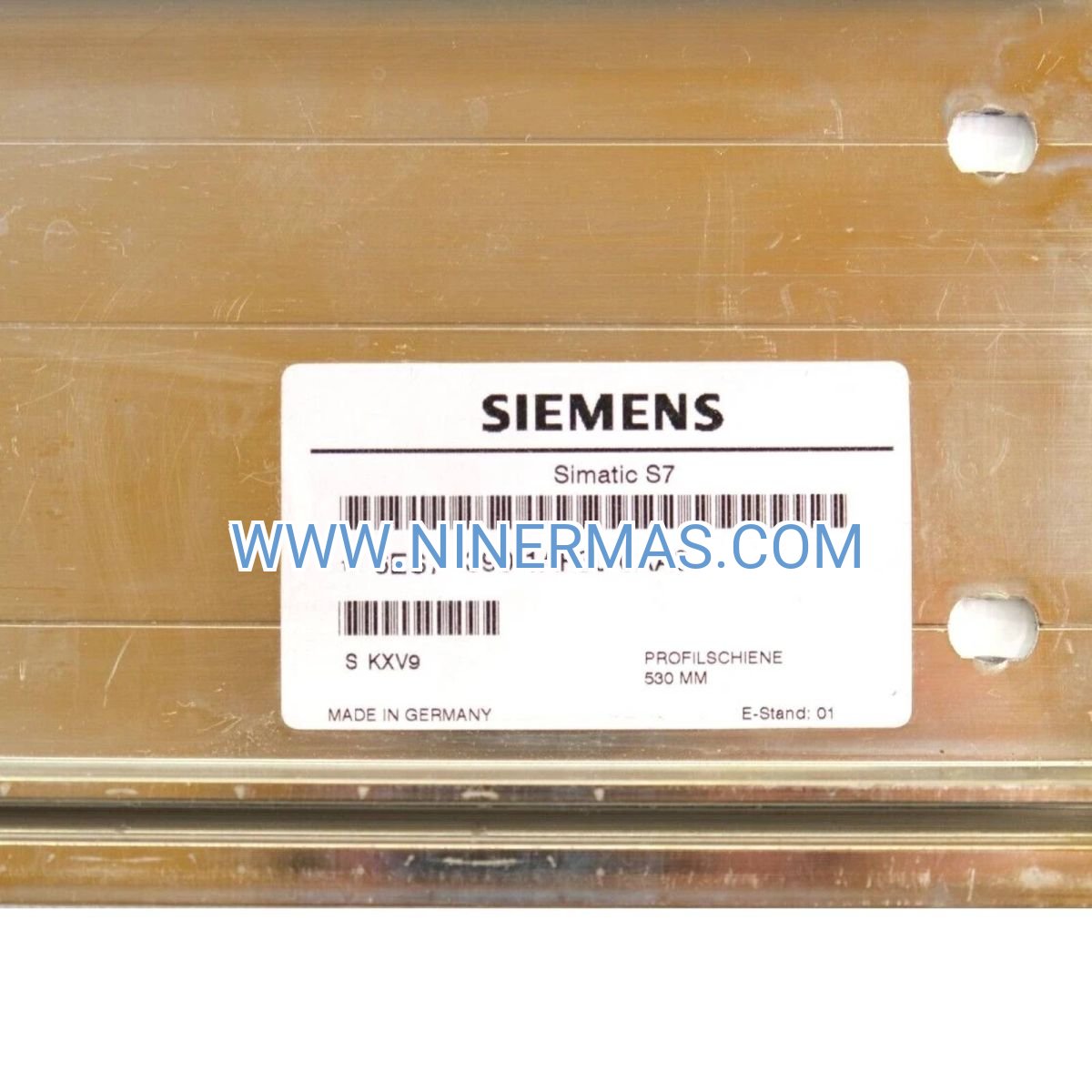

The Siemens 6ES7390-1AE80-0AA0 is a precision-engineered 530mm aluminum mounting rail designed specifically for S7-300 programmable logic controller systems. Through standardized DIN rail construction and optimized module spacing, this component enables secure installation of up to 11 S7-300 modules while maintaining proper electrical grounding and mechanical stability.

Ideal for industrial control panel builders, system integrators, and automation engineers working on manufacturing automation, process control systems, and machine control applications. This mounting rail solves common challenges including inconsistent module alignment, inadequate grounding paths, limited expansion capacity, and installation time inefficiencies in control cabinet assembly.

Backed by Siemens factory certification and global quality standards, this mounting rail delivers reliable performance, simplified maintenance access, and seamless compatibility with the complete S7-300 product family. Suitable for design engineers, panel builders, OEM manufacturers, and end-user maintenance teams. Contact our technical team for application-specific mounting configurations and system integration support.

Core Features & Technical Advantages

• Precision Module Positioning
  Factory-calibrated mounting slots ensure accurate S7-300 module alignment with consistent spacing intervals, eliminating installation errors and reducing assembly time by up to 40% compared to generic rail solutions.
• Superior Grounding Performance
  Anodized aluminum construction with integrated grounding channels provides low-impedance electrical paths, minimizing EMI interference and ensuring reliable signal integrity in high-noise industrial environments.
• Optimized Capacity Design
  530mm length accommodates up to 11 standard S7-300 modules with proper thermal spacing, supporting scalable system architectures from compact machine controls to distributed process automation networks.
• Enhanced Mechanical Durability
  Reinforced profile geometry withstands vibration loads up to 5g and temperature cycling from -25°C to +60°C, extending service life in demanding applications such as metalworking, chemical processing, and mobile machinery.
• Rapid Installation System
  Tool-free snap-mounting mechanism with integrated end stops enables single-person installation in under 3 minutes, reducing panel assembly labor costs and minimizing production downtime during retrofits.
• Universal Cabinet Compatibility
  Standard 35mm DIN rail profile fits all IEC 60715-compliant enclosures and mounting systems, ensuring seamless integration with Rittal, Hoffman, and other industry-standard control cabinet platforms.

Typical Application Scenarios

This mounting rail is engineered for industrial environments requiring precise PLC module installation, consistent electrical performance, and long-term mechanical reliability:

• Manufacturing Automation & Production Lines
  Supports distributed control architectures in automotive assembly, packaging machinery, and material handling systems where modular PLC expansion and rapid troubleshooting access are critical for minimizing production interruptions.
• Process Control & SCADA Systems
  Provides stable mounting foundation for S7-300 controllers managing chemical reactors, water treatment facilities, and pharmaceutical batch processes, ensuring reliable operation in environments with temperature fluctuations and electrical noise.
• Machine Control & OEM Equipment
  Enables compact control panel designs for CNC machines, injection molding equipment, and textile machinery, where space optimization and vibration resistance are essential for maintaining positioning accuracy and process repeatability.
• Building Automation & Infrastructure
  Facilitates installation of HVAC control systems, elevator controllers, and energy management platforms in commercial buildings and industrial facilities requiring 24/7 operational availability and simplified maintenance procedures.
• Retrofit & System Upgrades
  Streamlines modernization projects replacing obsolete control systems, providing standardized mounting infrastructure that reduces engineering time and ensures compatibility with existing cabinet layouts and wiring configurations.

Technical Specifications & Selection Guide

To ensure optimal system performance and installation efficiency, review the following technical parameters and selection criteria:

Selection Recommendations

When specifying mounting rails for your S7-300 system, consider the following factors: total number of I/O modules and function blocks required, available cabinet width and depth dimensions, ambient temperature range and vibration exposure levels, future expansion requirements (recommend 20-30% spare capacity), and accessibility needs for maintenance and troubleshooting. For custom configurations or multi-rail assemblies, provide your system architecture diagram and module list to our engineering team for optimized layout recommendations.

Extended Configuration Options

• Multi-Rail Assemblies: Vertical stacking configurations for high-density I/O applications with up to 4 parallel rails
• End Brackets & Accessories: Reinforcement kits for mobile equipment and high-vibration environments
• Grounding Kits: Enhanced EMC performance packages for sensitive analog signal processing
• Labeling Systems: Integrated marker strips and cable identification solutions for simplified documentation

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom-length rails and accessory kits require 10-15 business days for fabrication and quality verification.

Warranty Coverage: All Siemens mounting rails include a 12-month manufacturer warranty covering material defects and workmanship issues, with extended service agreements available for critical infrastructure applications.

Technical Support: Comprehensive installation documentation provided with each order, including dimensional drawings, mounting torque specifications, and grounding connection diagrams. Remote technical consultation and on-site commissioning support available based on project scope and geographic location.

Quality Certification: Every rail undergoes factory inspection for dimensional accuracy, surface finish quality, and electrical continuity. Products ship with certificate of conformity and traceability documentation for regulated industries.

Frequently Asked Questions (FAQ)

Q: How does the Siemens 6ES7390-1AE80-0AA0 mounting rail integrate with existing S7-300 control panels?
A: This rail uses the standard 35mm DIN profile compatible with all IEC 60715 enclosures. Simply snap the rail onto existing mounting brackets or secure with M4 screws. Verify your cabinet has minimum 540mm horizontal clearance and confirm module spacing requirements based on your I/O configuration.

Q: What is the maximum number of S7-300 modules this 530mm rail can support?
A: The rail accommodates up to 11 standard-width S7-300 modules (40mm each). For systems using double-width modules or requiring additional thermal spacing, capacity reduces proportionally. Contact our engineering team with your module list for precise layout verification.

Q: What energy efficiency or operational cost benefits does proper mounting rail selection provide?
A: While the rail itself doesn't directly reduce energy consumption, proper module alignment and grounding minimize signal errors and false trips that cause production downtime. Customers report 15-25% reduction in troubleshooting time and improved system uptime through optimized installation practices.

Q: What environmental conditions and protection ratings does this mounting rail support?
A: The rail operates reliably from -25°C to +60°C with 5g vibration resistance. When installed in IP54 or higher rated enclosures, the complete assembly meets industrial environmental standards. For outdoor or corrosive environments, specify stainless steel rail variants or protective coating options.

Q: Can this mounting rail support remote monitoring or integrate with SCADA data acquisition systems?
A: The mounting rail provides mechanical and electrical infrastructure for S7-300 modules that communicate via PROFIBUS, PROFINET, and Ethernet protocols. Your S7-300 CPU and communication modules determine remote monitoring capabilities—the rail ensures reliable physical connectivity and grounding for these networks.

Q: Is this mounting rail compatible with other PLC brands or only Siemens S7-300 systems?
A: While engineered specifically for S7-300 module spacing and grounding requirements, the standard 35mm DIN profile accepts most industrial control components including terminal blocks, power supplies, and relay modules from other manufacturers. However, optimal performance and warranty coverage apply when used with genuine Siemens S7-300 products.

Request Technical Support & Quotation

For detailed system design assistance, custom rail configurations, or project-specific pricing, please provide the following information: project name and application type, total number and types of S7-300 modules required, cabinet dimensions and environmental conditions, electrical specifications and grounding requirements, delivery timeline and installation support needs. Our automation specialists will respond within 24 hours with tailored recommendations and competitive quotations.
