Siemens IM 360 Interface Module 6ES7360-3AA01-0AA0 | S7-300 PLC Rack Expansion Solution

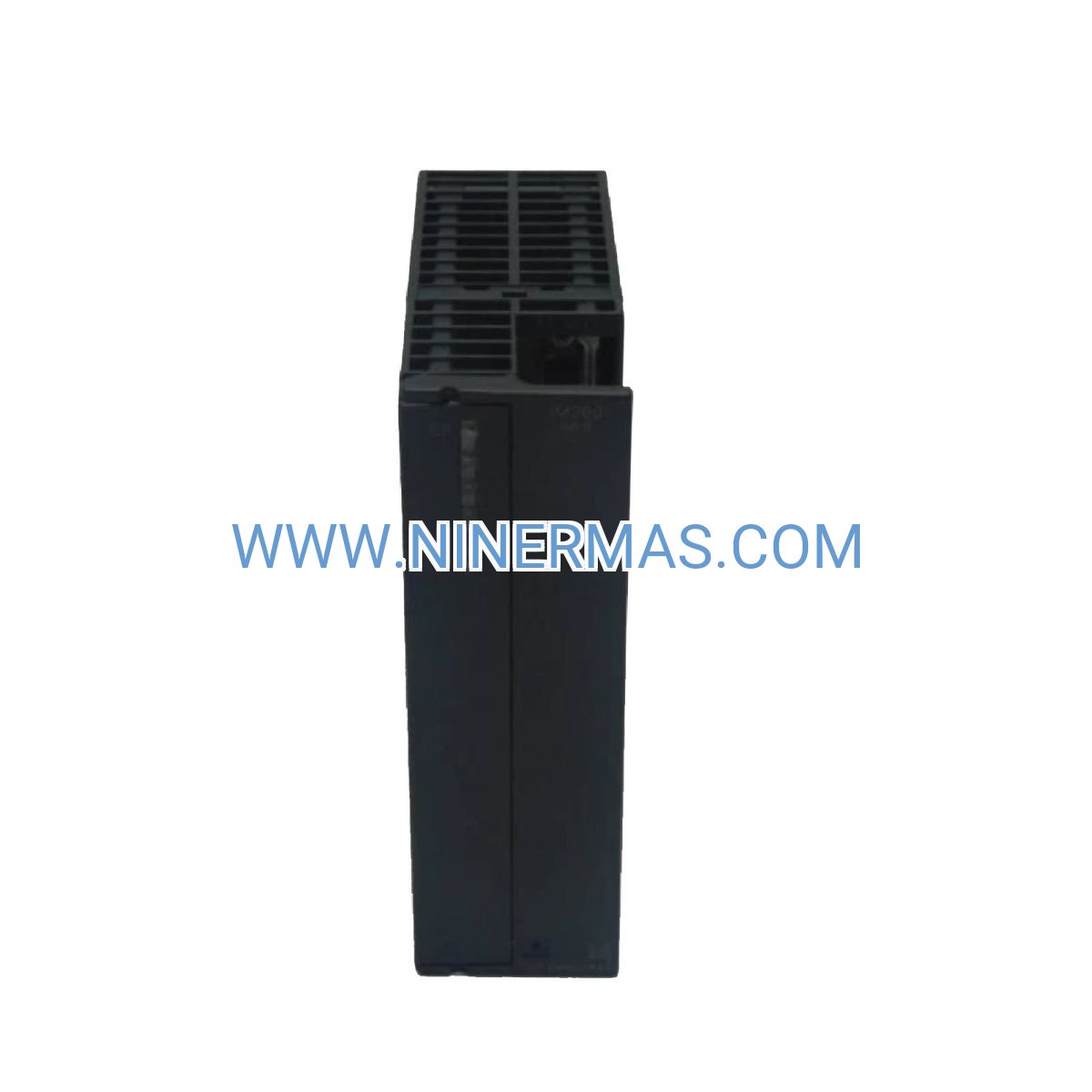

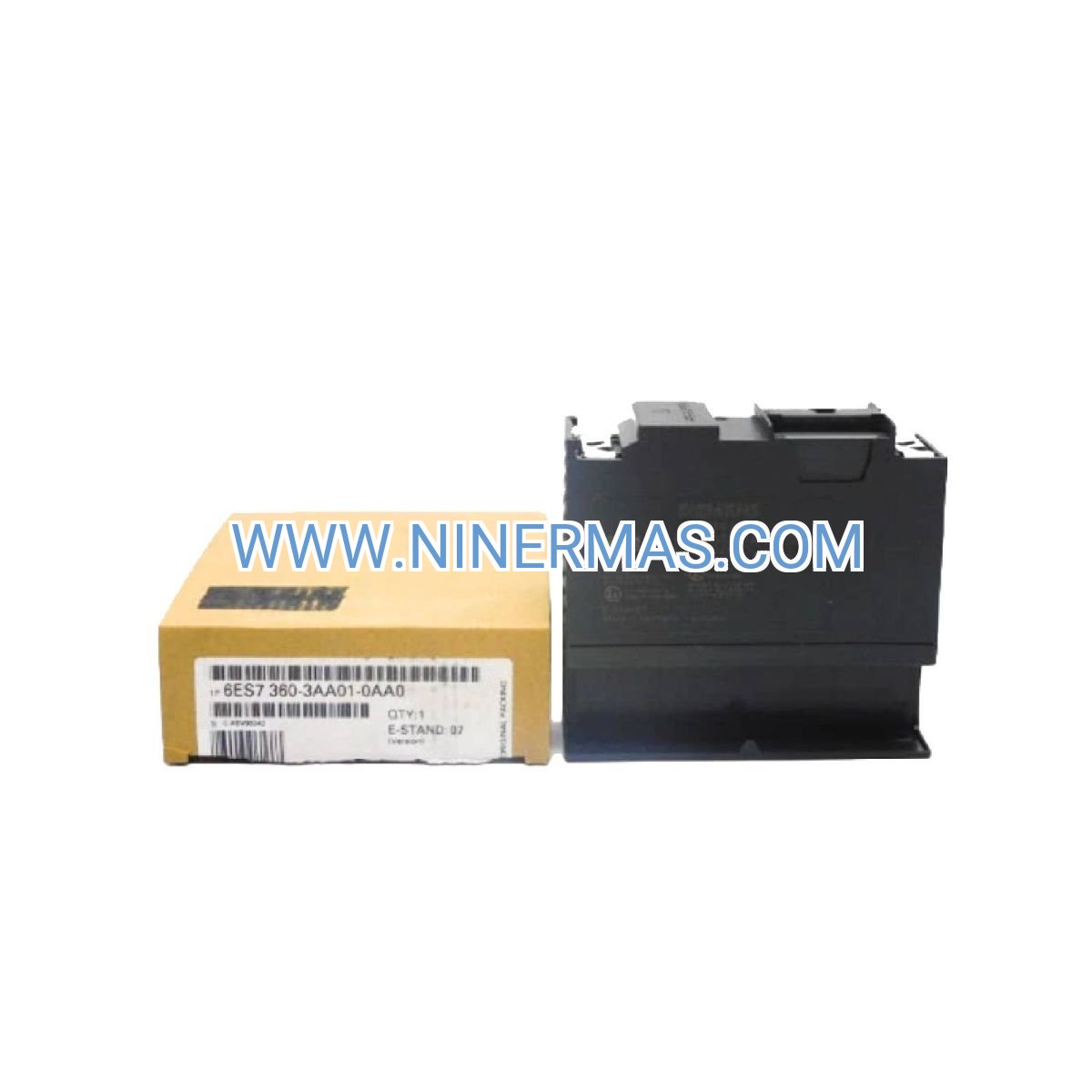

Siemens IM 360 Interface Module (Industrial-Grade PLC Expansion Solution)

The Siemens 6ES7360-3AA01-0AA0 IM 360 Interface Module is a professional-grade expansion component designed for S7-300 programmable logic controller systems. Through high-speed backplane communication and standardized rack-to-rack connectivity, it enables seamless expansion of I/O capacity, distributed control architecture, and modular system scalability for complex automation projects.

Ideal for manufacturing facilities, process automation environments, and industrial control applications where system expansion is required without compromising performance. This module addresses critical challenges including limited I/O capacity in central racks, physical distance constraints between control units and field devices, and the need for flexible system architecture in evolving production lines.

Engineered with proven Siemens reliability and backed by comprehensive technical documentation, the IM 360 module delivers robust performance, simplified installation procedures, and long-term compatibility with S7-300 ecosystems. Suitable for system integrators, automation engineers, OEM manufacturers, and plant maintenance teams. Contact our engineering team for application-specific configuration guidance and technical specifications.

Core Functions & Advantages

• Multi-Rack Expansion Capability
  Supports connection of up to 3 expansion racks to a single central controller, enabling distributed I/O architecture across extended physical distances while maintaining deterministic communication performance.
• High-Speed Backplane Communication
  Utilizes Siemens proprietary interface technology to ensure real-time data exchange between central and expansion racks, with minimal latency impact on overall system scan time and control loop performance.
• Plug-and-Play Installation
  Features standardized mounting rail compatibility and keyed connector design, reducing installation time by approximately 40% compared to legacy expansion methods and minimizing wiring errors during commissioning.
• Comprehensive Diagnostic Functions
  Integrated LED status indicators and STEP 7 diagnostic capabilities provide real-time visibility into communication health, module status, and fault conditions, accelerating troubleshooting and reducing unplanned downtime.
• Industrial-Grade Durability
  Designed to withstand harsh industrial environments with wide operating temperature range, vibration resistance, and electromagnetic compatibility (EMC) compliance, ensuring reliable operation in demanding applications.
• Seamless S7-300 Ecosystem Integration
  Full compatibility with existing S7-300 CPUs, power supplies, and I/O modules, protecting your investment in current automation infrastructure while enabling future scalability.

Typical Application Scenarios

This interface module is engineered for automation systems requiring distributed I/O architecture, extended physical reach, and modular expansion capabilities, particularly in:

• Manufacturing Production Lines
  Enables distributed control across extended assembly lines, packaging systems, and material handling equipment where centralized I/O placement is impractical due to distance or physical layout constraints.
• Process Automation & Chemical Plants
  Supports field-mounted I/O racks in hazardous or remote areas while maintaining central control room supervision, ideal for tank farms, reactor control systems, and continuous process monitoring applications.
• Building Automation & HVAC Systems
  Facilitates zone-based control architecture in large commercial buildings, data centers, and industrial facilities requiring distributed HVAC, lighting, and energy management control points.
• Water Treatment & Municipal Infrastructure
  Provides reliable expansion capability for pump stations, filtration systems, and distribution networks where equipment is geographically dispersed across treatment facilities.
• OEM Machine Manufacturing
  Allows machine builders to create modular, scalable control systems that can be customized to customer requirements without redesigning the entire control architecture.

Technical Parameters & Selection Guide

To ensure optimal system performance and compatibility, the IM 360 module is designed with the following specifications. Custom configurations and application engineering support are available for complex projects.

Selection Considerations: When specifying the IM 360 module, evaluate your system requirements including total I/O point count, maximum distance between racks (cable length limitations), CPU model compatibility, and future expansion needs. For projects requiring more than 3 expansion racks, consider distributed I/O solutions or higher-tier S7-300 configurations. Our application engineers can provide rack layout drawings, cable specifications, and power budget calculations based on your specific project parameters.

Extended Capabilities & System Integration

• Hot-Swap Capability: Certain S7-300 configurations support module replacement during operation (consult CPU specifications)
• Redundancy Options: Can be integrated into redundant controller architectures for high-availability applications
• STEP 7 Programming: Full integration with TIA Portal and STEP 7 Classic for configuration, diagnostics, and maintenance
• Third-Party Compatibility: Works with industry-standard SCADA systems, HMI panels, and industrial Ethernet networks

Delivery, Service & Quality Assurance

Product Authenticity: All units are factory-sealed, genuine Siemens products with verifiable serial numbers and full manufacturer traceability.

Delivery Timeline: Standard stock items ship within 1-3 business days; project-specific configurations typically 5-10 business days depending on quantity and customization requirements.

Warranty Coverage: Backed by a comprehensive 12-month warranty covering manufacturing defects and material failures. Extended warranty programs available for critical applications.

Technical Support: Access to experienced automation engineers for pre-sales consultation, system design review, installation guidance, and post-commissioning troubleshooting. Remote diagnostic support and on-site services available in select regions.

Documentation Package: Each module includes complete technical documentation: installation manual, wiring diagrams, dimensional drawings, STEP 7 configuration guidelines, and safety certifications. CAD files and 3D models available upon request.

Frequently Asked Questions (FAQ)

Q: How does the Siemens IM 360 interface module connect to existing S7-300 systems?
A: The IM 360 is installed in pairs—one module in the central rack and one in each expansion rack. They connect via a dedicated interface cable (IM 360/365 cable assembly, ordered separately). The module occupies one slot in the rack and communicates via the S7-300 backplane bus. Installation requires no special tools and typically takes 15-20 minutes per rack pair.

Q: What is the maximum number of expansion racks supported by a single IM 360 module?
A: A single IM 360 in the central rack can support up to 3 expansion racks when properly configured. Each expansion rack requires its own IM 360 module and dedicated interface cable. For systems requiring more than 3 expansion racks, distributed I/O solutions (PROFIBUS DP or PROFINET) are recommended.

Q: What are the distance limitations between central and expansion racks?
A: Maximum cable length between racks depends on the interface cable type: standard cables support up to 10 meters. For longer distances (up to 100 meters), fiber optic interface modules (IM 365) are available. Always consult cable specifications and maintain proper cable routing practices to ensure signal integrity.

Q: Is the IM 360 compatible with all S7-300 CPU models?
A: The IM 360 is compatible with most S7-300 CPUs, but specific compatibility depends on CPU firmware version and system configuration. CPUs such as CPU 312, 314, 315, and 317 series generally support rack expansion. Always verify compatibility using Siemens configuration tools (STEP 7 hardware catalog) or consult technical documentation for your specific CPU model.

Q: Can I hot-swap the IM 360 module during system operation?
A: Hot-swap capability depends on your CPU model and system configuration. Some advanced S7-300 CPUs support hot-swapping of certain modules when configured appropriately, but this is not a standard feature for all systems. For critical applications, plan maintenance windows for module replacement to avoid potential system disruptions.

Q: What diagnostic features are available for troubleshooting communication issues?
A: The IM 360 features LED status indicators (SF - System Fault, BF - Bus Fault) that provide immediate visual feedback on module and communication status. Additionally, STEP 7 diagnostic buffers and online monitoring tools offer detailed fault codes, communication statistics, and historical event logs to accelerate troubleshooting.

Request Engineering Support & Quotation

For detailed application engineering, system configuration assistance, or project quotations, please provide the following information to our technical team:

• Project name and application type (manufacturing, process control, building automation, etc.)
• S7-300 CPU model and firmware version currently in use
• Number of expansion racks required and approximate distances from central rack
• Total I/O point count and module types planned for expansion racks
• Power supply specifications and environmental conditions (temperature, enclosure type)
• Project timeline and delivery requirements

Our automation engineers will provide customized rack layout recommendations, cable specifications, power budget analysis, and competitive pricing within 24-48 hours.
