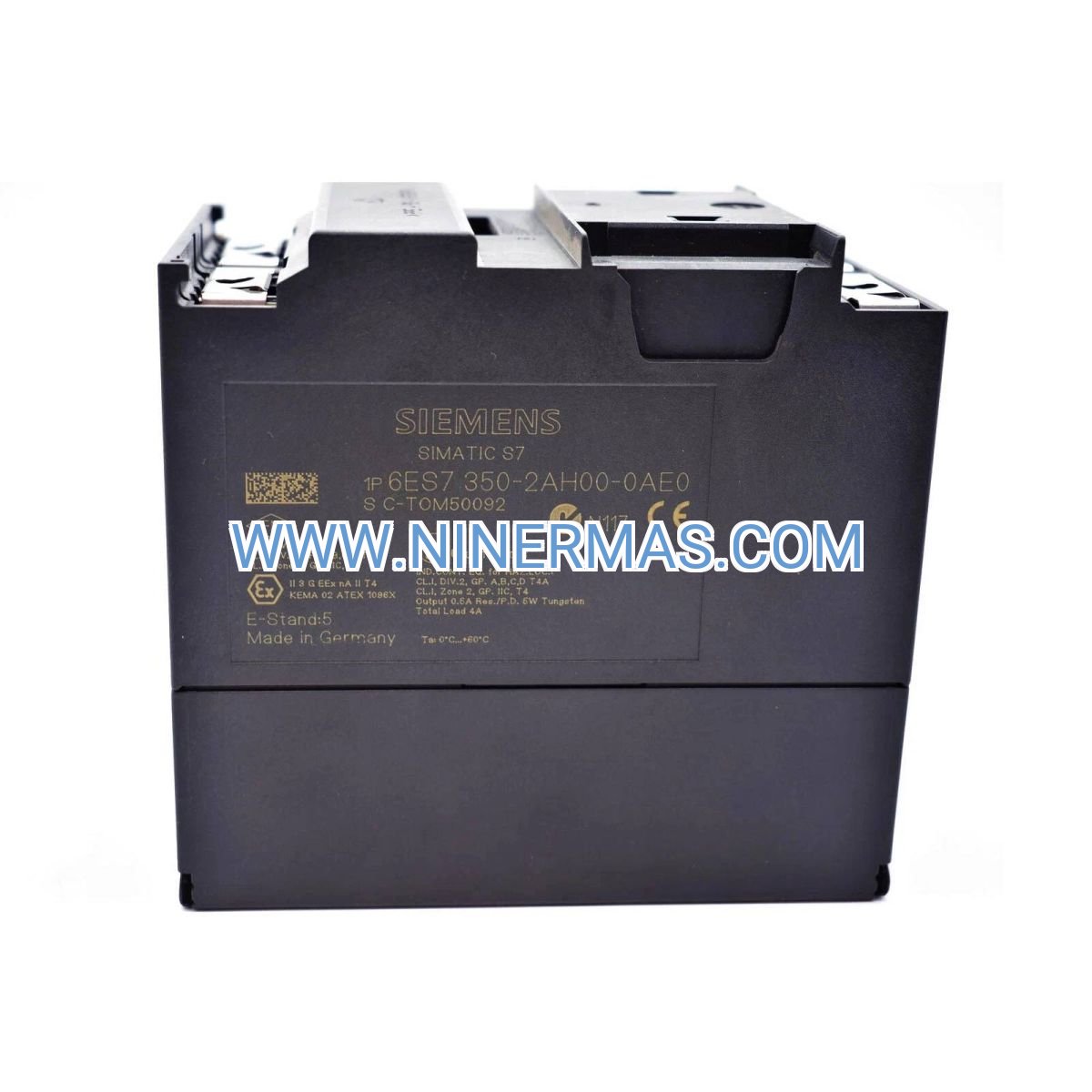

Siemens 6ES7350-2AH00-0AE0 FM 350-2 Counter Module | 8-Channel 500kHz Industrial Control

Siemens FM 350-2 High-Speed Counter Module (Industrial-Grade Counting & Control Solution)

The Siemens 6ES7350-2AH00-0AE0 FM 350-2 is a professional high-speed counter module designed for precision counting, frequency measurement, and position tracking in industrial automation systems. Through advanced digital signal processing and multi-channel parallel operation, it delivers accurate real-time counting up to 500 kHz per channel, enabling reliable performance in demanding manufacturing and process control environments.

Ideal for applications requiring high-precision motion control, production line monitoring, and encoder signal processing—including packaging machinery, material handling systems, CNC equipment, and conveyor belt tracking. This module addresses common challenges such as signal loss at high speeds, insufficient counting accuracy, complex wiring configurations, and limited diagnostic capabilities in legacy systems.

With standardized S7-300 integration and flexible configuration options, the FM 350-2 offers fast response times, robust noise immunity, comprehensive diagnostic functions, and seamless compatibility with STEP 7 programming software. Suitable for design engineers, system integrators, OEM manufacturers, and plant maintenance teams seeking reliable counting solutions. Contact our application engineers for configuration assistance and technical specifications.

Core Functions & Advantages

• 8-Channel High-Speed Counting
  Supports up to 8 independent counting channels with maximum input frequency of 500 kHz per channel, enabling simultaneous multi-axis monitoring and eliminating the need for external counter devices in complex systems.
• Multiple Operating Modes
  Configurable for continuous counting, single counting, periodic counting, frequency measurement, and pulse-width measurement modes, providing flexibility for diverse application requirements from simple event counting to advanced motion profiling.
• Integrated Compare & Cam Functions
  Built-in hardware comparators trigger outputs when preset count values are reached, ideal for position-based control, automatic sorting, and synchronized machine operations without CPU intervention.
• 24V DC / 5V TTL Signal Compatibility
  Accepts both 24V DC industrial sensors and 5V TTL encoder signals, ensuring broad compatibility with incremental encoders, proximity switches, photoelectric sensors, and other standard industrial devices.
• Robust Electrical Protection
  Features galvanic isolation, reverse polarity protection, short-circuit protection, and EMC compliance to IEC 61000 standards, minimizing downtime caused by electrical interference in harsh industrial environments.
• Intuitive Diagnostics & Monitoring
  Provides real-time status indicators, error diagnostics, and STEP 7 integration for simplified troubleshooting, reducing commissioning time and maintenance costs while improving system transparency.

Typical Application Scenarios

This module is engineered for applications demanding high counting accuracy, fast response, and reliable signal processing, particularly in:

• Packaging & Labeling Machinery
  Precisely counts products on high-speed packaging lines, triggers label application at exact positions, and synchronizes multiple stations to maintain production throughput and quality consistency.
• Material Handling & Conveyor Systems
  Tracks item flow, monitors belt speed via encoder feedback, detects jams or gaps, and coordinates transfer points between conveyors in warehousing, distribution, and logistics automation.
• CNC Machining & Metalworking
  Processes encoder signals for spindle speed monitoring, tool position verification, and axis synchronization in milling, turning, and grinding operations requiring micron-level precision.
• Textile & Printing Equipment
  Measures web length, controls registration marks, synchronizes print heads, and manages tension control in high-speed textile looms, rotary presses, and digital printing systems.
• Energy & Utilities Metering
  Accumulates pulse signals from flow meters, energy meters, and utility sensors for consumption monitoring, billing data collection, and SCADA integration in water treatment, power distribution, and industrial facilities.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide key specifications below. Custom configurations and extended I/O options are available upon request.

Selection Recommendations: When specifying this module, consider maximum encoder frequency, number of axes to monitor, signal voltage levels (24V or 5V), required counting range, and whether hardware compare functions are needed. For applications exceeding 500 kHz or requiring more than 8 channels, consult our engineering team for alternative solutions or distributed architectures.

Extended Capabilities

• Gate Control & Measurement Window
  Supports external gate signals to enable/disable counting during specific time windows or process phases, useful for batch counting and synchronized multi-machine operations.
• Interrupt Generation
  Configurable to trigger CPU interrupts upon reaching preset values, overflow/underflow conditions, or frequency threshold violations, enabling immediate response to critical events.
• Encoder Evaluation Modes
  Handles single-channel, dual-channel (A/B quadrature), and directional counting with up to 4× multiplication factor for enhanced resolution in rotary encoder applications.
• PROFIBUS DP Integration
  Seamlessly integrates into PROFIBUS DP networks when used with appropriate communication processors, enabling distributed counting architectures and centralized data acquisition.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 3–5 business days; custom-configured modules or bulk orders typically require 10–15 business days depending on specifications and quantity.

Warranty: All modules are covered by a minimum 12-month manufacturer warranty against defects in materials and workmanship, with extended warranty options available for critical applications.

Technical Support: Comprehensive support includes pre-sales application consulting, configuration file templates, STEP 7 function block libraries, and post-sales remote diagnostics assistance (subject to regional availability).

Documentation Package: Each module ships with complete technical documentation including datasheet, wiring diagrams, terminal assignment charts, STEP 7 programming examples, and quick-start commissioning guide in English.

Quality Certifications: Manufactured to ISO 9001 standards with full traceability, CE marking for European markets, UL/cULus listing for North America, and compliance with IEC 61131-2 programmable controller standards.

Frequently Asked Questions (FAQ)

Q: How do I connect the FM 350-2 high-speed counter module to my existing S7-300 PLC system?
A: The FM 350-2 mounts directly onto the S7-300 DIN rail backplane and connects via the backplane bus. External 24V DC power supply is required for input circuits. Detailed wiring diagrams and terminal assignments are provided in the installation manual. Ensure STEP 7 hardware configuration includes the FM 350-2 module at the correct slot address.

Q: What is the maximum number of channels I can use simultaneously at 500 kHz?
A: All 8 channels can operate simultaneously at their maximum rated frequency of 500 kHz. However, actual performance may depend on CPU scan time, communication load, and STEP 7 program complexity. For mission-critical applications, we recommend performance validation during commissioning.

Q: Can this module work with both incremental encoders and proximity sensors?
A: Yes, the FM 350-2 accepts both 5V TTL signals (typical for incremental encoders) and 24V DC signals (common with proximity switches and photoelectric sensors). Signal type is configurable per channel via STEP 7 hardware configuration.

Q: What environmental conditions are required for reliable operation?
A: The module is rated for IP20 protection and designed for installation inside control cabinets. Operating temperature range is 0°C to +60°C (horizontal mounting), with relative humidity up to 95% non-condensing. Ensure adequate ventilation and avoid exposure to corrosive gases or excessive vibration.

Q: Does the FM 350-2 support remote monitoring and data logging?
A: Yes, count values and status information are accessible via the S7-300 CPU and can be transmitted to SCADA systems, HMI panels, or cloud platforms through standard PROFIBUS, PROFINET, or Ethernet communication modules. Data logging functionality depends on your overall system architecture.

Q: Is technical training available for programming and troubleshooting this module?
A: We offer application notes, STEP 7 function block examples, and video tutorials. For comprehensive training, Siemens authorized training centers provide courses on S7-300 system configuration and specialized modules. Our technical support team is also available for project-specific guidance.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing quotation, or technical support, please provide the following information: project name, application scenario, encoder type & frequency, number of counting channels required, signal voltage levels, environmental conditions, and any special functional requirements. Our application engineers will respond with a tailored recommendation and delivery timeline within 24 hours.
