Siemens 6ES7341-1CH01-0AE0 | CP 341 RS422/485 Processor | Industrial Modbus RTU

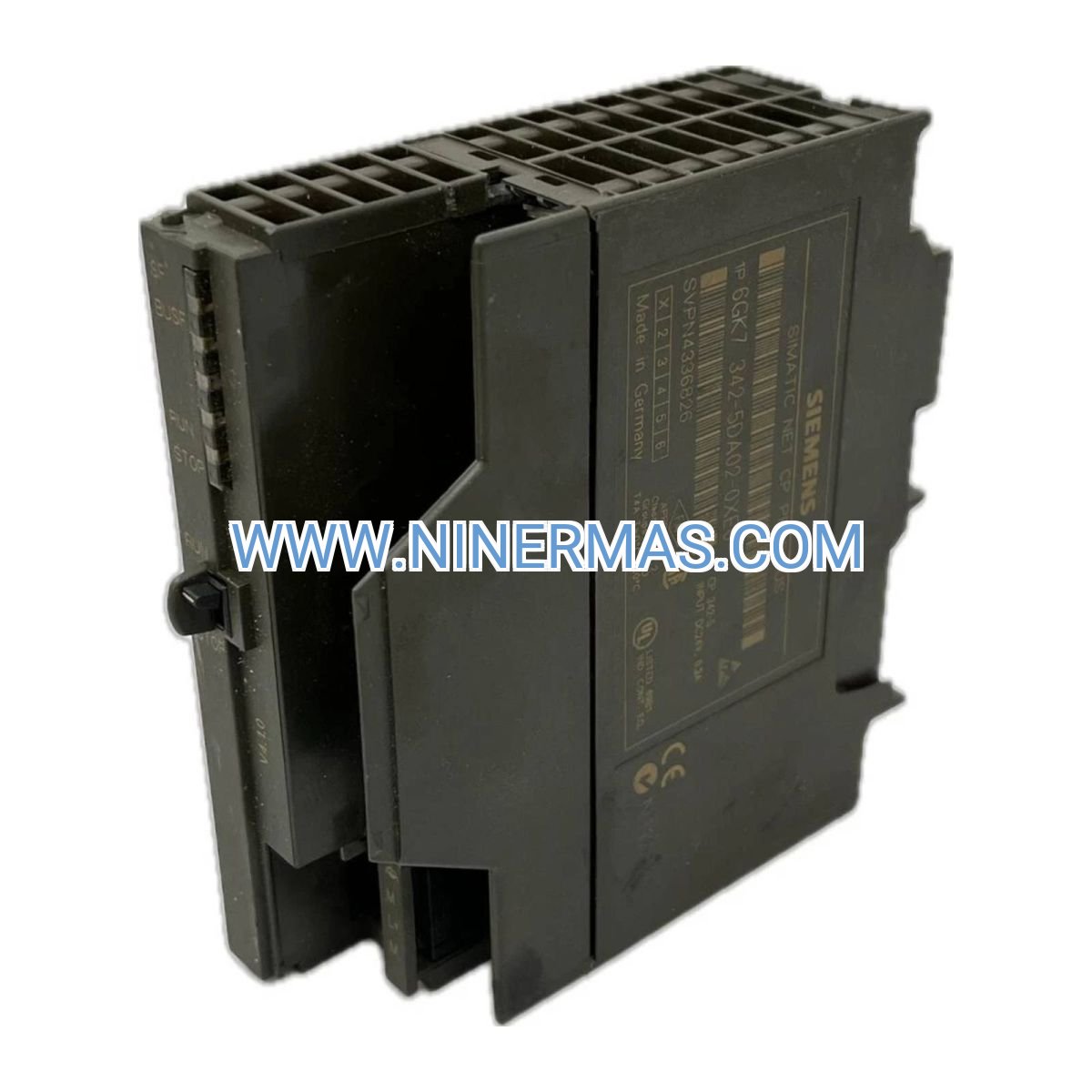

Siemens CP 341 RS422/485 Communication Processor (Industrial-Grade Serial Interface Module)

The Siemens 6ES7341-1CH01-0AE0 CP 341 is a professional communication processor designed for industrial automation systems requiring reliable RS422/RS485 serial communication. Through integrated Modbus RTU protocol support and galvanic isolation technology, this module enables seamless data exchange between S7-300 PLCs and field devices, sensors, drives, and third-party equipment across diverse industrial environments.

Ideal for manufacturing plants, process control systems, building automation, and energy management applications where robust serial communication is critical. This processor addresses common challenges including communication interference, protocol incompatibility, long-distance signal degradation, and multi-device networking complexity in harsh industrial conditions.

Featuring standardized design with flexible configuration options, the CP 341 delivers exceptional reliability, electromagnetic compatibility, ease of maintenance, and broad system integration capabilities. Suitable for system integrators, automation engineers, OEM manufacturers, and plant maintenance teams. Contact our engineering team for application-specific configuration guidance and technical quotations.

Core Features & Technical Advantages

Modbus RTU Protocol Support
Native Modbus RTU master/slave functionality enables direct communication with industrial instruments, variable frequency drives, energy meters, and SCADA systems without additional protocol converters, reducing system complexity and cost.

Dual-Mode RS422/RS485 Interface
Supports both RS422 (full-duplex, point-to-point) and RS485 (half-duplex, multi-drop) modes with automatic switching capability. RS485 mode supports up to 32 devices on a single bus, ideal for distributed control architectures.

Galvanic Isolation Protection
Built-in 1500V DC isolation between communication interface and PLC backplane protects against ground loops, voltage surges, and electromagnetic interference, ensuring stable operation in electrically noisy industrial environments.

High-Speed Data Transmission
Configurable baud rates from 300 bps to 19.2 kbps accommodate various device requirements. Optimized for real-time control applications with minimal latency and deterministic response times.

Robust Industrial Design
Conformal-coated PCB, wide operating temperature range (-25°C to +60°C), vibration resistance, and IP20 protection rating ensure reliable performance in demanding factory floor conditions including dust, humidity, and temperature fluctuations.

Seamless STEP 7 Integration
Fully integrated with Siemens STEP 7 programming environment. Pre-configured function blocks and diagnostic tools simplify commissioning, troubleshooting, and maintenance. Comprehensive status monitoring via PLC program.

Typical Application Scenarios

This communication processor is engineered for industrial environments demanding high reliability, noise immunity, and multi-device connectivity:

Process Control & SCADA Systems
Connect S7-300 PLCs to distributed I/O modules, flow meters, pressure transmitters, and analytical instruments in chemical plants, water treatment facilities, and oil & gas operations. Enables centralized monitoring and control of geographically dispersed field devices.

Variable Frequency Drive Integration
Interface with VFD panels for motor speed control, energy monitoring, and fault diagnostics in conveyor systems, pump stations, HVAC equipment, and material handling applications. Supports parameter read/write and real-time status feedback.

Energy Management & Metering
Aggregate data from smart energy meters, power quality analyzers, and building management systems. Ideal for facility energy monitoring, demand response programs, and ISO 50001 compliance reporting in commercial and industrial buildings.

Legacy Equipment Modernization
Retrofit older serial-based equipment into modern PLC control systems without replacing functional field devices. Cost-effective solution for extending asset lifespan while maintaining compatibility with contemporary automation platforms.

Multi-Vendor System Integration
Bridge Siemens PLCs with third-party controllers, HMIs, and industrial IoT gateways using industry-standard Modbus protocol. Facilitates hybrid automation architectures and vendor-agnostic system designs.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, the CP 341 offers the following technical characteristics:

Key Technical Parameters:

• Communication Interface: RS422/RS485 (software selectable)
• Protocol Support: Modbus RTU Master/Slave, ASCII, 3964(R), RK512
• Baud Rate Range: 300, 600, 1200, 2400, 4800, 9600, 19200 bps
• Data Format: 7/8 data bits, even/odd/no parity, 1/2 stop bits
• Isolation Voltage: 1500V DC (communication to backplane)
• Max Bus Length: 1200m @ 9600 bps (RS485 mode)
• Max Devices: 32 nodes (RS485 multi-drop configuration)
• Power Consumption: Typical 1.5W from S7-300 backplane
• Operating Temperature: -25°C to +60°C
• Dimensions: 40mm × 125mm × 120mm (W × H × D)
• Mounting: S7-300 standard rail (35mm DIN rail compatible)
• Certifications: CE, UL, cUL, FM, ATEX (Zone 2)

Selection Considerations:
When specifying the CP 341 for your application, evaluate: required communication protocol (Modbus RTU recommended for broadest compatibility), maximum bus length and number of connected devices, baud rate requirements based on response time needs, environmental conditions (temperature, EMI exposure), and available slot space in S7-300 rack. For complex multi-protocol or high-speed applications, consult with our automation engineers to validate configuration and explore alternative CP modules if needed.

Advanced Configuration Options

Protocol Flexibility: Beyond Modbus RTU, the CP 341 supports ASCII protocol for custom device integration, 3964(R) for legacy Siemens equipment, and RK512 for S5 PLC communication, providing exceptional versatility for brownfield and greenfield projects.

Diagnostic Capabilities: Real-time monitoring of communication errors, frame errors, parity errors, buffer overruns, and timeout conditions via STEP 7 diagnostic buffer. LED indicators provide at-a-glance status of module health, communication activity, and fault conditions.

Redundancy Support: Can be deployed in redundant S7-300H configurations for mission-critical applications requiring high availability. Automatic failover ensures continuous communication during module or rack failures.

Delivery, Service & Quality Assurance

Product Condition: Factory-new, original Siemens packaging with full manufacturer warranty. Each unit undergoes functional testing and quality inspection prior to shipment.

Lead Time: Standard stock items ship within 1-3 business days. Custom configurations or bulk orders typically require 7-14 days. Expedited shipping available for urgent projects.

Warranty & Support: Minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available. Technical support includes remote configuration assistance, troubleshooting guidance, and STEP 7 programming examples.

Documentation Package: Complete technical documentation provided including product datasheet, wiring diagrams, STEP 7 configuration manual, Modbus register mapping, and sample ladder logic. All materials available in English with multilingual support upon request.

Global Logistics: Worldwide shipping via DHL, FedEx, UPS with full tracking and insurance. Customs documentation and HS code classification assistance provided for international orders. Consolidated shipping available for multi-item orders.

Frequently Asked Questions (FAQ)

Q: How do I connect the CP 341 RS422/RS485 processor to my existing S7-300 PLC system?
A: The CP 341 installs directly onto the S7-300 backplane rail adjacent to your CPU module. Connect field devices to the 9-pin D-sub connector using shielded twisted-pair cable (recommended: Belden 3105A or equivalent). Configure communication parameters via STEP 7 hardware configuration tool, assign I/O addresses, and download to PLC. Detailed wiring diagrams and pin assignments included in documentation package.

Q: What is the maximum number of Modbus devices I can connect to a single CP 341 module?
A: In RS485 multi-drop mode, the CP 341 supports up to 32 Modbus slave devices on a single bus. Actual device count may be limited by bus loading, cable length, and baud rate. For optimal performance with 20+ devices, use repeaters or consider multiple CP 341 modules. RS422 mode supports point-to-point connections only (1 master, 1 slave).

Q: What energy savings or efficiency improvements can I expect with the CP 341 communication processor?
A: While the CP 341 itself is a communication interface (not a control device), it enables energy optimization by facilitating real-time data exchange with VFDs, energy meters, and process controllers. Typical applications report 15-30% energy reduction through improved process control, demand-based equipment operation, and elimination of manual monitoring. Actual savings depend on application specifics and control strategy implementation.

Q: What are the environmental requirements for installing the CP 341 in my control cabinet?
A: Operating temperature range: -25°C to +60°C ambient. Ensure adequate ventilation to prevent heat buildup in enclosed cabinets. Protection rating: IP20 (suitable for clean industrial environments; use NEMA-rated enclosure for dusty/wet locations). Relative humidity: 5-95% non-condensing. Avoid direct exposure to corrosive gases, excessive vibration (>2g), or strong electromagnetic fields near high-power equipment.

Q: Can the CP 341 support remote monitoring and data acquisition via industrial IoT platforms?
A: Yes, the CP 341 enables IoT connectivity by interfacing S7-300 PLCs with industrial gateways supporting Modbus RTU to Modbus TCP/IP conversion, MQTT publishing, or OPC UA servers. Common protocols supported include Modbus RTU (native), with gateway conversion to Ethernet/IP, PROFINET, or cloud platforms. For direct Ethernet connectivity, consider Siemens CP 343-1 modules as complementary solutions.

Request Technical Support & Quotation

To receive detailed application engineering support, custom configuration recommendations, or project-specific pricing, please provide the following information to our technical sales team:

• Project name and application description (industry, process type)
• Number of field devices and communication protocol requirements
• Maximum bus length and installation environment conditions
• Required baud rate and response time specifications
• Existing PLC model (S7-300 CPU type) and available rack slots
• Quantity required and preferred delivery timeline

Our automation engineers will provide one-on-one consultation, STEP 7 configuration templates, and comprehensive technical documentation to ensure successful system integration.
