Siemens CP 340 RS232C Communication Processor | 6ES7340-1AH02-0AE0 for S7-300 PLC

Siemens CP 340 RS232C Communication Processor (Industrial Serial Interface Solution)

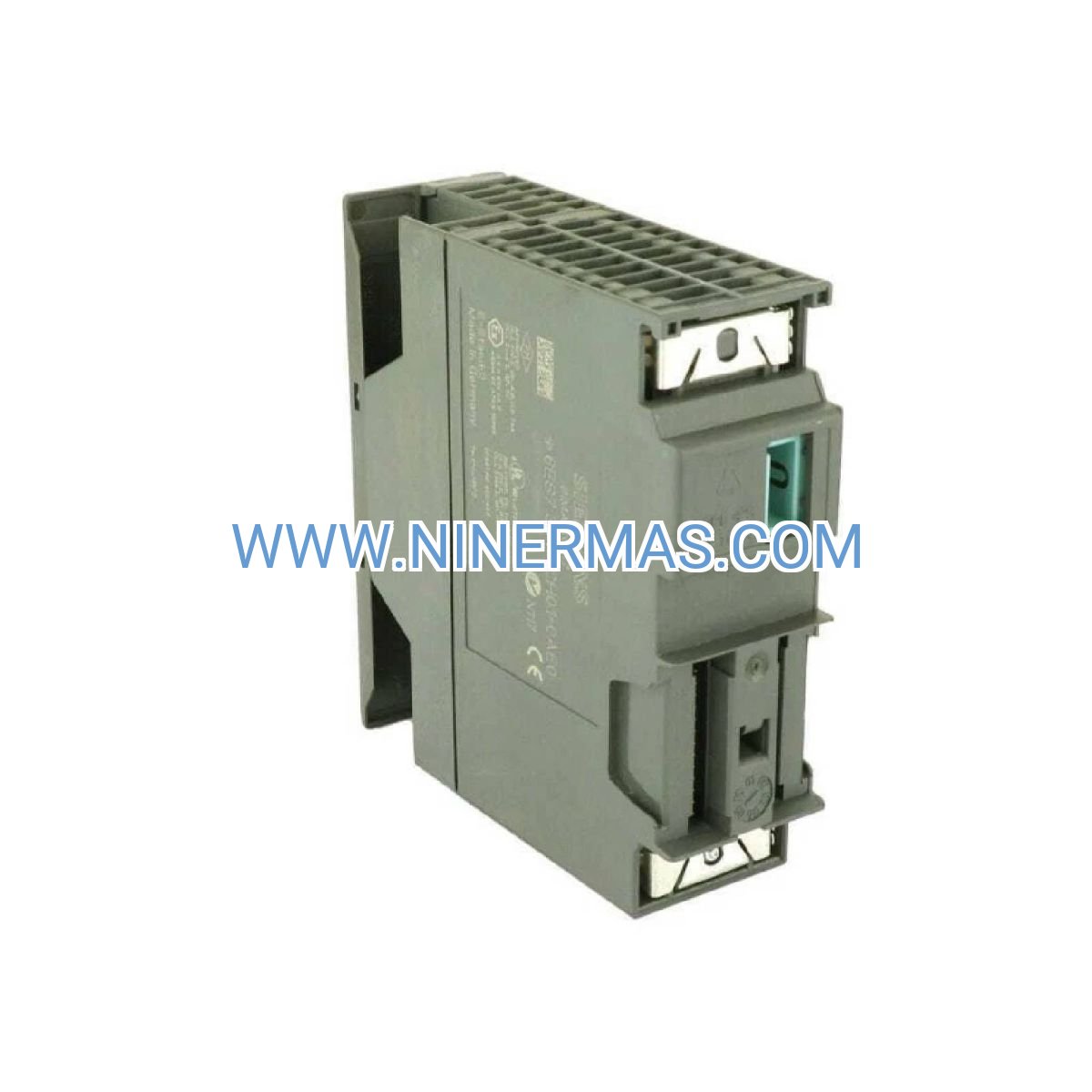

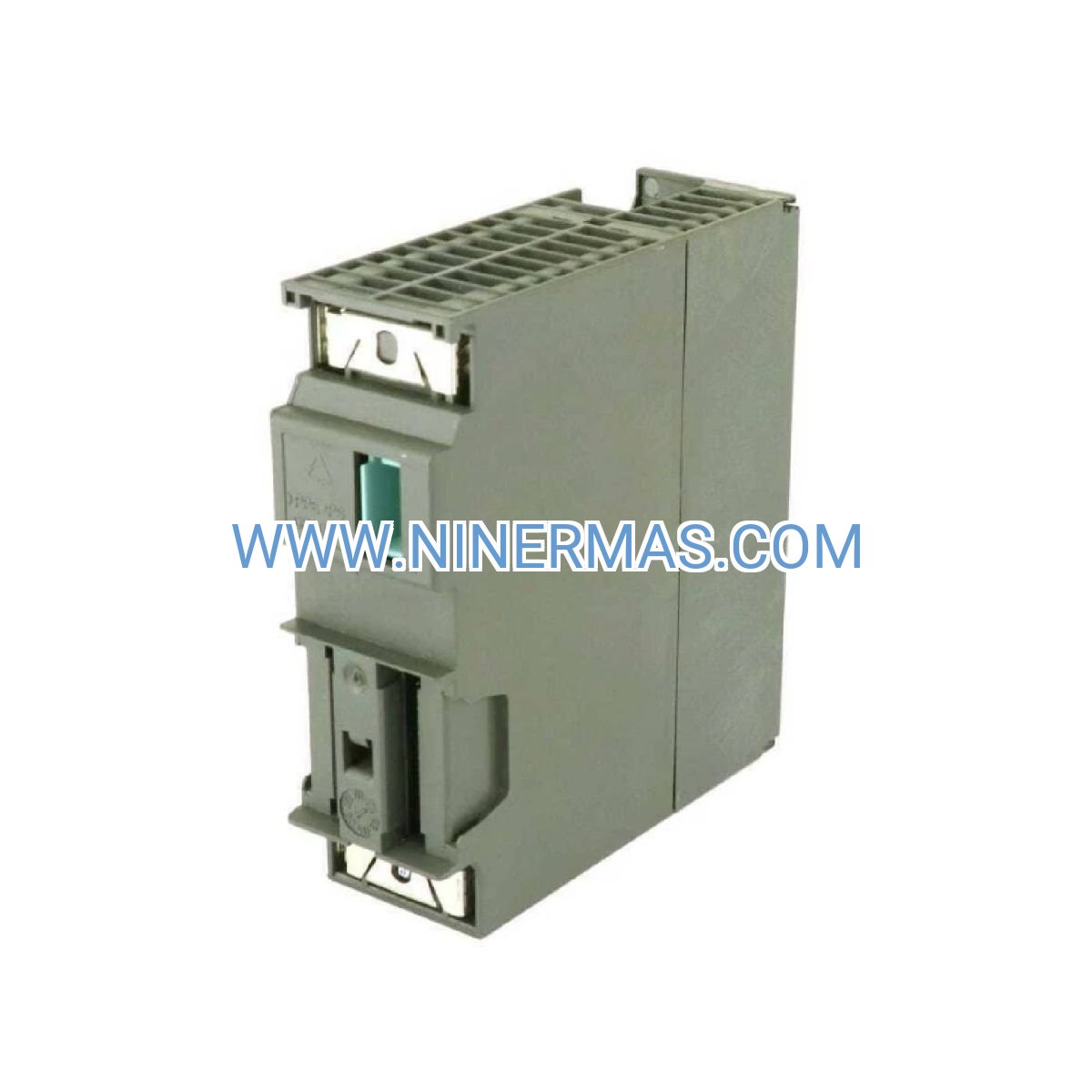

The Siemens 6ES7340-1AH02-0AE0 CP 340 is a specialized communication processor designed for SIMATIC S7-300 PLC systems, enabling reliable serial data exchange via RS232C interface. Through integrated protocol handling and point-to-point communication capabilities, it facilitates seamless connectivity between PLCs and external devices such as barcode scanners, printers, weighing systems, and legacy equipment.

Ideal for manufacturing automation, process control, and industrial data acquisition scenarios where serial communication is required. This module addresses challenges including protocol incompatibility, limited PLC communication ports, real-time data synchronization issues, and integration of third-party devices into existing control architectures.

With standardized design and flexible configuration options, the CP 340 offers advantages in reliable data transmission, simplified wiring, reduced CPU load, and broad compatibility. Suitable for system integrators, automation engineers, OEM equipment manufacturers, and plant maintenance teams. Contact our engineers for application-specific configuration guidance and technical support.

Core Functions & Advantages

• Dedicated Serial Communication
  Handles RS232C protocol processing independently, offloading communication tasks from the CPU module and ensuring stable, real-time data exchange with external serial devices.
• Multiple Protocol Support
  Compatible with ASCII, 3964(R), RK512, and user-defined protocols, enabling integration with diverse industrial equipment and legacy systems without extensive reprogramming.
• Point-to-Point & Multi-Point Modes
  Supports both 1:1 and 1:N communication topologies, allowing flexible network configurations for different application requirements and reducing cabling complexity.
• Comprehensive Diagnostics
  Built-in error detection, buffer monitoring, and status LEDs provide immediate visibility into communication health, minimizing troubleshooting time and system downtime.
• Seamless S7-300 Integration
  Hot-swappable design with standard S7-300 mounting rail compatibility, straightforward STEP 7 configuration, and consistent addressing scheme simplify installation and maintenance workflows.
• Industrial-Grade Reliability
  Designed for harsh environments with wide operating temperature range (-25°C to +60°C), EMC compliance, and robust construction ensuring long-term operational stability in demanding industrial settings.

Typical Application Scenarios

This communication processor is particularly suited for systems requiring stable serial connectivity and protocol conversion capabilities, including:

• Manufacturing Execution Systems (MES)
  Connects PLCs to barcode readers, RFID scanners, and production tracking devices for real-time data collection, enabling traceability and quality control in automotive, electronics, and pharmaceutical production lines.
• Weighing & Batching Systems
  Interfaces with industrial scales and dosing equipment in food processing, chemical blending, and packaging operations, ensuring accurate weight data transmission and recipe management.
• Legacy Equipment Integration
  Bridges modern S7-300 controllers with older serial-based instruments, analyzers, and HMI panels, extending equipment lifespan and protecting capital investments without complete system replacement.
• Remote Terminal Units (RTU)
  Facilitates communication with field devices in water treatment, oil & gas, and power distribution applications, supporting SCADA integration and remote monitoring requirements.
• Printer & Label Systems
  Drives industrial printers for on-demand label printing, batch coding, and documentation in logistics, warehousing, and production environments where automated marking is essential.

Technical Parameters & Selection Guide

To facilitate design and procurement decisions, we provide key specifications for the CP 340 module. Custom configurations and application engineering support are available upon request.

Selection Considerations: When specifying the CP 340, evaluate the target device's communication parameters (baud rate, protocol, handshaking requirements), cable length (max 15m recommended for RS232C), and whether galvanic isolation is needed for noisy environments. For applications requiring RS422/RS485 or higher speeds, consider alternative CP modules. Our engineering team can assist with protocol analysis and configuration file preparation—please provide device manuals and communication specifications.

Extended Capabilities

• Flexible Data Buffering: Internal transmit and receive buffers (up to 1024 bytes each) accommodate varying data rates and prevent message loss during peak communication loads.
• Interrupt-Driven Operation: Supports hardware interrupts for time-critical applications, enabling immediate response to incoming data without polling overhead.
• Configurable Handshaking: Hardware (RTS/CTS) and software (XON/XOFF) flow control options ensure reliable data transfer with devices of different capabilities.
• Modular Expansion: Multiple CP 340 modules can be installed in a single S7-300 rack, supporting simultaneous connections to multiple serial devices without external multiplexers.

Delivery, Service & Quality Assurance

Lead Time: Genuine Siemens CP 340 modules are typically available from stock for immediate shipment. Custom cable assemblies or pre-configured solutions may require 5–10 business days.

Warranty: All units carry a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available upon request.

Technical Support: We provide remote configuration assistance, STEP 7 programming examples, and troubleshooting guidance. On-site commissioning services can be arranged for complex integrations (subject to location and project scope).

Documentation Package: Each module ships with complete technical documentation including datasheet, wiring diagrams, STEP 7 configuration manual, and protocol implementation notes in PDF format, facilitating rapid deployment and maintenance.

Quality Certification: Products are sourced through authorized Siemens distribution channels, ensuring authenticity, traceability, and compliance with CE, UL, and RoHS standards.

Frequently Asked Questions (FAQ)

Q: How do I connect the CP 340 RS232C module to my existing S7-300 PLC system?
A: The CP 340 installs directly onto the S7-300 DIN rail backplane. After physical mounting, configure the module address and communication parameters using STEP 7 software. Connection to external devices requires a standard RS232C cable (9-pin D-sub) with appropriate pin assignments—refer to the device manual for TX/RX/GND wiring. No external power supply is needed as the module draws power from the PLC backplane.

Q: What is the maximum number of CP 340 modules I can use in one S7-300 system?
A: The number of CP modules is limited by available slot positions and the CPU's addressing capacity. Typically, you can install 4–8 communication processors in a standard configuration, depending on rack size and other installed modules. Each CP 340 occupies one slot and requires unique addressing in your STEP 7 project.

Q: Can the CP 340 communicate with devices using Modbus RTU protocol?
A: The CP 340 does not natively support Modbus RTU. For Modbus applications, consider the Siemens CP 341 or third-party Modbus gateways. However, if your device supports ASCII or 3964(R) protocols, the CP 340 can handle those communication modes effectively.

Q: What are the environmental requirements for installing the CP 340 module?
A: The CP 340 is rated for industrial environments with operating temperatures from -25°C to +60°C, relative humidity up to 95% (non-condensing), and protection class IP20 when properly installed in an enclosure. Ensure adequate ventilation and avoid exposure to corrosive gases or excessive vibration. For harsh conditions, consider additional cabinet protection (IP54 or higher).

Q: Does the CP 340 support remote monitoring and diagnostics via Ethernet or PROFIBUS?
A: The CP 340 itself provides only RS232C serial communication. However, diagnostic data and communication status can be accessed by the S7-300 CPU and made available through the PLC's network interfaces (Ethernet or PROFIBUS) for SCADA integration or remote HMI access. Use STEP 7 to map CP 340 status words to the CPU's communication area.

Q: Is the CP 340 compatible with TIA Portal programming environment?
A: The CP 340 is primarily designed for STEP 7 V5.x (Classic). For TIA Portal users, Siemens provides compatibility packages that allow configuration and operation of S7-300 modules, though some advanced features may require STEP 7 Classic for initial setup. Consult Siemens documentation or contact our support team for TIA Portal migration guidance.

Request Technical Support & Quotation

To receive a detailed selection proposal, pricing, or application engineering assistance, please provide the following information: project name, application scenario, target device specifications (protocol, baud rate, connector type), quantity required, delivery location, and any special requirements (cable length, pre-configuration, documentation language). Our engineers will respond with tailored recommendations and lead time estimates within 24 hours.
