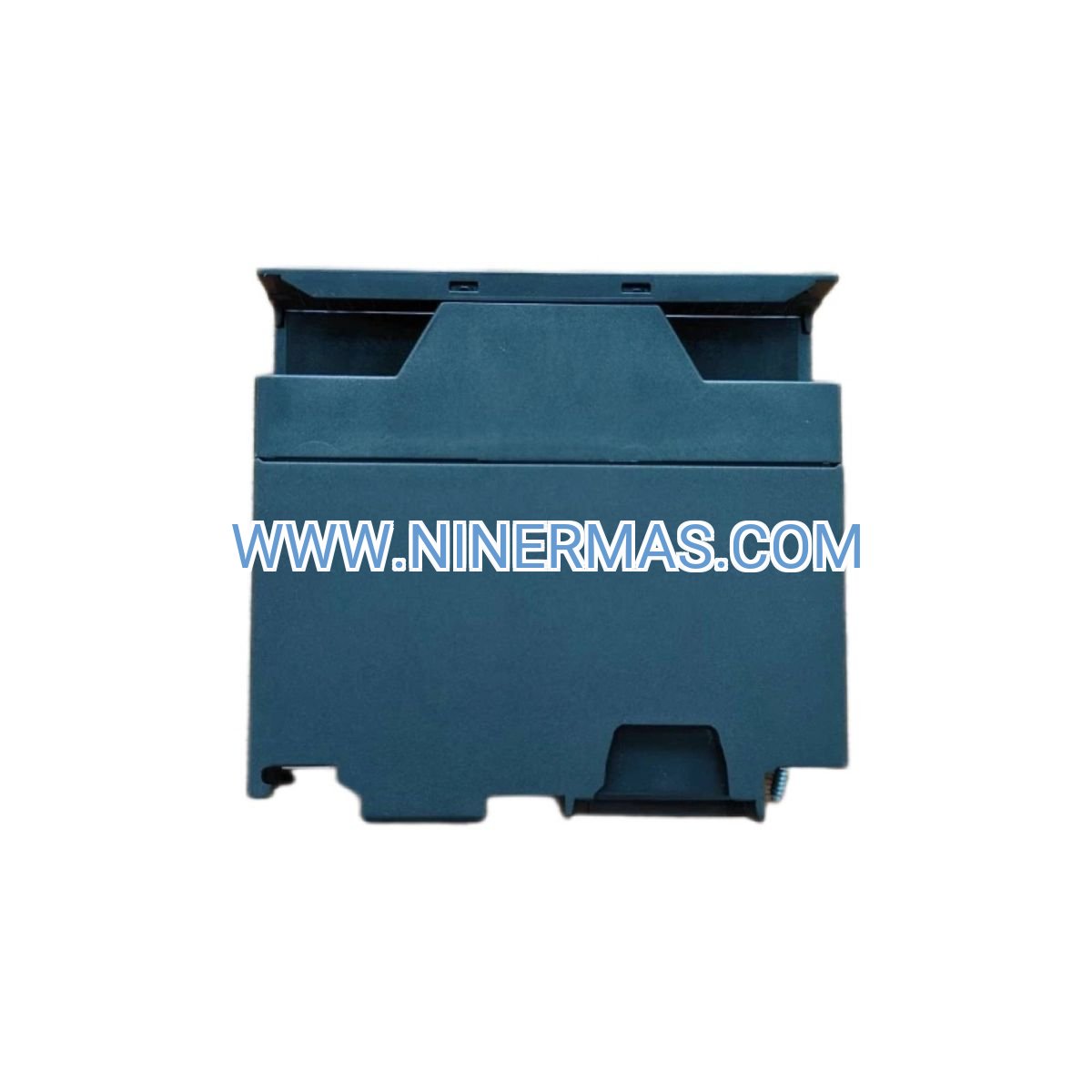

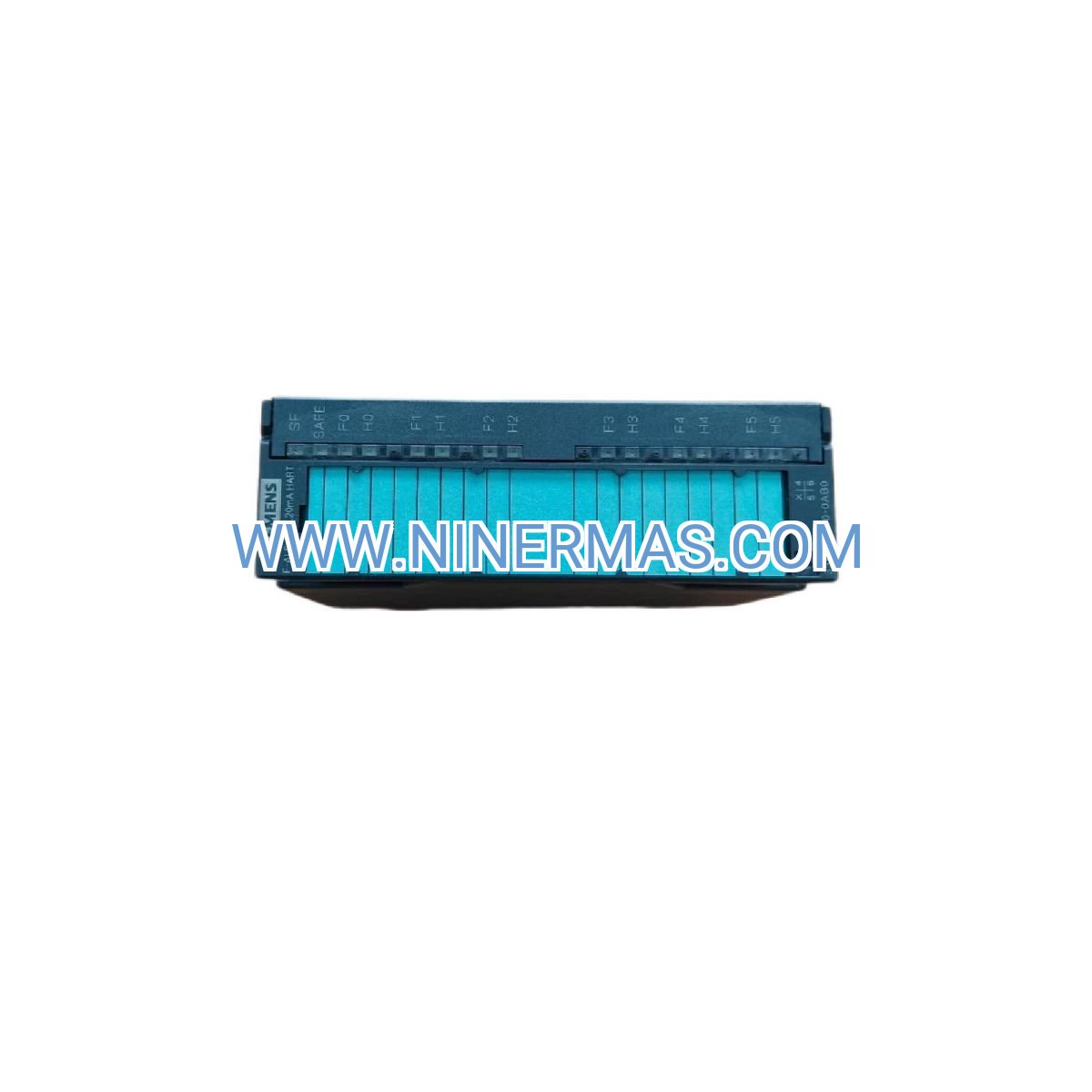

Siemens SM 332 Analog Output Module 6ES7332-7ND00-0AB0 | 4-20mA HART Industrial Control

Siemens SM 332 Analog Output Module (Industrial-Grade Process Control Solution)

The Siemens SM 332 6ES7332-7ND00-0AB0 is a high-precision analog output module designed for S7-300 PLC systems, delivering reliable 4-20mA signal conversion with HART protocol support. Through galvanically isolated output channels and advanced diagnostics, it enables accurate control of field devices such as control valves, actuators, and variable frequency drives in demanding industrial environments.

Ideal for process automation in chemical plants, water treatment facilities, oil & gas operations, pharmaceutical manufacturing, and HVAC systems, this module addresses critical challenges including signal interference, calibration drift, loop diagnostics complexity, and integration with legacy HART devices. It ensures stable analog control with minimal maintenance requirements.

With standardized S7-300 mounting and flexible configuration options, the SM 332 offers exceptional reliability, diagnostic transparency, hot-swap capability, and seamless compatibility with SIMATIC engineering tools. Suitable for system integrators, control panel builders, plant engineers, and OEM equipment manufacturers. Contact our application engineers for configuration assistance and technical quotations.

Core Features & Advantages

• High-Precision 4-20mA Output
  Delivers 12-bit resolution analog signals with ±0.3% accuracy, ensuring precise control of field instruments and minimizing process deviation in critical applications.
• HART Protocol Integration
  Supports HART communication over 4-20mA loops, enabling remote device configuration, diagnostics, and parameter monitoring without additional wiring infrastructure.
• Galvanic Isolation Protection
  Each output channel features electrical isolation up to 500V, protecting PLC backplane from ground loops, voltage spikes, and electromagnetic interference in harsh industrial environments.
• Comprehensive Diagnostics
  Built-in wire-break detection, short-circuit monitoring, and overload protection with real-time status reporting to STEP 7, reducing troubleshooting time and unplanned downtime.
• Hot-Swap Capability
  Supports online module replacement without system shutdown, maintaining process continuity during maintenance and minimizing production interruptions.
• Flexible Output Configuration
  Configurable output ranges (0-20mA, 4-20mA) and behavior modes (substitute values, hold last value) through STEP 7 software, adapting to diverse application requirements.

Typical Application Scenarios

This module excels in applications requiring stable analog control, continuous process monitoring, and integration with intelligent field devices:

• Chemical & Petrochemical Processing
  Controls flow control valves, pressure regulators, and dosing pumps in reactor systems, distillation columns, and blending operations where precise analog signals prevent quality deviations and safety incidents.
• Water & Wastewater Treatment
  Regulates chemical dosing pumps, variable speed drives for blowers, and motorized valves in filtration and disinfection systems, ensuring compliance with discharge standards and optimizing chemical consumption.
• Oil & Gas Production
  Interfaces with wellhead control valves, separator level controllers, and compressor anti-surge systems in upstream and midstream facilities, supporting remote monitoring via HART diagnostics.
• Pharmaceutical Manufacturing
  Drives precision metering pumps, temperature control valves, and clean steam regulators in GMP-compliant production lines, with full traceability and validation documentation support.
• HVAC & Building Automation
  Controls VAV damper actuators, chilled water valves, and VFD speed references in commercial buildings and data centers, achieving energy efficiency targets through optimized setpoint tracking.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide key technical parameters for the SM 332 6ES7332-7ND00-0AB0 module:

Selection Recommendations: When specifying this module, consider the following factors: required number of analog outputs, maximum loop resistance (cable length + field device impedance), need for HART diagnostics, environmental conditions (temperature, vibration, EMI), and integration with existing S7-300 CPU models. For applications requiring higher channel density or redundancy, consult our engineers for multi-module configurations and failover strategies.

Extended Functionality

• SIMATIC Integration: Seamless configuration via STEP 7 (TIA Portal or Classic), with pre-built function blocks for scaling, limit monitoring, and HART parameter access.
• Redundancy Support: Compatible with S7-300 redundant I/O configurations (with appropriate CPU and communication modules) for high-availability applications.
• Calibration & Maintenance: Factory-calibrated with traceable certificates; field recalibration supported through software without hardware adjustments.
• Documentation Package: Includes wiring diagrams, GSD files, STEP 7 sample programs, and HART device integration guides for accelerated commissioning.

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days; custom-configured modules or bulk orders typically require 7-14 days. All products include a 12-month manufacturer warranty covering defects in materials and workmanship. We provide remote technical support for configuration and troubleshooting, with on-site commissioning assistance available in select regions (subject to project scope).

Each module ships with complete technical documentation including electrical schematics, terminal assignment diagrams, STEP 7 hardware configuration files, and operation manuals in English. Installation and maintenance guides facilitate rapid deployment and long-term serviceability.

Frequently Asked Questions (FAQ)

Q: How do I integrate the SM 332 analog output module with my existing S7-300 PLC system?
A: The module mounts directly onto the S7-300 DIN rail and connects via the backplane bus. In STEP 7, add the module to your hardware configuration at the appropriate slot address, configure output ranges and diagnostics, then download to the CPU. Wiring follows standard 4-20mA loop practices with attention to shield grounding.

Q: Can this module control multiple field devices simultaneously?
A: Yes, the SM 332 provides 4 independent output channels, each capable of driving one 4-20mA loop. You can control up to 4 separate field devices (valves, VFDs, positioners) from a single module.

Q: What are the typical energy savings or performance improvements with this module?
A: While the module itself is a signal interface (not a power device), its high accuracy and HART diagnostics enable tighter process control, reducing overshoot, settling time, and raw material waste. Users report 5-15% improvement in control loop performance compared to legacy analog I/O.

Q: What are the installation environment requirements? What is the protection rating?
A: The module is rated IP20 and designed for installation inside control cabinets with ambient temperatures of 0-60°C (horizontal mounting). Ensure adequate ventilation, avoid direct sunlight, and maintain humidity below 95% non-condensing. For harsh environments, use climate-controlled enclosures.

Q: Does this module support remote monitoring and data acquisition? Which protocols are compatible?
A: Yes, via HART protocol overlaid on the 4-20mA signal. HART data can be accessed through STEP 7 function blocks or third-party HART multiplexers. For higher-level SCADA integration, the S7-300 CPU communicates via PROFIBUS, PROFINET, or Ethernet/IP (depending on CPU model and communication modules).

Q: Is this module suitable for safety-critical applications (SIL-rated)?
A: The standard SM 332 is not SIL-certified. For safety-instrumented systems, consider Siemens ET 200SP or SIMATIC Safety modules with appropriate certifications. This module is ideal for standard process control and non-safety analog outputs.

Request Technical Support & Quotation

For detailed application engineering, custom configuration, or project quotations, please provide the following information: project name and industry, control application (valve control, VFD speed reference, etc.), number of analog outputs required, field device specifications (input impedance, HART compatibility), cable run distances, S7-300 CPU model and firmware version, and environmental conditions. Our engineers will respond within 24 hours with tailored recommendations and pricing.
