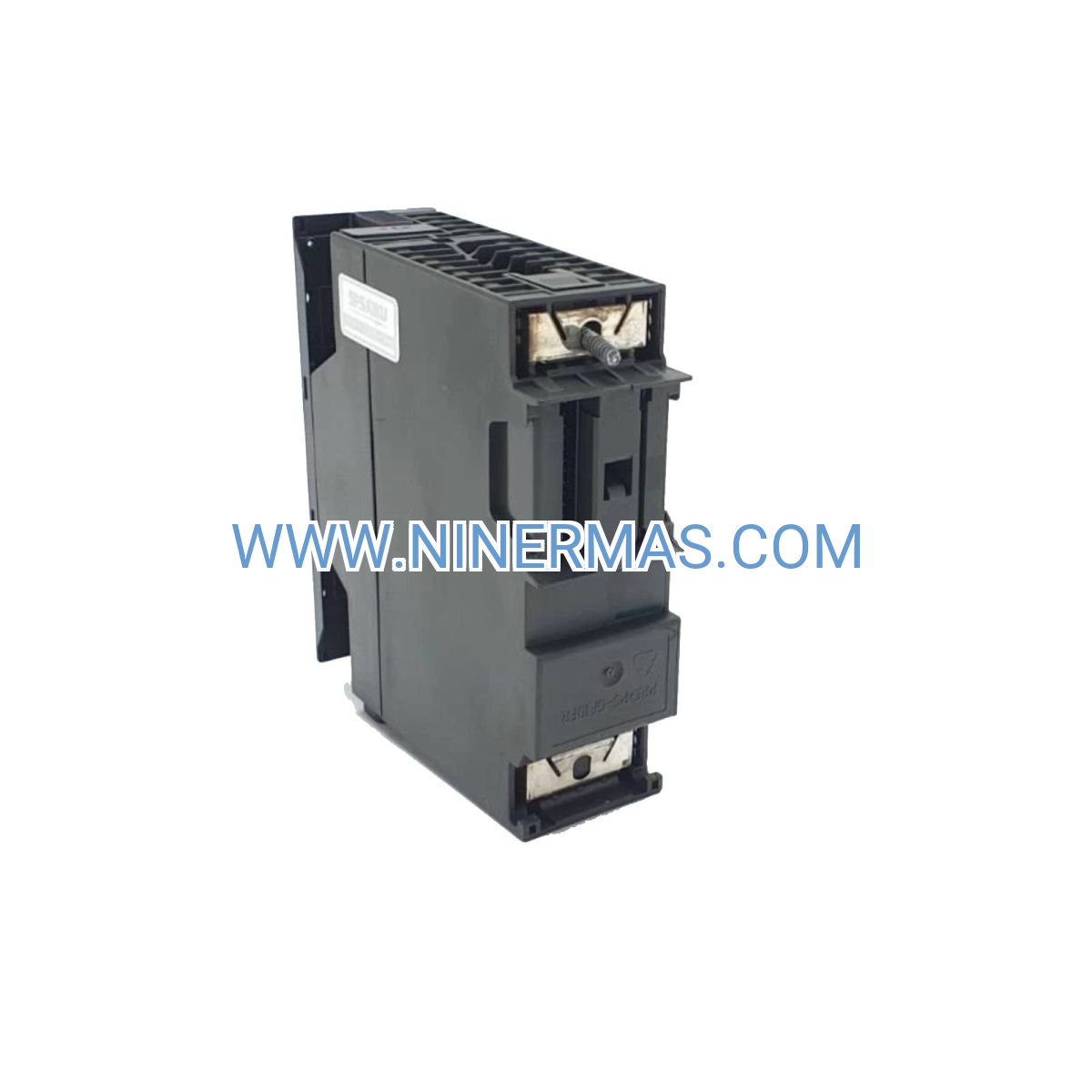

Siemens 6ES7332-5RD00-0AB0 | SM 332 High-Speed Analog Output Module | 4-Channel 16-Bit for S7-300 PLC

Siemens SM 332 High-Speed Analog Output Module (Industrial-Grade Precision Control System)

The Siemens 6ES7332-5RD00-0AB0 SM 332 is a professional-grade analog output module designed for S7-300 PLC systems, delivering high-speed, high-precision analog signal conversion through advanced 16-bit D/A technology. This module enables accurate control of actuators, valves, drives, and process instruments in demanding industrial environments.

Engineered for applications requiring rapid response and exceptional accuracy—such as motion control, servo positioning, process regulation, and closed-loop automation—this module addresses challenges including signal drift, slow conversion times, inadequate isolation, and limited diagnostic capabilities that can compromise system performance.

With standardized design and flexible configuration options, the SM 332 offers galvanic isolation, comprehensive diagnostics, hot-swappable capability, and proven reliability. It serves automation engineers, system integrators, OEM manufacturers, and plant maintenance teams across manufacturing, energy, chemical processing, and material handling industries. Contact our engineering team for application-specific configuration guidance and technical support.

Core Features & Technical Advantages

High-Speed Conversion Performance
Features ultra-fast D/A conversion time enabling real-time control response for dynamic processes, servo systems, and high-frequency regulation loops, minimizing control lag and improving system stability.

16-Bit Resolution Precision
Delivers 16-bit output resolution (1:65,536) providing fine-grained control accuracy essential for precision positioning, flow regulation, temperature control, and quality-critical manufacturing processes.

4-Channel Isolated Architecture
Equipped with 4 independent, galvanically isolated analog output channels, preventing ground loops and electrical interference between channels, enhancing signal integrity and system safety in harsh industrial environments.

Flexible Output Signal Ranges
Supports multiple industry-standard output ranges including voltage (±10V, 0-10V) and current (0-20mA, 4-20mA) signals, ensuring compatibility with diverse field devices, actuators, and control valves without external signal conditioning.

Comprehensive Diagnostic Functions
Integrated self-diagnostics monitor wire break, short circuit, overload conditions, and module status, with real-time fault reporting to STEP 7 software, reducing troubleshooting time and unplanned downtime.

Robust Industrial Design
Built to withstand industrial environments with wide operating temperature range, EMC compliance, vibration resistance, and conformal coating options, ensuring reliable operation in factory floors, process plants, and outdoor installations.

Typical Application Scenarios

This module excels in applications demanding high-speed analog control, precision signal output, and reliable performance under continuous operation:

Motion Control & Servo Positioning
Provides high-speed analog command signals to servo drives, stepper controllers, and variable frequency drives (VFDs) in packaging machinery, CNC equipment, robotics, and material handling systems requiring precise speed and position control.

Process Control & Regulation
Controls process variables such as flow rate, pressure, temperature, and level through analog signals to control valves, dampers, and actuators in chemical processing, water treatment, HVAC systems, and pharmaceutical manufacturing.

Industrial Automation & Manufacturing
Integrates into automated production lines for controlling proportional valves, pneumatic actuators, variable speed drives, and analog instruments in automotive assembly, food & beverage processing, textile machinery, and electronics manufacturing.

Energy & Utilities Management
Regulates power generation equipment, boiler controls, turbine governors, and distribution systems in power plants, district heating, oil & gas facilities, and renewable energy installations requiring stable analog control outputs.

Building Automation & Infrastructure
Manages HVAC dampers, valve actuators, lighting dimmers, and environmental controls in commercial buildings, data centers, hospitals, and smart infrastructure projects demanding reliable analog control integration.

Technical Specifications & Selection Guide

To facilitate system design and module selection, we provide comprehensive technical parameters for integration planning:

Key Technical Parameters:

• Module Type: SM 332 Analog Output, High-Speed
• Order Number: 6ES7332-5RD00-0AB0
• Output Channels: 4 channels, galvanically isolated
• Resolution: 16-bit (1:65,536)
• Conversion Time: High-speed (refer to datasheet for specific timing)
• Output Ranges: Voltage: ±10V, 0-10V | Current: 0-20mA, 4-20mA (configurable per channel)
• Isolation: Channel-to-channel and channel-to-backplane galvanic isolation
• Diagnostics: Wire break detection, short circuit monitoring, module status
• Power Supply: Via S7-300 backplane (5V DC from PS module)
• Operating Temperature: 0°C to +60°C (horizontal installation)
• Protection Rating: IP20 (for control cabinet installation)
• Dimensions: Standard S7-300 module width (40mm)
• Mounting: DIN rail mounting on S7-300 profile rail
• Programming: STEP 7 V5.x or TIA Portal
• Compliance: CE, UL, cULus, FM, ATEX (zone 2), IECEx certified

Selection Considerations:
When selecting this module, consider: required number of analog outputs, signal type and range compatibility with field devices, conversion speed requirements for your control loop, isolation needs based on electrical environment, available slot positions in your S7-300 rack, power budget of your PS module, and environmental conditions. For complex applications or custom configurations, provide your system architecture, I/O list, and control requirements—our application engineers will recommend optimal configuration and provide integration support.

Advanced Configuration Options

Flexible Channel Configuration
Each output channel can be independently configured via STEP 7 software for different signal ranges, enabling mixed voltage/current outputs within a single module to accommodate diverse field device requirements without additional hardware.

Diagnostic & Monitoring Integration
Module diagnostics integrate seamlessly with STEP 7 and SCADA systems, providing real-time status monitoring, alarm generation, and predictive maintenance capabilities through OPC, PROFINET, or Ethernet/IP communication protocols.

Redundancy & Hot-Swap Support
Supports hot-swapping for maintenance without system shutdown (when properly configured), and can be integrated into redundant S7-300H systems for high-availability applications in critical process control environments.

Delivery, Service & Quality Assurance

Stock Availability & Lead Time
Standard modules typically ship from stock within 1-3 business days. Custom-configured or bulk orders may require 5-10 business days. Express shipping options available for urgent projects.

Warranty & Technical Support
All modules include minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service contracts available. Comprehensive technical support includes remote diagnostics, configuration assistance, and on-site commissioning services (region-dependent).

Documentation & Resources
Complete technical documentation package includes: product datasheet, hardware installation manual, STEP 7 configuration guide, GSD/EDS files, wiring diagrams, and sample programming code. All documentation available in multiple languages for global deployment.

Quality Certifications
Factory-sealed genuine Siemens product with full traceability. Complies with international standards including CE, UL, CSA, FM, ATEX, IECEx, and RoHS. Suitable for use in hazardous area Zone 2 applications when properly installed.

Frequently Asked Questions (FAQ)

Q: How do I integrate the SM 332 analog output module with my existing S7-300 PLC system?
A: The module installs directly onto the S7-300 DIN rail profile and connects via the backplane bus. Configuration is performed through STEP 7 software where you assign I/O addresses, select output ranges for each channel, and enable diagnostics. Ensure your power supply module has sufficient capacity (check current consumption in datasheet). Detailed wiring diagrams and configuration examples are provided in the installation manual.

Q: What is the maximum cable length for analog output signals from this module?
A: For voltage outputs, maximum recommended cable length is typically 200 meters with shielded cable. For current outputs (4-20mA), cable length can extend up to 600 meters due to current loop's superior noise immunity. Always use shielded twisted-pair cable with proper grounding to minimize electromagnetic interference in industrial environments.

Q: Can I mix voltage and current outputs on the same SM 332 module?
A: Yes, each of the 4 channels can be independently configured for different output ranges (voltage or current) through STEP 7 software, providing maximum flexibility for applications requiring mixed signal types without needing multiple modules.

Q: What diagnostic capabilities does this high-speed analog output module provide?
A: The module continuously monitors for wire break (open circuit), short circuit conditions, output overload, and internal module faults. Diagnostic information is accessible through STEP 7 diagnostic buffers, LED indicators on the module, and can be integrated into your HMI/SCADA system for centralized monitoring and alarm management.

Q: Is this module suitable for safety-related control applications?
A: This is a standard analog output module not certified for safety-integrity level (SIL) applications. For safety-related functions, consider Siemens SIMATIC Safety or fail-safe I/O modules. However, it can be used in non-safety portions of systems that include safety functions.

Q: Does the SM 332 support hot-swapping during operation?
A: Yes, when properly configured in STEP 7 with the "Module can be removed/inserted during operation" parameter enabled, the module supports hot-swapping for maintenance without shutting down the entire PLC system, minimizing production interruptions.

Request Technical Support & Quotation

For detailed application engineering support, custom configuration assistance, or project quotation, please provide the following information to our technical team:

• Project name and application description
• Number of analog output channels required
• Signal types and ranges needed (voltage/current specifications)
• Control loop speed requirements
• Existing S7-300 system configuration (CPU model, rack size, available slots)
• Environmental conditions (temperature, humidity, hazardous area classification)
• Quantity required and delivery timeline
• Installation location and technical support needs

Our application engineers will provide one-on-one consultation, recommend optimal module configuration, assist with system integration planning, and deliver competitive pricing for your automation project.
