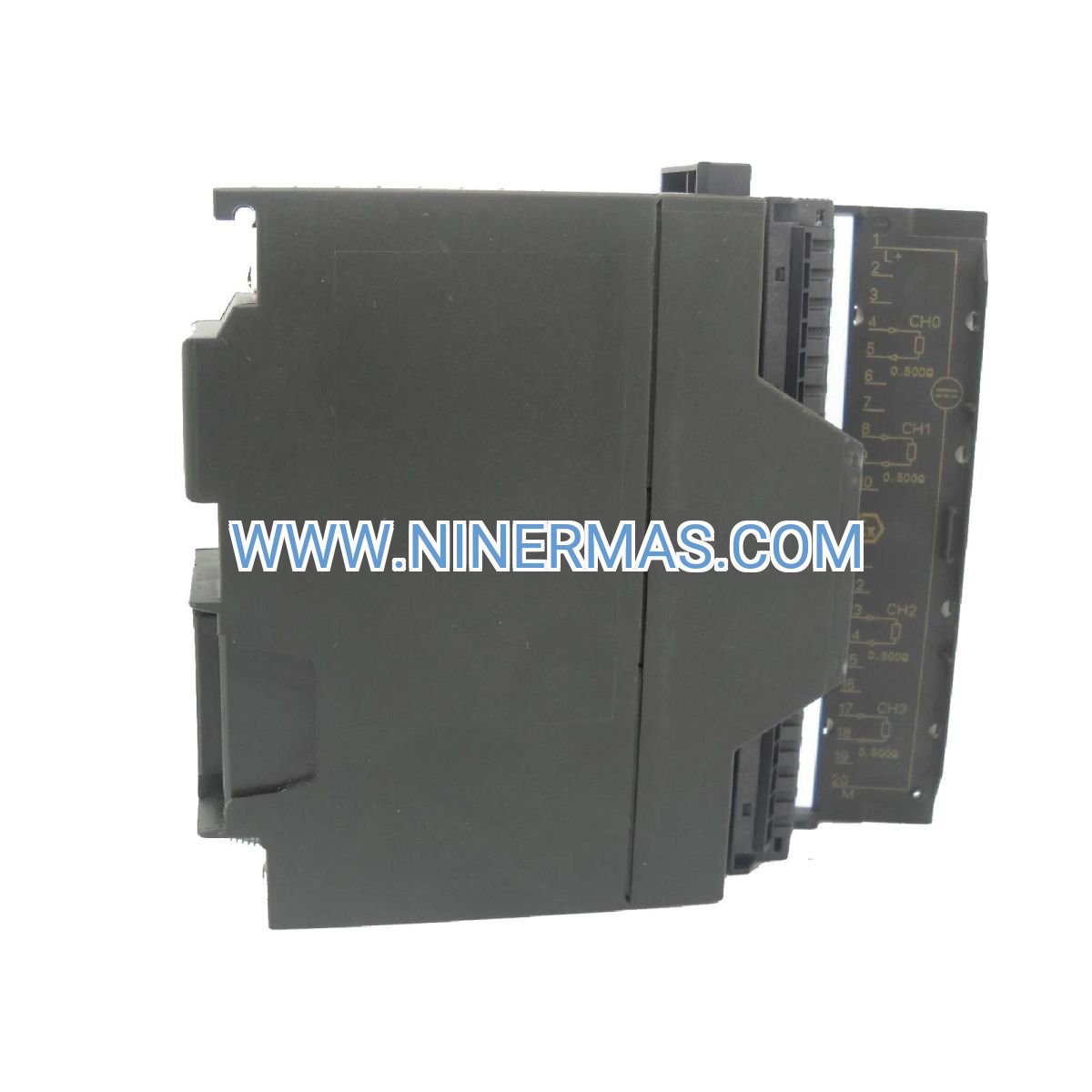

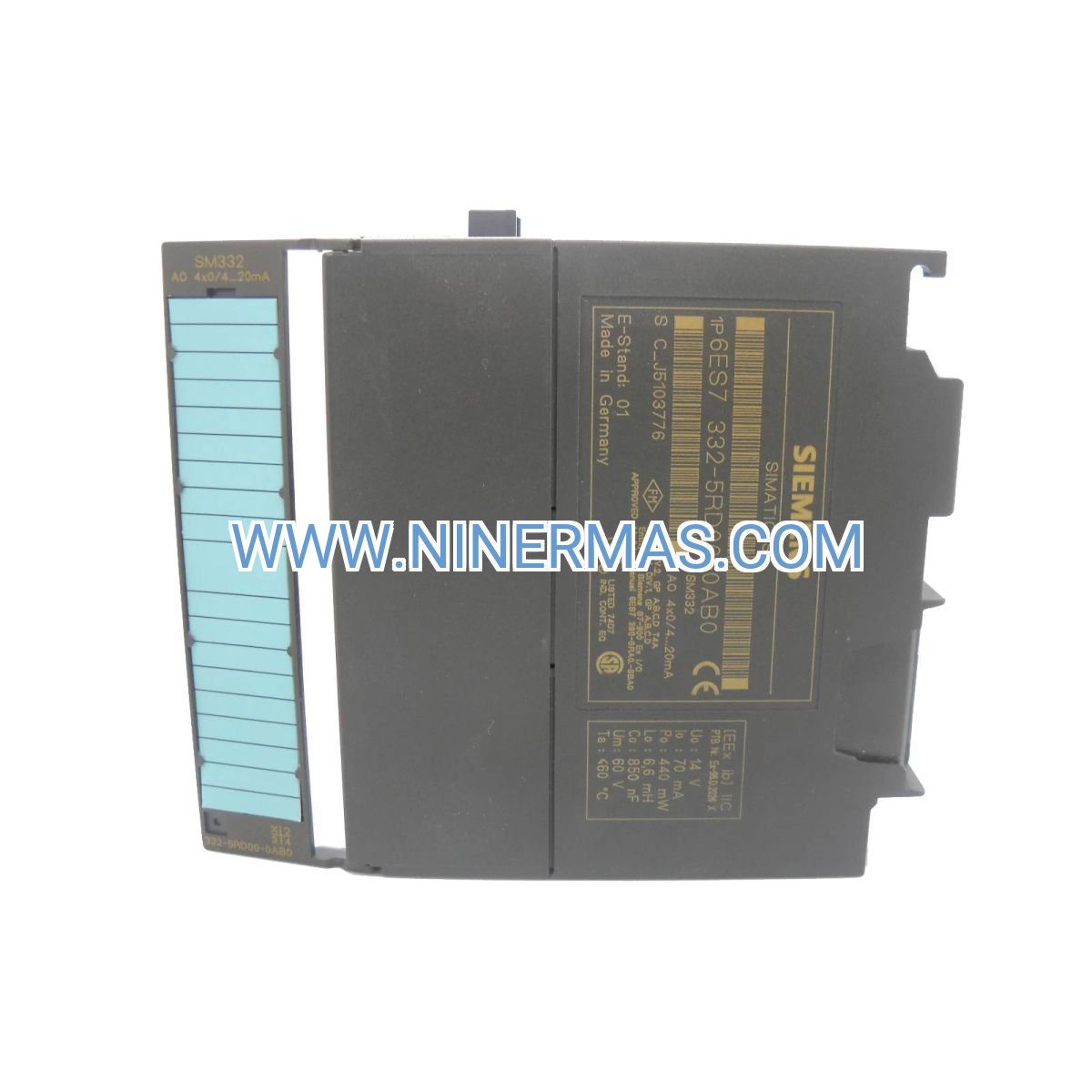

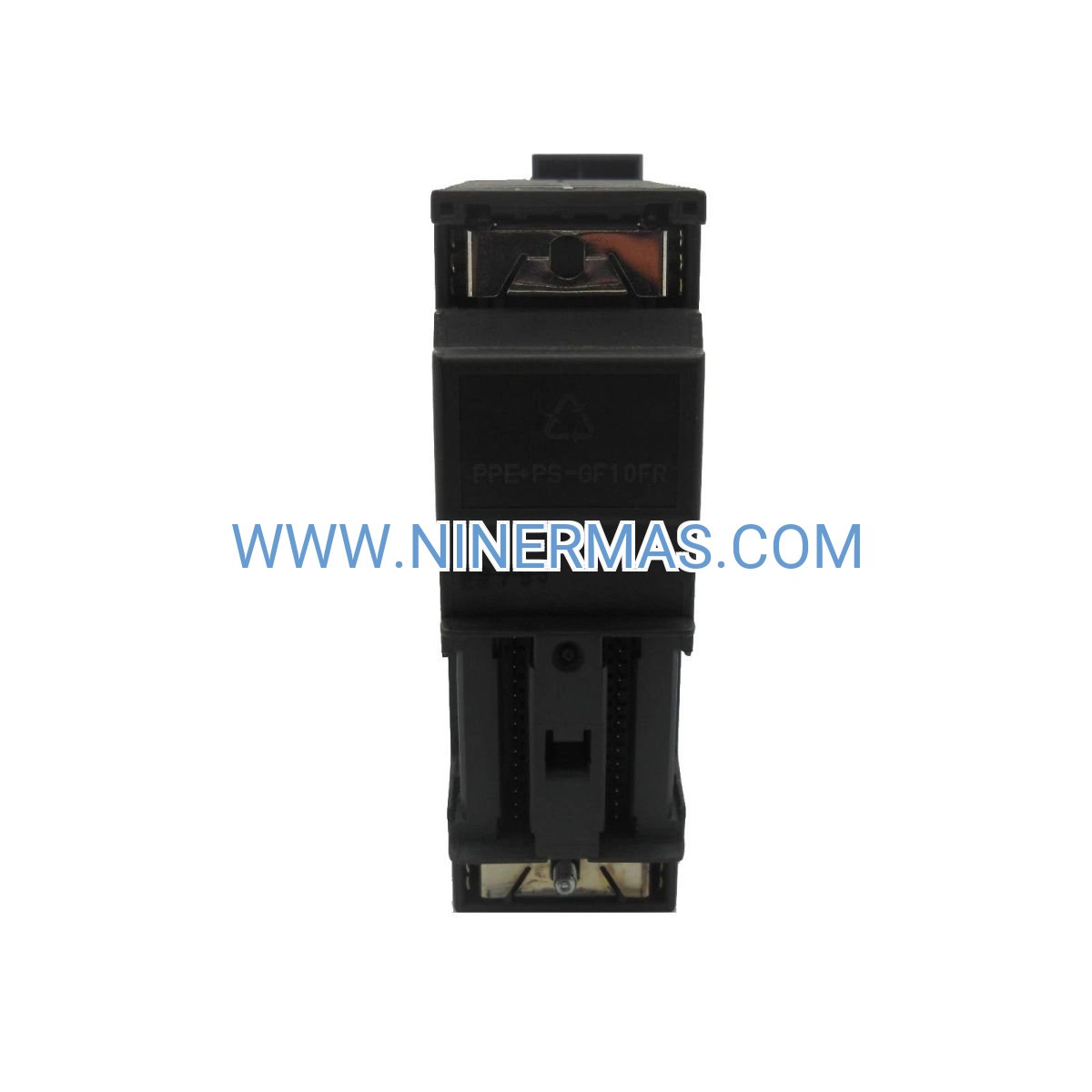

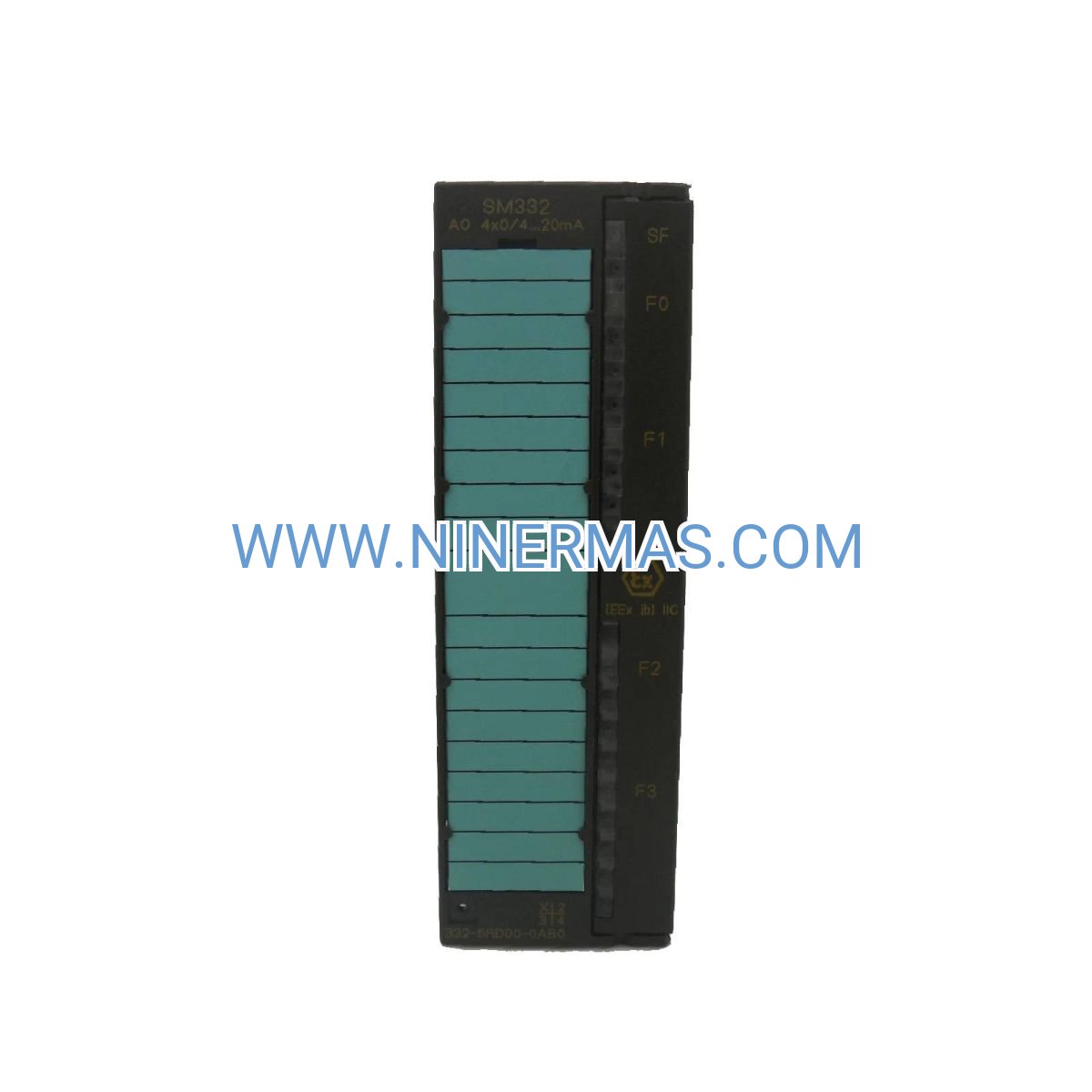

Siemens SM 332 Analog Output Module (Industrial-Grade Control Interface)

The Siemens 6ES7332-5HF00-0AB0 SM 332 is an 8-channel analog output module designed for SIMATIC S7-300 PLC systems, delivering precise voltage/current signals to control valves, actuators, inverters, and instrumentation in industrial automation environments. Through galvanically isolated output channels and high-resolution D/A conversion, it ensures stable signal transmission and minimizes interference in complex electromagnetic conditions.

Widely deployed in process control, manufacturing automation, and building management systems, this module addresses challenges such as signal drift, ground loop interference, multi-point control synchronization, and integration with legacy equipment. It is particularly suited for chemical plants, water treatment facilities, HVAC systems, and production lines requiring continuous analog regulation.

With standardized DIN rail mounting and flexible configuration options, the SM 332 module offers reliable performance, easy maintenance, seamless S7-300 integration, and broad compatibility with third-party devices. Ideal for design engineers, system integrators, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized selection guidance and technical documentation.

Core Features & Advantages

8 Isolated Analog Output Channels
Each channel features galvanic isolation up to 500V, preventing ground loops and crosstalk between control loops, ensuring signal integrity in noisy industrial environments.

High-Resolution Signal Conversion
12-bit D/A resolution provides smooth, accurate control signals (±10V, 0-10V, ±20mA, 0-20mA, 4-20mA configurable), meeting precision requirements for flow, pressure, temperature, and speed regulation.

Flexible Output Configuration
Software-selectable voltage or current output per channel, supporting mixed-mode operation within a single module, reducing hardware inventory and simplifying spare parts management.

Comprehensive Diagnostics & Protection
Built-in short-circuit detection, overload protection, wire-break monitoring, and module status LEDs enable rapid fault identification and minimize downtime during commissioning and operation.

Hot-Swappable Design
Front-accessible connectors and module replacement without power-down capability reduce maintenance time and improve system availability in 24/7 production environments.

Seamless S7-300 Ecosystem Integration
Fully compatible with STEP 7 programming software, supports standard function blocks (FCs/FBs), and integrates with SCADA/HMI systems via PROFIBUS-DP or Industrial Ethernet protocols.

Typical Application Scenarios

This module is engineered for applications demanding stable analog control, multi-point coordination, and long-term reliability, including:

Chemical & Petrochemical Process Control
Regulates flow control valves, pressure regulators, and temperature control loops in reactors, distillation columns, and blending systems, ensuring process stability and product quality consistency.

Water & Wastewater Treatment Systems
Controls dosing pumps, variable frequency drives (VFDs) for blowers, and motorized valves in filtration, aeration, and chemical dosing stages, optimizing energy consumption and treatment efficiency.

HVAC & Building Automation
Modulates damper actuators, chilled water valves, and fan speed controllers in air handling units (AHUs), maintaining indoor climate comfort while reducing HVAC energy costs by up to 25%.

Manufacturing & Assembly Lines
Drives servo amplifiers, pneumatic proportional valves, and tension control systems in packaging, textile, printing, and material handling equipment, ensuring precise motion control and product consistency.

Energy & Utilities Infrastructure
Interfaces with turbine governors, excitation systems, and substation automation equipment in power generation, transmission, and distribution networks, supporting grid stability and remote monitoring.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, key specifications are summarized below. Custom configurations available upon request.

Key Parameters:

• Number of Channels: 8 analog outputs
• Output Signal Types: ±10V, 0-10V, ±20mA, 0-20mA, 4-20mA (software-selectable per channel)
• Resolution: 12-bit (1 in 4096)
• Conversion Time: Typically 1ms per channel
• Isolation Voltage: 500V AC between channels and backplane bus
• Load Resistance: ≥5kΩ (voltage mode), ≤600Ω (current mode)
• Power Consumption: Approx. 1.5W from S7-300 backplane
• Operating Temperature: 0°C to +60°C (horizontal mounting)
• Protection Rating: IP20 (suitable for control cabinet installation)
• Dimensions: 40mm (W) × 125mm (H) × 120mm (D)
• Mounting: Standard 35mm DIN rail
• Certifications: CE, UL, cULus, ATEX (Zone 2), IECEx

Selection Recommendations:
When specifying this module, consider: (1) total number of analog control points required, (2) signal type compatibility with field devices, (3) isolation requirements based on grounding topology, (4) ambient temperature and enclosure ventilation, (5) spare I/O capacity for future expansion. For complex applications involving redundancy, hot-standby configurations, or integration with third-party DCS systems, consult our application engineers with project-specific parameters (P&ID, I/O list, electrical single-line diagram) for tailored recommendations and quotations.

Extended Capabilities

PROFIBUS-DP & Industrial Ethernet Connectivity
When paired with appropriate S7-300 CPU and communication processors, supports distributed I/O architectures, enabling remote installation up to 1000m from the central controller and reducing field wiring costs.

Redundancy & Fault-Tolerant Configurations
Compatible with S7-300H redundant controller systems for mission-critical applications requiring <99.9% uptime, such as pharmaceutical manufacturing and continuous process industries.

Third-Party Protocol Integration
Via OPC UA, Modbus TCP, or PROFINET gateways, seamlessly exchanges data with non-Siemens PLCs, SCADA platforms (WinCC, Ignition, Wonderware), and cloud-based IIoT analytics services.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days; custom-configured modules or bulk orders may require 10-15 business days. Expedited delivery available upon request.

Warranty: Backed by a minimum 18-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and preventive maintenance contracts available.

Technical Support: Comprehensive support includes pre-sales application consulting, STEP 7 programming assistance, on-site commissioning guidance (subject to location and project scope), and remote diagnostics via secure VPN connections.

Documentation Package: Each module ships with detailed technical manual, wiring diagrams, terminal assignment charts, STEP 7 hardware configuration files (GSD), and sample ladder logic/function block examples for common control tasks.

Compliance & Certifications: Manufactured in ISO 9001-certified facilities, compliant with RoHS, REACH, and conflict minerals regulations. Full traceability documentation available for regulated industries (FDA, GAMP5, IEC 61511).

Frequently Asked Questions (FAQ)

Q: How do I integrate the SM 332 analog output module with my existing S7-300 PLC system?
A: The module installs directly onto the S7-300 DIN rail backplane. Use STEP 7 hardware configuration tool (HW Config) to assign the module to a specific slot address, configure output signal types per channel, and map process image output (PIQ) addresses. Detailed integration procedures are provided in the technical manual.

Q: What is the maximum number of SM 332 modules I can install in one S7-300 rack?
A: This depends on your CPU model and power supply capacity. A standard S7-300 rack supports up to 8 signal modules. Each SM 332 consumes approximately 1.5W; ensure your PS 307 power supply has sufficient reserve capacity. For systems requiring more than 64 analog outputs, consider distributed I/O via PROFIBUS-DP.

Q: Can I mix voltage and current outputs on the same module?
A: Yes. Each of the 8 channels can be independently configured for voltage (±10V, 0-10V) or current (±20mA, 0-20mA, 4-20mA) output via software settings in STEP 7, providing maximum flexibility without additional hardware.

Q: What environmental conditions are required for reliable operation?
A: The module is rated for 0°C to +60°C ambient temperature (horizontal mounting; derate for vertical orientation), 5% to 95% relative humidity (non-condensing), and IP20 protection. Install in a ventilated control cabinet, avoid direct sunlight, and maintain adequate clearance for convection cooling.

Q: Does the module support remote monitoring and predictive maintenance?
A: Yes. Diagnostic data (channel status, wire-break alarms, module health) can be accessed via STEP 7, visualized on HMI panels, or transmitted to SCADA/MES systems. Integration with Siemens MindSphere or third-party IIoT platforms enables predictive analytics and condition-based maintenance scheduling.

Q: Is the module suitable for safety-related control functions (SIL-rated applications)?
A: The standard SM 332 is designed for non-safety process control. For safety-instrumented systems (SIS) requiring SIL 2/3 certification, consider Siemens SIMATIC Safety Integrated modules or consult our functional safety engineers for compliant solutions per IEC 61508/61511.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing, or application-specific technical support, please provide the following information: project name, application description, number of analog outputs required, signal types and ranges, environmental conditions, PLC system details (CPU model, existing I/O configuration), and delivery timeline. Our application engineers will respond within 24 hours with a customized recommendation and commercial quotation.
