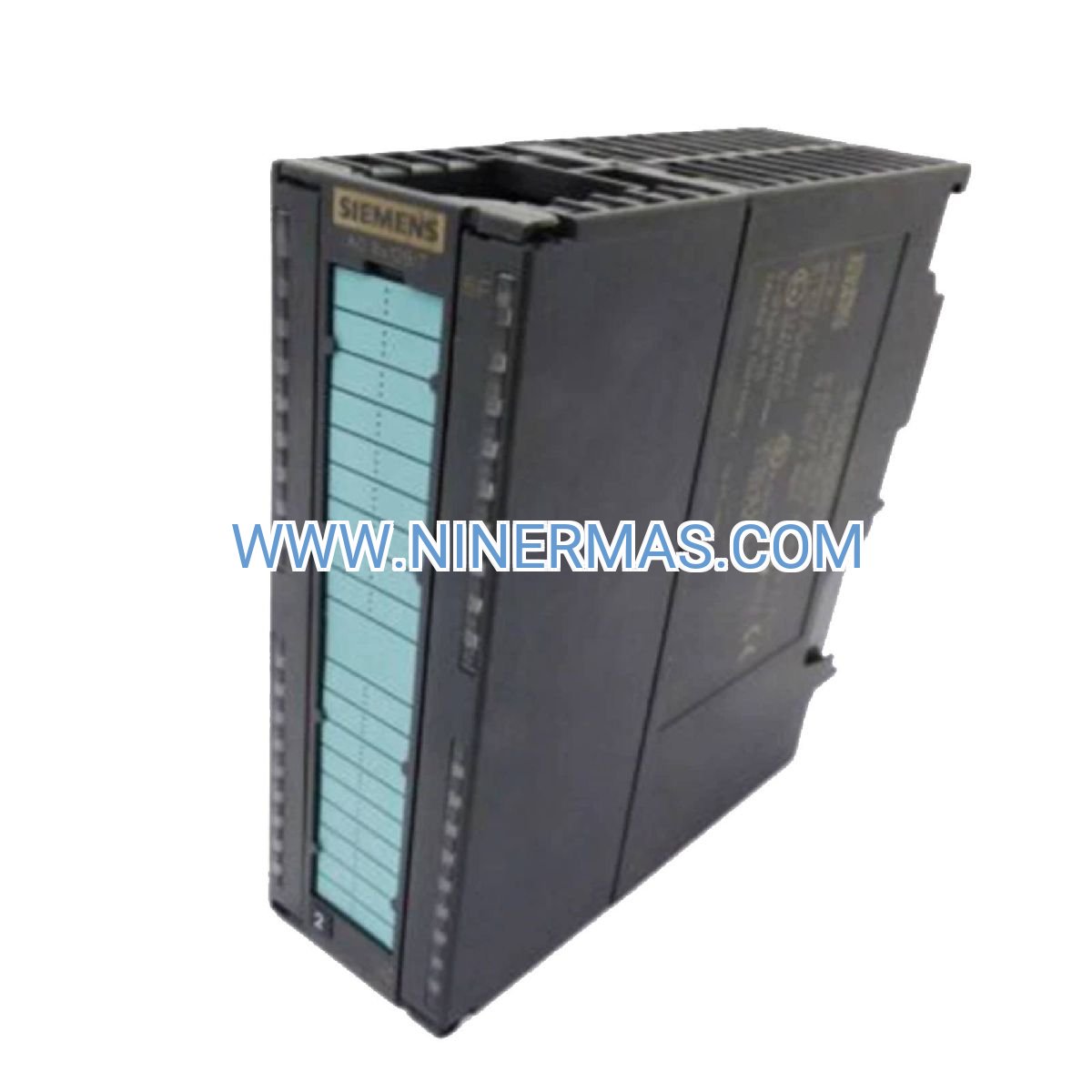

Siemens 6ES7332-5HD01-0AB0 | SM 332 Analog Output Module 4AO 16-Bit | S7-300 PLC

Siemens SM 332 Analog Output Module (Industrial-Grade 16-Bit Control Solution)

The Siemens 6ES7332-5HD01-0AB0 SM 332 is a high-precision analog output module designed for industrial automation and process control applications. Through its 4 electrically isolated 16-bit output channels, it delivers accurate analog signals to field devices such as control valves, variable frequency drives, and actuators, enabling precise control of process parameters including flow, pressure, temperature, and speed.

This module is specifically engineered for demanding industrial environments including chemical processing plants, water treatment facilities, manufacturing automation systems, and energy management applications. It addresses critical challenges such as signal interference, output accuracy drift, multi-channel isolation requirements, and the need for flexible signal range configuration in complex control scenarios.

With standardized design and flexible configuration options, the SM 332 module offers exceptional reliability, easy integration with S7-300 PLC systems, comprehensive diagnostic capabilities, and compatibility with industry-standard signal ranges. It is ideal for system integrators, control panel manufacturers, automation engineers, and end-user facilities seeking dependable analog output solutions. Contact our engineering team for application-specific configuration guidance and technical specifications.

Core Features & Technical Advantages

• High-Resolution 16-Bit Output
  Delivers precise analog control with 16-bit resolution (±0.3% accuracy), ensuring stable process control and minimizing output fluctuation in critical applications.
• Multiple Output Signal Ranges
  Supports industry-standard ranges including ±10V voltage output and 0-20mA/4-20mA current output, providing flexibility for various field device requirements without additional signal converters.
• Electrical Isolation Between Channels
  Each of the 4 output channels features galvanic isolation, preventing ground loop interference and protecting against voltage surges, which enhances system reliability in electrically noisy environments.
• Comprehensive Diagnostic Functions
  Built-in diagnostics detect wire breaks, short circuits, and overload conditions with real-time status reporting to the PLC, reducing troubleshooting time and minimizing unplanned downtime.
• Seamless S7-300 Integration
  Hot-swappable design with automatic hardware detection allows quick installation and replacement without system shutdown, while STEP 7 programming software provides intuitive configuration and scaling functions.
• Robust Industrial Construction
  Designed to withstand harsh industrial conditions with wide operating temperature range (-25°C to +60°C), vibration resistance, and conformal coating protection for long-term reliability.

Typical Application Scenarios

The SM 332 analog output module is widely deployed in applications requiring precise analog control with high reliability and noise immunity:

• Process Control & Chemical Manufacturing
  Controls proportional valves, variable speed pumps, and heating elements in batch processing, continuous flow systems, and reactor temperature control where precise analog signals ensure product quality and process safety.
• Water & Wastewater Treatment
  Regulates chemical dosing pumps, flow control valves, and blower speed in municipal water treatment, industrial wastewater systems, and desalination plants, maintaining optimal treatment parameters while reducing chemical waste.
• HVAC & Building Automation
  Modulates damper actuators, VFD-controlled fans, and chilled water valves in commercial buildings, data centers, and cleanroom facilities, achieving energy-efficient climate control with precise zone management.
• Manufacturing & Assembly Lines
  Drives servo positioning systems, pneumatic pressure regulators, and material feed rate controllers in automotive, electronics, and packaging industries, ensuring consistent production quality and throughput.
• Energy & Power Generation
  Interfaces with turbine control systems, fuel flow regulation, and emission control equipment in power plants, cogeneration facilities, and renewable energy installations, supporting stable grid operation and emissions compliance.

Technical Specifications & Selection Guide

To facilitate system design and module selection, we provide comprehensive technical parameters for the SM 332 analog output module:

Selection Considerations: When specifying the SM 332 module, consider the following factors: required output signal types (voltage vs. current), number of analog control points, load characteristics of connected field devices, environmental conditions (temperature, vibration, EMI), and available space in the S7-300 rack. For applications requiring more than 4 outputs, multiple modules can be installed in the same rack. Our application engineers can assist with system architecture design and optimal module configuration based on your specific control requirements.

Advanced Configuration Options

• Software Scaling & Linearization
  STEP 7 programming environment provides built-in scaling functions to convert PLC data values to engineering units, plus linearization tables for non-linear actuators and control elements.
• Diagnostic Integration
  Module status and channel-specific fault information can be read via PLC program and integrated with SCADA/HMI systems for centralized monitoring and predictive maintenance scheduling.
• Redundancy Configuration
  For critical control loops, dual SM 332 modules can be configured with automatic switchover logic in the PLC program, ensuring continuous operation even during module failure or maintenance.
• Communication Protocol Support
  Fully compatible with PROFIBUS-DP and PROFINET communication protocols when used with appropriate S7-300 CPU models, enabling distributed I/O architectures and remote monitoring capabilities.

Delivery, Service & Quality Assurance

Availability & Lead Time: Standard modules are typically available from stock with same-day shipping for orders placed before 3 PM CST. For bulk orders or project-specific requirements, delivery time is 5-10 business days depending on quantity and destination.

Warranty & Support: All SM 332 modules include a comprehensive 12-month warranty covering manufacturing defects and component failures. Extended warranty options are available for critical applications. Our technical support team provides remote assistance for configuration, troubleshooting, and integration guidance at no additional charge.

Documentation Package: Each module ships with complete technical documentation including datasheet, wiring diagrams, STEP 7 configuration examples, and installation instructions in English. GSD files and hardware configuration data are available for download from our technical resource center.

Quality Certifications: All products are sourced through authorized Siemens distribution channels and undergo incoming quality inspection. We maintain ISO 9001:2015 certified quality management processes and provide full traceability documentation for compliance-sensitive industries.

Frequently Asked Questions (FAQ)

Q: How do I connect the SM 332 analog output module to my existing S7-300 PLC system?
A: The SM 332 module installs directly onto the S7-300 DIN rail mounting system and connects via the backplane bus. Simply insert the module into an available slot, secure with the locking mechanism, and configure the hardware in STEP 7 software. The module automatically receives power and communication from the backplane. Ensure your CPU supports the required number of I/O addresses.

Q: What is the maximum cable length for analog output signals from the SM 332?
A: For voltage outputs (±10V), maximum recommended cable length is 200 meters using shielded twisted-pair cable. For current outputs (0-20mA, 4-20mA), you can extend up to 600 meters due to current loop's superior noise immunity. Always use shielded cable with shield grounded at one end only to prevent ground loops.

Q: Can I mix voltage and current outputs on the same SM 332 module?
A: Yes, each of the 4 output channels can be independently configured for either voltage or current output through software configuration in STEP 7. This flexibility allows you to interface with different field device types using a single module, reducing inventory requirements and rack space.

Q: What diagnostic capabilities does the SM 332 provide for troubleshooting?
A: The module provides comprehensive diagnostics including wire break detection, short circuit detection, overload conditions, and out-of-range errors. Diagnostic information is accessible through LED indicators on the module front panel and via PLC program for integration with your HMI/SCADA system. The STEP 7 hardware diagnostics tool provides detailed fault analysis.

Q: Is the SM 332 module suitable for safety-critical applications?
A: The SM 332 is a standard automation module and is not certified for safety-related applications per IEC 61508 or ISO 13849. For safety-critical control functions, consider Siemens SIMATIC Safety Integrated products. However, the SM 332 can be used for non-safety process control in systems that include separate safety instrumented systems (SIS).

Q: What is the typical power consumption and heat dissipation of the SM 332?
A: The module draws approximately 1.5W from the S7-300 backplane under typical operating conditions, with heat dissipation of about 1.5W. Ensure adequate ventilation in the control cabinet and maintain ambient temperature within the specified -25°C to +60°C range. For densely populated racks, consider forced air cooling.

Request Technical Support & Quotation

To receive detailed application guidance, custom configuration recommendations, or project quotations, please provide the following information to our engineering team:

• Project name and application description
• Number of analog output points required
• Output signal types needed (voltage/current ranges)
• Connected field device specifications and load characteristics
• Existing S7-300 CPU model and available rack slots
• Environmental conditions (temperature, vibration, EMI exposure)
• Required delivery timeline and quantity

Our application engineers will provide one-on-one consultation to ensure optimal module selection and system integration for your specific requirements.
