Siemens 6ES7331-7HF01-0AB0 | SM 331 F-AI 8 Failsafe Analog Input Module | SIL 3 Certified

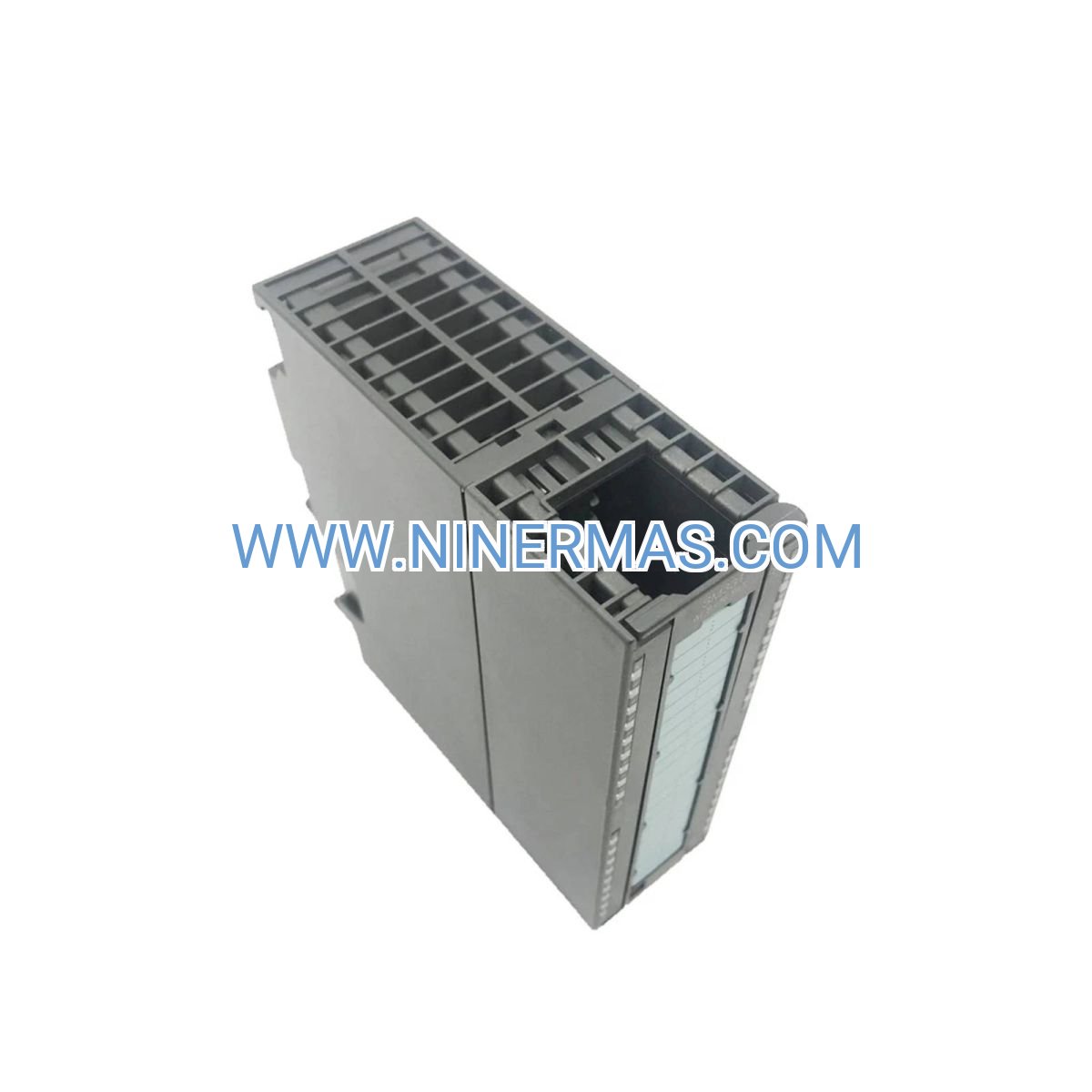

Siemens SM 331 F-AI 8 Failsafe Analog Input Module (Industrial-Grade Safety Control Solution)

The Siemens 6ES7331-7HF01-0AB0 SM 331 F-AI 8 is a failsafe analog input module designed for safety-critical industrial automation applications. Through SIL 3 (Safety Integrity Level 3) certification and advanced signal processing technology, it delivers precise, reliable analog signal acquisition for safety instrumented systems (SIS), ensuring operational continuity and personnel protection in hazardous environments.

Engineered for process control, chemical manufacturing, oil & gas, and pharmaceutical production, this module addresses challenges such as signal drift, sensor failure detection, and compliance with functional safety standards (IEC 61508, IEC 61511). It integrates seamlessly with Siemens S7-300 F-Systems and distributed safety controllers.

With standardized design and flexible configuration options, the SM 331 F-AI 8 offers high diagnostic coverage, redundant signal processing, and hot-swappable capability, making it ideal for design institutes, system integrators, OEMs, and end-user facilities requiring certified safety solutions. Contact our application engineers for configuration guidance and compliance documentation.

Core Features & Technical Advantages

• SIL 3 Certified Safety Performance
  Compliant with IEC 61508 and IEC 61511 standards, providing systematic capability for safety functions up to SIL 3. Built-in diagnostics detect sensor faults, wire breaks, and out-of-range signals, ensuring fail-safe operation in emergency shutdown (ESD) and process safety applications.
• 8-Channel Failsafe Analog Inputs
  Supports voltage (±10V, 1-5V) and current (0-20mA, 4-20mA) signals with 16-bit resolution. Each channel features independent galvanic isolation (up to 500V AC), eliminating ground loop interference and enhancing signal integrity in electrically noisy industrial environments.
• Advanced Diagnostic & Self-Monitoring
  Continuous self-testing of internal circuits, A/D converters, and power supply rails. Diagnostic coverage exceeds 95%, meeting requirements for proof test intervals (PTI) up to 10 years. Fault messages are transmitted to the safety controller in real-time via PROFIBUS DP or PROFINET.
• Seamless S7-300 F-System Integration
  Hot-pluggable design allows module replacement without system shutdown. Configuration via STEP 7 Safety Advanced software with pre-certified function blocks (F-Blocks), reducing engineering time and certification costs for machine builders and system integrators.
• Robust Industrial Construction
  IP20-rated housing with conformal-coated PCBs for resistance to humidity, dust, and chemical vapors. Operating temperature range: -25°C to +60°C. Suitable for control cabinet mounting in Zone 2 hazardous areas (when properly enclosed).
• Comprehensive Protection Mechanisms
  Overvoltage protection (up to 35V DC), reverse polarity protection, and short-circuit-proof outputs. Integrated EMC filters comply with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions), ensuring reliable operation near VFDs, welding equipment, and high-power switching devices.

Typical Application Scenarios

This module is engineered for industries where analog signal monitoring directly impacts safety and regulatory compliance:

• Emergency Shutdown Systems (ESD) in Oil & Gas
  Monitors pressure, temperature, and level transmitters in offshore platforms, refineries, and pipeline networks. Triggers automated shutdowns when process variables exceed safe operating limits, preventing explosions, spills, and equipment damage.
• Burner Management Systems (BMS) in Power Generation
  Acquires flame detector signals, fuel pressure, and air flow measurements in boiler control systems. Ensures safe ignition sequences and flame supervision per NFPA 85 and IEC 61511 requirements.
• Chemical Reactor Safety Interlocks
  Interfaces with temperature sensors, pH probes, and flow meters in batch reactors and continuous processes. Prevents runaway reactions by initiating cooling, venting, or feed cutoff when critical parameters deviate from setpoints.
• Pharmaceutical Clean Room Monitoring
  Tracks differential pressure, humidity, and particulate sensors in sterile manufacturing zones. Maintains GMP compliance by logging deviations and triggering alarms for HVAC system failures or contamination risks.
• Machine Safety Systems (Press Brakes, Stamping Lines)
  Monitors safety light curtain analog outputs, pressure-sensitive mats, and two-hand control stations. Integrates with safety PLCs to enforce ISO 13849-1 (PLe) and IEC 62061 (SIL 3) requirements for machinery safeguarding.

Technical Specifications & Selection Guide

To facilitate system design and procurement, key parameters are summarized below. Custom configurations available for special signal ranges or hazardous area certifications.

Selection Considerations:
When specifying this module, evaluate: (1) total number of safety-related analog signals, (2) sensor signal types and loop power requirements, (3) required SIL level and proof test interval, (4) environmental conditions (temperature, humidity, vibration), (5) communication protocol (PROFIBUS vs. PROFINET). For assistance, provide process & instrumentation diagrams (P&IDs), sensor datasheets, and safety requirement specifications (SRS). Our certified functional safety engineers will recommend optimal configurations and provide pre-sales SIL calculations.

Extended Functionality & System Integration

• Redundant Architecture Support
  Compatible with 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting configurations when paired with redundant F-CPUs (e.g., CPU 315F-2 DP, CPU 317F-2 DP). Enables fault-tolerant designs for SIL 3 applications requiring high availability.
• HART Protocol Pass-Through
  Transparent transmission of HART digital signals superimposed on 4-20mA analog loops. Allows remote sensor diagnostics, calibration, and configuration without additional wiring or gateways.
• Partial Stroke Testing (PST) Integration
  Interfaces with smart valve positioners for automated partial stroke tests on safety valves. Reduces proof test costs and extends maintenance intervals while maintaining SIL 3 integrity.
• SCADA & Historian Connectivity
  Safety-relevant process values accessible via OPC UA, Modbus TCP, or native Siemens protocols. Enables real-time monitoring, trend analysis, and regulatory reporting (21 CFR Part 11, OSHA PSM) through plant-wide information systems.

Delivery, Service & Compliance Documentation

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules (special signal ranges, extended temperature ratings) require 4-6 weeks. Expedited delivery available for critical shutdowns or project milestones.

Warranty & Support: 24-month manufacturer warranty covering defects in materials and workmanship. Technical support includes remote diagnostics, firmware updates, and on-site commissioning assistance (subject to geographic availability). Replacement modules ship same-day for customers with active service contracts.

Documentation Package: Each module ships with:

• Certified safety manual (per IEC 61508-2, Annex B)
• Installation and wiring diagrams (DWG/PDF formats)
• STEP 7 Safety GSD files and F-Block libraries
• Calibration certificate (traceable to national standards)
• Declaration of Conformity (CE, UL, ATEX)
• Failure Modes, Effects, and Diagnostic Analysis (FMEDA) report

Training & Commissioning: Certified training courses available for STEP 7 Safety programming, SIL verification, and functional safety management. On-site commissioning services include loop checks, proof testing, and safety validation documentation for regulatory audits.

Frequently Asked Questions (FAQ)

Q: How does the SM 331 F-AI 8 module integrate with existing S7-300 PLC systems?
A: The module mounts on standard S7-300 DIN rails and connects via the backplane bus. It requires a safety-rated CPU (e.g., CPU 315F-2 DP or higher) and STEP 7 Safety Advanced software (V13 or later) for configuration. Non-safety I/O can coexist on the same rack. Communication uses standard PROFIBUS DP or PROFINET protocols with F-parameters for safety data exchange.

Q: What is the maximum number of SM 331 F-AI 8 modules per safety controller?
A: Up to 8 failsafe I/O modules can connect to a single F-CPU, depending on the CPU model and communication bandwidth. For larger systems, use distributed safety via ET 200S F-stations or redundant controller architectures. Consult the S7-300 system manual (Chapter 4) for exact module limits and performance data.

Q: What energy savings or efficiency gains can be expected with this module?
A: As a passive input device, the SM 331 F-AI 8 does not directly reduce energy consumption. However, its high diagnostic accuracy (±0.05% FSR) enables tighter process control, reducing raw material waste, off-spec production, and unplanned shutdowns. In safety applications, early fault detection prevents costly emergency stops and equipment damage, improving overall equipment effectiveness (OEE) by 5-15% in typical installations.

Q: What are the environmental and installation requirements for this module?
A: The module is rated IP20 and requires installation in a ventilated control cabinet. Operating temperature: -25°C to +60°C (horizontal mounting; derate to +40°C for vertical). Relative humidity: 5-95% non-condensing. Avoid direct exposure to corrosive gases, conductive dust, or vibration exceeding 5-9 Hz (3.5mm amplitude). For Zone 2 hazardous areas, use ATEX-certified enclosures with proper cable glands and grounding.

Q: Can this module support remote monitoring and data acquisition?
A: Yes. Safety-relevant analog values are accessible via the F-CPU's communication interfaces (PROFIBUS DP, PROFINET, Ethernet/IP). Integration with SCADA systems (WinCC, Ignition, Wonderware) is supported through OPC UA or native Siemens S7 protocols. For cloud-based IIoT platforms, use Siemens Industrial Edge or third-party gateways with cybersecurity hardening (firewall, VPN, role-based access control).

Q: What protocols and standards does the module comply with for functional safety?
A: The SM 331 F-AI 8 is certified to IEC 61508 (SIL 3), IEC 61511 (process industry safety), ISO 13849-1 (machinery safety, Category 4/PLe), and EN 50156 (furnace safety). It also meets EMC standards EN 61000-6-2/-6-4, marine certifications (DNV, ABS), and North American codes (UL 508, CSA C22.2). FMEDA reports and safety manuals provide failure rate data (λ, SFF, PFDavg) for SIL verification calculations.

Request Technical Support & Custom Configuration

To receive detailed application engineering support, SIL calculations, or project-specific quotations, please provide the following information:

• Project name and industry sector
• Number and types of analog sensors (voltage/current, 2-wire/4-wire)
• Required SIL level and proof test interval
• Environmental conditions (temperature, hazardous area classification)
• Communication protocol (PROFIBUS DP, PROFINET, Ethernet/IP)
• Quantity and delivery timeline

Our certified functional safety engineers will provide one-on-one consultation, including P&ID reviews, safety requirement specifications (SRS) development, and compliance documentation for regulatory submissions.
