Siemens 6ES7331-1KF02-0AB0 | 8-Channel Analog Input Module | SIMATIC S7-300 SM 331

Siemens SIMATIC S7-300 SM 331 Analog Input Module (Industrial-Grade Precision Measurement Solution)

The Siemens 6ES7331-1KF02-0AB0 SM 331 is an 8-channel analog input module designed for high-precision signal acquisition in industrial automation systems. Through 16-bit A/D conversion and universal input compatibility, it enables accurate measurement of temperature, voltage, and current signals from field instruments, ensuring reliable data collection for process control, quality monitoring, and equipment diagnostics.

Suitable for chemical processing plants, power generation facilities, pharmaceutical manufacturing, water treatment systems, and discrete manufacturing environments where precise analog signal monitoring is critical. It addresses challenges such as signal drift, measurement inconsistency, noisy industrial environments, and the need for multi-sensor integration across diverse field devices.

With standardized DIN rail mounting and flexible configuration options, this module delivers proven reliability, wide signal compatibility, straightforward commissioning, and seamless integration with SIMATIC S7-300 PLCs. Ideal for system integrators, control panel builders, OEM machine manufacturers, and plant maintenance teams. Contact our application engineers for configuration assistance and technical specifications.

Core Features & Technical Advantages

• Universal Signal Compatibility
  Accepts thermocouples (Types J, K, E, N, S, R, B), RTDs (Pt100, Pt1000, Ni100), voltage (±80 mV to ±10 V), and current (0-20 mA, 4-20 mA) inputs. Eliminates the need for external signal conditioners and simplifies wiring in multi-sensor applications.
• High-Resolution 16-Bit Conversion
  Delivers measurement accuracy up to ±0.1% of full scale, enabling precise process control and early detection of process deviations. Suitable for applications requiring tight tolerance monitoring such as temperature profiling and flow measurement.
• Galvanic Isolation & Noise Immunity
  Each channel group features electrical isolation up to 500 V AC, protecting the PLC backplane from ground loops and electrical interference. Ensures stable operation in harsh industrial environments with high EMI/RFI exposure.
• Flexible Channel Configuration
  Individual channel parameterization via STEP 7 software allows mixed signal types on a single module. Supports different measurement ranges, filter settings, and diagnostic functions per channel, reducing hardware inventory and installation costs.
• Integrated Diagnostics & Fault Detection
  Built-in wire break detection, short-circuit monitoring, and out-of-range alarms provide real-time status feedback. Diagnostic LEDs and software messages accelerate troubleshooting and minimize unplanned downtime.
• Compact & Hot-Swappable Design
  Standard S7-300 form factor with front connector system enables quick module replacement without disturbing adjacent modules or field wiring. Supports online module exchange (OMS) for maintenance without process interruption.

Typical Application Scenarios

This analog input module is engineered for environments demanding high measurement integrity, continuous operation, and multi-signal integration:

• Chemical & Petrochemical Process Control
  Monitors reactor temperatures, pressure transmitter signals, and flow meter outputs to maintain process stability, ensure product quality, and comply with safety interlocks in batch and continuous processes.
• Power Generation & Energy Management
  Acquires turbine bearing temperatures, generator winding RTDs, and auxiliary system pressures for condition-based monitoring, efficiency optimization, and predictive maintenance in thermal, hydro, and renewable energy plants.
• Pharmaceutical & Food Production
  Tracks sterilization temperatures, fermentation pH levels (via transmitters), and clean-in-place (CIP) system parameters to meet GMP/HACCP compliance, ensure batch traceability, and maintain product consistency.
• Water & Wastewater Treatment
  Collects data from level sensors, flow meters, and chlorine analyzers to optimize dosing control, reduce chemical consumption, and ensure regulatory compliance in municipal and industrial treatment facilities.
• Manufacturing & Machine Building
  Integrates with hydraulic pressure sensors, motor temperature probes, and position transducers in injection molding machines, CNC equipment, and automated assembly lines to enhance process visibility and equipment protection.

Technical Specifications & Selection Guide

To facilitate engineering design and module selection, we provide key electrical, mechanical, and environmental parameters. Custom configurations are available based on project-specific requirements.

Selection Recommendations: When specifying this module, consider the following factors: total number of analog signals, required measurement accuracy, sensor types and signal ranges, ambient temperature and enclosure ventilation, available backplane slots, and integration with existing STEP 7 project. For assistance with module selection, signal conditioning requirements, or multi-module system design, please provide your application details and our automation engineers will recommend the optimal configuration.

Extended Functionality & System Integration

• STEP 7 Software Integration: Full parameterization via hardware configuration tool; supports symbolic addressing, scaling functions, and alarm limit configuration.
• Redundancy Support: Compatible with S7-300 redundant systems (with appropriate CPU and configuration) for high-availability applications.
• Communication Protocols: Data accessible via PROFIBUS DP, PROFINET, or MPI networks depending on CPU model and system architecture.
• Third-Party SCADA/HMI: Standard OPC UA/DA servers enable seamless integration with WinCC, Ignition, Wonderware, and other visualization platforms.
• Calibration & Maintenance: Factory-calibrated; field calibration not required. Firmware updates and diagnostics performed via STEP 7 or TIA Portal.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days; custom-configured modules or large-volume orders may require 2-3 weeks. Please confirm availability for time-sensitive projects.

Warranty: Backed by Siemens' standard 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service contracts available upon request.

Technical Support: Remote configuration assistance, on-site commissioning support (region-dependent), and access to Siemens Technical Support Portal for documentation, firmware updates, and troubleshooting guides.

Documentation Package: Each module ships with or provides access to: product data sheet, wiring diagram, STEP 7 GSD file, operating manual (PDF), and dimensional drawings for panel layout planning.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens SM 331 analog input module to my existing S7-300 PLC system?

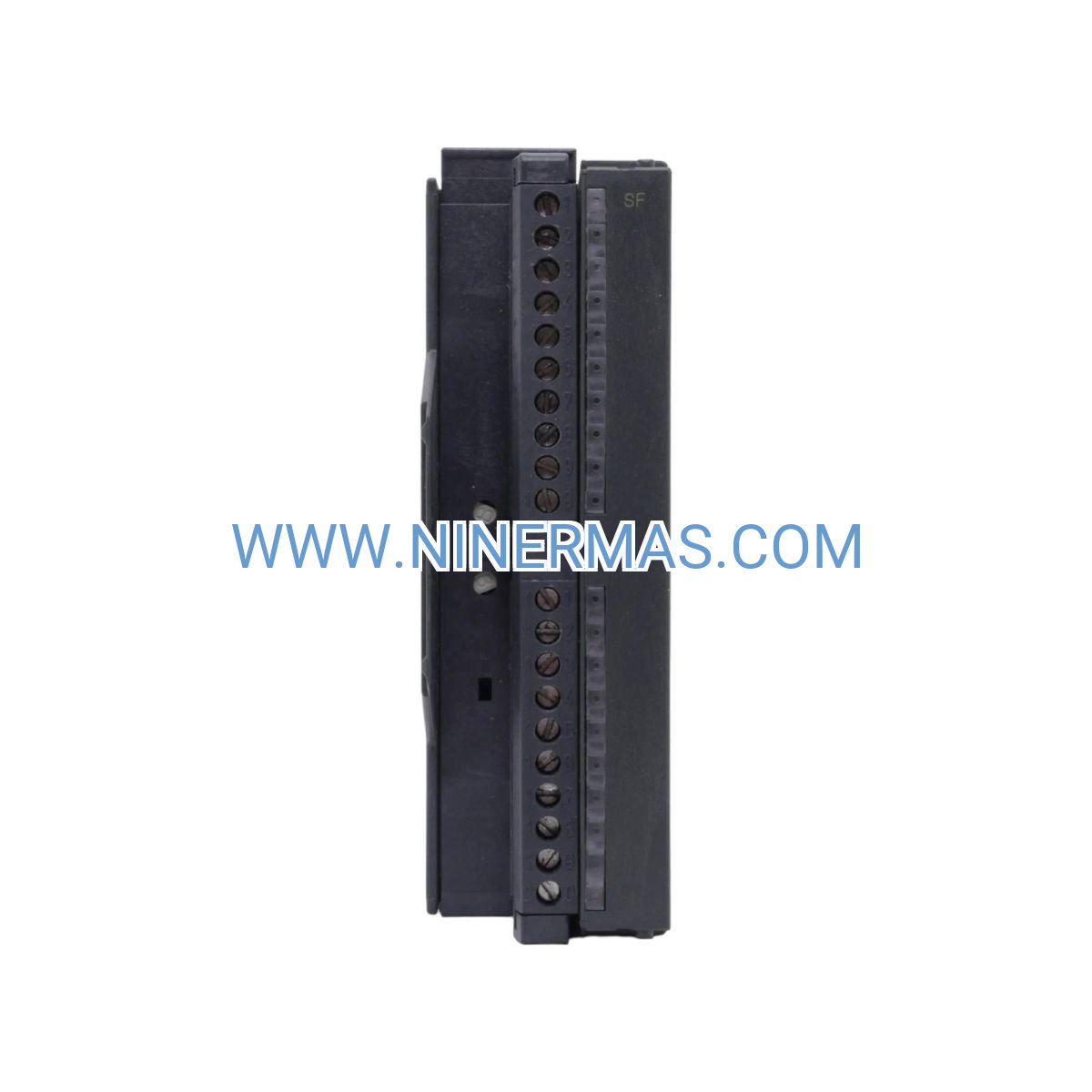

A: The module installs directly onto the S7-300 DIN rail and connects to the backplane bus via the integrated bus connector. Field wiring terminates on a removable front connector (20-pin). Ensure your CPU supports the required number of I/O addresses and configure the module in STEP 7 hardware configuration. Refer to the wiring diagram for signal connection details.

Q: Can I mix different signal types (e.g., thermocouples and 4-20 mA) on the same SM 331 module?
A: Yes, the 6ES7331-1KF02-0AB0 supports individual channel configuration. You can assign different input types and ranges to each of the 8 channels via STEP 7 parameterization, allowing flexible sensor integration without additional hardware.

Q: What is the typical measurement accuracy and how is it affected by environmental conditions?
A: Accuracy ranges from ±0.1% to ±0.5% of full-scale range depending on signal type, measurement range, and integration time. Accuracy may degrade slightly at extreme ambient temperatures (above 55°C) or in high-vibration environments. Proper cabinet ventilation and vibration isolation are recommended for optimal performance.

Q: Does this module require external power supply or signal conditioning?
A: No external power supply is needed; the module draws power from the S7-300 backplane (approximately 1.5 W). For most standard sensors (RTDs, 4-20 mA transmitters), no external signal conditioning is required. However, passive sensors (e.g., thermocouples) may benefit from shielded cables in electrically noisy environments.

Q: Is the SM 331 module hot-swappable, and can it be replaced without shutting down the PLC?
A: The module supports online module exchange (OMS) if your S7-300 CPU and system configuration permit it. This allows module replacement during operation without affecting other I/O or process control. Consult your STEP 7 project settings and CPU manual for OMS enablement procedures.

Q: What diagnostic features are available, and how are faults reported?
A: The module provides wire break detection, short-circuit monitoring, out-of-range alarms, and channel-specific error flags. Diagnostic information is accessible via STEP 7 diagnostics buffer, front-panel LEDs (SF and BF indicators), and can be integrated into HMI alarm systems for real-time fault notification.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing quotation, or application-specific technical support, please provide the following information: project name, application description, number and types of sensors, required measurement ranges, ambient conditions, PLC system details (CPU model, STEP 7 version), and any special certifications or compliance requirements. Our automation engineers will respond with a tailored recommendation and delivery timeline.
