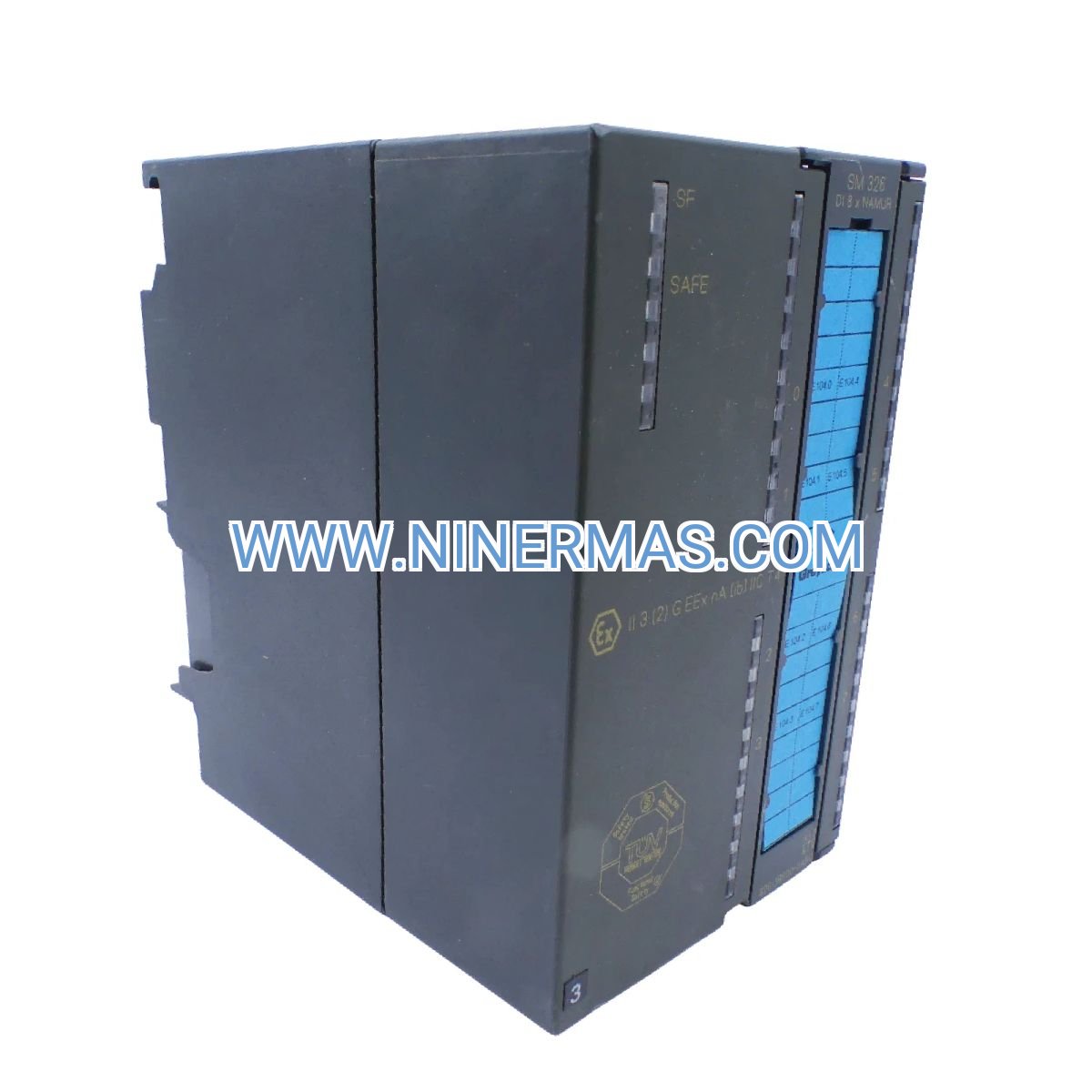

Siemens 6ES7326-1RF00-0AB0 – Industrial-Grade Fail-Safe Digital Input Module

The Siemens 6ES7326-1RF00-0AB0 is a high-reliability fail-safe digital input module engineered for SIMATIC S7F safety systems. This 8-channel NAMUR-compliant module delivers certified safety performance up to SIL3 (IEC 61508) and PLe (ISO 13849-1), making it the trusted choice for process industries requiring intrinsically safe signal acquisition. Designed for 24V DC operation with NAMUR sensor compatibility, this SM 326 module ensures deterministic fault detection and safe-state transitions in hazardous environments.

Built for chemical plants, oil & gas facilities, and pharmaceutical manufacturing lines, the 6ES7326-1RF00-0AB0 integrates seamlessly into distributed safety architectures while maintaining backward compatibility with legacy S7-300 systems. Its compact 40-pin connector design simplifies cabinet installation and reduces wiring complexity in space-constrained control panels.

Whether you're upgrading aging safety systems or designing new fail-safe control networks, this Siemens digital input module provides the certified protection and diagnostic transparency demanded by modern industrial safety standards. Contact our technical team to verify compatibility with your specific S7F configuration.

Core Features & Technical Advantages

✓ Certified Safety Performance
Achieves Category 4 (EN 954-1), SIL3 (IEC 61508), and PLe (ISO 13849) certification for compliance with international functional safety standards. Dual-channel architecture with cross-monitoring ensures fail-safe operation even during single-point failures.

✓ NAMUR Sensor Compatibility
Native support for NAMUR proximity switches and intrinsically safe sensors eliminates the need for external barriers in Zone 1/2 hazardous areas. Automatic wire-break and short-circuit detection provides continuous diagnostic coverage exceeding 99% (DC).

✓ Rapid Fault Response
Reaction time under 50ms from fault detection to safe output state ensures emergency shutdown systems meet IEC 61511 performance requirements. Integrated test pulse generation enables online diagnostics without process interruption.

→ Plug-and-Play S7F Integration
Pre-configured safety function blocks in STEP 7 Safety Advanced reduce engineering time by 40% compared to custom coding. Hot-swappable design with automatic parameter assignment minimizes downtime during module replacement.

→ Industrial-Grade Durability
Operating temperature range -25°C to +60°C with conformal coating protects against corrosive atmospheres and humidity. MTBF exceeding 500,000 hours ensures long-term reliability in continuous process applications.

→ Comprehensive Diagnostics
Channel-specific LED indicators and PROFIBUS DP diagnostic messages enable predictive maintenance strategies. Integrated event logging captures fault history for root cause analysis and regulatory compliance documentation.

Industrial Application Scenarios

Chemical Process Safety Systems
Monitors emergency stop buttons, safety light curtains, and pressure switches in reactor control systems. The fail-safe architecture prevents hazardous chemical releases by ensuring safe shutdown even during PLC communication failures or power fluctuations.

Oil & Gas Wellhead Protection
Interfaces with flame detectors, gas sensors, and emergency shutdown valves in offshore platforms and refineries. NAMUR compatibility eliminates ignition risks in Zone 1 classified areas while maintaining SIL3 integrity for blowout prevention systems.

Pharmaceutical Clean Room Monitoring
Acquires signals from differential pressure sensors, door interlocks, and personnel safety switches in GMP-compliant production environments. Diagnostic transparency supports FDA 21 CFR Part 11 audit trail requirements for batch record validation.

Automotive Press Line Safety
Processes inputs from two-hand control stations, safety mats, and light grids protecting operators from mechanical hazards. Response time under 50ms meets ISO 13849-1 Performance Level e requirements for high-risk machinery applications.

Power Generation Turbine Protection
Monitors vibration sensors, bearing temperature switches, and overspeed detectors in steam and gas turbine control systems. Redundant input processing ensures safe turbine trip even during single-channel sensor failures or wiring faults.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 6ES7326-1RF00-0AB0 when your application requires NAMUR sensor compatibility with fail-safe performance. For standard 24V DC sensors without intrinsic safety requirements, consider non-fail-safe SM 321 modules. Verify your S7-300F CPU supports F-capability (e.g., CPU 315F-2 DP or higher) and STEP 7 Safety Advanced V5.4 SP5 or later for programming.

Extended Capabilities & System Integration

PROFIBUS DP Safety Integration: Transmits safety-relevant process data via PROFIsafe protocol with black channel communication, enabling distributed safety architectures across multiple control cabinets. Supports up to 32 F-modules per F-CPU with deterministic cycle times under 100ms.

Redundancy Options: Compatible with S7-400FH fault-tolerant systems for applications requiring zero-downtime safety monitoring. Automatic switchover to standby module occurs within one safety cycle without process interruption.

Third-Party System Connectivity: OPC UA safety extensions enable integration with DCS platforms (Honeywell, Yokogawa) while maintaining SIL3 integrity. Modbus TCP gateways available for legacy SCADA system connectivity with appropriate safety validation.

Customization Services: Factory pre-configuration available for volume orders, including parameter assignment, firmware updates, and custom labeling. Contact our engineering team for application-specific safety function validation and TÜV certification support.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units via express courier (DHL/FedEx). Extended lead time of 8-12 weeks applies to made-to-order configurations or during component allocation constraints.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Warranty excludes damage from improper installation, electrical overstress, or operation outside published specifications.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and safety validation questions. Remote diagnostics support available via TeamViewer or Webex for urgent production issues.

Documentation Package: Each module ships with installation manual, safety validation certificate, STEP 7 GSD file, and CAD drawings (DXF/PDF). Additional resources include sample safety programs, wiring diagrams, and IEC 61508 compliance reports available for download.

Frequently Asked Questions

Q: Can this module interface with standard 3-wire proximity sensors?
A: No, the 6ES7326-1RF00-0AB0 requires NAMUR 2-wire sensors for proper fail-safe operation. Standard 3-wire PNP/NPN sensors will not provide the diagnostic coverage necessary for SIL3 certification. For non-NAMUR sensors, use the SM 326 DI 10×24V DC variant (6ES7326-2BF01-0AB0).

Q: What is the maximum cable length for NAMUR sensor connections?
A: Maximum cable length is 200 meters using shielded twisted-pair cable (0.75mm² minimum). Longer distances require NAMUR repeaters or 4-20mA signal converters. Cable capacitance must not exceed 0.2µF per channel to maintain diagnostic integrity.

Q: How much energy savings compared to relay-based safety systems?
A: Electronic fail-safe modules consume approximately 85% less power than equivalent relay safety circuits (4W vs. 28W typical). Reduced heat generation also lowers cooling requirements in enclosed control cabinets, contributing to overall energy efficiency improvements of 15-20%.

Q: Does this module support hot-swapping during operation?
A: Yes, when configured in S7-400FH redundant systems with appropriate safety program design. Single-controller S7-300F systems require controlled shutdown before module replacement. Always follow LOTO (Lockout-Tagout) procedures per OSHA 1910.147 during maintenance activities.

Q: Can I monitor module diagnostics remotely via Ethernet?
A: Diagnostic data is accessible via PROFIBUS DP to the F-CPU, which can then be transmitted over Industrial Ethernet using CP 343-1 communication processors. Third-party SCADA systems can poll diagnostic registers via OPC DA/UA servers for remote condition monitoring and predictive maintenance analytics.

Q: What firmware version is required for compatibility with TIA Portal?
A: The 6ES7326-1RF00-0AB0 is a hardware-based fail-safe module compatible with STEP 7 V5.x Safety Advanced. For TIA Portal V13 or later, use the successor model 6ES7326-1RF01-0AB0 which offers enhanced diagnostics and simplified configuration workflows.

Ready to Enhance Your Safety System?

Contact our industrial automation specialists for technical consultation, compatibility verification, or volume pricing. Our team provides same-day quotations and can expedite delivery for urgent project requirements.

Request a Quote: Email sale@ninermas.com with your application details
Technical Hotline: +0086 187 5021 5667 (English/Mandarin support)
Documentation: Download datasheets and certificates at https://ninermas.com
