Siemens SM 323 Digital I/O Module – Industrial-Grade Control Solution for S7-300 PLC Systems

The Siemens SM 323 Digital I/O Module (6ES7323-1BH01-0AA0) is a high-performance signal module designed for industrial automation and process control applications. Through its 8 digital inputs and 8 digital outputs operating at 24V DC, this module enables precise monitoring and control of field devices, sensors, actuators, and relay systems within Siemens S7-300 PLC architectures.

Engineered for manufacturing plants, process industries, and building automation systems, the SM 323 addresses critical challenges including signal isolation requirements, real-time I/O response demands, harsh industrial environments, and the need for reliable digital signal processing. It serves as the essential interface between your control logic and physical equipment on the factory floor.

With standardized S7-300 mounting compatibility and flexible configuration options, this module delivers proven reliability, electromagnetic compatibility (EMC), and seamless integration with SIMATIC engineering tools. Suitable for system integrators, control panel builders, OEM manufacturers, and plant maintenance teams seeking dependable digital I/O expansion. Contact our engineering team for application-specific configuration guidance and technical support.

Core Features & Technical Advantages

Dual-Channel Digital I/O Architecture
Provides 8 optically isolated digital inputs and 8 transistor digital outputs in a single compact module, reducing cabinet space requirements while maintaining signal integrity. Each channel supports independent addressing and diagnostic capabilities for enhanced troubleshooting.

24V DC Standard Industrial Voltage
Operates on the globally recognized 24V DC industrial standard, ensuring compatibility with the majority of sensors, proximity switches, photoelectric devices, and control relays. Simplifies power distribution design and reduces component variety in your control system.

Robust Electrical Isolation & Protection
Features galvanic isolation between field circuits and backplane bus, protecting your PLC CPU from voltage spikes, ground loops, and electromagnetic interference. Built-in short-circuit and overload protection on output channels extends module lifespan and reduces maintenance costs.

Hot-Swappable Design with Diagnostic LEDs
Supports online module replacement without shutting down the entire PLC system, minimizing production downtime. Individual channel status LEDs provide instant visual feedback for input/output states and fault conditions, accelerating commissioning and troubleshooting processes.

Seamless SIMATIC Integration
Fully compatible with STEP 7, TIA Portal, and other Siemens engineering software platforms. Automatic hardware detection, pre-configured function blocks, and comprehensive diagnostic data streamline programming, commissioning, and long-term system maintenance.

Industrial-Grade Environmental Specifications
Designed to operate reliably in demanding conditions: extended temperature range (-25°C to +60°C), vibration resistance per IEC 60068-2-6, and conformal coating options for humid or corrosive atmospheres. Meets CE, UL, and other international safety certifications.

Typical Application Scenarios

The SM 323 module excels in environments requiring dependable digital signal processing and real-time control response:

Manufacturing & Assembly Lines
Interfaces with limit switches, safety gates, conveyor sensors, and pneumatic valve solenoids to coordinate automated production sequences. Enables precise timing control and interlocking logic for multi-station assembly operations in automotive, electronics, and consumer goods manufacturing.

Process Industries & Chemical Plants
Monitors pump status, valve positions, level switches, and emergency stop circuits in continuous process applications. Provides reliable digital feedback for batch control, reactor sequencing, and safety interlock systems in chemical, pharmaceutical, and food processing facilities.

Water & Wastewater Treatment
Controls motor starters, valve actuators, and alarm indicators in pumping stations, filtration systems, and distribution networks. Integrates with flow meters, pressure switches, and tank level sensors to automate municipal water treatment and industrial wastewater management systems.

Building Automation & HVAC Systems
Manages lighting circuits, damper actuators, fan contactors, and alarm panels in commercial buildings and industrial facilities. Coordinates with occupancy sensors, temperature switches, and fire safety systems to optimize energy efficiency and occupant comfort.

Material Handling & Logistics
Drives conveyor motors, diverter gates, sorting mechanisms, and barcode scanner triggers in warehouse automation and distribution centers. Processes input signals from photoelectric sensors, proximity detectors, and package presence switches for high-speed sorting operations.

Technical Specifications & Selection Guide

To facilitate system design and module selection, key specifications are provided below:

Digital Inputs: 8 channels, 24V DC, optically isolated, IEC Type 1 (3ms filter)
Digital Outputs: 8 channels, 24V DC, 0.5A per channel, transistor type (sourcing)
Isolation Voltage: 500V AC between field and backplane
Power Consumption: Approx. 1.5W from S7-300 backplane + external 24V DC for outputs

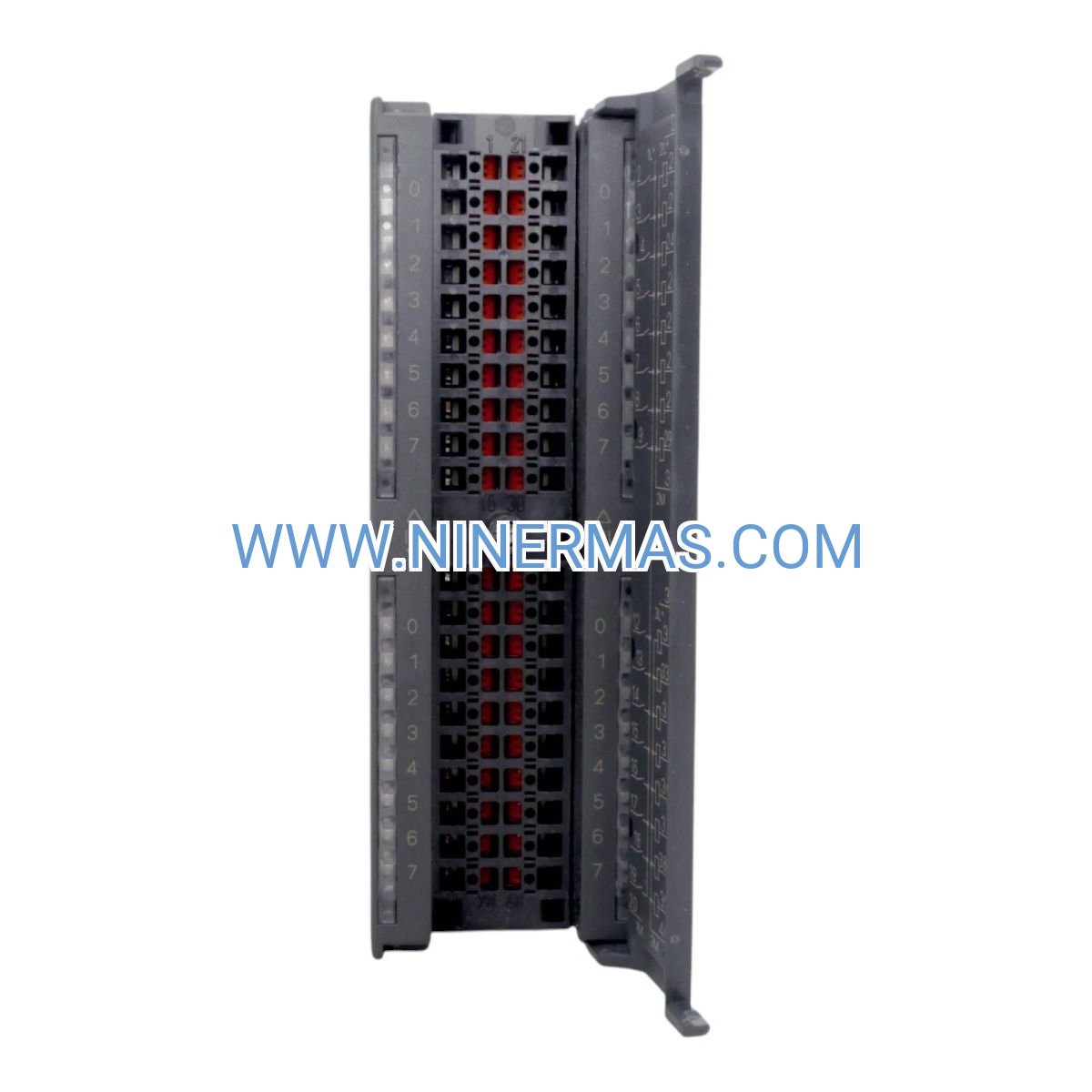

Connection Type: 20-pin front connector (screw or spring terminals available)
Mounting: Standard S7-300 DIN rail mounting with integrated locking mechanism
Dimensions: 40mm (W) × 125mm (H) × 120mm (D)
Operating Temperature: -25°C to +60°C (horizontal installation)
Protection Rating: IP20 (higher ratings achievable with appropriate enclosure)
Certifications: CE, UL, cULus, FM, ATEX (Zone 2), IECEx

Selection Considerations:
When specifying the SM 323 module, evaluate total I/O point requirements, signal voltage levels (ensure 24V DC compatibility), output current demands per channel (max 0.5A), environmental conditions (temperature, humidity, vibration), and available space in your S7-300 rack configuration. For applications requiring higher output currents, faster response times, or AC voltage compatibility, consult our engineering team for alternative module recommendations from the SM 32x family.

Advanced Configuration Options

Flexible I/O Addressing: Supports byte, word, or bit-level addressing in your PLC program, allowing efficient data handling and optimized scan cycle performance.

Diagnostic Integration: Provides comprehensive diagnostic information via STEP 7/TIA Portal, including channel-specific fault detection, wire break monitoring (on inputs), and short-circuit indication (on outputs).

Interrupt Capability: Selected input channels can be configured for hardware interrupt processing, enabling immediate response to critical process events without waiting for the standard PLC scan cycle.

Firmware Updates: Module firmware can be updated via TIA Portal to incorporate functional enhancements and maintain compatibility with evolving SIMATIC software versions.

Delivery, Service & Quality Assurance

Product Condition: Factory-new, sealed in original Siemens packaging with full manufacturer documentation
Warranty Period: 24 months from date of delivery, covering manufacturing defects and component failures
Lead Time: Standard stock items ship within 2-3 business days; custom configurations or large quantities may require 7-14 days
Technical Support: Pre-sales application consulting, post-sales commissioning assistance, and remote diagnostic support available (regional availability varies)
Documentation Package: Includes product manual, wiring diagrams, GSD file for device integration, and certificate of conformity
Global Shipping: Worldwide delivery via DHL, FedEx, or UPS with full tracking; customs documentation and HS code classification provided

Frequently Asked Questions (FAQ)

Q: How do I connect the SM 323 Digital I/O Module to my existing S7-300 PLC system?
A: The SM 323 mounts directly onto the S7-300 DIN rail and connects to the backplane bus automatically. Field wiring is terminated via the 20-pin front connector (order separately: screw-type 6ES7392-1AJ00-0AA0 or spring-type 6ES7392-1BJ00-0AA0). Ensure your power supply module provides sufficient current for the additional I/O load, and configure the module address in STEP 7 or TIA Portal hardware configuration.

Q: What is the maximum number of SM 323 modules I can install in a single S7-300 rack?
A: A standard S7-300 rack accommodates up to 8 signal modules (slots 4-11), depending on your CPU model and power supply capacity. Each SM 323 consumes approximately 1.5W from the backplane plus external 24V DC for outputs. Verify total power budget and address space availability in your system design.

Q: Can the SM 323 module be used in safety-related applications?
A: The standard SM 323 (6ES7323-1BH01-0AA0) is not certified for safety-critical functions per IEC 61508 or ISO 13849. For safety applications, consider Siemens ET 200SP F-modules or S7-300 F-series I/O modules with integrated safety functionality and TÜV certification.

Q: What environmental protection does the SM 323 offer? Can it be used in dusty or humid conditions?
A: The module is rated IP20 for standard industrial environments. For harsh conditions (dust, moisture, corrosive gases), install the module in a sealed control cabinet with appropriate IP54 or IP65 rating, and consider conformal coating options (consult factory for availability). Operating temperature range is -25°C to +60°C with proper ventilation.

Q: Does the SM 323 support remote monitoring and data acquisition via Ethernet or fieldbus?
A: The SM 323 communicates exclusively via the S7-300 backplane bus. For remote access, your S7-300 CPU must be equipped with an Ethernet communication processor (e.g., CP 343-1) or PROFIBUS interface. I/O data can then be accessed via SCADA systems, HMI panels, or IoT gateways using standard Siemens communication protocols (S7, PROFINET, OPC UA).

Q: What is the typical response time for digital inputs and outputs on the SM 323?
A: Digital inputs feature a 3ms input delay (IEC Type 1 filter) to suppress contact bounce and electrical noise. Digital outputs respond within 100-200μs (transistor switching time). Total system response time also depends on PLC scan cycle and program logic execution.

Request Technical Support & Custom Configuration

For detailed application engineering, custom I/O configurations, or project-specific quotations, please provide the following information to our technical team:

• Project name and application overview (industry, process type)
• Total digital I/O point count (inputs/outputs)
• Signal voltage and current requirements per channel
• Existing S7-300 CPU model and available rack slots
• Environmental conditions (temperature, humidity, vibration, enclosure IP rating)
• Required certifications (UL, ATEX, IECEx, marine, etc.)
• Delivery timeline and destination country

Our application engineers will provide one-on-one selection guidance, wiring recommendations, and competitive pricing within 24 hours.
