Siemens SM 322 Digital Output Module – Industrial-Grade Relay Control for S7-300 PLC Systems

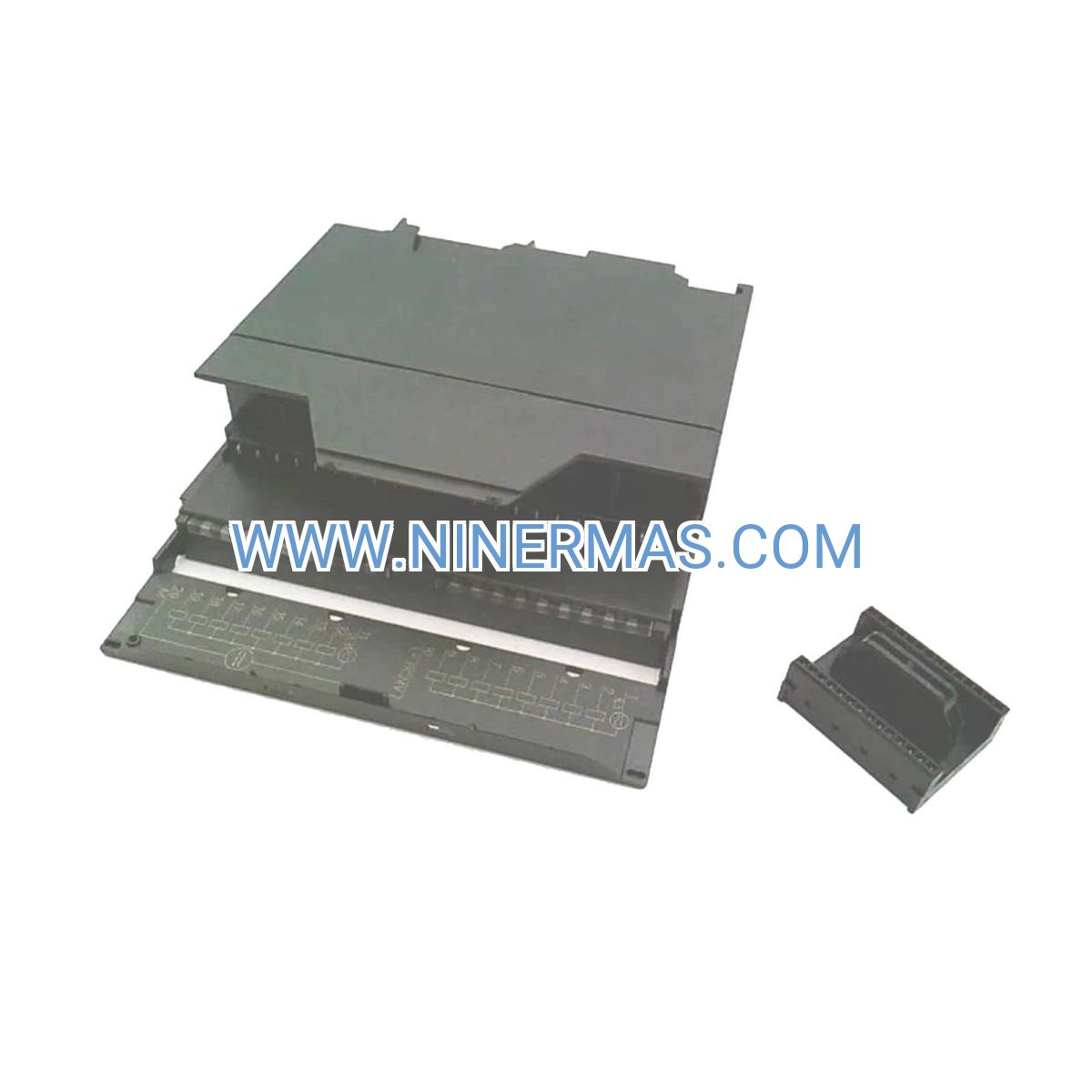

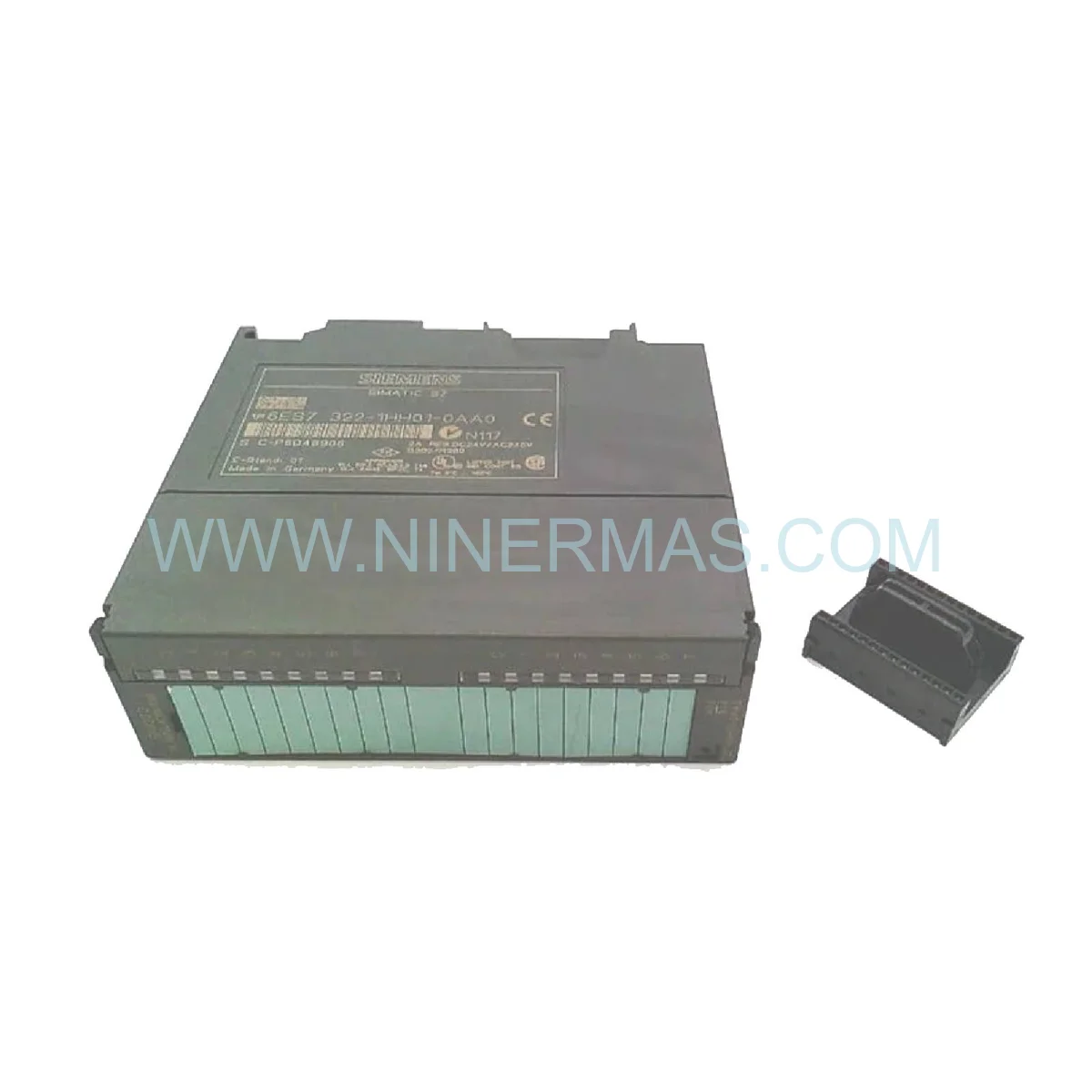

The Siemens 6ES7322-IHH01-0AA0 SM 322 Digital Output Module is a professional-grade control component designed for industrial automation applications requiring reliable switching of AC and DC loads. Through its 16-channel relay output architecture and robust isolation design, this module delivers precise control for motors, valves, contactors, and indicator systems within SIMATIC S7-300 programmable logic controller environments.

Engineered for manufacturing plants, process industries, building automation, and infrastructure control systems, the SM 322 addresses critical challenges including electrical noise immunity, load compatibility across voltage ranges, and long-term operational reliability in harsh industrial environments. It eliminates the complexity of external relay panels while providing galvanic isolation between control logic and field devices.

With standardized S7-300 mounting and configuration alongside customizable I/O mapping, this module offers rapid integration, diagnostic transparency, and maintenance efficiency. Ideal for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams seeking proven Siemens quality. Contact our application engineers for configuration assistance, wiring diagrams, and project-specific recommendations.

Core Features & Technical Advantages

• 16 Independent Relay Outputs
  Each channel features electromechanical relay contacts rated for both AC and DC loads, providing true galvanic isolation between PLC logic and field circuits. Supports simultaneous control of diverse load types without crosstalk or interference.
• Wide Load Compatibility
  Handles resistive, inductive, and lamp loads up to 230V AC/DC at 5A per channel. Suitable for controlling solenoid valves, motor starters, heating elements, and signaling devices across various voltage standards.
• Robust Electrical Isolation
  Relay-based output architecture ensures complete isolation between control side and load side, protecting sensitive PLC electronics from voltage spikes, ground loops, and electromagnetic interference common in industrial power circuits.
• Hot-Swap Capability & Modular Design
  Front-accessible terminal blocks and S7-300 rail mounting enable rapid replacement during maintenance windows without disrupting adjacent modules. Reduces mean time to repair (MTTR) and supports predictive maintenance strategies.
• Comprehensive Diagnostics
  Integrated status LEDs for each output channel plus group fault indication. Diagnostic data accessible via STEP 7 programming software for remote monitoring, alarm logging, and preventive maintenance scheduling.
• Industrial-Grade Environmental Protection
  Conformal-coated PCBs and IP20-rated housing withstand temperature extremes (-25°C to +60°C), vibration, and airborne contaminants typical in factory floors, utility substations, and outdoor enclosures.

Typical Application Scenarios

This module excels in environments demanding reliable switching control with electrical isolation:

• Manufacturing & Assembly Lines
  Controls pneumatic actuators, conveyor motors, and part ejection mechanisms. Relay outputs handle the inrush current of solenoid valves and provide fail-safe isolation for safety circuits in automated production cells.
• Process Industries & Chemical Plants
  Operates motorized valves, dosing pumps, and agitator drives in water treatment, petrochemical, and food processing facilities. Isolation protects PLC from ground potential differences across distributed control architectures.
• Building Automation & HVAC Systems
  Switches HVAC damper actuators, circulation pumps, and lighting contactors in commercial buildings and data centers. Relay contacts accommodate both 24V DC control circuits and 230V AC power loads within a single module.
• Infrastructure & Utility Control
  Manages substation breaker controls, pump station sequencing, and traffic signal systems. Proven reliability in municipal water distribution, wastewater treatment, and electrical grid automation projects.
• Machine Tool & CNC Equipment
  Interfaces with coolant pumps, tool changers, and workpiece clamping systems. Relay outputs provide the electrical robustness required for high-cycle industrial machinery with frequent switching operations.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, review the following technical parameters:

Selection Considerations: When specifying this module, confirm load type (resistive/inductive), maximum switching current, required isolation voltage, and expected switching frequency. For high-frequency applications (>1 Hz), consider solid-state output modules. For loads exceeding 5A, use external contactors with relay pilot control. Our engineering team can provide load calculation worksheets and wiring schematics tailored to your project requirements.

Extended Capabilities & System Integration

• STEP 7 Programming Integration
  Fully compatible with STEP 7 Classic (V5.x) and TIA Portal environments. Hardware configuration via GSD files, with symbolic addressing and force tables for commissioning and troubleshooting.
• Redundancy & Fault Tolerance
  Supports redundant S7-300 configurations when paired with appropriate CPU and power supply modules. Group diagnostics enable rapid fault isolation in mission-critical applications.
• Third-Party System Connectivity
  Relay outputs interface seamlessly with non-Siemens devices including legacy control panels, third-party PLCs, and standalone instruments requiring dry contact inputs.
• Compliance & Documentation
  Meets international safety standards (IEC 61131, NFPA 79) for industrial control equipment. Supplied with declaration of conformity, technical data sheets, and CAD drawings for panel design.

Delivery, Service & Quality Assurance

Stock Availability: Standard catalog items ship within 3–5 business days from our regional distribution centers. Custom configurations or bulk orders typically require 10–15 business days lead time.

Warranty & Support: All modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical infrastructure projects.

Technical Assistance: Our application engineers provide pre-sales consultation, configuration file generation, and remote commissioning support. On-site startup services available in select regions (subject to project scope and location).

Documentation Package: Each shipment includes installation manual, wiring diagrams, dimensional drawings, and STEP 7 configuration files. Additional resources such as 3D CAD models and compliance certificates available upon request.

Frequently Asked Questions (FAQ)

Q: How does the SM 322 relay output module integrate with existing S7-300 PLC racks?
A: The module mounts directly onto standard S7-300 DIN rail alongside CPU, power supply, and other I/O modules. Connection is via backplane bus; no external cabling required for logic communication. Terminal blocks accept 0.5–2.5mm² wire for field connections. Consult the S7-300 system manual for slot assignment rules and power budget calculations.

Q: What is the maximum number of outputs I can control with one SM 322 module?
A: This specific model (6ES7322-IHH01-0AA0) provides 16 independent relay outputs. Multiple SM 322 modules can be installed in a single rack, limited only by the CPU's I/O capacity and backplane power availability. A typical S7-300 rack supports 8 I/O modules.

Q: What energy savings or efficiency improvements can I expect?
A: While relay modules themselves don't reduce energy consumption, they enable precise on/off control of motors, heaters, and pumps, which—when integrated with optimized PLC logic—can reduce unnecessary runtime by 15–30% compared to manual or timer-based control. Actual savings depend on application duty cycle and load characteristics.

Q: What are the environmental and installation requirements?
A: The module requires installation in an IP54 or better enclosure to achieve its IP20 rating. Ambient temperature must remain within -25°C to +60°C. Avoid direct exposure to corrosive gases, condensation, or conductive dust. Ensure adequate ventilation to dissipate relay coil heat (approx. 5W per module at full load).

Q: Can I monitor relay status remotely or integrate with SCADA systems?
A: Yes. Output status is readable via PLC program and can be transmitted to SCADA/HMI systems using standard Siemens communication protocols (PROFIBUS, PROFINET, or Ethernet/IP depending on CPU model). Diagnostic bits indicate individual channel faults and can trigger alarms or email notifications.

Q: Is this module suitable for safety-related control functions?
A: The SM 322 is a standard I/O module and is not certified for safety-integrity level (SIL) applications. For safety functions (emergency stops, guard interlocks), use Siemens ET 200S F-modules or other TÜV-certified safety I/O components in accordance with IEC 61508 / ISO 13849 standards.

Request a Custom Solution

To receive a tailored configuration proposal, technical specification sheet, or project quotation, please provide the following details: project name, application type (e.g., water treatment, packaging line), number of outputs required, load types and ratings (voltage, current, AC/DC), environmental conditions, and preferred delivery timeline. Our engineering team will respond within one business day with a comprehensive selection guide and pricing.
