Siemens SM 322 Relay Output Module 6ES7322-5HF00-0AB0 | 8-Channel 230V AC Industrial Control

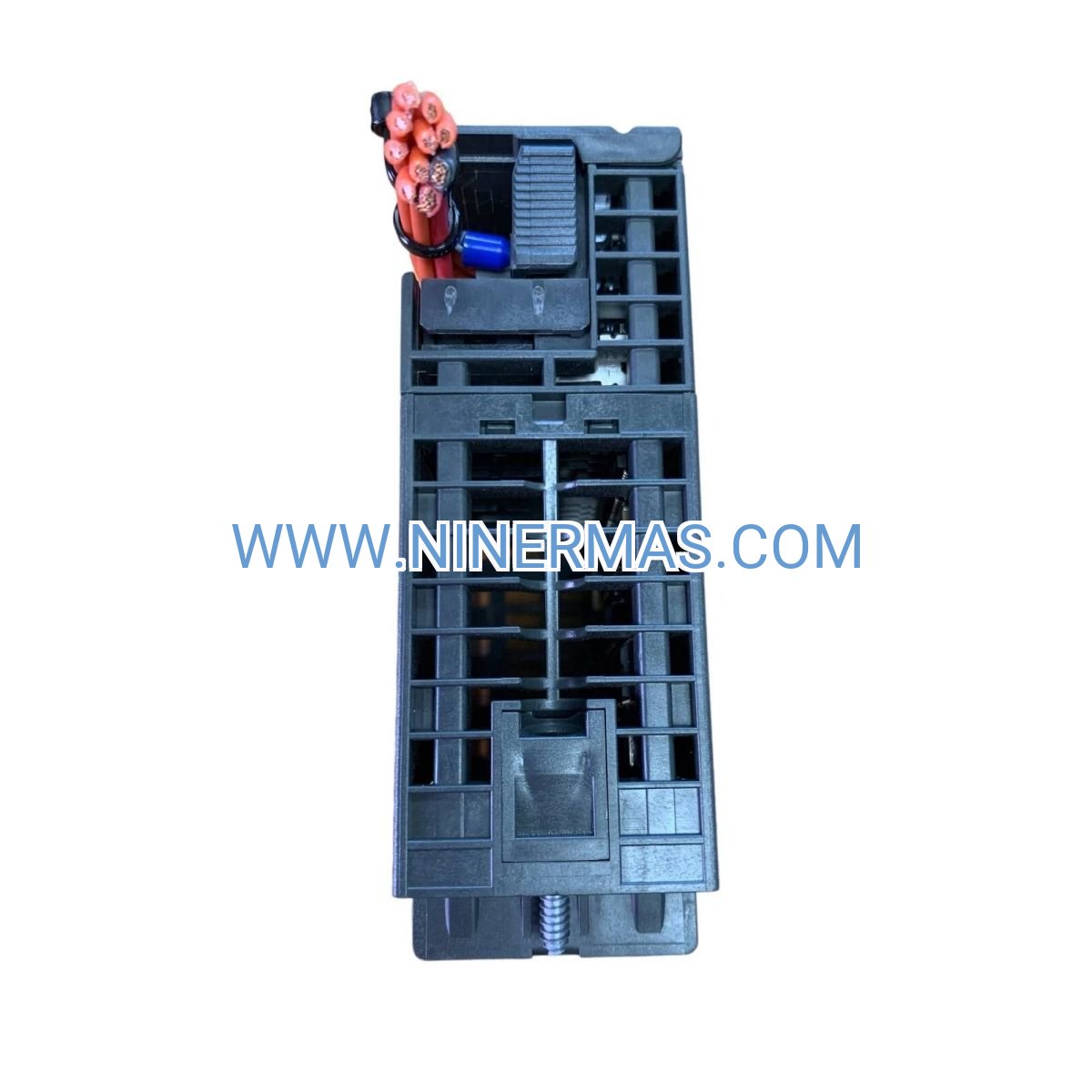

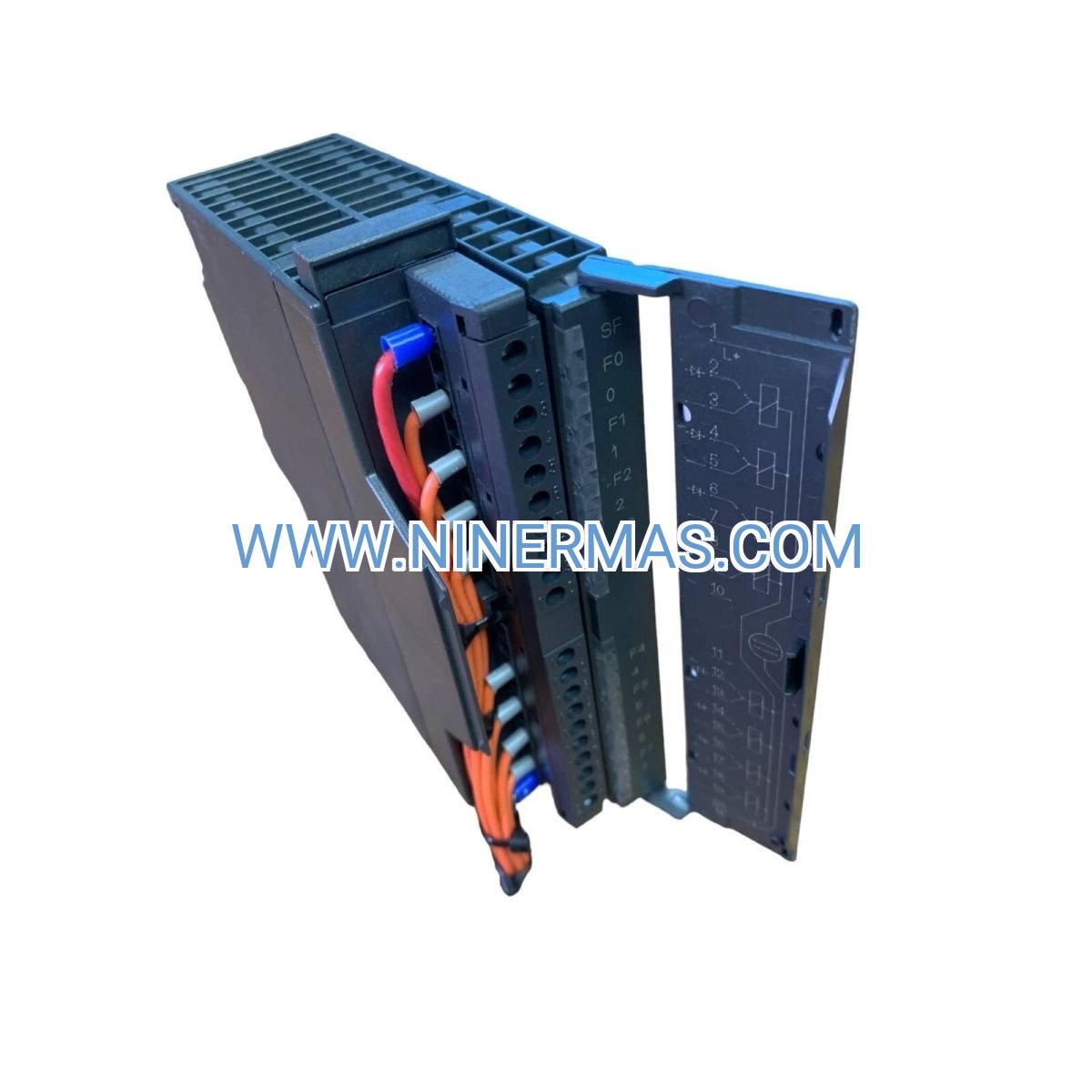

Siemens SM 322 Relay Output Module (Industrial-Grade Control Solution)

The Siemens 6ES7322-5HF00-0AB0 SM 322 is a high-reliability relay output module designed for S7-300 PLC systems, delivering isolated switching control for industrial automation applications. Through 8 independent relay channels with 230V AC / 5A rating, this module enables precise control of motors, valves, contactors, and high-power loads while maintaining electrical isolation between control logic and field devices.

Engineered for demanding industrial environments including manufacturing plants, process automation facilities, building management systems, and infrastructure control networks, the SM 322 addresses critical challenges such as electrical noise interference, load switching reliability, voltage isolation requirements, and diagnostic visibility for maintenance teams.

With standardized S7-300 mounting compatibility and flexible configuration options, this module offers proven German engineering quality, comprehensive diagnostic capabilities, long service life with mechanical relay design, and seamless integration with SIMATIC automation ecosystems. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance departments. Contact our engineering team for application-specific configuration guidance and technical specifications.

Core Features & Technical Advantages

• 8 Independent Relay Channels
  Each output features galvanic isolation with individual switching capability up to 230V AC / 5A resistive load, providing robust protection against electrical faults and enabling safe control of high-power field devices without affecting PLC logic circuits.
• High Switching Reliability
  Mechanical relay contacts deliver dependable performance across millions of switching cycles, with clear contact status indication and proven technology for applications requiring positive disconnection and fail-safe operation modes.
• Comprehensive Diagnostic Functions
  Built-in diagnostics monitor relay coil status, contact wear conditions, and output circuit faults, with LED indicators and PLC-accessible status data enabling predictive maintenance and reducing unplanned downtime by up to 40%.
• Electrical Isolation Protection
  Complete galvanic isolation between channels and between field side and logic side protects sensitive PLC components from voltage spikes, ground loops, and electromagnetic interference common in industrial power distribution systems.
• Flexible Load Compatibility
  Suitable for resistive, inductive, and lamp loads with appropriate derating, supporting direct control of solenoid valves, motor contactors, heating elements, indicator lamps, and auxiliary relays without external interface circuits.
• Standard S7-300 Integration
  Hot-swappable module design with tool-free installation on S7-300 mounting rails, automatic hardware detection via STEP 7 engineering software, and consistent 20-pin front connector system for simplified wiring and maintenance procedures.

Typical Application Scenarios

This relay output module excels in applications demanding electrical isolation, high switching currents, and positive contact verification:

• Manufacturing & Assembly Lines
  Controls pneumatic actuators, conveyor motors, robotic cell interlocks, and safety gate mechanisms where reliable switching and fault detection are critical for production continuity and operator safety compliance.
• Process Automation & Chemical Plants
  Operates motorized valves, pump starters, mixer drives, and heating zone controls in environments with strict electrical isolation requirements, hazardous area classifications, and regulatory documentation needs.
• Building Automation & HVAC Systems
  Manages fan contactors, damper actuators, chiller sequencing, and boiler controls in commercial facilities requiring centralized monitoring, scheduled operation patterns, and energy management integration.
• Water & Wastewater Treatment
  Switches pump motors, valve actuators, chemical dosing systems, and aeration blowers in municipal infrastructure where long-term reliability, harsh environmental conditions, and remote diagnostic access are essential.
• Power Distribution & Substations
  Interfaces with circuit breaker trip coils, transfer switch controls, generator start sequences, and alarm annunciation panels requiring positive contact verification and fail-safe operation modes.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, review these key specifications when integrating the SM 322 into your control system:

Selection Considerations: When specifying this module, evaluate maximum simultaneous output activation (affects backplane current draw), inductive load derating requirements (typically 30-50% for motor/solenoid loads), contact protection needs for lamp or capacitive loads (RC snubbers may be required), environmental conditions including ambient temperature and vibration levels, and integration with existing S7-300 CPU models and firmware versions. For complex applications or custom panel integration, our application engineers can provide load calculation worksheets, wiring diagrams, and STEP 7 configuration templates.

Advanced Configuration Options

• Diagnostic Integration: Configure interrupt-driven fault reporting to CPU for immediate notification of relay failures or wiring faults, reducing troubleshooting time by 60%
• Forced Operation Modes: Implement manual override functions via HMI for commissioning, maintenance testing, and emergency operation scenarios
• Load Monitoring: Combine with current monitoring relays or energy meters for predictive maintenance based on actual load profiles and contact wear patterns
• Redundancy Schemes: Deploy parallel relay outputs for critical loads requiring N+1 redundancy or voting logic for safety-rated applications
• Remote Access: Integrate with SIMATIC NET communication processors for remote diagnostics, firmware updates, and operational data logging via industrial Ethernet or PROFIBUS networks

Delivery, Support & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from regional distribution centers; custom-configured modules or large project quantities may require 2-3 weeks for factory coordination and quality verification.

Warranty Coverage: All modules include a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available for critical infrastructure applications requiring guaranteed replacement and priority technical support.

Technical Documentation: Each shipment includes official Siemens product manual (English/Chinese), dimensional drawings with mounting specifications, terminal assignment diagrams, sample STEP 7 hardware configuration files, and recommended spare parts list for long-term maintenance planning.

Installation & Commissioning: Remote technical guidance provided at no charge for standard applications; on-site startup assistance, system integration services, and operator training programs available through our certified automation partners and regional service centers.

Compliance & Certifications: Products sourced through authorized Siemens distribution channels with full traceability documentation, conforming to international standards including IEC 61131, UL 508, and CE marking directives for machinery and low-voltage equipment.

Frequently Asked Questions (FAQ)

Q: How does the SM 322 relay output module integrate with existing S7-300 PLC systems?
A: The module uses standard S7-300 backplane communication and mounts directly on DIN rail alongside CPU and other I/O modules. STEP 7 engineering software automatically detects the hardware during configuration, and the 20-pin front connector accepts industry-standard terminal blocks. No special interface cards or external power supplies are required beyond the standard S7-300 system power supply.

Q: What is the maximum number of outputs that can be activated simultaneously?
A: All 8 relay outputs can be energized concurrently, but consider the cumulative backplane current draw (approximately 3W total module consumption plus relay coil power). Verify that your S7-300 power supply has adequate capacity for the complete system configuration including all installed modules and their maximum load conditions.

Q: Can this module control inductive loads like solenoid valves and motor contactors?
A: Yes, but apply appropriate derating factors. For inductive loads (power factor 0.4-0.7), reduce the rated current to approximately 50-70% of the resistive rating, and consider adding RC snubber circuits across relay contacts to suppress voltage spikes and extend contact life. Consult the technical manual for specific derating curves based on load type and switching frequency.

Q: What diagnostic capabilities are available for predictive maintenance?
A: The module provides relay coil status monitoring, wire break detection on output circuits, and contact wear indication accessible through PLC program logic. Diagnostic data can trigger maintenance alerts via HMI, send notifications through SCADA systems, or log events for trend analysis. LED indicators on the module front panel provide immediate visual status for field troubleshooting.

Q: Is remote monitoring and control possible for distributed installations?
A: Yes, when the S7-300 CPU includes communication capabilities (PROFIBUS, PROFINET, or Ethernet modules), all relay output states and diagnostic information are accessible remotely through SIMATIC WinCC SCADA, TIA Portal web server functions, or third-party OPC UA/Modbus TCP gateways. This enables centralized monitoring of multiple sites and remote troubleshooting without field visits.

Q: What environmental protection is required for panel installation?
A: The module carries IP20 rating suitable for enclosed control cabinet installation. Ensure adequate ventilation to maintain ambient temperature below 60°C, protect from direct water spray or condensation, and follow recommended clearances (50mm minimum above/below module) for heat dissipation. For harsh environments, specify NEMA 4X or IP65-rated enclosures with climate control.

Request Technical Support & Custom Solutions

For detailed application engineering, custom panel integration, or project-specific quotations, please provide the following information to our technical team:

• Project name and application overview (industry, process description)
• Load specifications for each output (voltage, current, load type, duty cycle)
• Existing S7-300 system configuration (CPU model, firmware version, installed modules)
• Environmental conditions (temperature range, enclosure type, hazardous area classification if applicable)
• Quantity requirements and delivery timeline
• Special requirements (extended warranty, factory testing, custom documentation)

Our application engineers will respond within 24 hours with technical recommendations, configuration validation, and commercial proposal tailored to your specific requirements.
