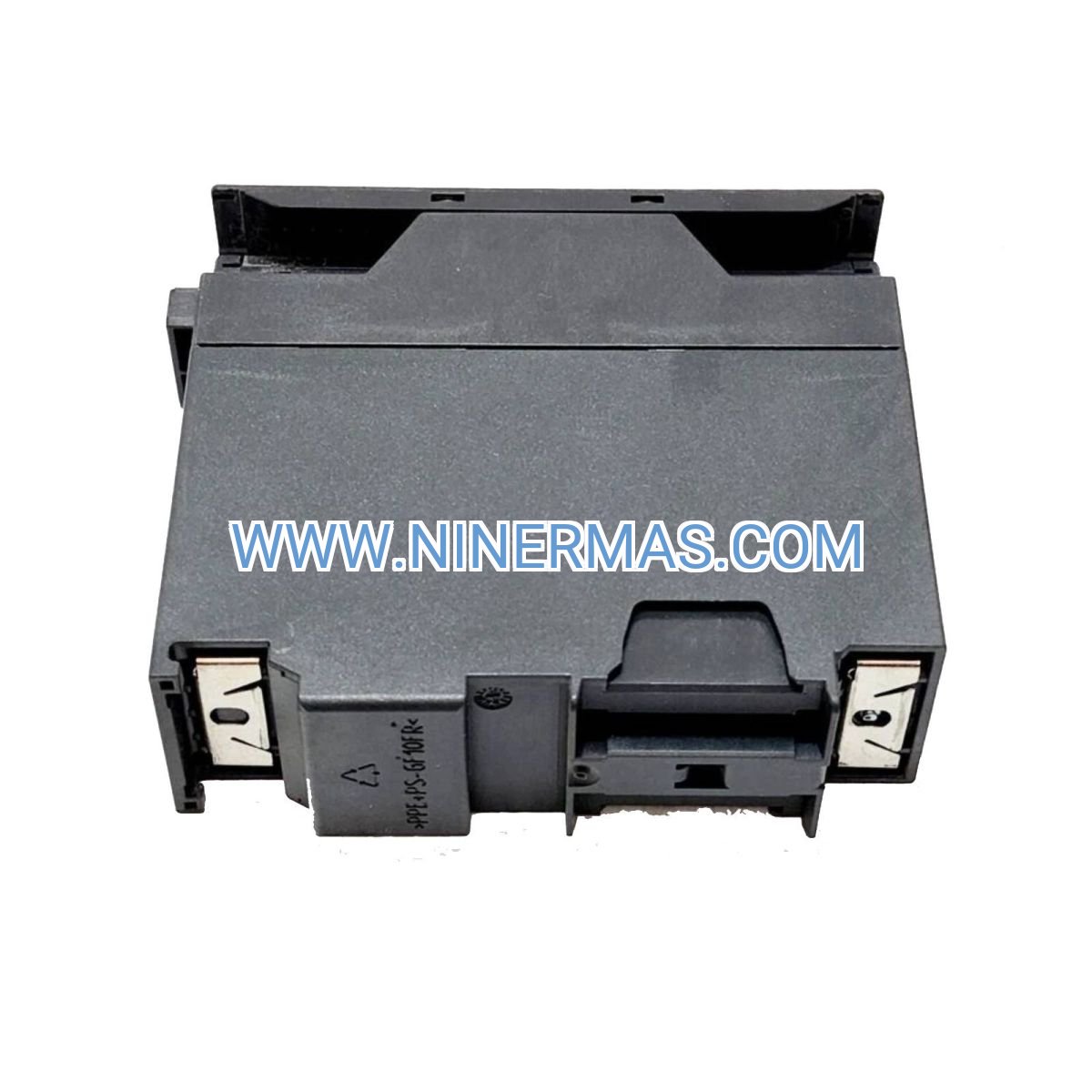

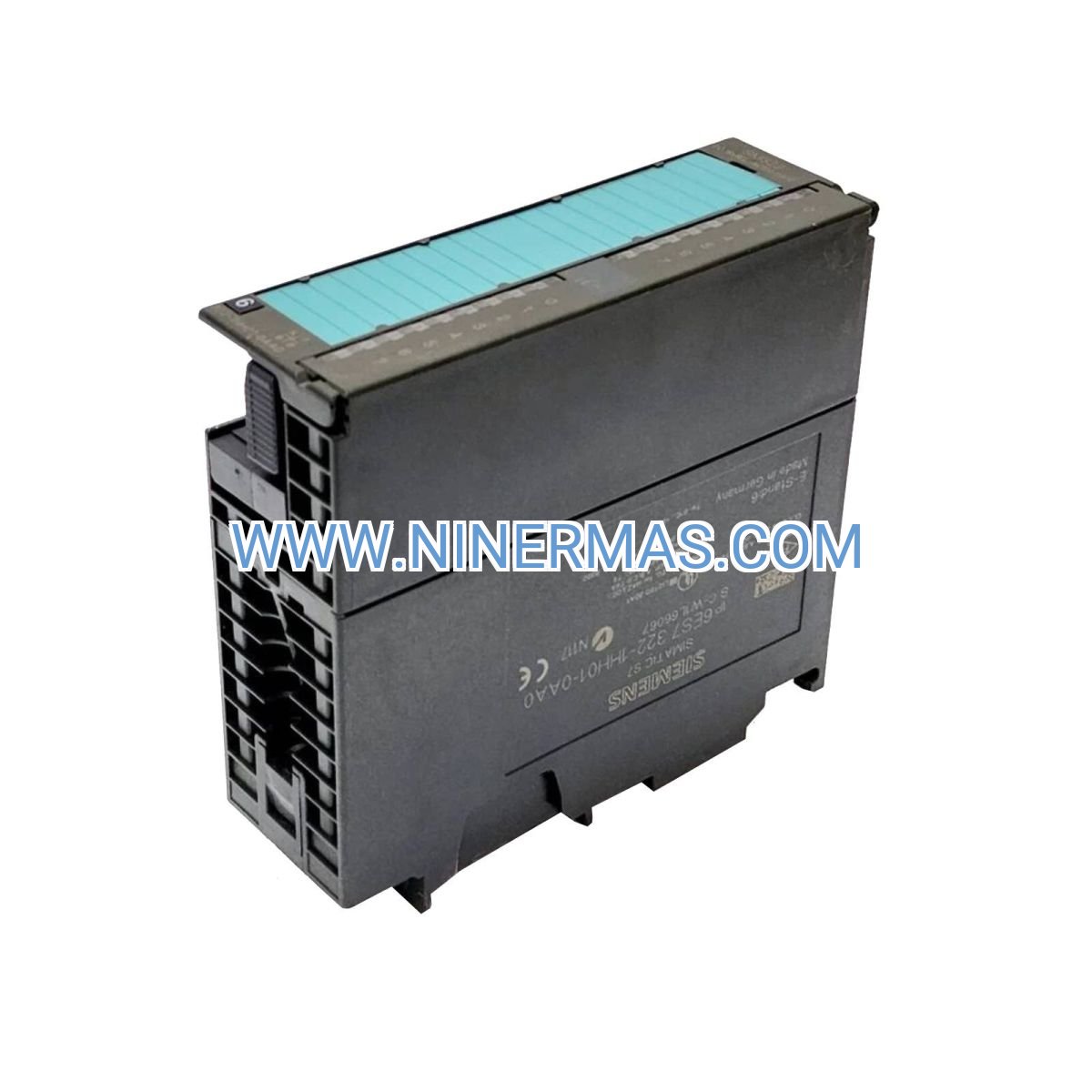

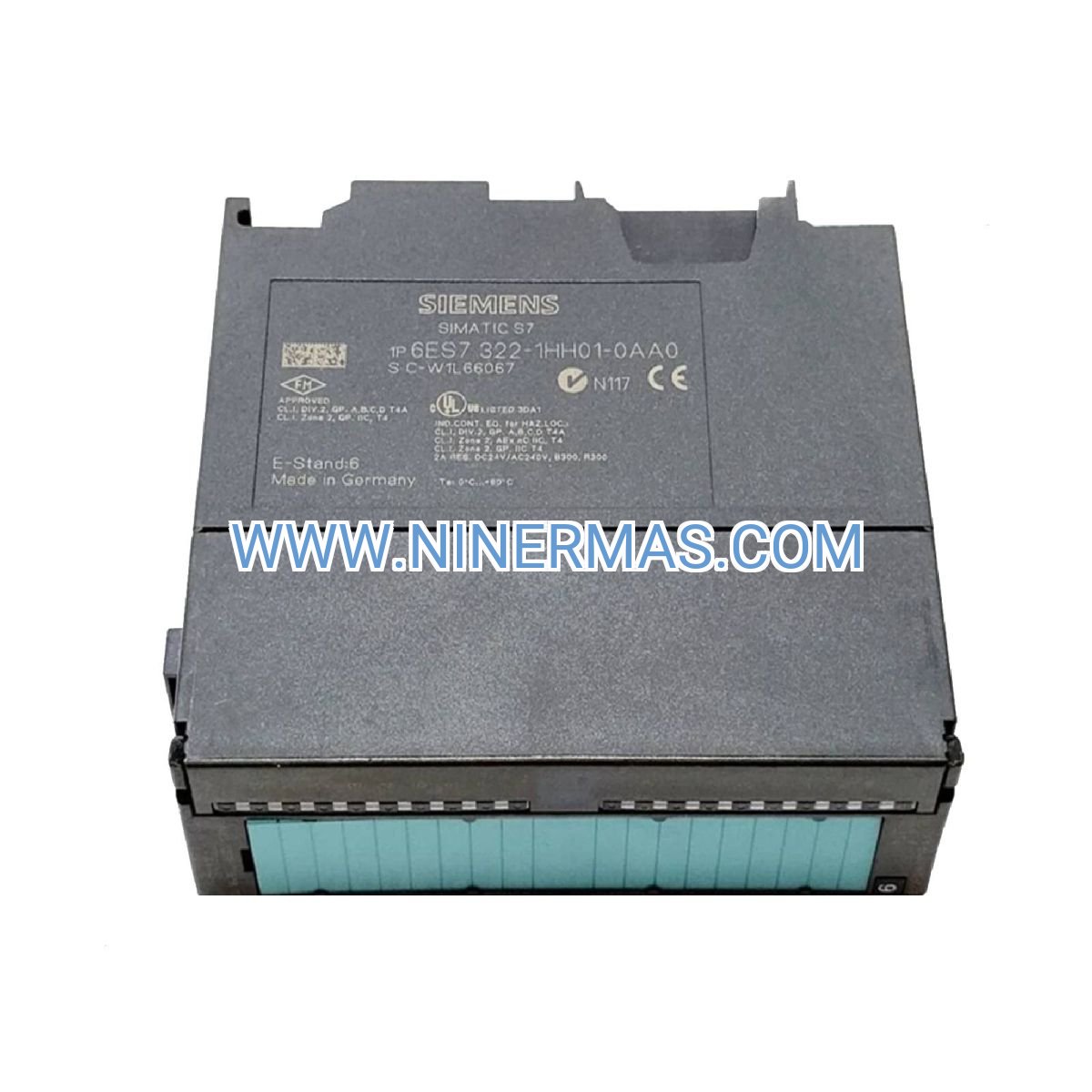

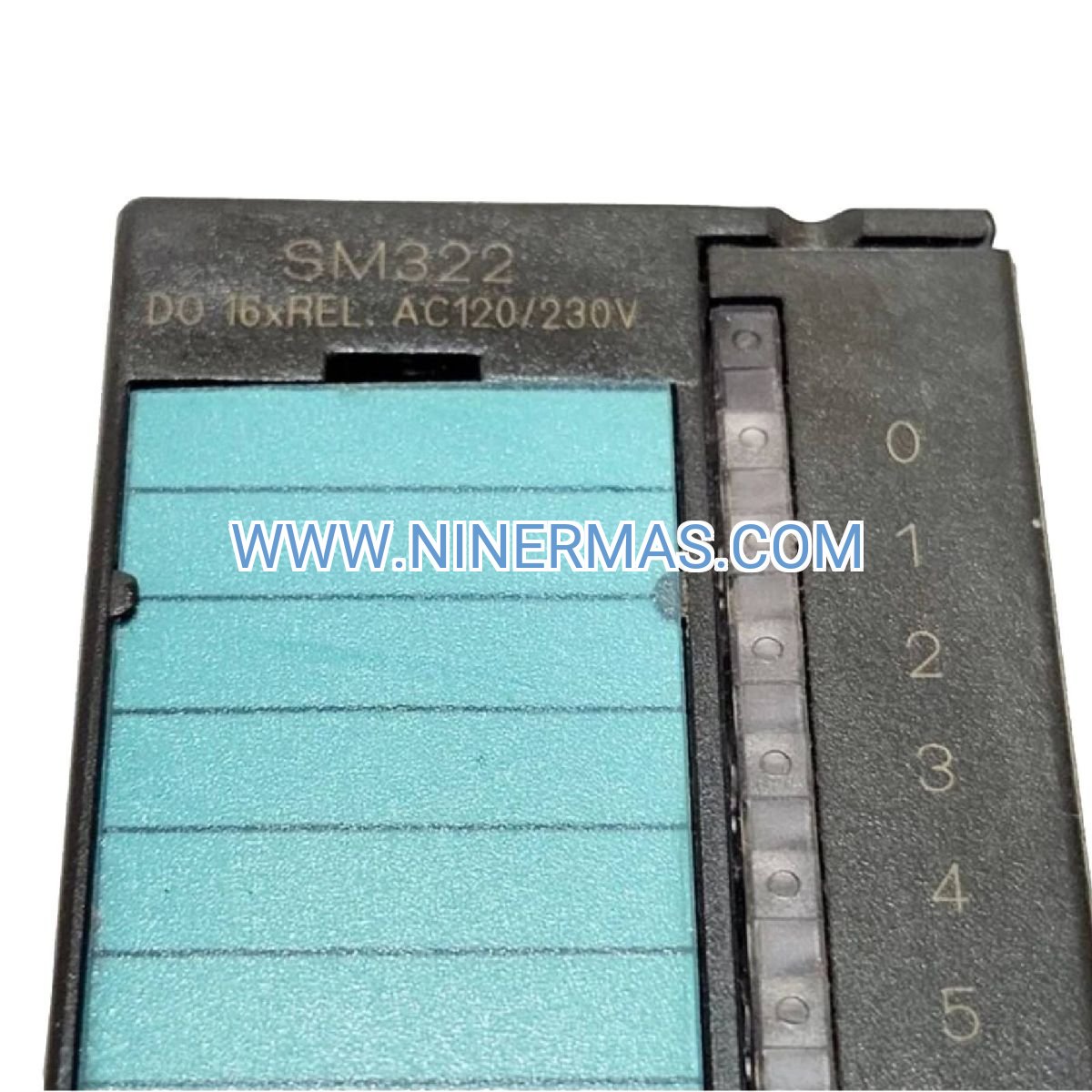

Siemens SM 322 Digital Output Module (Industrial-Grade Relay Control System)

The Siemens 6ES7322-1FH00-0AA0 SM 322 is a high-performance digital output module designed for industrial automation and process control applications. Through 16 independent relay outputs with 230V AC switching capability, it enables precise control of solenoid valves, contactors, indicator lights, and other field devices in demanding manufacturing environments.

Engineered for integration with Siemens S7-300 PLC systems, this module addresses critical challenges in industrial control scenarios including high-voltage switching requirements, electrical isolation needs, and multi-channel output management. It serves design engineers, system integrators, OEM manufacturers, and plant maintenance teams across energy, chemical processing, water treatment, and discrete manufacturing sectors.

Built on proven relay technology with comprehensive diagnostic capabilities, the SM 322 delivers reliable performance, simplified troubleshooting, and flexible configuration options. Whether you're upgrading legacy control systems or designing new automation solutions, this module provides the robust switching capacity and electrical isolation essential for industrial-grade applications. Contact our engineering team for application-specific selection guidance and technical documentation.

Core Features & Technical Advantages

• 16 Independent Relay Outputs
  Each channel provides galvanic isolation with 230V AC / 1A switching capacity, enabling direct control of high-voltage loads such as motor starters, solenoid valves, and industrial lighting without additional interface relays.
• Robust Electrical Isolation
  Relay-based design ensures complete electrical separation between control logic and field circuits, protecting sensitive PLC components from voltage spikes, ground loops, and electromagnetic interference in harsh industrial environments.
• Comprehensive Diagnostic Functions
  Built-in status LEDs and diagnostic bits provide real-time visibility into channel status, wire-break detection, and fault conditions, reducing troubleshooting time and minimizing unplanned downtime.
• Flexible Output Configuration
  Supports both normally-open (NO) and common terminal configurations, allowing adaptation to diverse wiring schemes and compatibility with existing control panel designs without extensive modifications.
• Hot-Swappable Design
  Front-connector technology enables module replacement during operation without disturbing field wiring, significantly reducing maintenance windows and improving system availability in continuous-process applications.
• Wide Operating Temperature Range
  Rated for -25°C to +60°C ambient conditions with conformal coating options, ensuring reliable operation in extreme environments including outdoor installations, foundries, and refrigerated facilities.

Typical Application Scenarios

The SM 322 module excels in applications requiring high-voltage switching, electrical isolation, and multi-channel output control, particularly in:

• Process Automation & Chemical Plants
  Controls pneumatic valves, process pumps, and mixing equipment in batch processing systems. Relay isolation protects control systems from hazardous-area voltage transients while meeting intrinsic safety requirements when paired with appropriate barriers.
• Water & Wastewater Treatment
  Manages pump stations, valve actuators, and chemical dosing systems in municipal and industrial water facilities. High switching capacity handles inductive loads from submersible pumps and motorized valve operators without external contactors.
• Building Automation & HVAC Systems
  Operates damper actuators, fan contactors, and heating elements in commercial building management systems. Relay outputs provide the voltage/current ratings needed for direct control of HVAC equipment without intermediate relays.
• Manufacturing & Assembly Lines
  Drives conveyor motors, pneumatic cylinders, and safety interlocks in automated production equipment. Diagnostic capabilities enable predictive maintenance by detecting coil degradation and contact wear before failures occur.
• Energy & Power Distribution
  Controls circuit breakers, transfer switches, and alarm annunciators in substations and power generation facilities. Electrical isolation meets utility industry standards for control-to-power circuit separation.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, the SM 322 module offers the following standardized specifications. Custom configurations are available for specialized applications requiring modified voltage ratings or environmental protection levels.

Selection Recommendations: When specifying this module, consider maximum simultaneous output activation (affects backplane current draw), inductive load characteristics (may require external suppression), ambient temperature extremes (derating may apply above 55°C), and required electrical certifications (UL, CE, ATEX for hazardous locations). For assistance with load calculations or system integration, provide your application requirements including load types, switching frequency, and environmental conditions to our engineering team.

Advanced Integration Capabilities

• STEP 7 Programming Integration: Fully supported in TIA Portal and STEP 7 Classic with pre-configured hardware catalogs, reducing commissioning time and ensuring parameter consistency across projects.
• Distributed I/O Compatibility: Can be deployed in centralized S7-300 racks or distributed ET 200M configurations via PROFIBUS DP, enabling flexible system architectures that minimize field wiring costs.
• Redundancy Support: Compatible with S7-300 redundant controller configurations (H-systems) for high-availability applications requiring fault-tolerant output control in critical processes.
• Third-Party System Integration: Relay outputs provide universal compatibility with non-Siemens equipment, facilitating brownfield upgrades and multi-vendor system integration without protocol conversion.

Delivery, Documentation & Technical Support

Lead Time: Factory-new units typically ship within 3-5 business days from stock. Custom configurations or large-volume orders may require 2-3 weeks – contact us for expedited options.

Warranty & Support: All modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and advance-replacement options are available for critical applications.

Technical Documentation Package: Each shipment includes complete data sheets, wiring diagrams, dimensional drawings, and STEP 7 GSD files. CAD models (EPLAN, AutoCAD) and 3D STEP files are available upon request for panel design integration.

Installation & Commissioning Assistance: Remote technical support is provided at no charge for configuration questions and troubleshooting. On-site startup assistance and training services are available regionally – inquire for coverage in your area.

Compliance & Certifications: CE marked, UL/cUL listed, and RoHS compliant. Hazardous location certifications (ATEX, IECEx) available for specific model variants – specify requirements at time of order.

Frequently Asked Questions (FAQ)

Q: How does the SM 322 relay output module integrate with existing S7-300 PLC systems?
A: The module installs directly onto standard S7-300 mounting rails and connects via the backplane bus connector. Configuration is performed in STEP 7 software by adding the module to your hardware configuration at the appropriate slot address. No special interface cards or external power supplies are required – the module draws operating power from the S7-300 rack power supply.

Q: What is the maximum number of outputs that can be activated simultaneously?
A: All 16 outputs can be energized concurrently, but total current draw from the backplane must not exceed the S7-300 power supply capacity. Each relay coil consumes approximately 90mA from the 5V bus. Verify your power supply has sufficient reserve capacity, especially in fully-populated racks with multiple I/O modules.

Q: Can this module control inductive loads like solenoid valves and motor contactors?
A: Yes, the relay contacts are rated for inductive loads, but external suppression (RC snubbers or varistors) is recommended for highly inductive loads to maximize contact life. For DC inductive loads, use freewheeling diodes. Consult the technical manual for specific suppression circuit recommendations based on your load characteristics.

Q: What environmental protection rating does the module provide?
A: The standard module is IP20 rated, suitable for installation in control cabinets or electrical enclosures. For higher protection requirements (IP54, IP65), install the module in appropriately rated enclosures. Conformal-coated versions are available for corrosive or high-humidity environments – specify at time of order.

Q: Does the module support remote monitoring and diagnostics?
A: Yes, diagnostic information is accessible via STEP 7 programming software and can be integrated into SCADA/HMI systems through standard PLC communication protocols (PROFIBUS, PROFINET, Ethernet). Status bits indicate individual channel states, group faults, and module-level diagnostics for predictive maintenance programs.

Q: Is the module hot-swappable, and can it be replaced without shutting down the entire system?
A: The SM 322 supports hot-swap capability when used with front connectors. The PLC can remain in RUN mode during module replacement, though the affected outputs will be de-energized during the swap. Ensure proper safety procedures are followed and that controlled equipment can tolerate brief output interruptions.

Request Technical Consultation & Quotation

For detailed application engineering support, custom configuration assistance, or volume pricing, please provide the following information to our technical sales team:

• Project name and application overview
• Number of output channels required and load specifications (voltage, current, inductive/resistive)
• Operating environment conditions (temperature range, humidity, vibration)
• Existing PLC system details (S7-300 CPU model, rack configuration, communication protocols)
• Required certifications (UL, CE, ATEX, marine, railway)
• Delivery timeline and installation location

Our application engineers will provide one-on-one selection guidance, system integration recommendations, and competitive quotations tailored to your specific requirements.
