Siemens 6ES7322-1BL00-0AA0 | 32-Channel Digital Output Module | S7-300 SM 322 Series

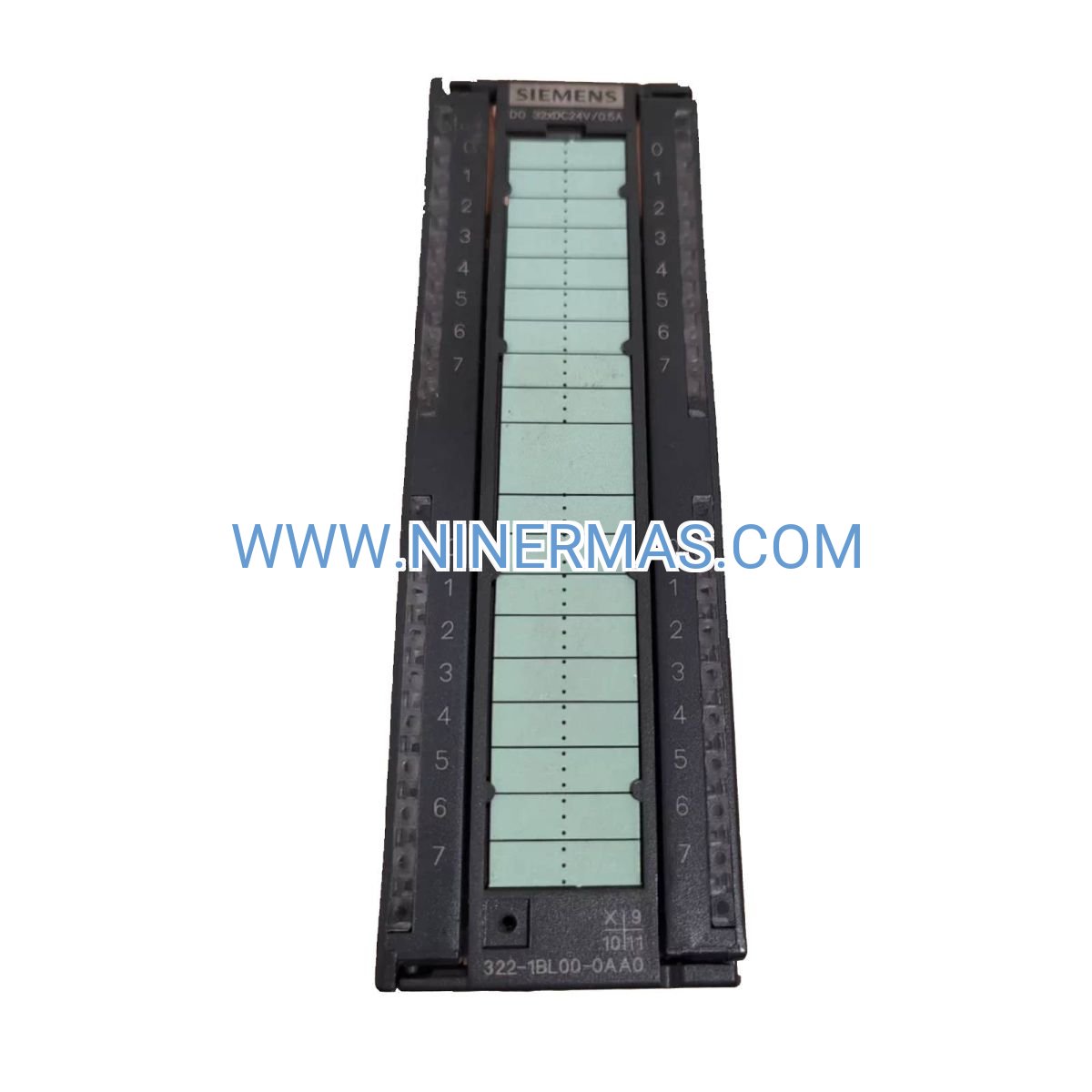

Siemens 6ES7322-1BL00-0AA0 SM 322 Digital Output Module (Industrial-Grade 32-Channel Control Solution)

The Siemens 6ES7322-1BL00-0AA0 SM 322 is a high-performance digital output module designed for SIMATIC S7-300 PLC systems, delivering precise 24V DC signal control across 32 independent channels. Through advanced solid-state switching technology and integrated diagnostics, this module enables reliable actuation of solenoid valves, contactors, indicator lights, and other industrial field devices with 0.5A output capacity per channel.

Ideal for manufacturing automation, process control systems, material handling equipment, and building automation applications where multiple discrete outputs are required. This module addresses common challenges including limited I/O expansion capacity, signal interference in harsh environments, complex wiring requirements, and the need for real-time diagnostic feedback to minimize unplanned downtime.

Featuring standardized S7-300 mounting and configuration alongside customizable channel grouping options, the SM 322 module offers short-circuit protection, overload safeguards, thermal monitoring, and hot-swap capability. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams seeking proven Siemens quality. Contact our application engineers for configuration assistance, technical drawings, and project-specific quotations.

Core Features & Technical Advantages

• High-Density 32-Channel Architecture
  Provides 32 independent digital outputs in a compact single-slot module, maximizing control density while reducing cabinet space requirements and simplifying system layout for complex automation projects.
• Robust 24V DC Output with 0.5A Drive Capability
  Each channel delivers reliable 24V DC switching at 0.5A continuous current, suitable for driving standard industrial loads including pilot relays, LED indicators, small solenoid valves, and signaling devices with excellent noise immunity.
• Integrated Diagnostic & Protection Functions
  Built-in short-circuit detection, overload protection, and channel-level diagnostics enable rapid fault identification through PLC programming, reducing troubleshooting time and preventing cascading system failures in critical applications.
• Seamless S7-300 System Integration
  Direct mounting on S7-300 standard rail with automatic backplane communication, supporting TIA Portal and STEP 7 programming environments for streamlined configuration, commissioning, and lifecycle maintenance across multi-vendor installations.
• Industrial-Grade Environmental Resilience
  Operates reliably in -25°C to +60°C ambient temperatures with IP20 protection rating, designed to withstand electrical noise, vibration, and humidity typical of factory floors, process plants, and outdoor control enclosures.
• Flexible Channel Grouping & Isolation
  Supports configurable channel groups with common reference potential, allowing mixed-voltage applications and simplified wiring while maintaining electrical isolation between groups to prevent ground loop interference.

Typical Application Scenarios

This module excels in applications demanding high output density, diagnostic transparency, and long-term reliability, particularly in:

• Automated Manufacturing & Assembly Lines
  Controls pneumatic actuators, conveyor motors, part ejectors, and status indicators across multi-station production equipment, enabling synchronized operation and real-time status feedback for automotive, electronics, and packaging industries.
• Process Control & Chemical Plants
  Actuates motorized valves, pump starters, alarm annunciators, and safety interlocks in batch processing, mixing systems, and fluid handling applications where fail-safe operation and audit trail logging are mandatory compliance requirements.
• Building Automation & HVAC Systems
  Manages damper actuators, fan contactors, lighting circuits, and access control devices in commercial buildings, data centers, and cleanroom facilities requiring centralized control with energy monitoring and scheduled operation profiles.
• Material Handling & Warehouse Logistics
  Drives sortation gates, diverter arms, barcode scanner triggers, and conveyor zone controls in distribution centers and logistics hubs where high-speed switching and minimal maintenance downtime directly impact operational throughput.
• Water Treatment & Municipal Infrastructure
  Operates chemical dosing pumps, valve actuators, level alarm outputs, and remote telemetry signals in water/wastewater treatment plants where rugged construction and long service intervals reduce total cost of ownership.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive technical parameters for the 6ES7322-1BL00-0AA0 module. Custom configurations and extended I/O solutions are available upon request.

Selection Recommendations: When specifying this module, consider total output load current (sum of all active channels should not exceed module rating), required diagnostic granularity (channel-level vs. group-level fault reporting), cabinet ambient temperature and ventilation, compatibility with existing S7-300 CPU and power supply models, and availability of spare I/O slots for future expansion. For applications requiring higher current per channel (>0.5A), relay output modules or external contactors should be evaluated. Our engineering team can review your I/O list, electrical schematics, and environmental conditions to recommend optimal module selection and quantity.

Extended Capabilities & System Integration

• TIA Portal & STEP 7 Programming Support
  Fully compatible with Siemens TIA Portal V13 and later, as well as STEP 7 V5.x classic environments, enabling drag-and-drop hardware configuration, symbolic addressing, and integrated diagnostics within your existing engineering workflow.
• PROFIBUS DP & PROFINET Communication
  Operates on S7-300 systems with PROFIBUS DP or PROFINET network interfaces, supporting distributed I/O architectures, remote diagnostics, and integration with SCADA/HMI platforms for centralized monitoring and control.
• Hot-Swap & Online Module Replacement
  Supports hot-swap capability (depending on CPU model and configuration), allowing module replacement during operation without system shutdown, critical for high-availability applications and minimizing production interruptions.
• Redundancy & Failover Configurations
  Can be deployed in redundant S7-300H systems for mission-critical applications requiring automatic failover, ensuring continuous output control even during controller or module faults in pharmaceutical, energy, and transportation sectors.

Delivery, Service & Quality Assurance

Stock Availability & Lead Time: Standard 6ES7322-1BL00-0AA0 modules are maintained in stock for immediate shipment. Custom-configured systems or bulk orders typically ship within 5–10 business days depending on quantity and destination.

Warranty & Support: All modules include a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Technical support includes remote configuration assistance, troubleshooting guidance, and access to firmware updates. On-site commissioning and training services are available for major projects (subject to location and scope).

Documentation Package: Each module ships with complete technical documentation including datasheet, wiring diagrams, GSD/GSDML files for network configuration, dimensional drawings for panel layout, and quick-start guide in English. CAD files and 3D models available upon request for mechanical design integration.

Quality Certifications: Manufactured to ISO 9001 quality standards with CE, UL, and cULus safety certifications. All units undergo factory acceptance testing (FAT) including functional verification, insulation resistance testing, and burn-in procedures to ensure field-ready reliability.

Frequently Asked Questions (FAQ)

Q: How do I connect the Siemens SM 322 digital output module to my existing S7-300 PLC system?
A: The SM 322 module mounts directly onto the S7-300 standard mounting rail and connects via the backplane bus connector. Ensure your CPU supports the required number of I/O addresses, verify 24V DC load power supply capacity, and configure the module in STEP 7 or TIA Portal using the hardware catalog. Detailed wiring diagrams showing terminal assignments and grounding requirements are provided in the installation manual.

Q: What is the maximum number of outputs I can control with one SM 322 module?
A: The 6ES7322-1BL00-0AA0 provides 32 independent digital outputs. For applications requiring more outputs, multiple SM 322 modules can be installed in adjacent slots (subject to CPU I/O capacity and power budget). Each S7-300 rack typically supports up to 8 modules depending on CPU model and configuration.

Q: Can this module drive high-current loads like motors or large solenoid valves?
A: Each output channel is rated for 0.5A continuous current at 24V DC, suitable for pilot relays, small solenoids, and indicator lights. For loads exceeding 0.5A (such as large contactors or motors), use the SM 322 output to drive an intermediate relay or contactor rated for the required load current. This approach also provides electrical isolation and protects the module from inductive kickback.

Q: What diagnostic features does the SM 322 module offer?
A: The module provides channel-level short-circuit and overload detection, accessible through PLC program diagnostics blocks. Status LEDs on the module front panel indicate power, communication, and fault conditions. Advanced diagnostics can be integrated with SCADA systems for alarm notification, historical logging, and predictive maintenance scheduling.

Q: Is the SM 322 module suitable for outdoor or harsh industrial environments?
A: The module is rated IP20 and designed for installation inside control cabinets or enclosures. It operates reliably in -25°C to +60°C ambient temperatures and withstands typical industrial electrical noise and vibration. For outdoor installations, ensure the enclosure provides adequate environmental protection (minimum IP54 recommended) and temperature control to maintain module operating conditions.

Q: Does the module support remote monitoring and data acquisition via industrial protocols?
A: Yes, when integrated with S7-300 CPUs equipped with PROFIBUS DP or PROFINET interfaces, output status and diagnostic data can be accessed remotely via OPC UA, Modbus TCP gateways, or Siemens cloud connectivity solutions. This enables integration with MES, ERP systems, and IoT platforms for real-time production monitoring and analytics.

Request Technical Support & Quotation

To receive detailed application guidance, custom configuration recommendations, or project quotations, please provide the following information to our engineering team:

• Project name and application description (industry, process, equipment type)
• Total number of digital outputs required and load specifications (voltage, current, type)
• Existing S7-300 CPU model and available I/O slots
• Environmental conditions (temperature range, enclosure type, hazardous area classification if applicable)
• Required delivery timeline and installation support needs
• Preferred communication protocol (PROFIBUS DP, PROFINET, or standalone)

Our application engineers will respond within 24 hours with tailored module selection, system architecture recommendations, and competitive pricing for your specific requirements.
